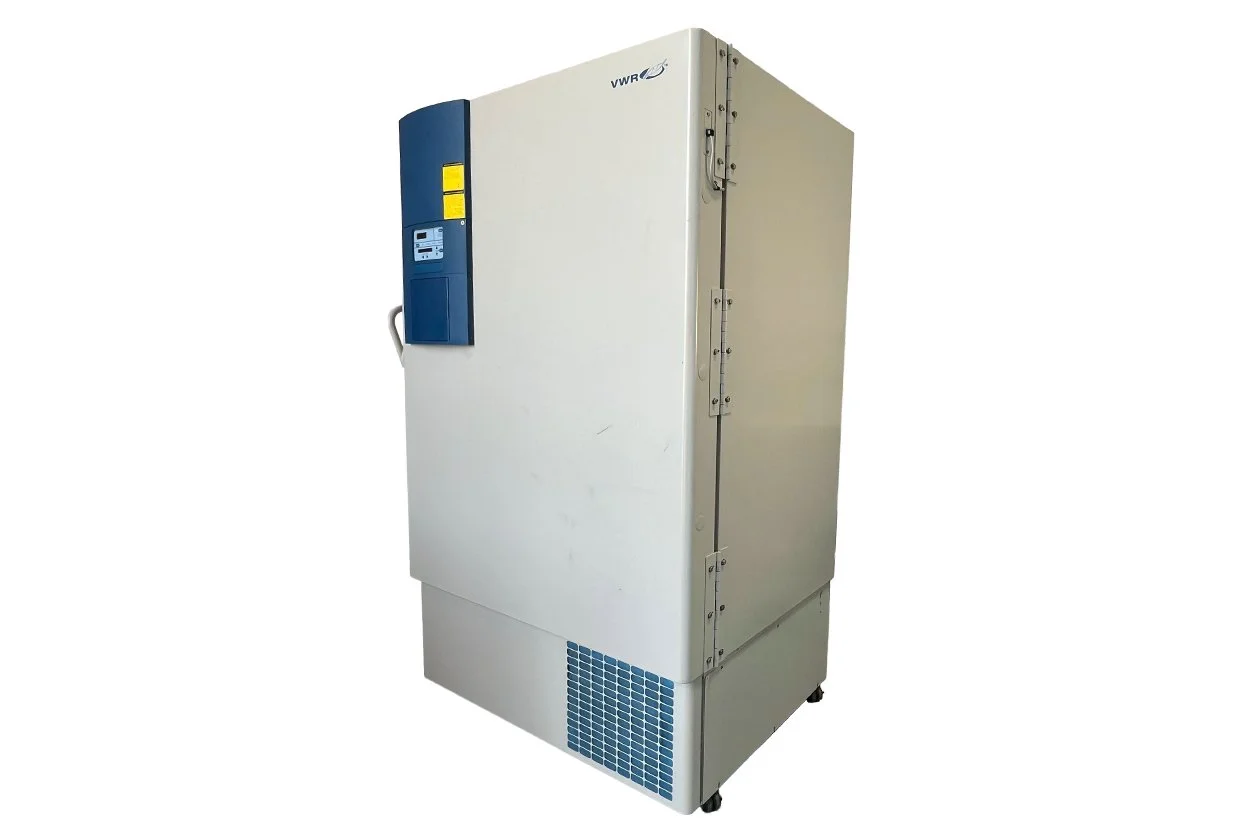

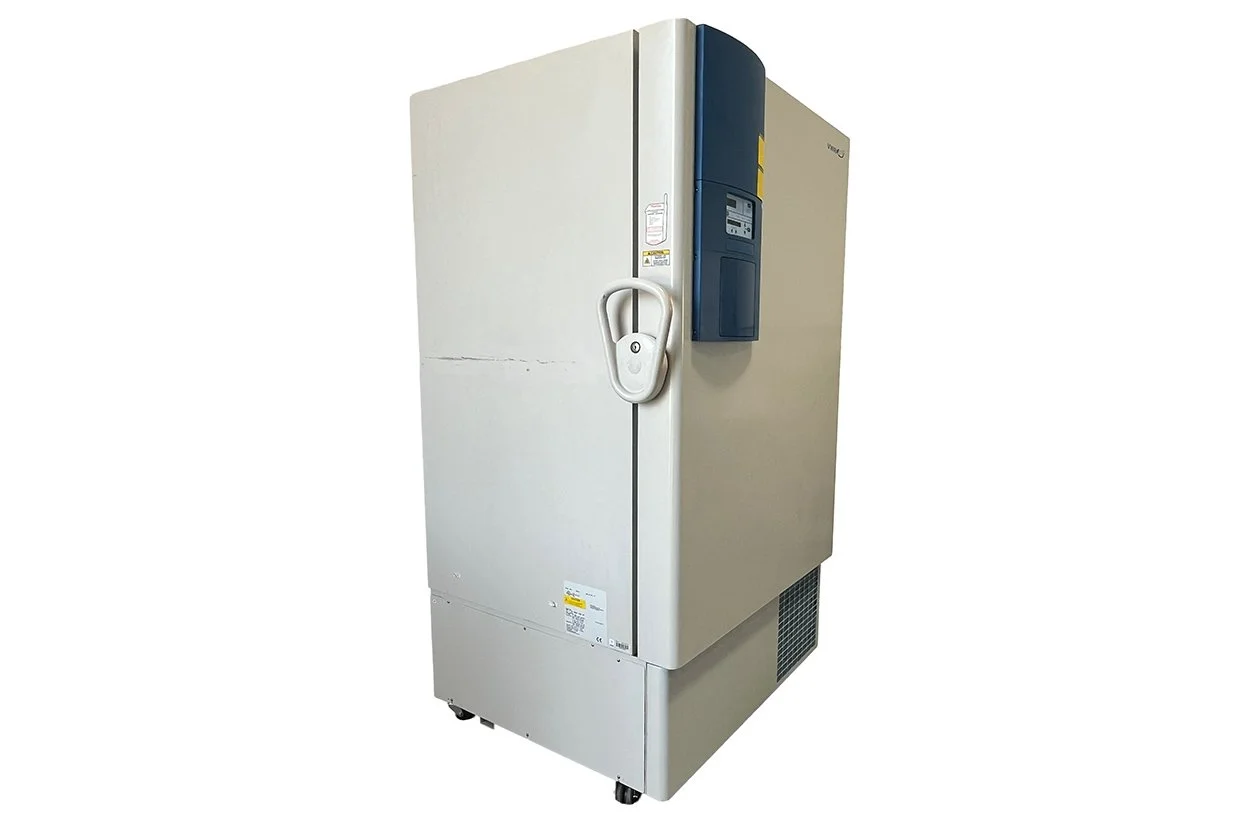

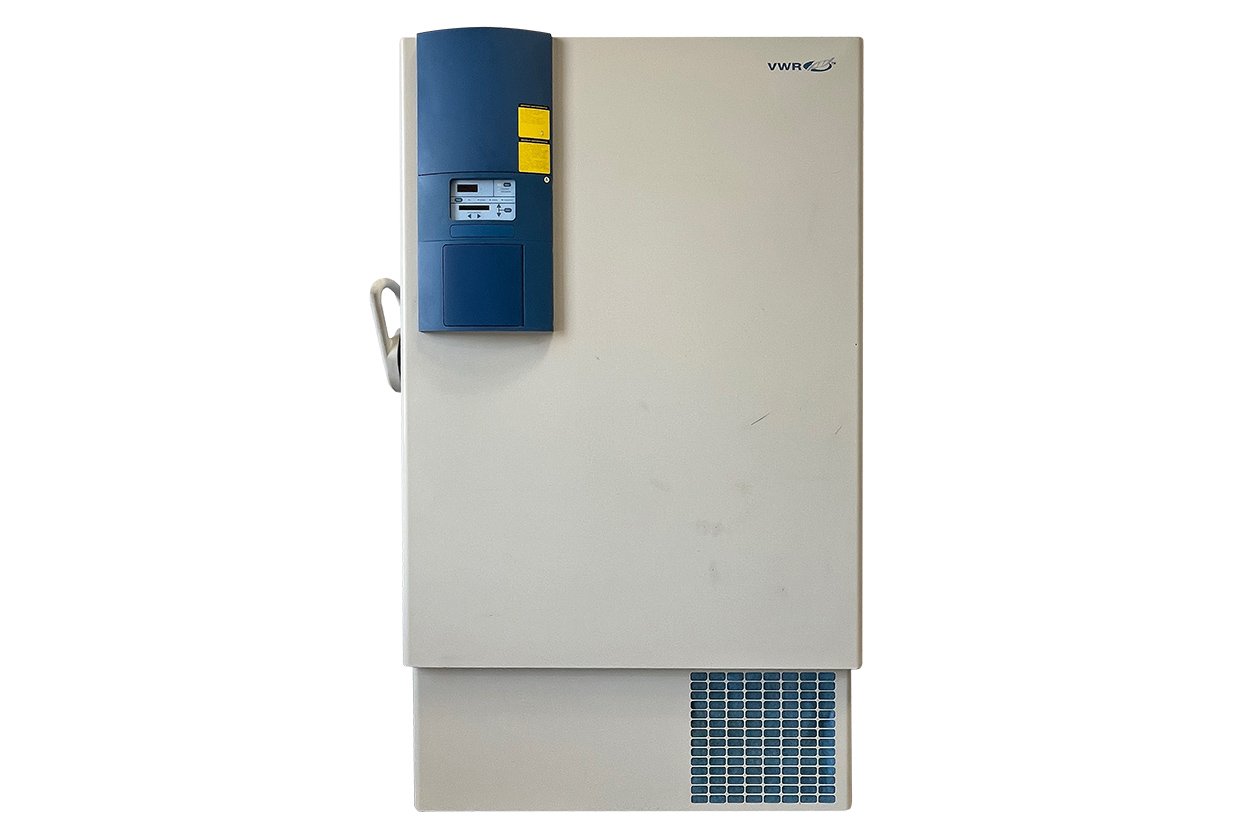

VWR 5607 Ultra-Low Temperature Upright Freezer – 28 Cu. Ft. / -86°C

The VWR Model 5607 Ultra-Low Temperature Upright Freezer is a high-capacity laboratory freezer designed for long-term storage of biological samples and other temperature-sensitive research materials. With a 28 cu. ft. (approximately 793 L) chamber and an operating temperature range down to -86°C, this unit is well suited for biotechnology, pharmaceutical, academic research, clinical, and biorepository environments.

The freezer utilizes a dual-stage cascade refrigeration system and features four individually insulated inner doors that help minimize cold-air loss during sample access. Three stainless steel shelves divide the chamber into four large storage compartments.

An integrated microprocessor controller provides digital temperature monitoring and system status information. Remote alarm connections, analog monitoring output, and serial communication capability allow integration with external laboratory monitoring systems.

This pre-owned unit has been tested by LabCycle Partners and verified to power on and operate properly. It presents in very good cosmetic condition, with an exceptionally clean interior and normal signs of previous laboratory use.

Includes all accessories shown in the photographs.

Features

• Ultra-low temperature capability down to -86°C

• Large 28 cu. ft. (approximately 793 L) capacity

• Dual-stage cascade refrigeration system

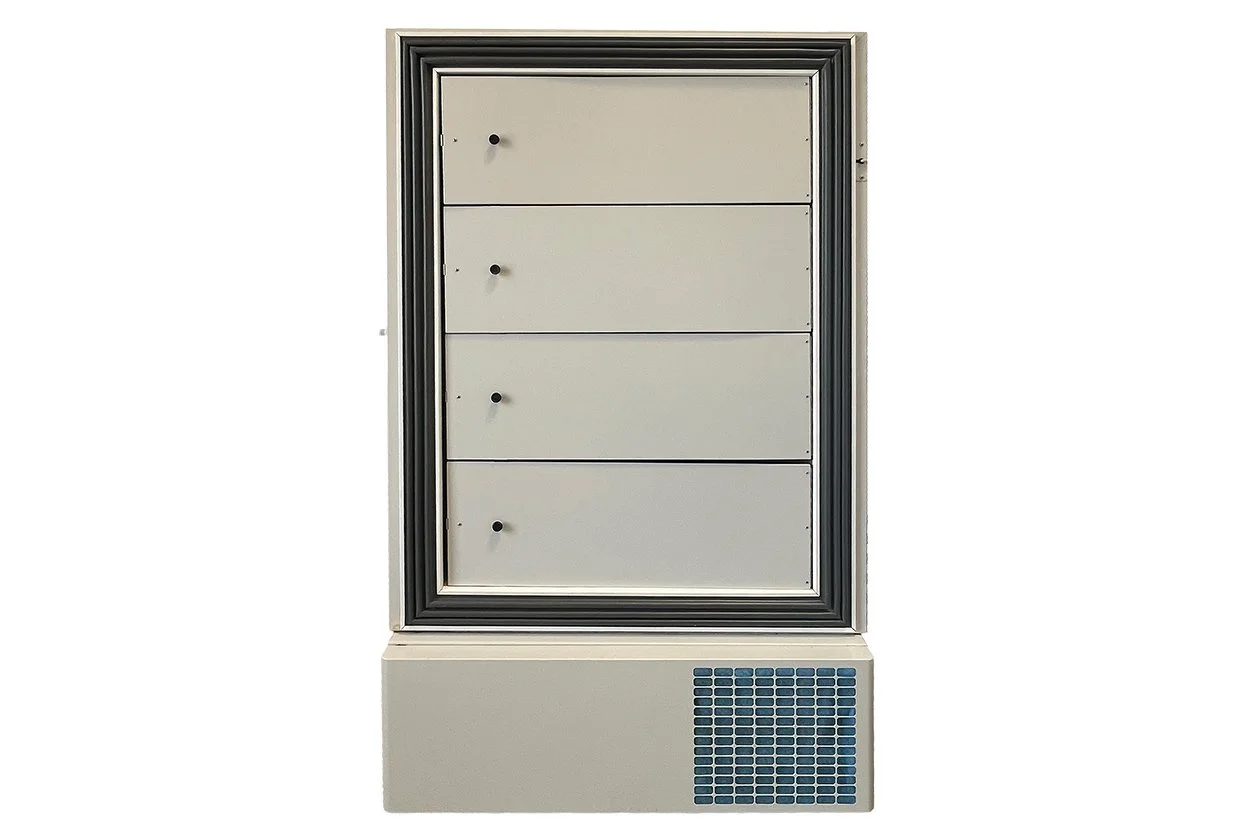

• Four individually insulated inner doors

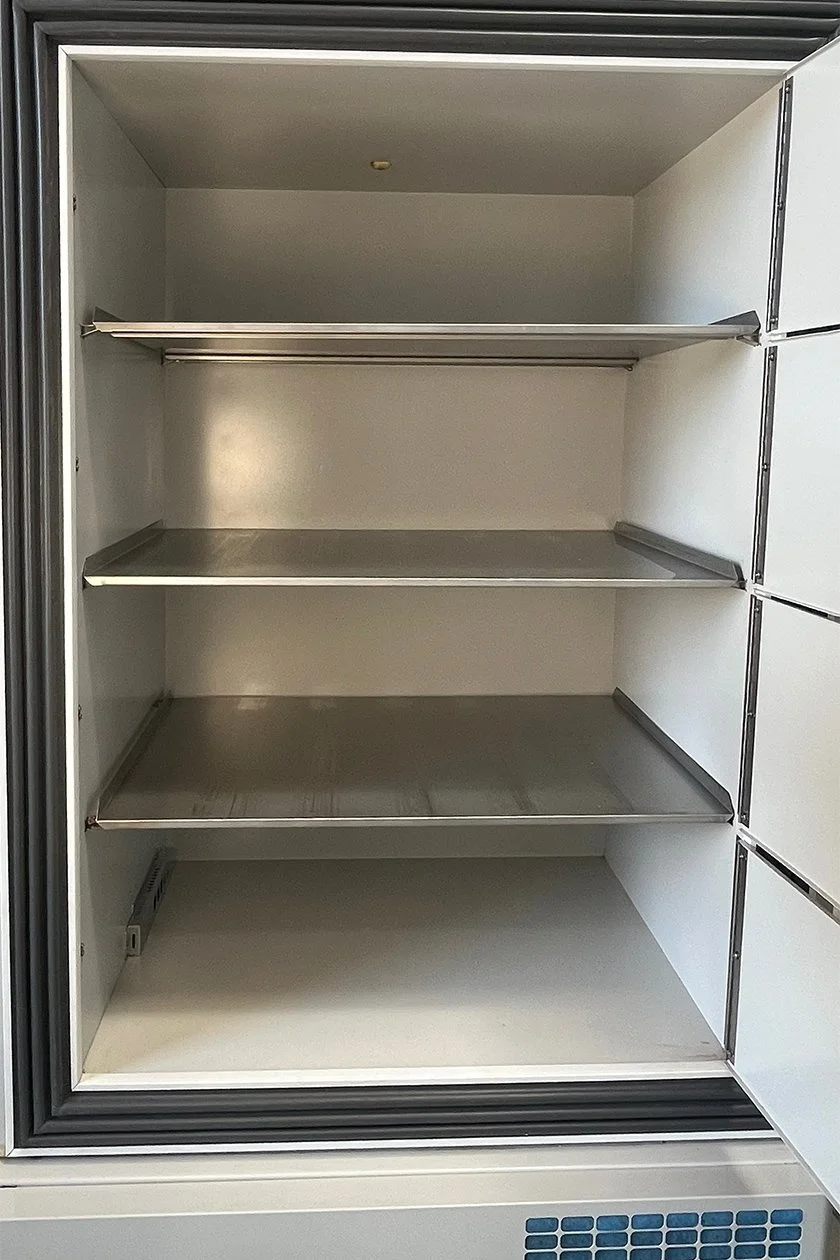

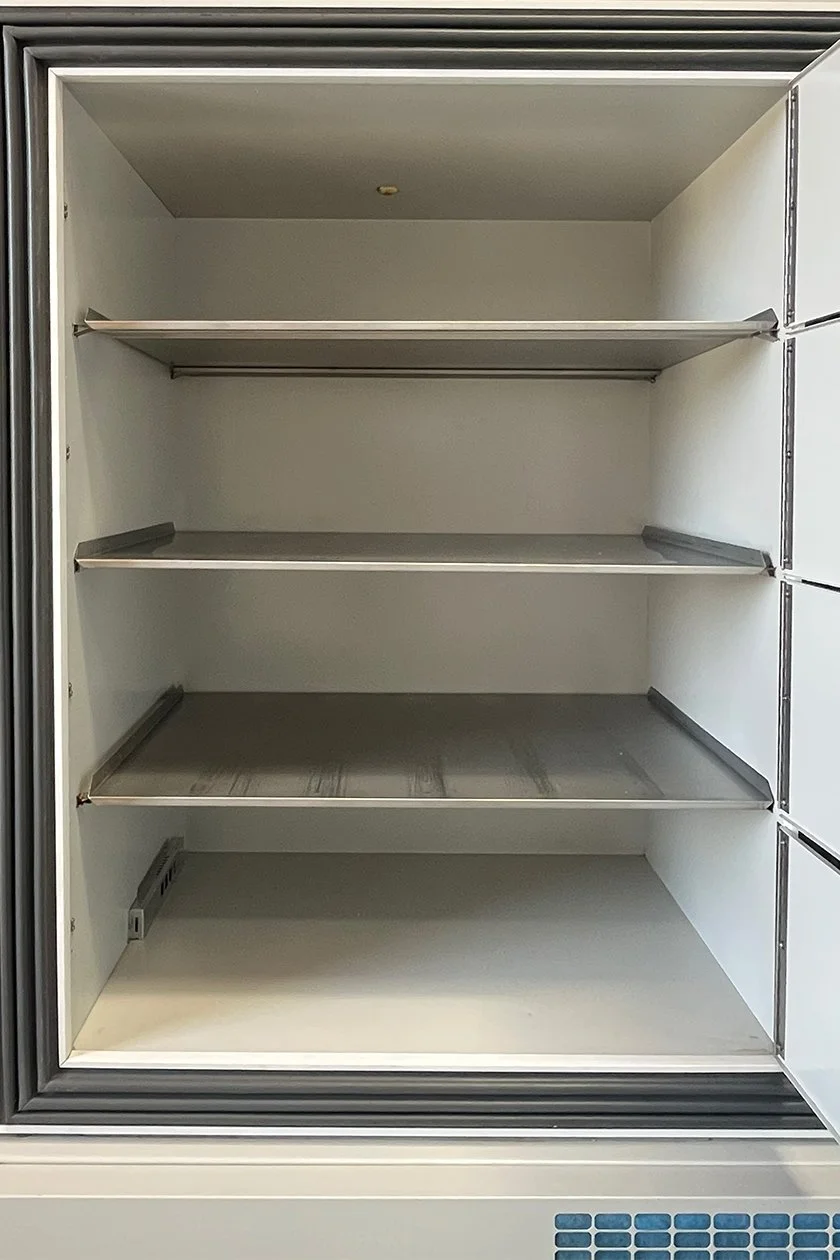

• Three stainless steel interior shelves

• Four large storage compartments

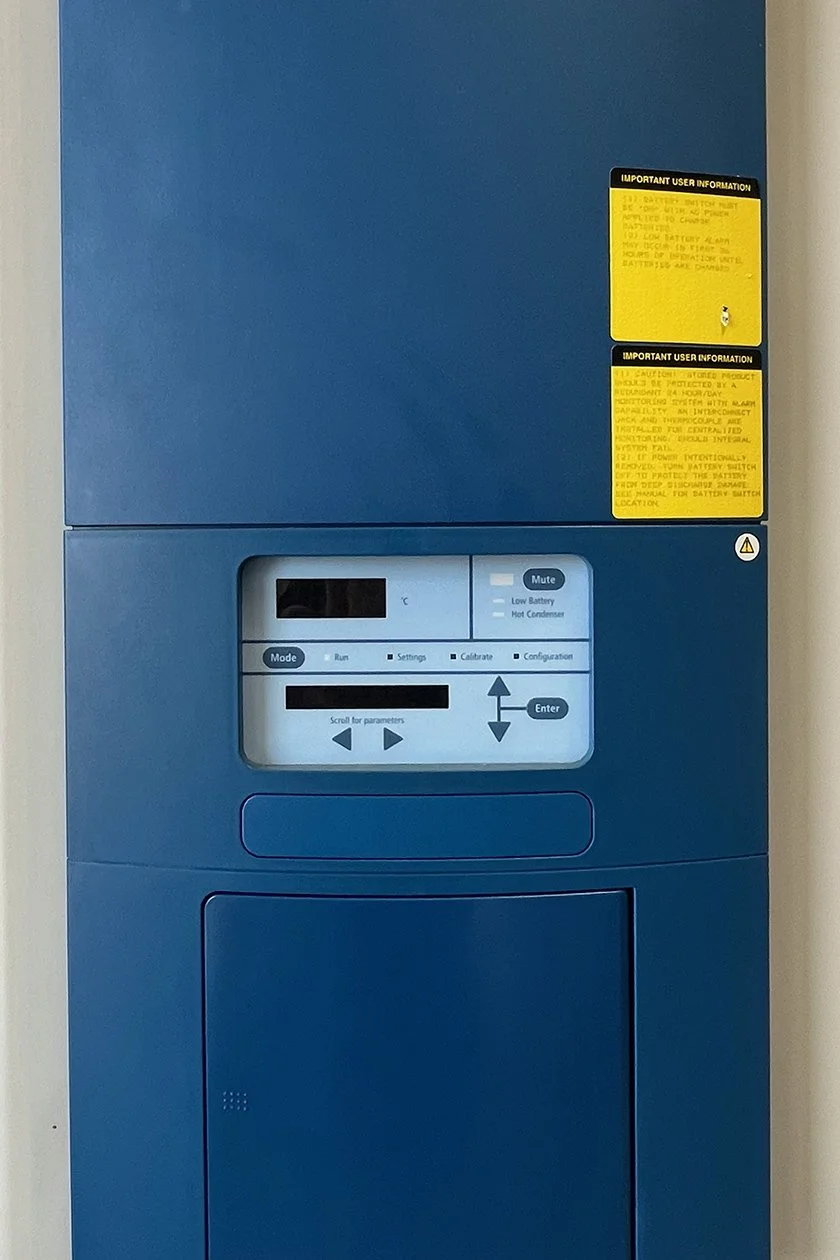

• Microprocessor temperature controller

• Digital temperature display

• High and low temperature alarms

• Power failure alarm

• Low battery and hot condenser indicators

• Remote alarm output

• Analog monitoring output

• Serial communication connection

• Integrated door lock

• Heavy-duty casters for mobility

Specifications

• Manufacturer: VWR

• Model: 5607

• Series: VWR 5600 Series

• Equipment Type: Ultra-Low Temperature Upright Freezer

• Capacity: 28 cu. ft. (approximately 793 L)

• Temperature Range: -50°C to -86°C

• Configuration: Upright

• Inner Doors: 4 insulated inner doors

• Shelves: 3 stainless steel shelves

• Refrigeration System: Dual-stage cascade

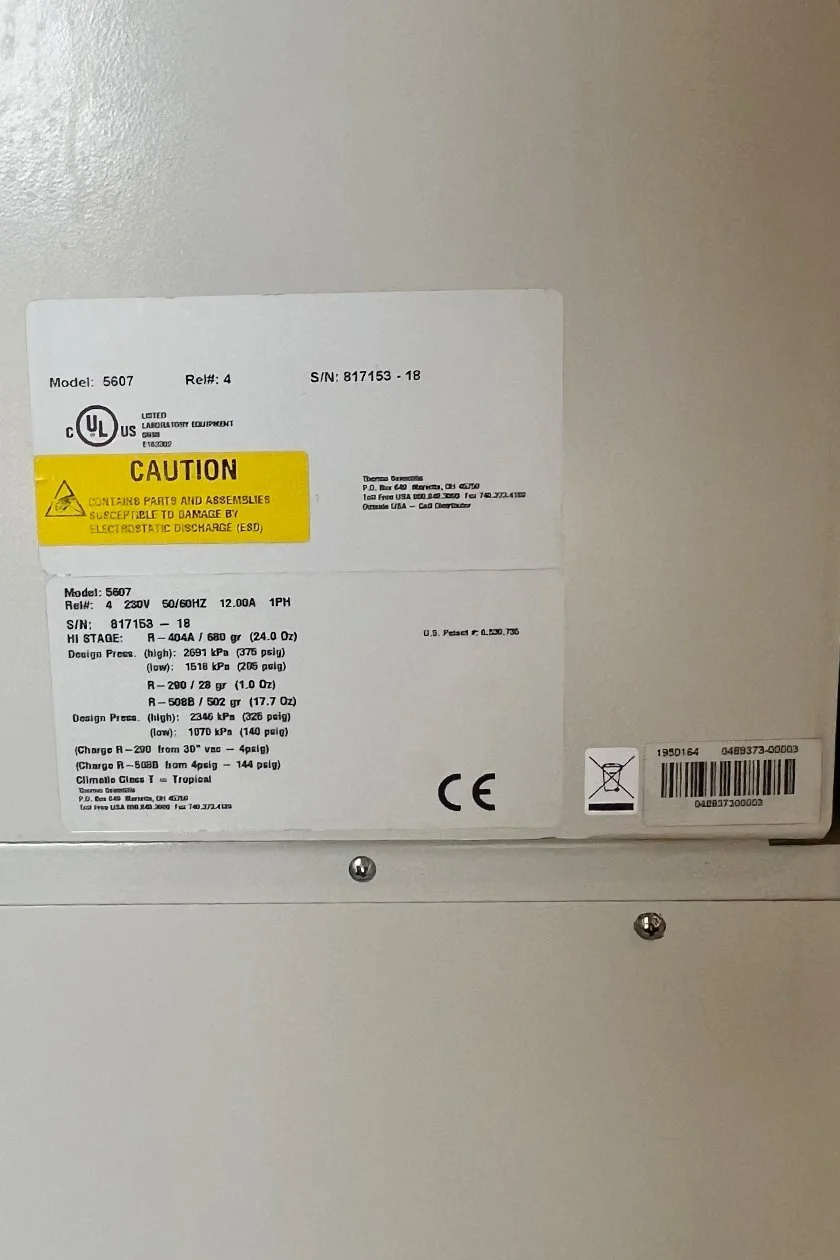

• High-Stage Refrigerant: R-404A, 680 g (24.0 oz)

• Low-Stage Refrigerant: R-508B, approximately 500 g (17.7 oz)

• Additional Refrigerant Listed: R-290, 28 g (1.0 oz)

• Controller: Microprocessor electronic temperature controller

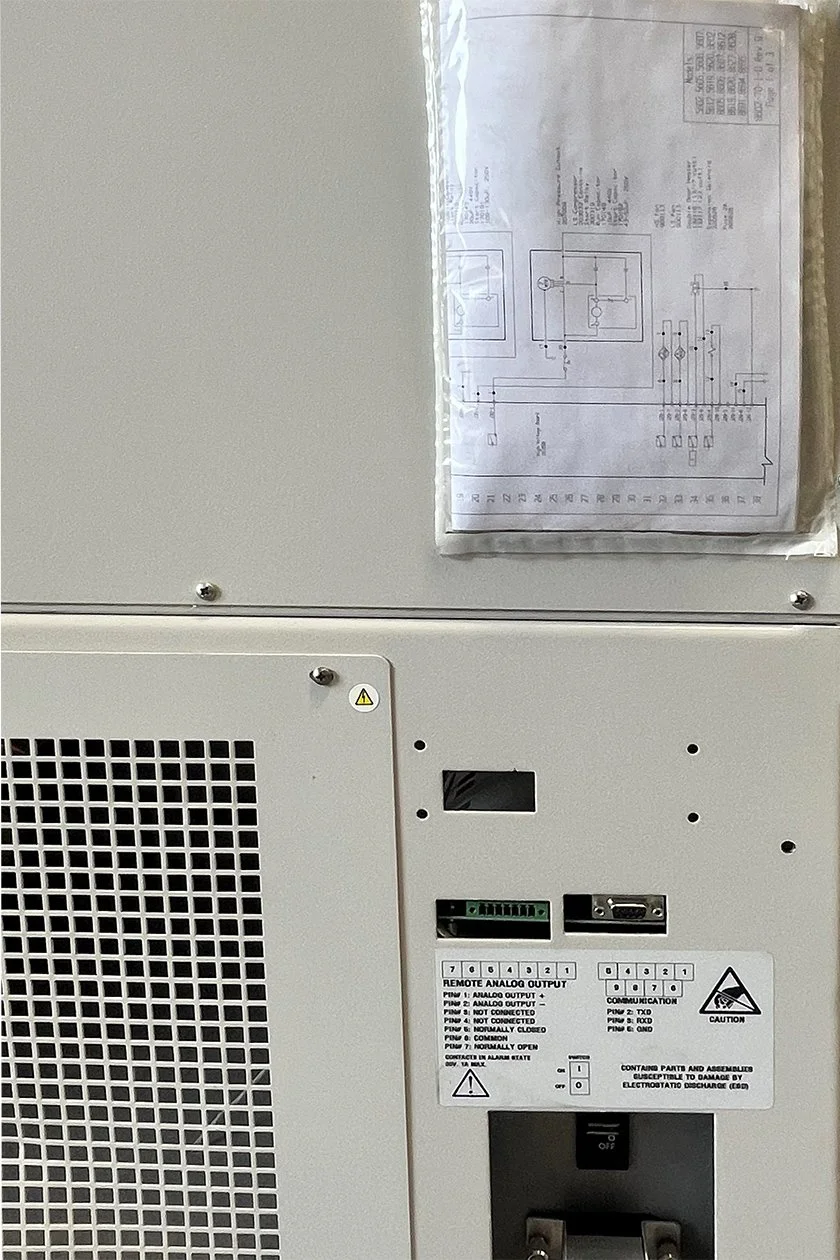

• Monitoring: Remote alarm output, analog output and serial communication

• Voltage: 230 VAC

• Frequency: 50/60 Hz

• Current: 12.0 A

• Phase: Single Phase

• Exterior Dimensions: Approximately 46.9 W × 78 H × 37 D in (119 × 198 × 94 cm)

• Interior Dimensions: Approximately 36.6 W × 51.6 H × 26 D in (93 × 131 × 66 cm)

• Shipping Weight: Approximately 980 lb (445 kg)

• Certifications: UL Listed / CE

Included

• VWR Model 5607 Ultra-Low Temperature Upright Freezer

• Four insulated inner doors

• Three stainless steel shelves

• Integrated casters

• Includes all accessories shown in the photographs.

Condition

Excellent pre-owned cosmetic condition with normal signs of previous laboratory use.

Tested by LabCycle Partners and verified to power on and operate properly. The electronic controller and display are functional, and the unit presents exceptionally well internally.

The interior, inner doors, shelving, exterior cabinet, handle, and door hardware are in very good pre-owned condition.

Calibration status and alarm battery condition are unknown. Temperature-sensitive applications should be independently verified and validated by the end user before use.

Please review all photographs carefully for the exact cosmetic condition and included components.

Shipping

This item requires freight shipping due to its size, weight, and sensitive components.

Freight shipping is available throughout the United States. Shipping costs are quoted separately based on destination and delivery requirements.

Local pickup is available in San Diego, California.

Please complete our Freight Shipping / Local Pickup Form before purchasing so we can determine the appropriate shipping arrangements and provide an accurate freight quote.
