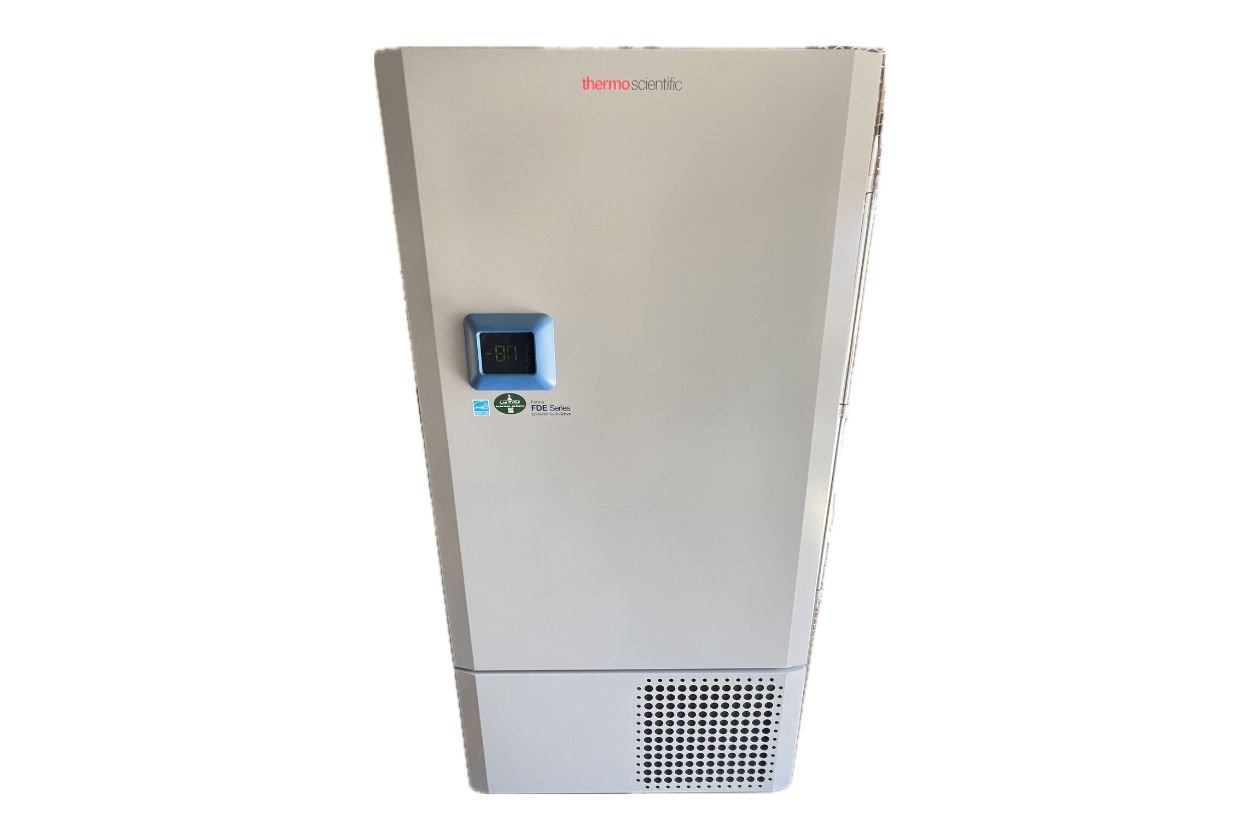

Thermo Scientific FDE60086EA - 2020 Ultra-Low Freezer

This -80 was purchased from a laboratory liquidation sale. Recently calibrated, it has been tested, works perfectly, and is in EXCELLENT condition. New this unit sells for $24,400.

Serial: 1120032701200617

The Thermo Scientific FDE60086EA is a 28.8 cu. ft. (816 L) upright Ultra-Low Temperature (ULT) freezer from the Forma FDE Series, designed for -86°C storage. It features H-drive hydrocarbon technology for energy efficiency, 600-box capacity, and four inner doors to minimize ambient exposure.

Listed as local pickup from San Diego warehouse. Contact us for a shipping quote!

Key Features and Specifications

• Capacity: 600 2-inch boxes (approx. 60,000 2mL vials).

• Temperature Range: -50°C to -86°C.

• Sustainability: Uses natural refrigerants, compliant with EPA SNAP and EU F-Gas standards.

• User Interface: 5.6-inch H-drive Information Center (HIC) with capacitive touch.

• Dimensions: Approximately 39.6" W x 37.6" D x 78" H.

• Security: Padlock-compatible doors and alarm settings.

From the manufacturer

Performance

• Powered by H-drive's hydrocarbon technology, these systems save up to  25%  in energy usage and heat rejection over conventional refrigerant ultra-low freezers1

• Designed for daily usage, recovers cabinet temperature 20% faster after opening the door.2

• A quiet sound output below 53 dBA, enables the freezer to come out of the hallway and into the lab

• Meets +/-10°C validation protocols at -80°C with strong peak variation and steady-state temperature variation

• Natural hydrocarbon refrigerants reduce system operating stresses promoting outstanding reliability and worry-free sample protection

User Friendly

• The H-drive Information Center (HIC) combines easy to read temperature with simple capacitive touch buttons in a 5.6” display

• Four capacities (300, 400, 500 and 600 2-inch box) to accommodate a variety of storage needs and lab footprint specifications

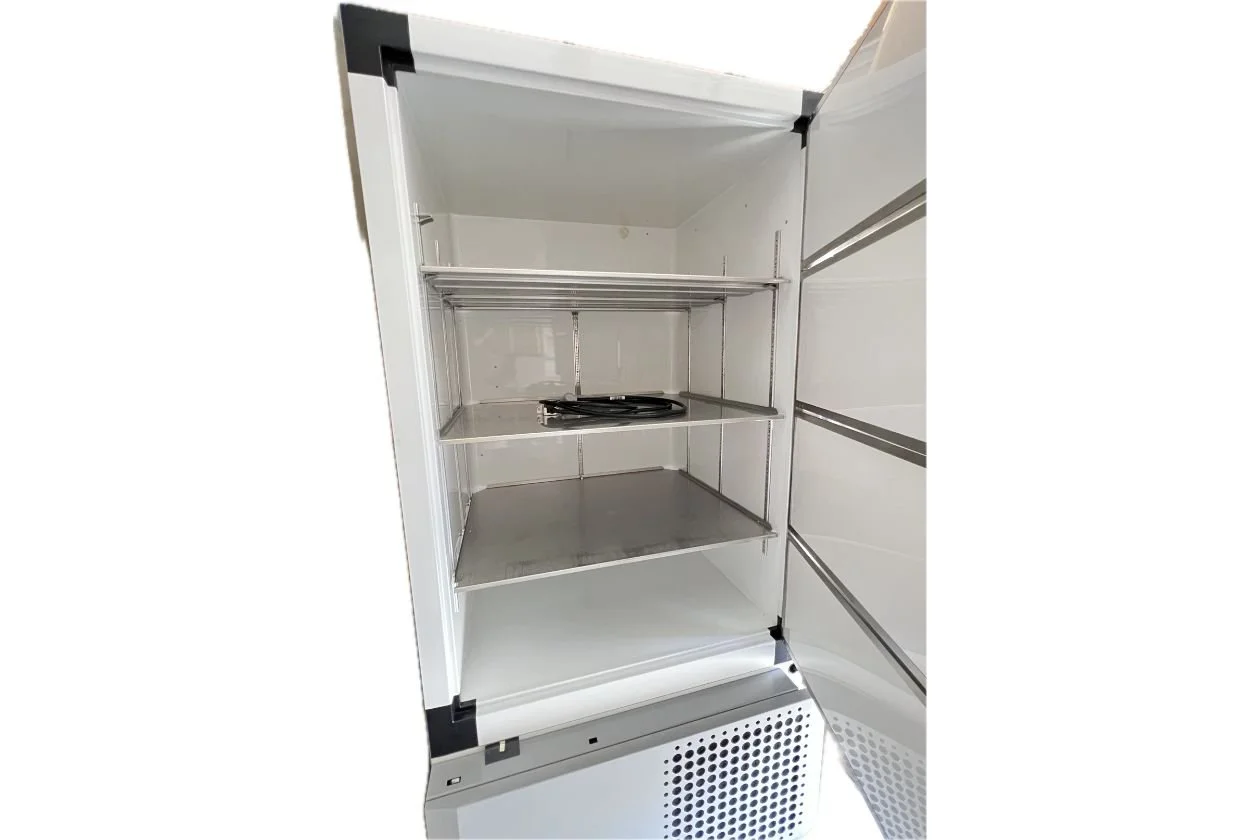

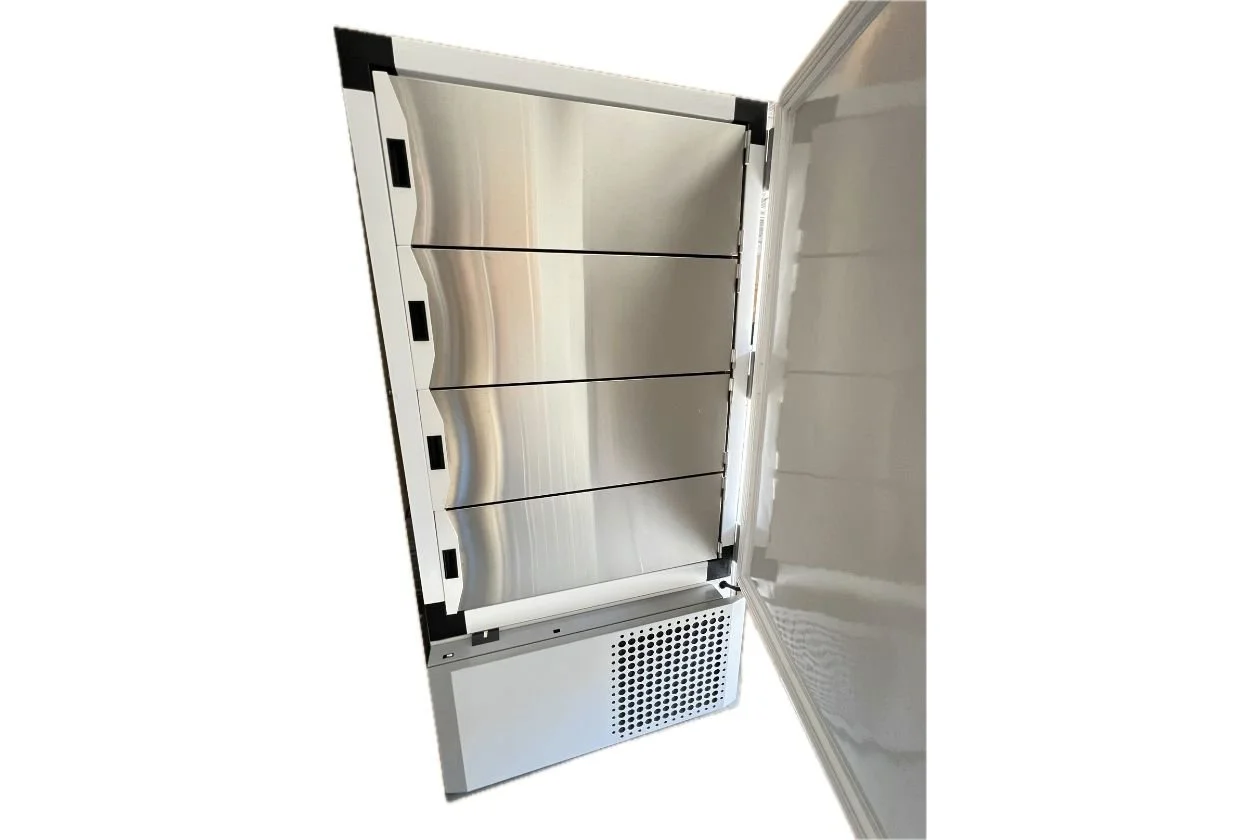

• All models contain five inner doors allowing for easy sample access without exposing greater freezer content to ambient conditions

• Improved customer convenience with new ergonomically designed handle, high contrast eye-level display, and comfortable easy-access shelf locations.

• Compatible with most racking systems including a full range of Thermo Scientific™ racks for boxes, microplates, Thermo Scientific™ Matrix™ and Nunc CryoBank™ tubes

• Security features including alarm settings and padlock-compatible doors

Sustainability

• Manufactured in an award-winning, zero-waste to landfill facility

• Lower HVAC costs as a result of less heat emission into the environment

• Natural refrigerants and water-blown foam insulation, making the Series compliant with the U.S. Environmental Protection Agency’s Significant New Alternatives Policy (SNAP), the European Union’s F-Gas and other sustainability standards

Footnotes:

1. Internal data comparing 11.2 kWh/day to UXF600 = 14.9 kWh/day. Data on file.

2. Typical freezer test data based on internal testing in ambient temperature at 20°C; Typical standard validation protocol of +/-10°C.
