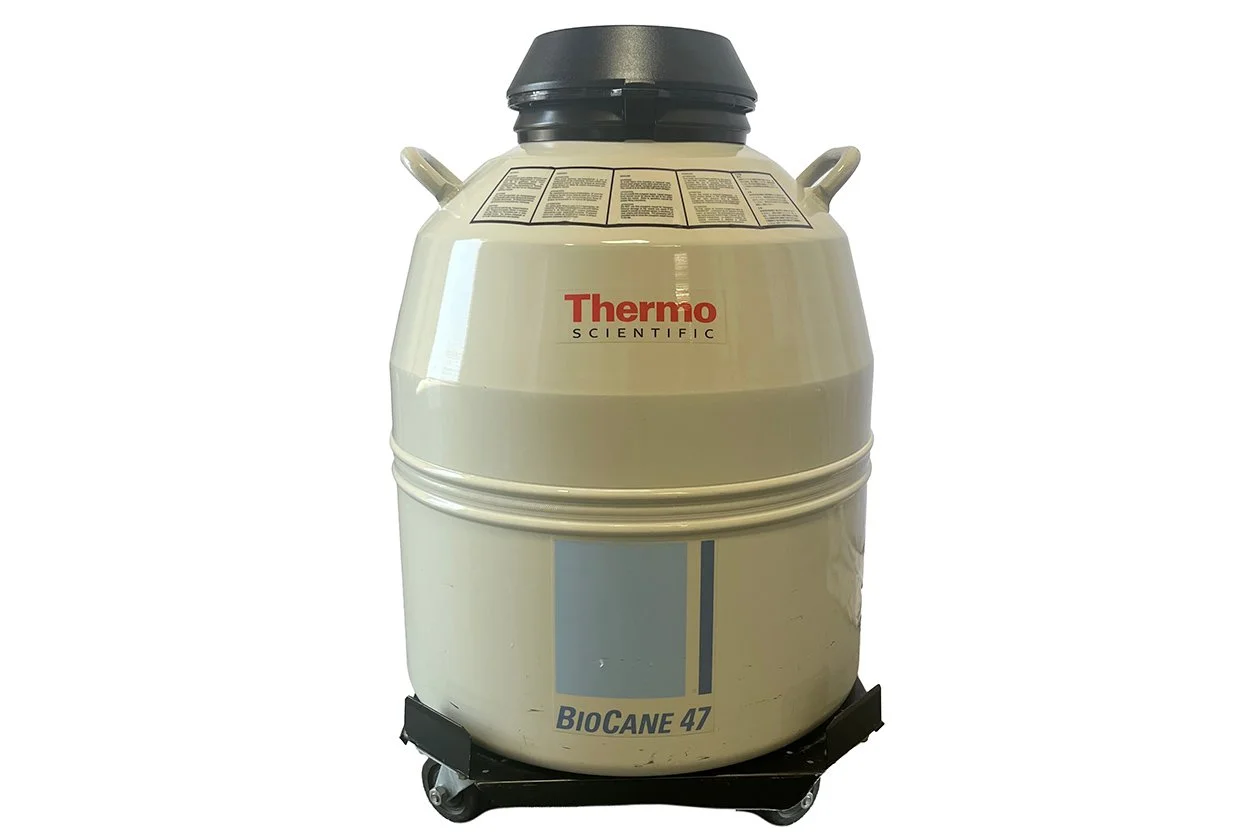

The Thermo Scientific BioCane 47 is a manual-fill cryogenic storage vessel designed for storing biological samples in liquid nitrogen.
This vacuum-insulated aluminum vessel has a nominal liquid-nitrogen capacity of 47.4 liters. Its narrow-neck construction is designed to reduce LN₂ evaporation, while six numbered storage positions simplify canister organization.
This unit includes four color-coded stainless-steel canisters and a wheeled transport cart. The BioCane 47 is designed to accommodate six canisters; two additional canisters are not included.
The vessel has not been tested with liquid nitrogen but is guaranteed functional. Static holding time, evaporation rate, and storage capacity are nominal manufacturer specifications and have not been independently verified on this unit.
FEATURES
47.4-liter nominal liquid-nitrogen capacity
Vacuum-insulated aluminum construction
Manual-fill cryogenic storage design
Narrow 5" neck designed to reduce LN₂ evaporation

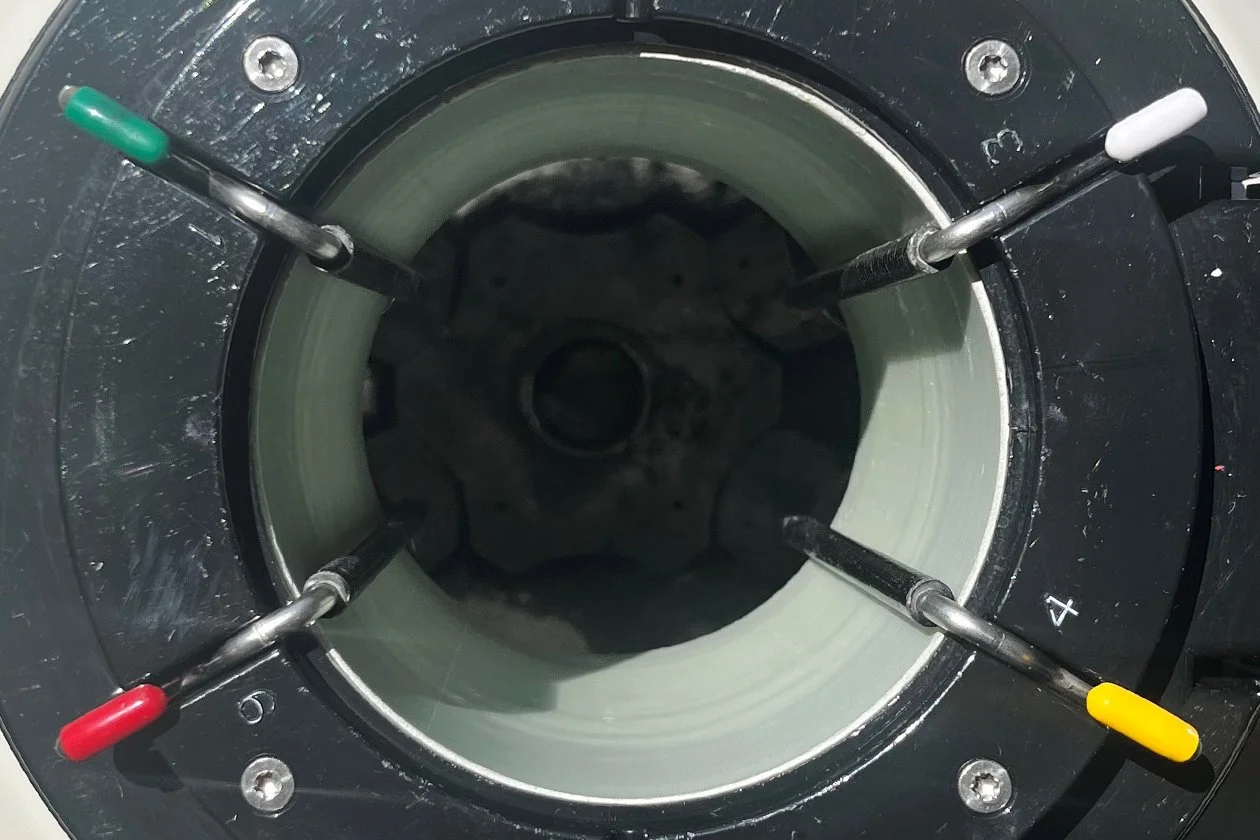

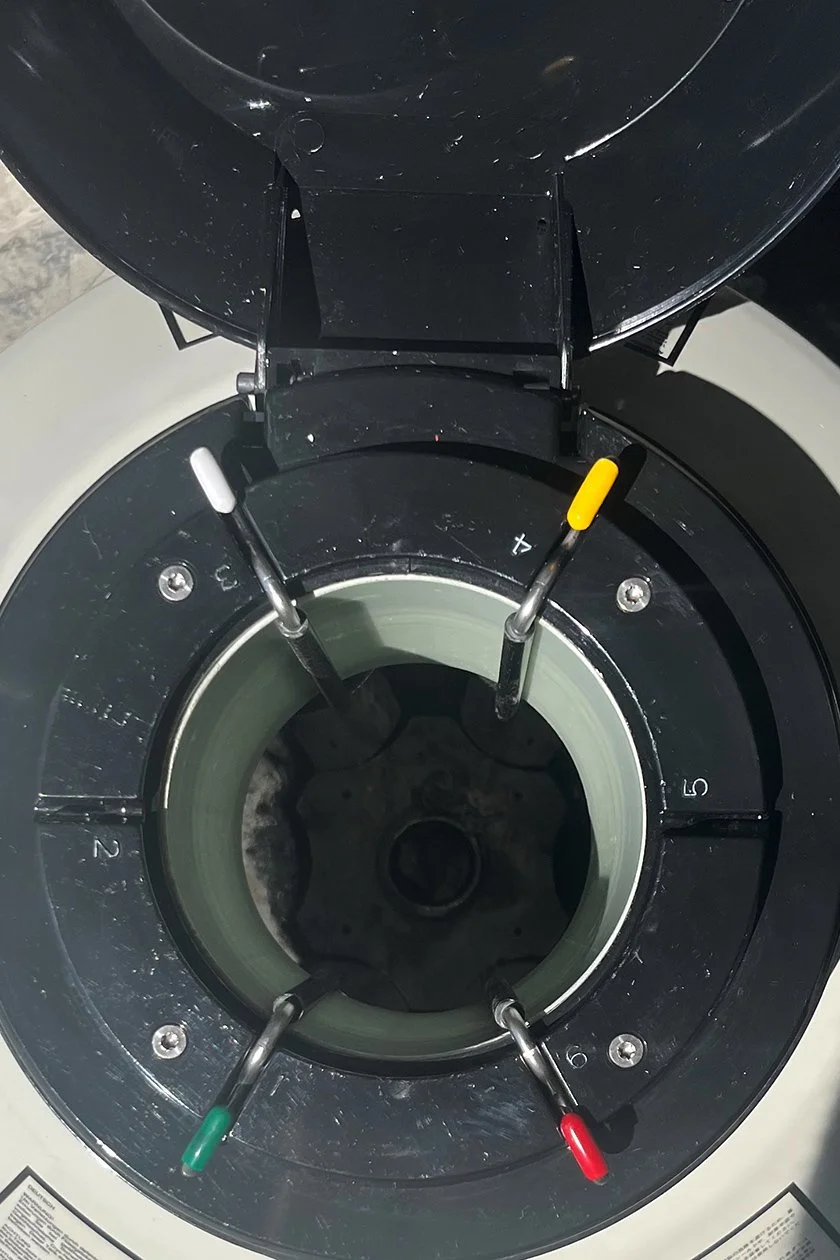

Six numbered canister positions
Four removable stainless-steel canisters included
Color-coded canister handles

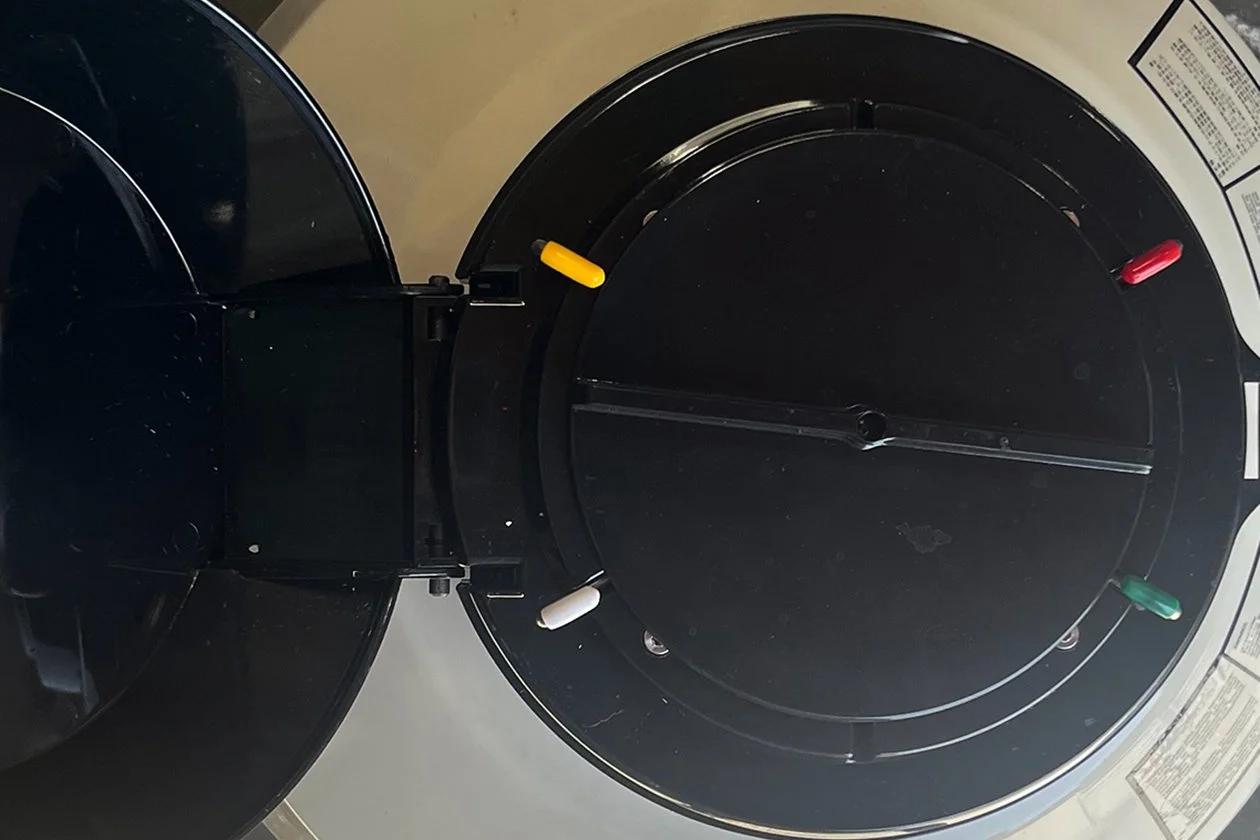

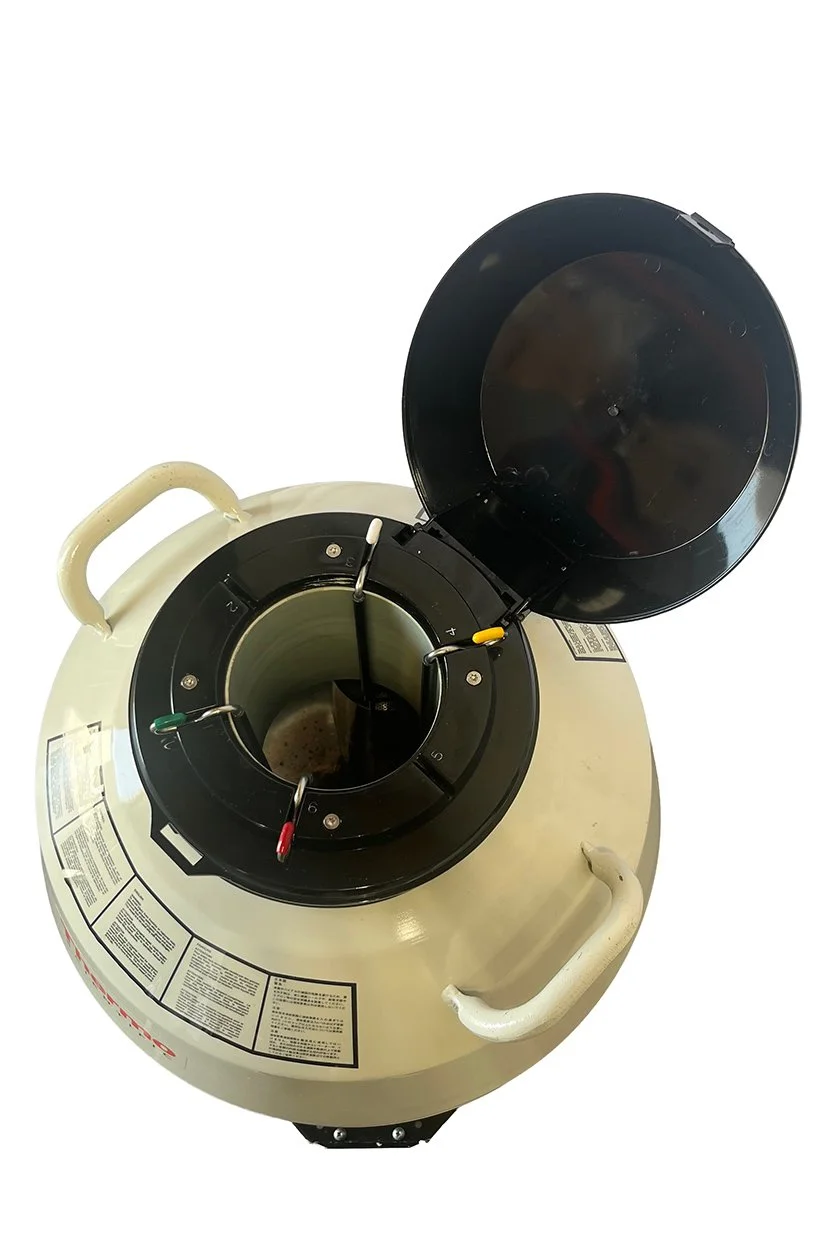

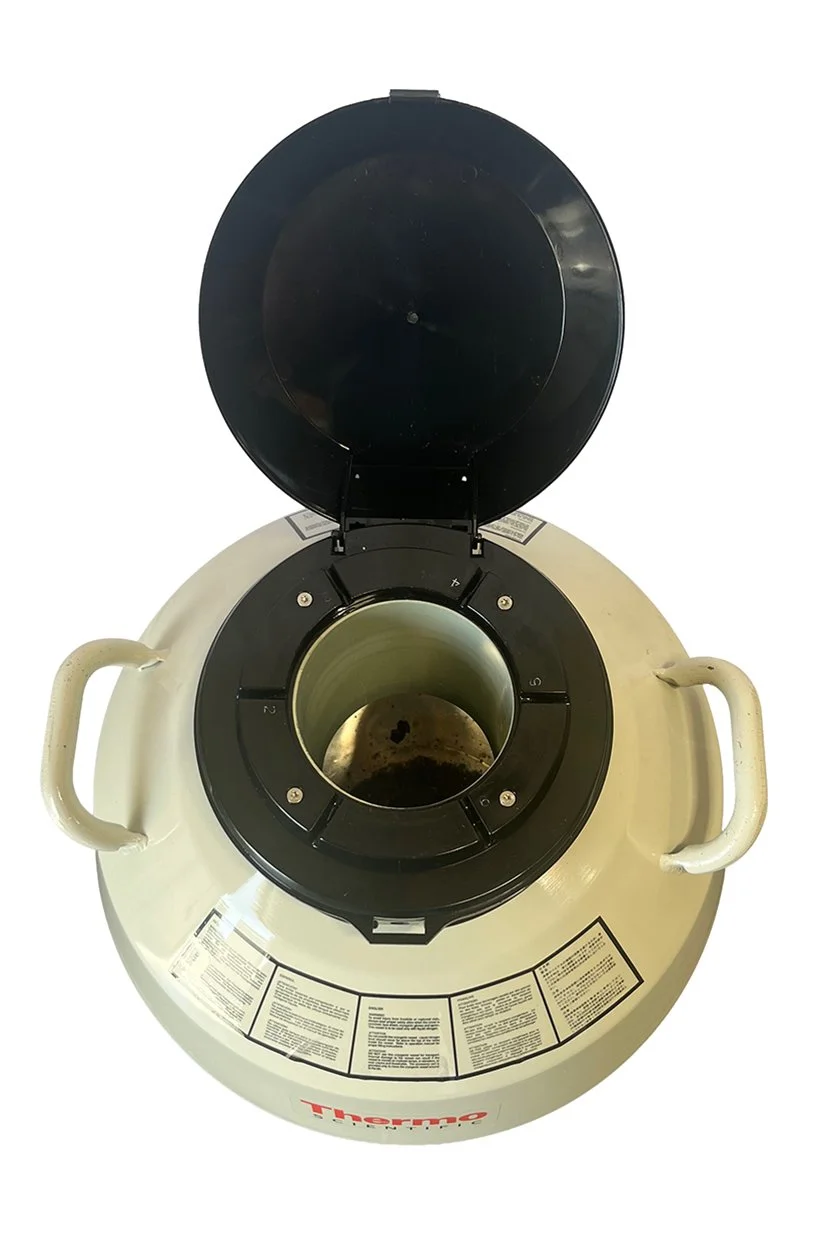

Hinged insulated lid
Integrated carrying handles
Wheeled transport cart included

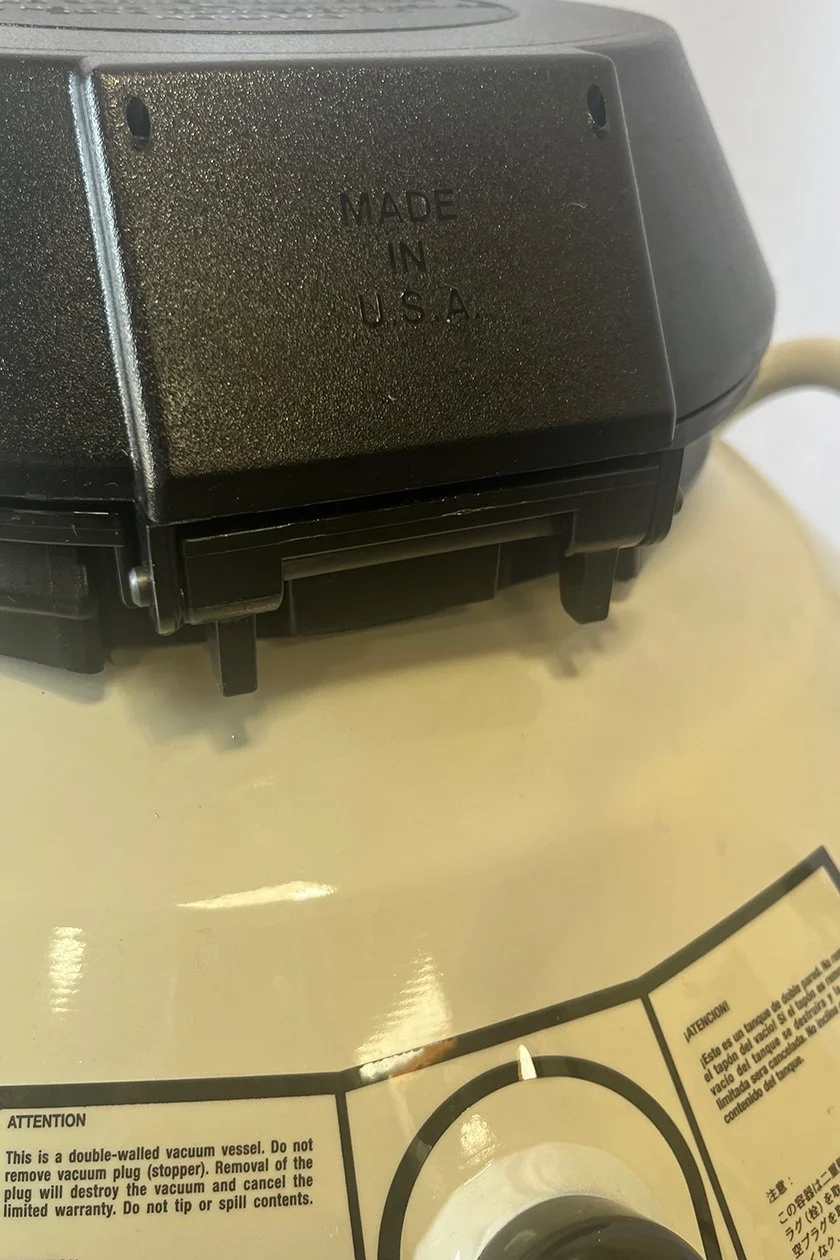

Made in the USA
SPECIFICATIONS
Manufacturer: Thermo Scientific
Product Line: BioCane
Product Name: BioCane 47
Model Number: 809
Catalog Number: CK509X4
Part Number: 10743351
Serial Number: NPB2012511302
Additional Equipment S/N: 515831-495
Revision: 2
Manufacturing Date: February 26, 2013
Vessel Type: Manual-fill LN₂ cryogenic storage vessel
Nominal LN₂ Capacity: 47.4 L
External Diameter: 20"
External Height: 26.5"
Neck Diameter: 5"
Empty Vessel Weight: Approximately 47 lb
Canister Positions: 6
Canisters Included: 4
Included Canister Dimensions: Approximately 11" long × 4" diameter
Manufacturer-Rated Static Evaporation Rate: Approximately 0.4 L/day
Manufacturer-Rated Static Holding Time: Up to 121 days
Manufacturer-Rated Full-System Capacity: Up to 1,512 1.2 mL vials when configured with six canisters and the appropriate canes
Insulation: Vacuum
Country of Manufacture: United States
Quantity Available: 1
Static holding time, evaporation rate, and storage capacity are nominal manufacturer specifications based on a new vessel with no heat load or lid openings under controlled conditions. Actual performance depends on vessel condition, ambient conditions, sample load, filling practices, and frequency of lid openings.
INCLUDED
Thermo Scientific BioCane 47 cryogenic vessel

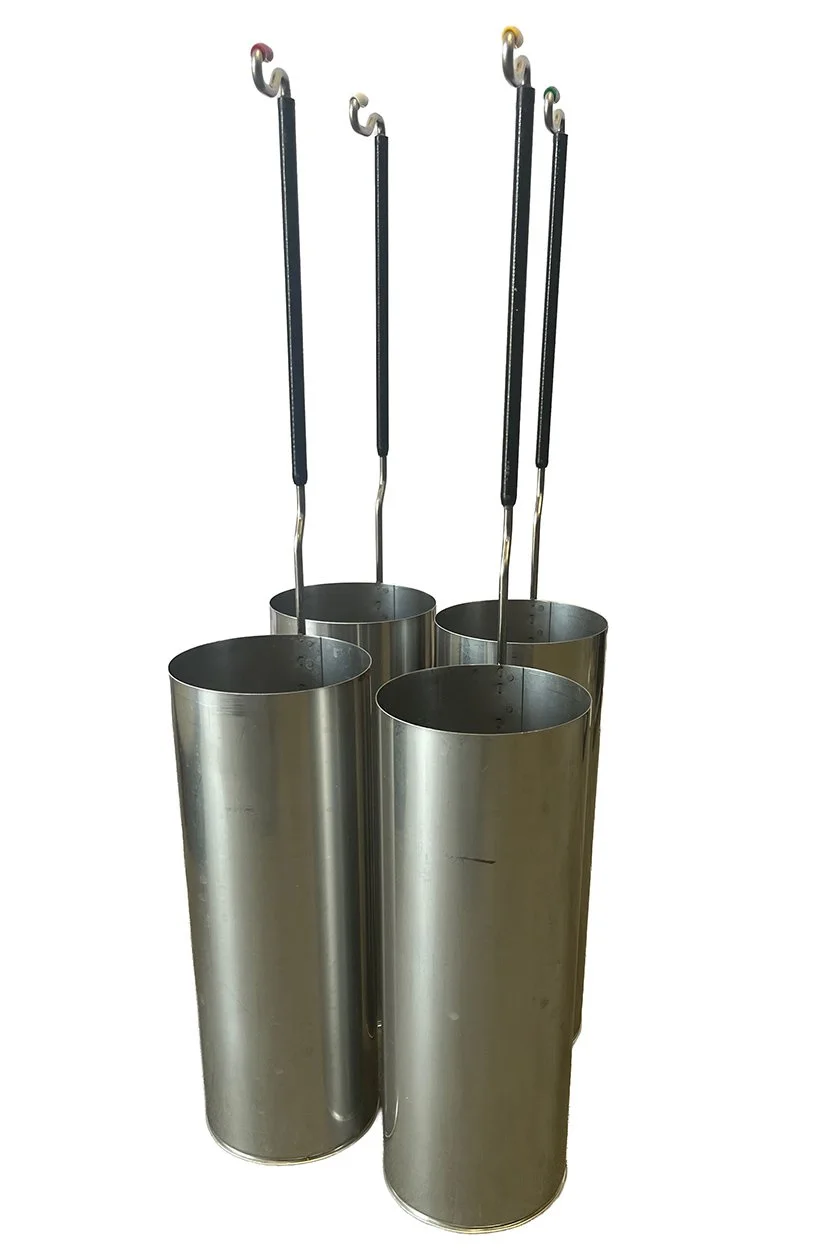

Four stainless-steel canisters with color-coded handles
Hinged insulated lid
Wheeled transport cart
NOT INCLUDED
Two additional canisters required for a complete six-canister configuration
Cryogenic canes
Sample boxes or dividers
Cryogenic vials or samples
Liquid nitrogen
Lock key
Additional accessories not pictured or specifically listed
CONDITION
Used and guaranteed functional.
The vessel has not been tested with liquid nitrogen. No independent evaporation-rate, holding-time, or vacuum-retention test was performed.
The vessel and canisters show cosmetic wear from previous laboratory use, including scratches, scuffs, marks, and minor finish wear. Please review the photographs for the exact vessel, identification labels, included components, and overall condition.
SHIPPING
The vessel will be shipped completely empty. No liquid nitrogen or biological materials are included.
Freight shipping is available throughout the United States. Shipping costs are quoted separately based on destination, delivery requirements, and final shipment dimensions.
Local pickup is available in San Diego, California.
Please complete the Freight & Local Pickup Request Form before purchasing to receive an accurate freight quote.
