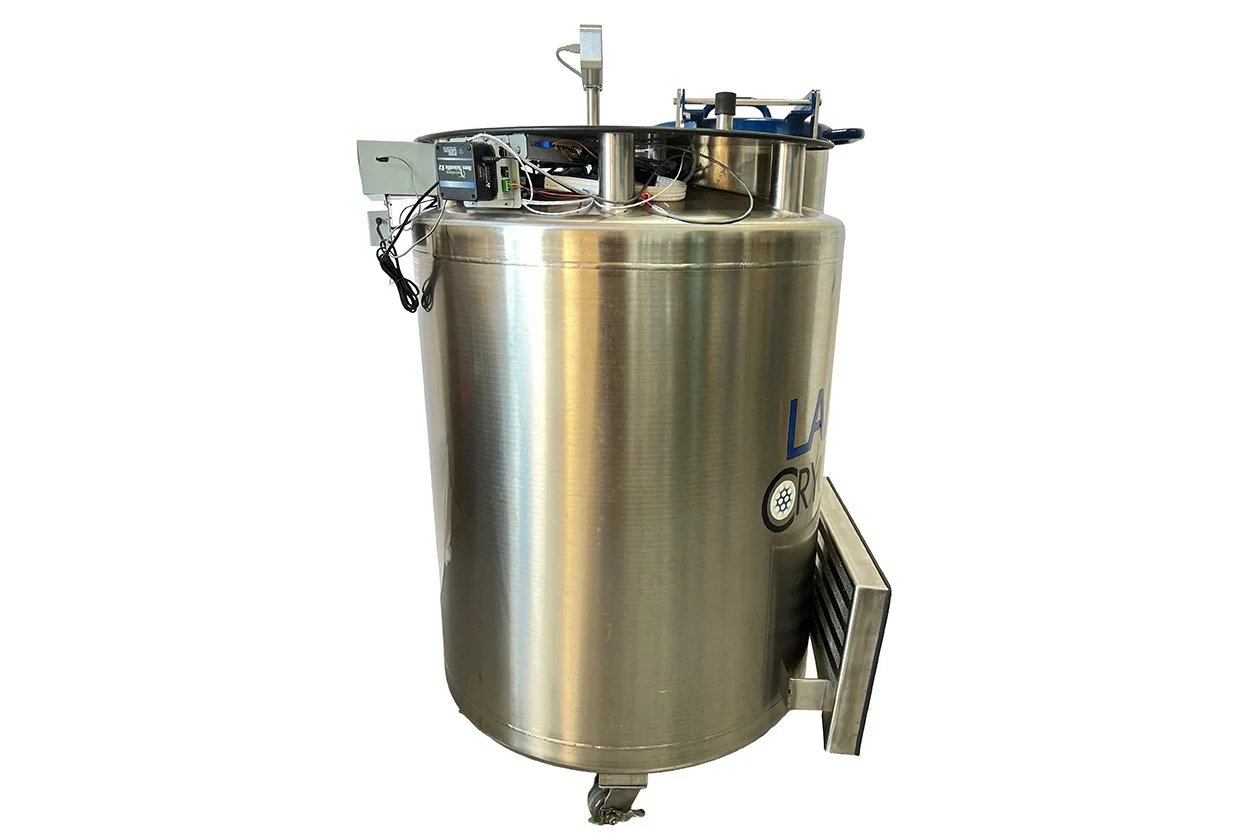

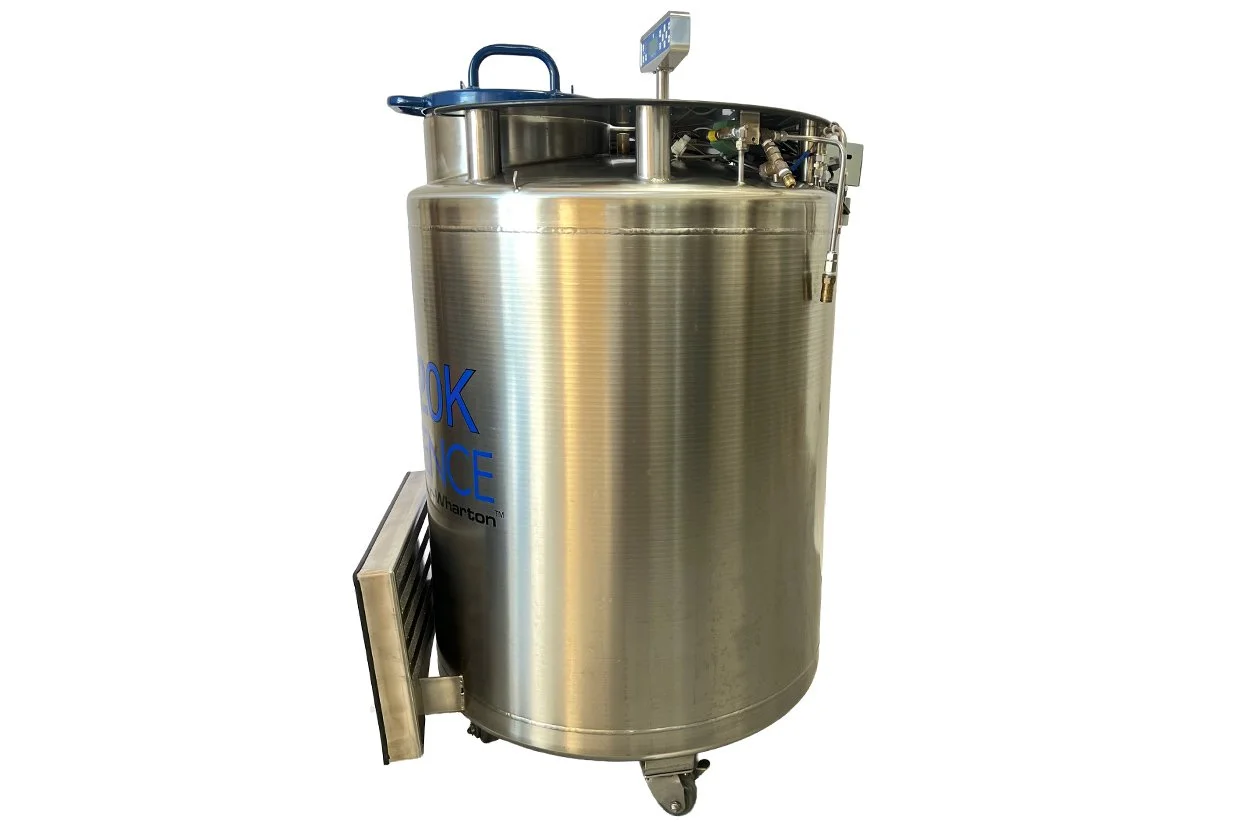

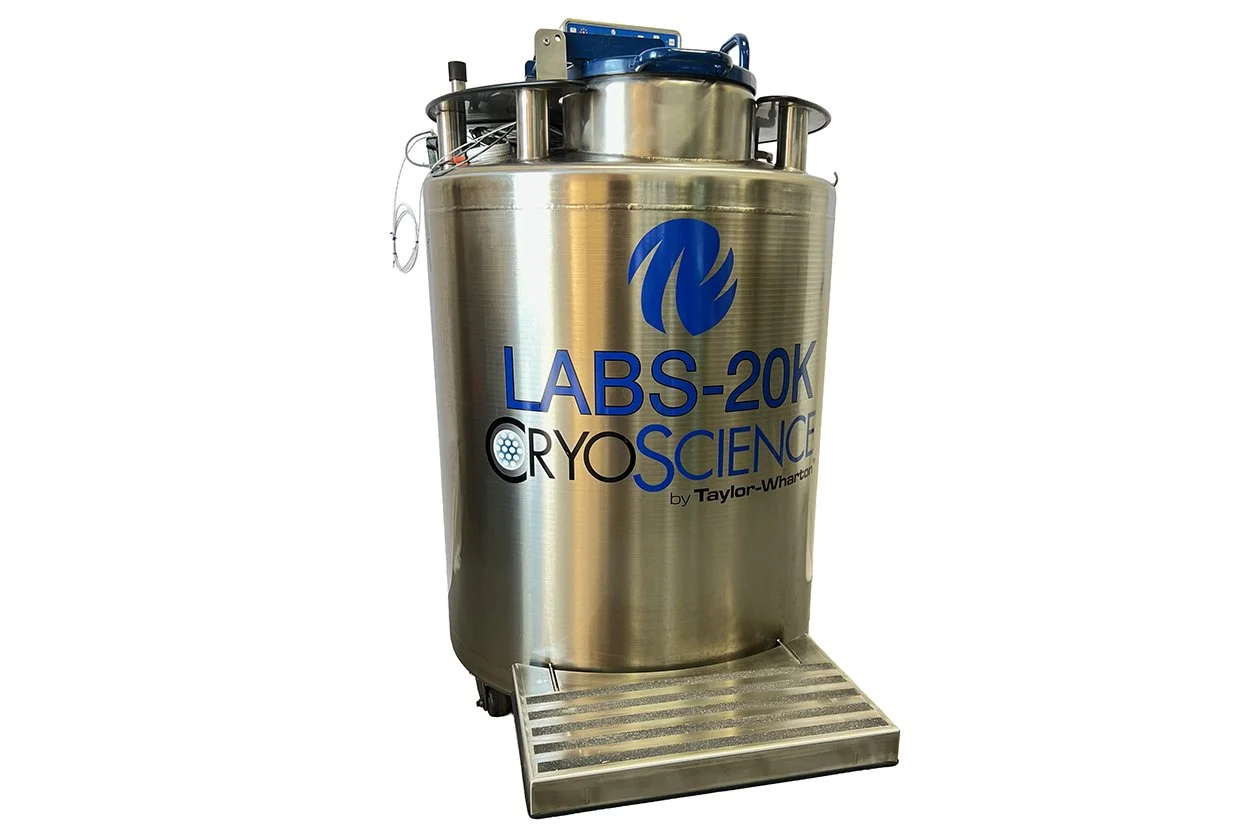

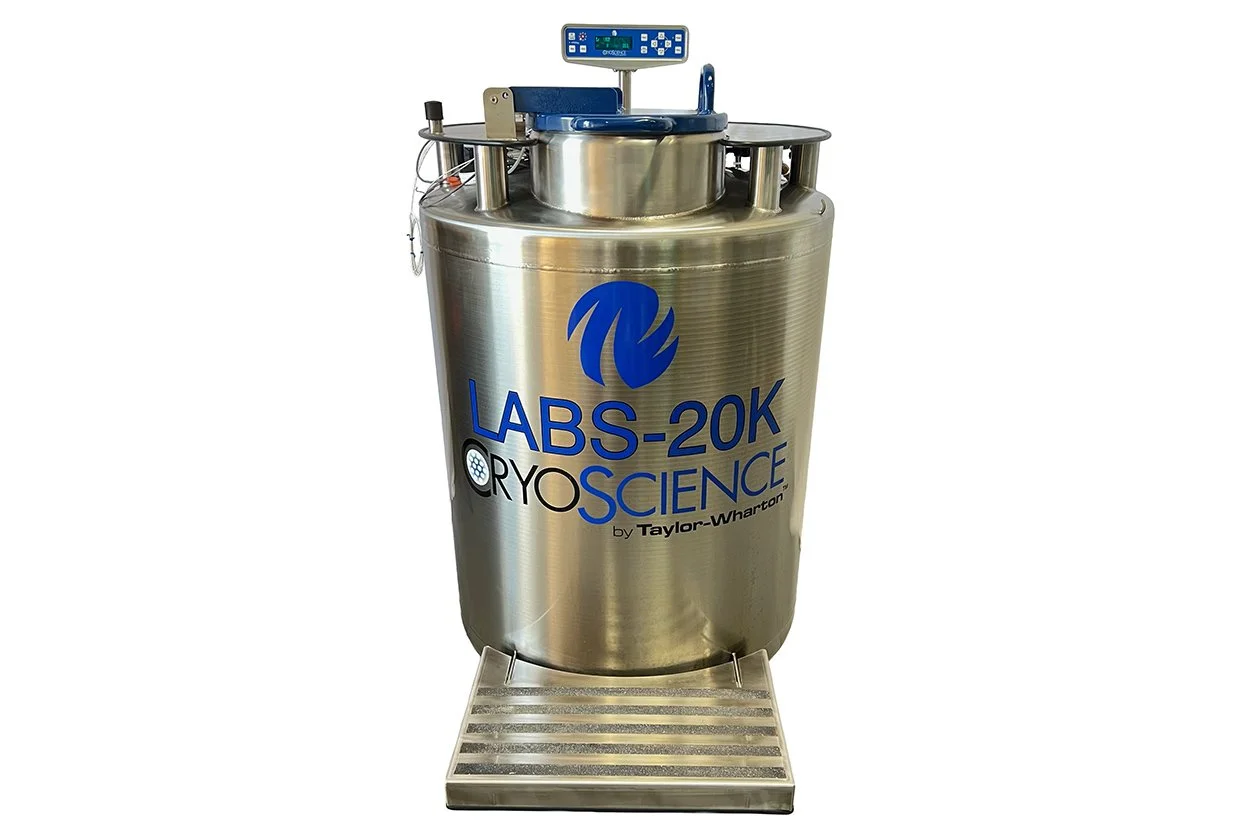

The Taylor-Wharton CryoScience LABS-20K is a high-capacity liquid nitrogen cryogenic storage system designed for long-term preservation of biological samples in biobanks, research laboratories, pharmaceutical facilities, and other professional cryogenic storage environments.
The LABS-20K features a stainless steel vacuum-insulated vessel, large-capacity internal inventory system, CryoScience electronic controller, automatic LN2 filling capability, temperature and liquid-level monitoring, and integrated alarm functions.
The system is designed to accommodate up to 19,500 2 mL vials when configured with the appropriate racks and storage boxes. Its large 13-inch neck opening and internal turntable system provide convenient access to stored samples.

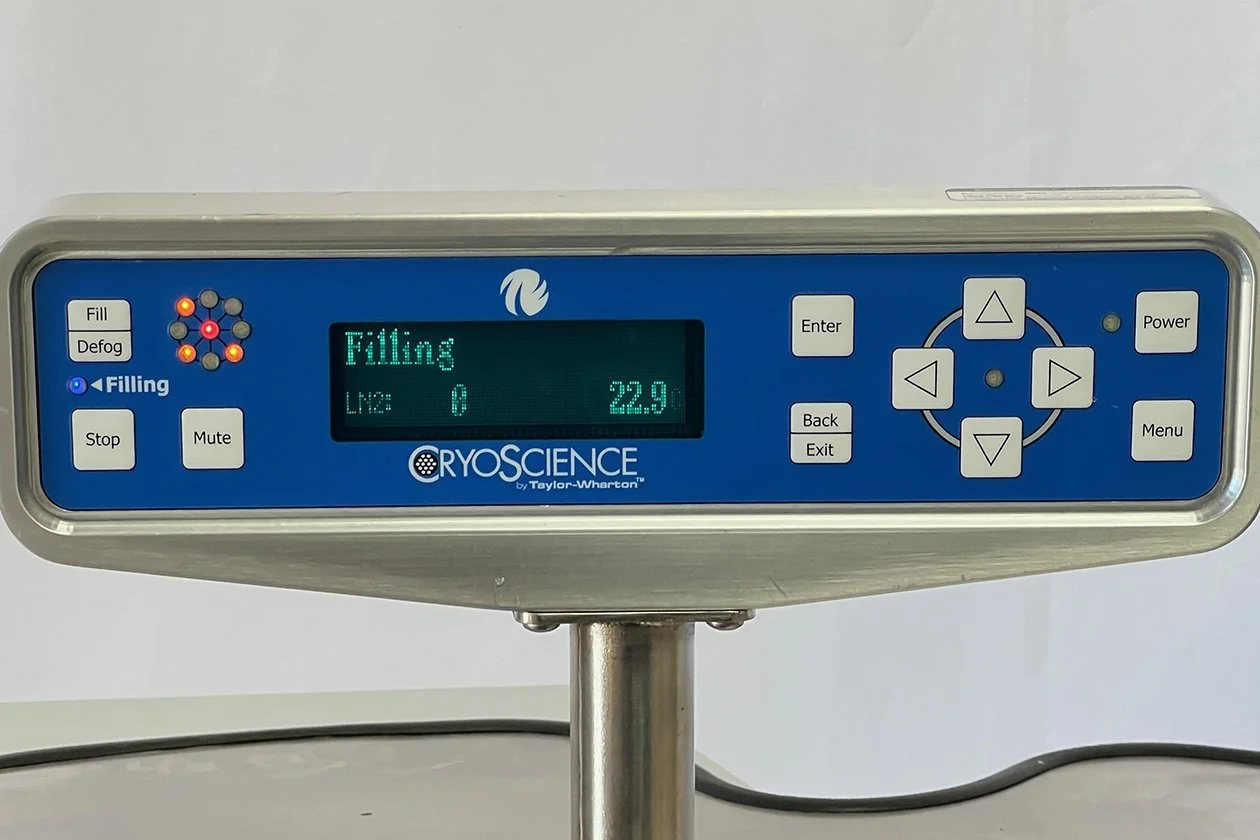

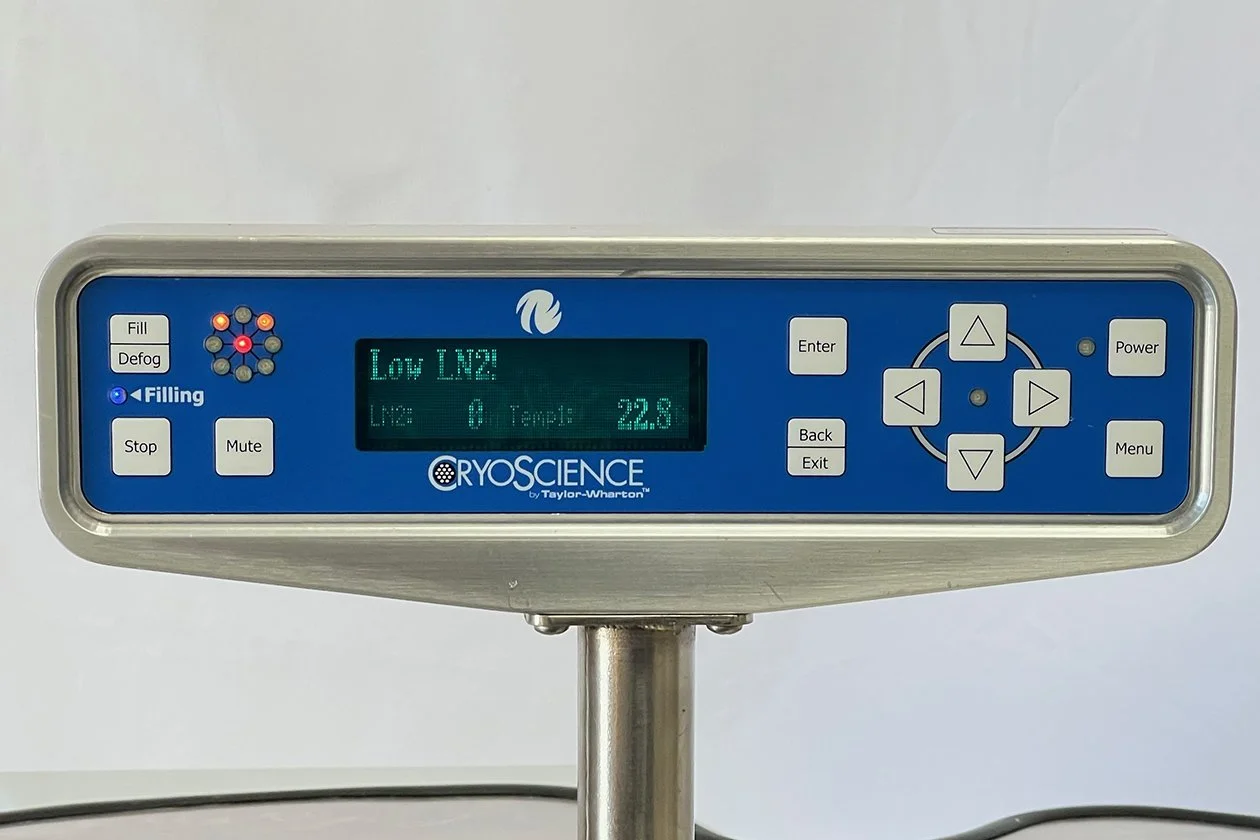

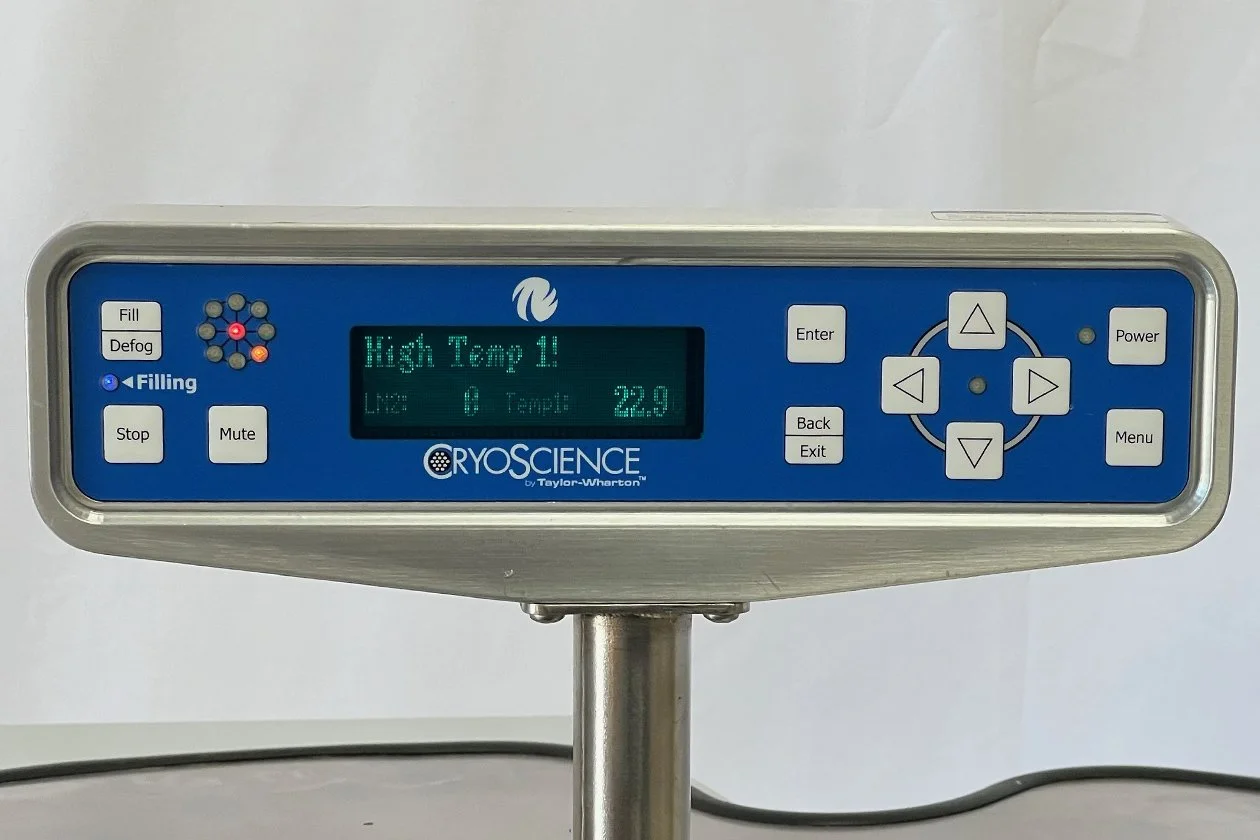

The electronic controller powers on and responds to controls. During evaluation with the vessel empty and at room temperature, the controller displayed ambient temperature and activated High Temperature and Low LN2 alarms, consistent with the current empty condition of the vessel.

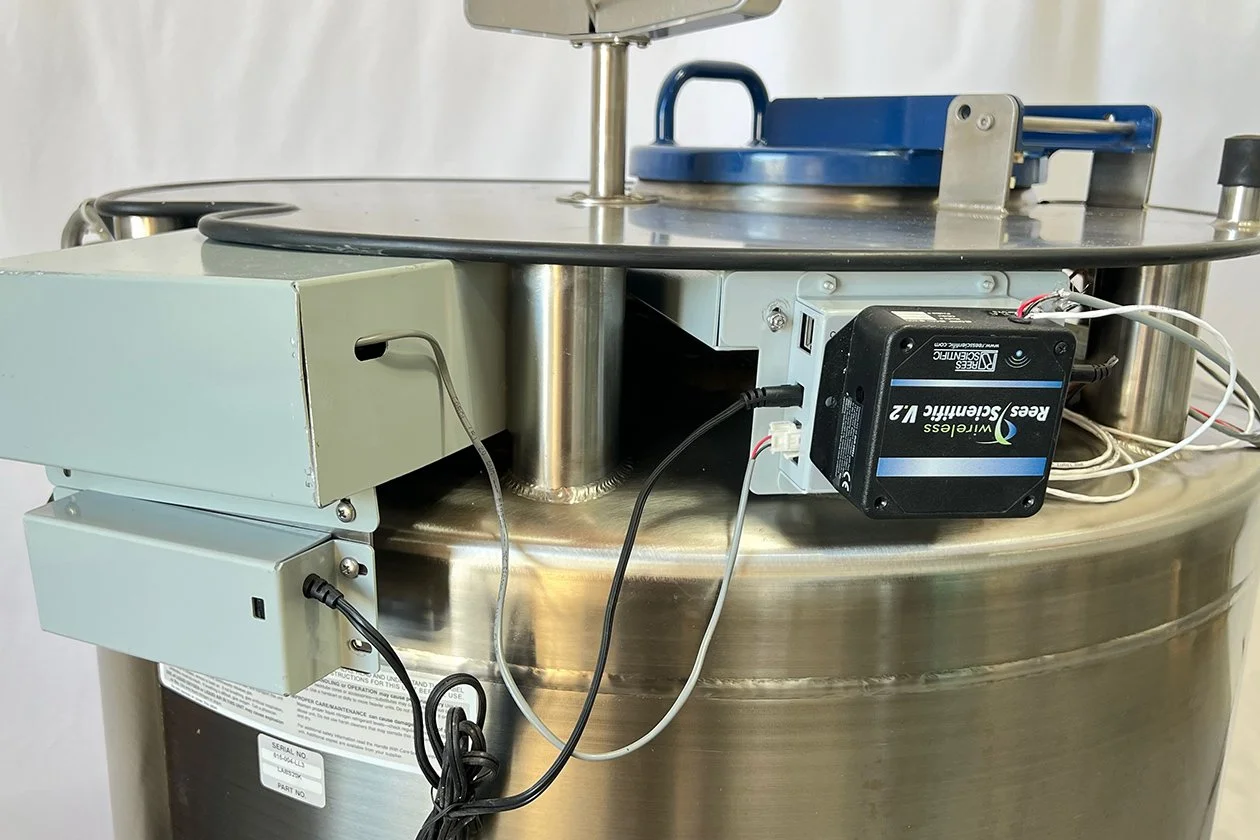

A Rees Scientific Wireless V2 monitoring module is installed on the system for additional external monitoring capability.
The unit has not been tested with liquid nitrogen.
Includes all accessories shown in the photographs.
Features
High-capacity liquid nitrogen cryogenic storage system
Up to 19,500 × 2 mL vial capacity
Stainless steel vacuum-insulated vessel

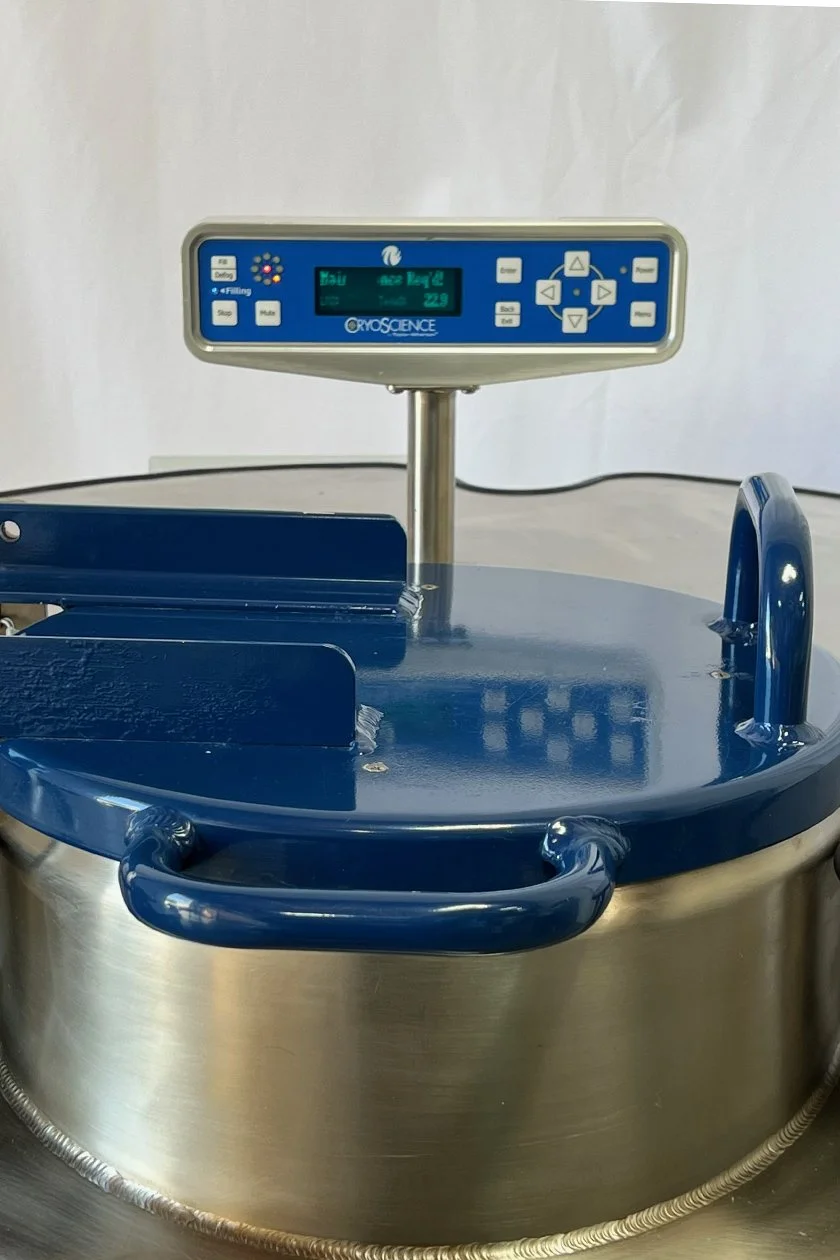

CryoScience electronic controller
Automatic LN2 filling capability
Liquid nitrogen level monitoring
Internal temperature monitoring
High temperature and low LN2 alarm functions

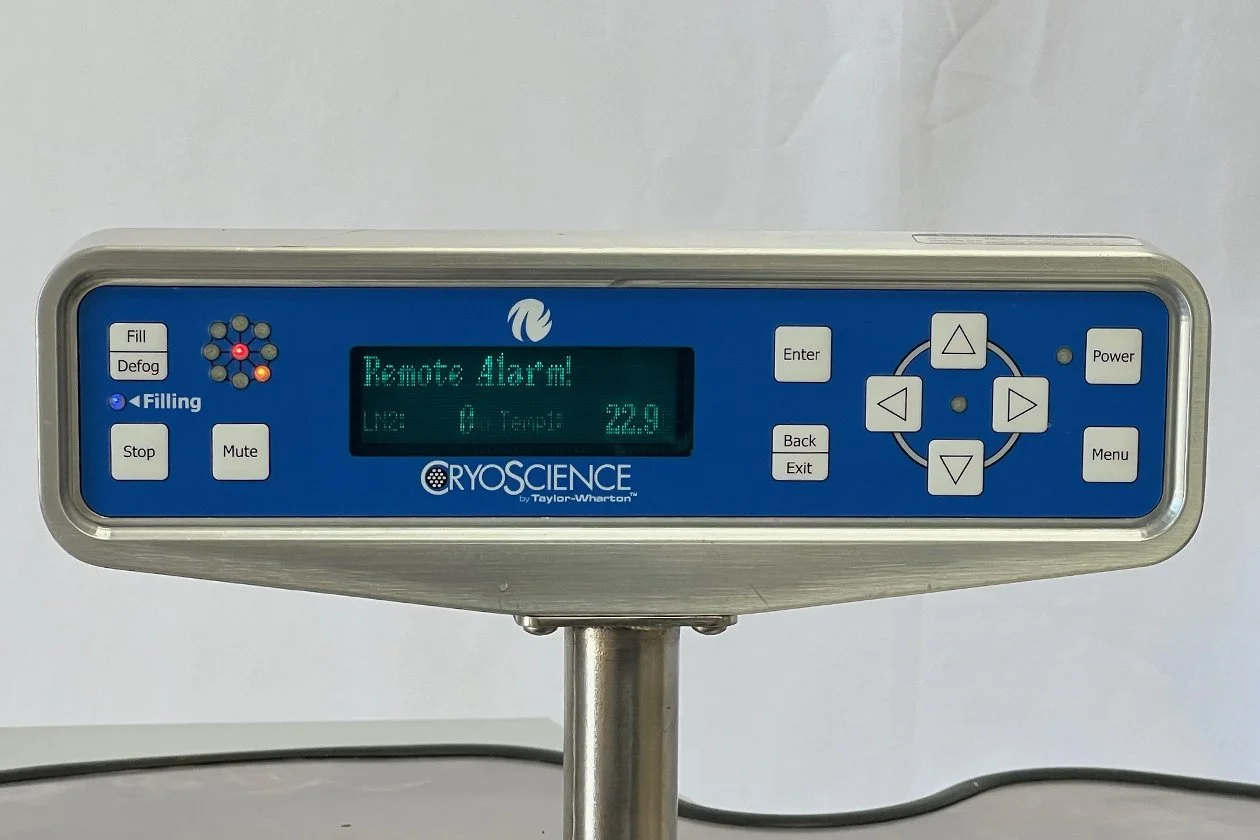

Remote alarm capability
Fill and Defog controls
Large 13" neck opening

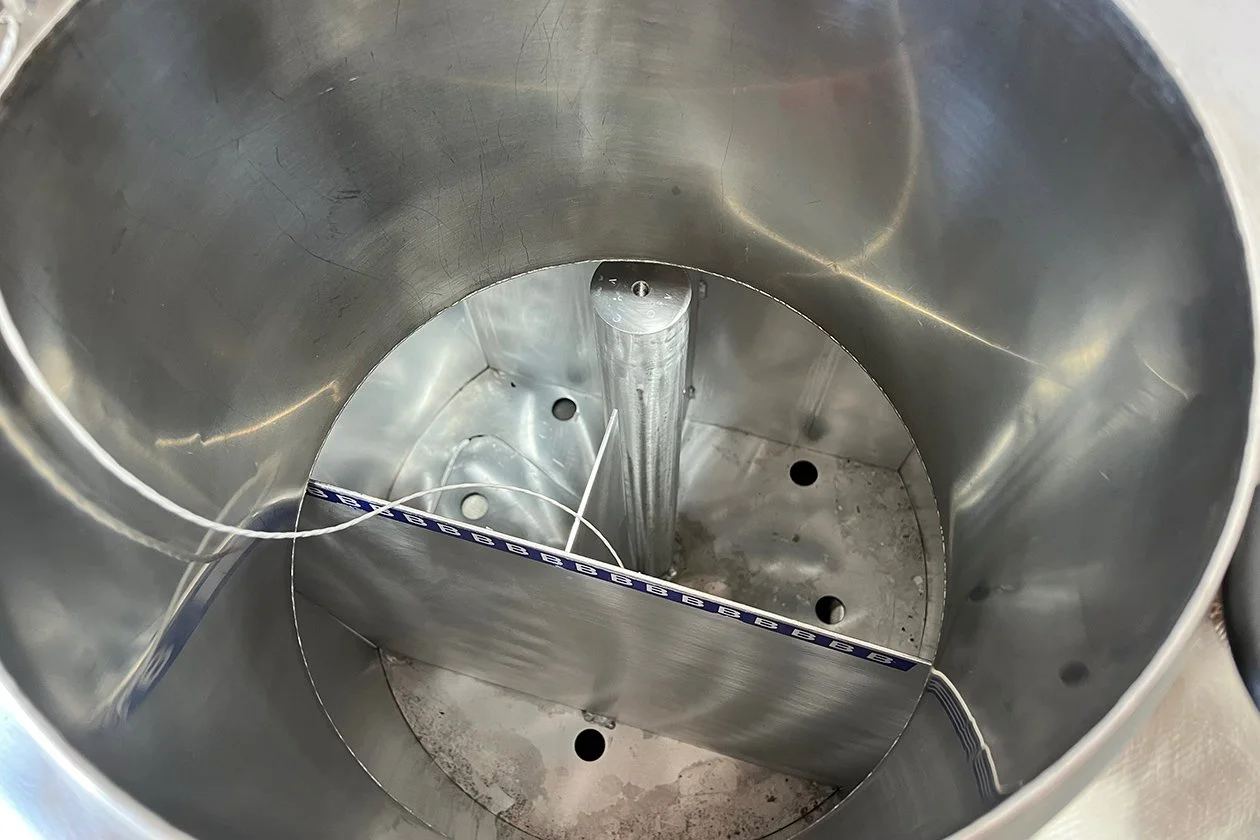

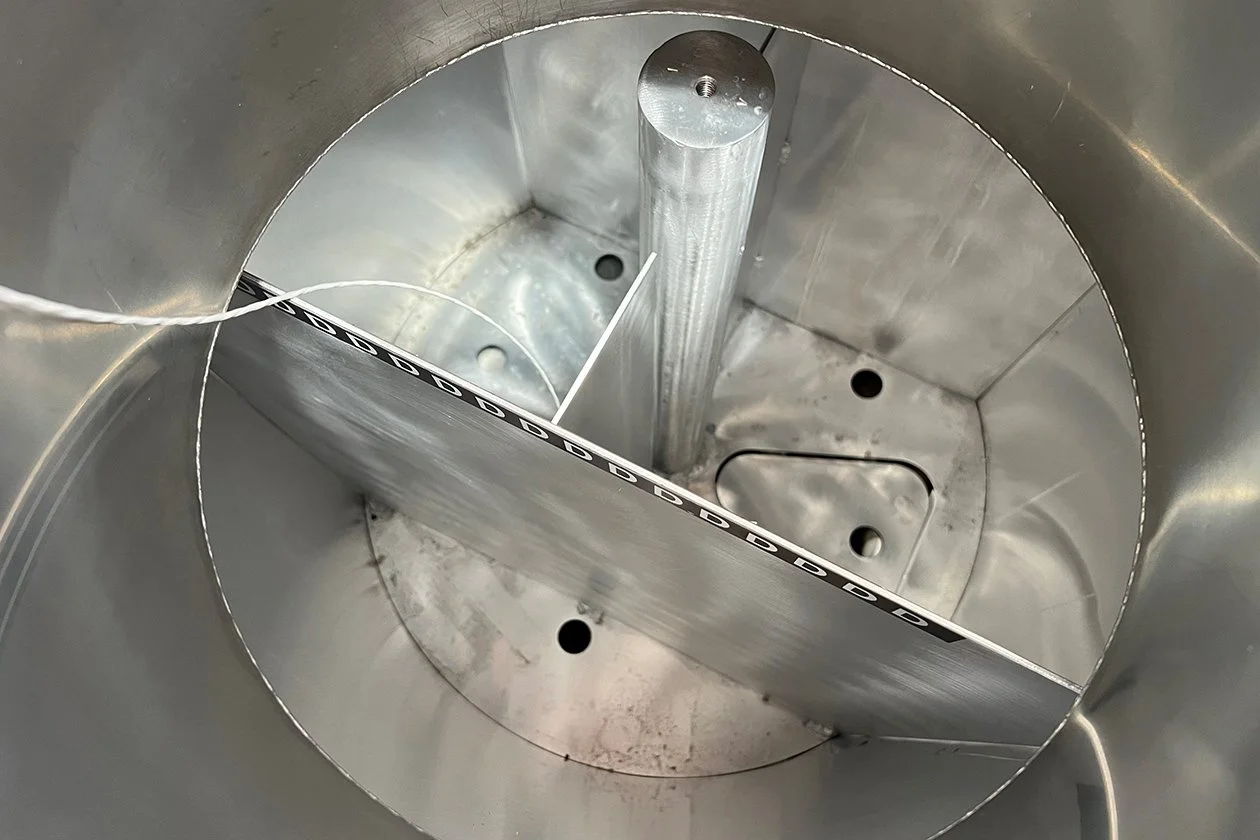

Internal inventory and turntable system

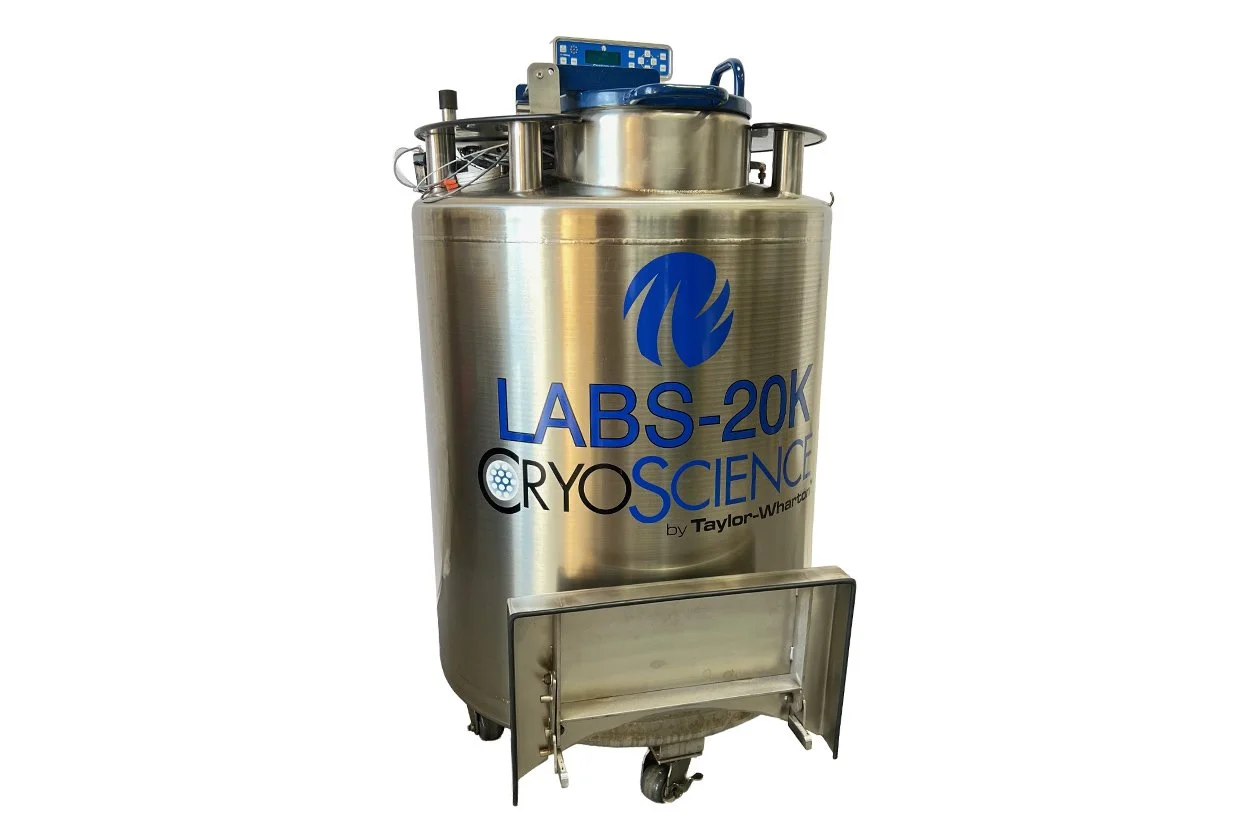

Integrated folding stainless steel access step
Heavy-duty casters for mobility

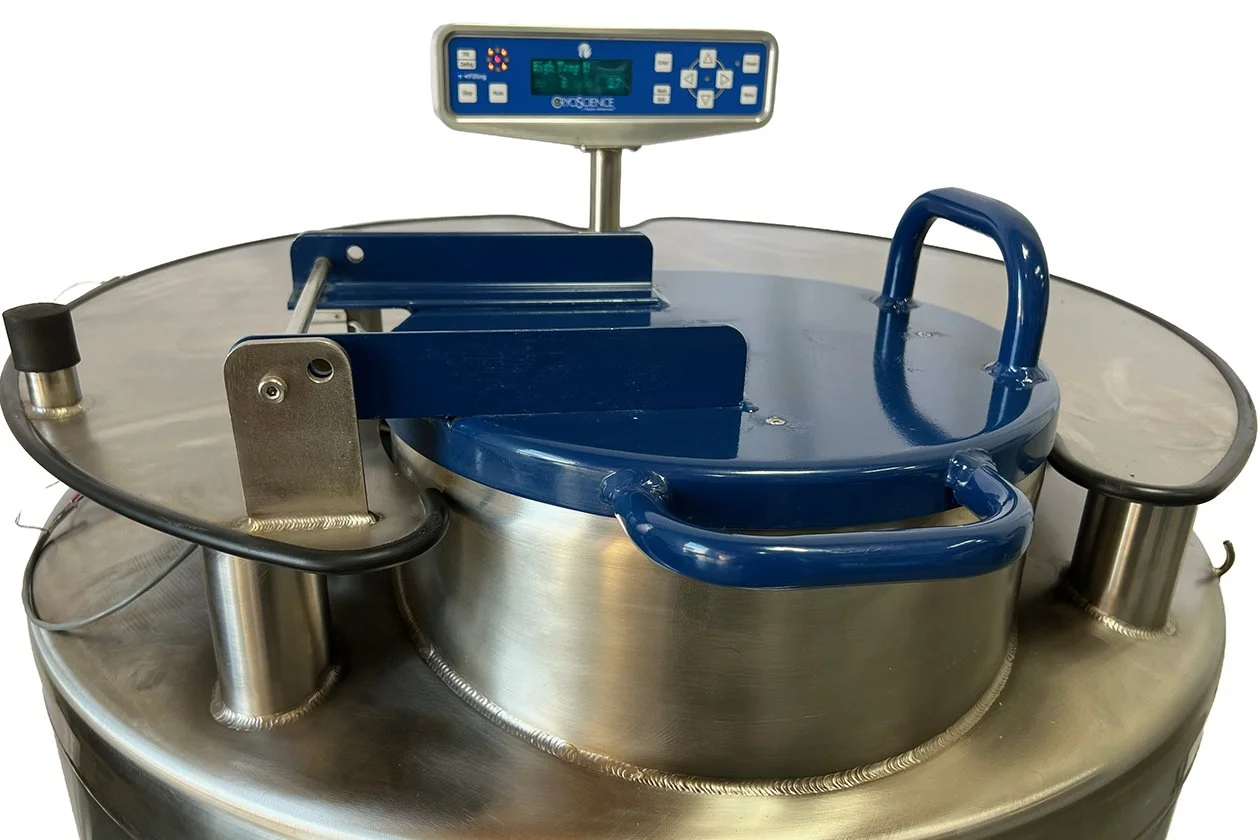

Hinged access lid
Rees Scientific Wireless V2 monitoring module installed
Specifications
Manufacturer: Taylor-Wharton
Series: CryoScience LABS
Model: LABS-20K

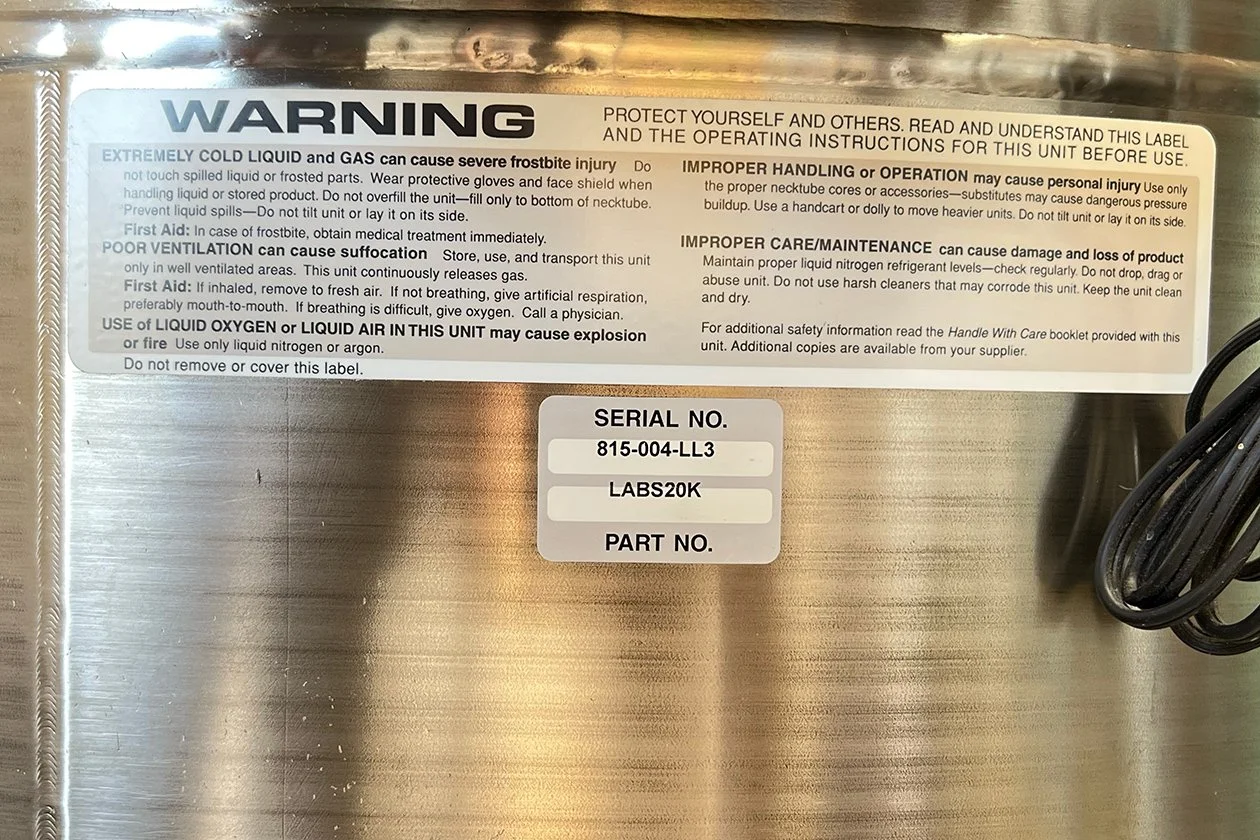

Serial Number: 815-004-LL3
Application: Cryogenic / Liquid Nitrogen Biological Sample Storage
Maximum Vial Capacity: 19,500 × 2 mL vials
LN2 Capacity: 406 L
Main Rack Capacity: 14 racks for 100/81-cell boxes
Side Rack Capacity: 4 racks for 25-cell boxes
Shelves per Rack: 13
Outside Diameter: 34"
Overall Height: Approximately 53"
Neck Opening: 13"
Empty Weight: Approximately 650 lbs
Full Weight: Approximately 1,375 lbs
Construction: Stainless Steel
Controller: CryoScience Electronic Control System
Additional Monitoring: Rees Scientific Wireless V2
Included
Taylor-Wharton CryoScience LABS-20K cryogenic storage vessel
CryoScience electronic controller
Internal inventory/turntable components shown
Integrated folding access step
Rees Scientific Wireless V2 monitoring module

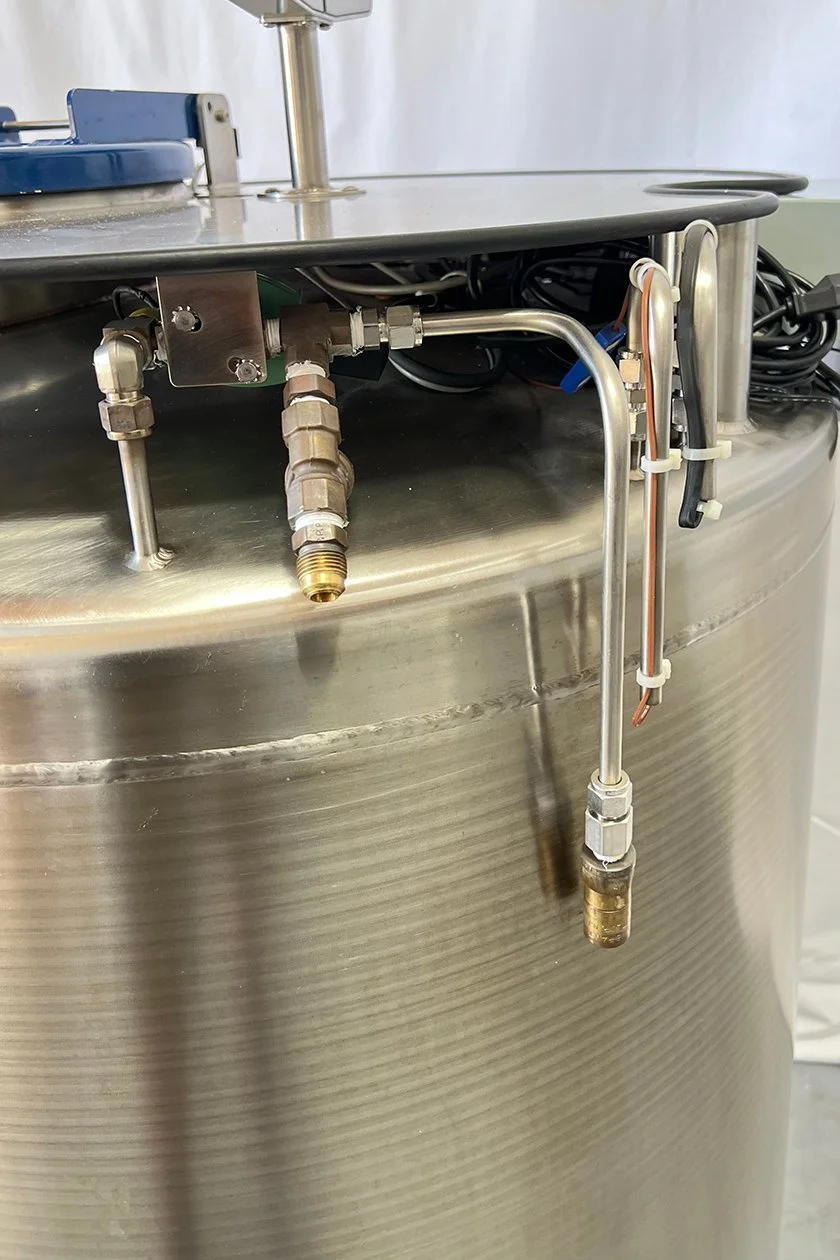

Plumbing, sensors, and connections shown
All accessories shown in the photographs
Condition
Pre-owned unit in good overall cosmetic condition with normal signs of previous professional laboratory use.
The electronic controller powers on and responds to controls. With the vessel empty and at room temperature, the display shows ambient temperature and expected High Temperature and Low LN2 alarms.
The unit has not been tested with liquid nitrogen. Automatic filling performance, cryogenic temperature performance, LN2 holding performance, and vacuum integrity have not been independently verified by LabCycle Partners.
Please review all photographs for the actual condition, configuration, and included components.
Shipping
This item requires freight shipping due to its size, weight, and sensitive components.
Freight shipping is available throughout the United States. Shipping costs are quoted separately based on destination and delivery requirements.
Local pickup is available in San Diego, California.
Please complete our Freight Shipping / Local Pickup Form before purchasing so we can determine the appropriate shipping arrangements and provide an accurate freight quote.
