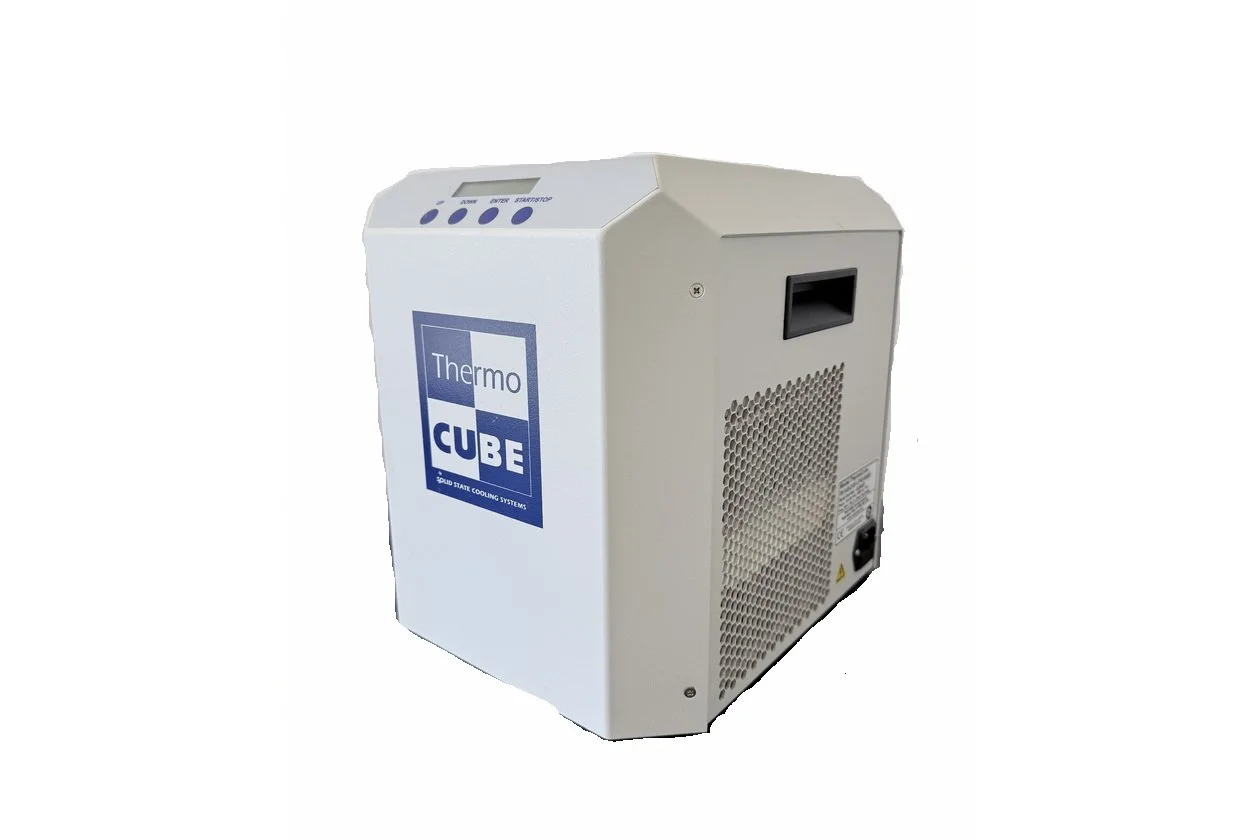

This unit comes from a laboratory that was downsizing operations. This ThermoCube 400W Thermo Electric Chiller from Solid State is in Excellent condition, has been tested and operates to manufacturer’s specifications.

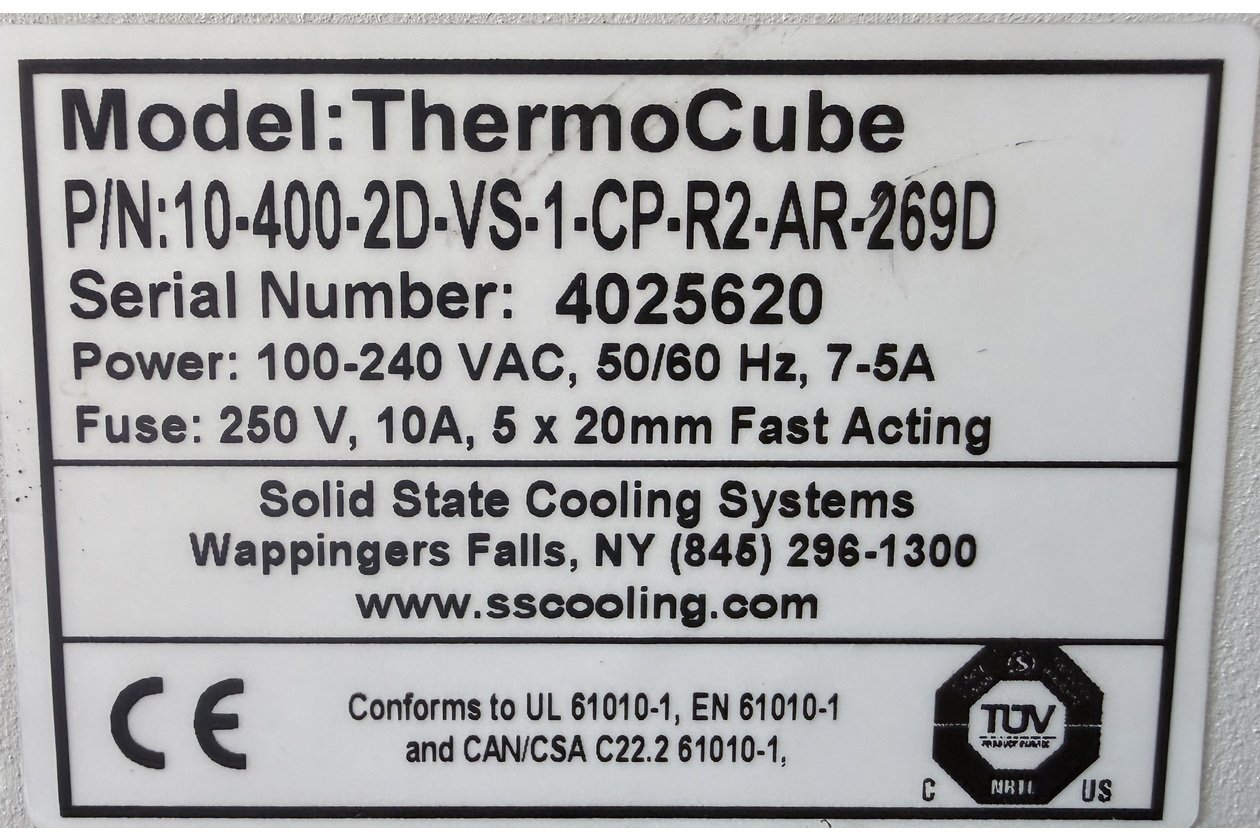

Manufacturer
Solid State Cooling Systems
Model
ThermoCube
Part No.
10-400-2D-VS-1-CP-R2-AR-269D
Coolant operating temperature range
+5 to +50°C Standard
-5 to +50°C Low Temperature Option (-LT)
+5 to +65°C High Temperature Option (-HT)
Control accuracy
±0.05°C
Tank volume
300 ml
System proof pressure
100 psig
Compatible coolant types
Water, 20% ethanol and water, 20-50% ethylene or propylene glycol and water. Galden HT-110/Fluorinert FC 3283 and PAO options are available.
Recommended coolant
Koolance LIQ-702BU-B (blue) or LIQ-702CL-B (clear): 27% propylene glycol/water with corrosion inhibitors & algaecides.
Maximum ambient air temperature
40°C (104°F), 50°C (122°F) for Thermocube 265
Nominal cooling capacity
400 Watts @ 25°C
Cooling pump
-2D 1.7 @ 35 psig Diaphragm

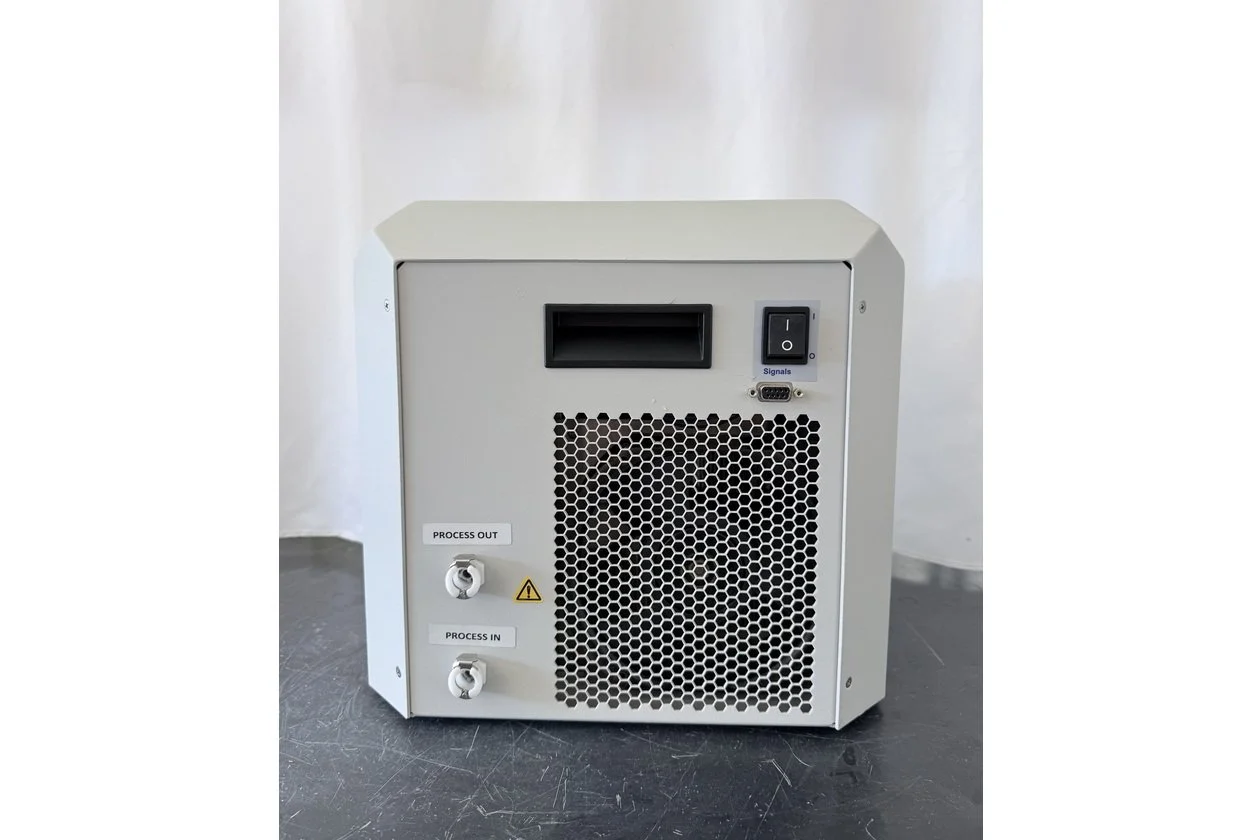

Coolant fluid connections
¼” Push-in fitting, ⅜” for -3D or -1C pumps
Standard alarms
Two TTL level alarms, System fail & Temperature out of Range
Power rating
115-230 VAC, 50/60 Hz, 7-5 A
Dimensions (W x D x H)
11 x 12.75 x 12.75 in (28 x 32.4 x 32.4 cm)
Weight
28 lb (12.7 kg)
If you are in the Southern California area and would like to save on shipping costs, please contact us before purchase to coordinate local pickup!
