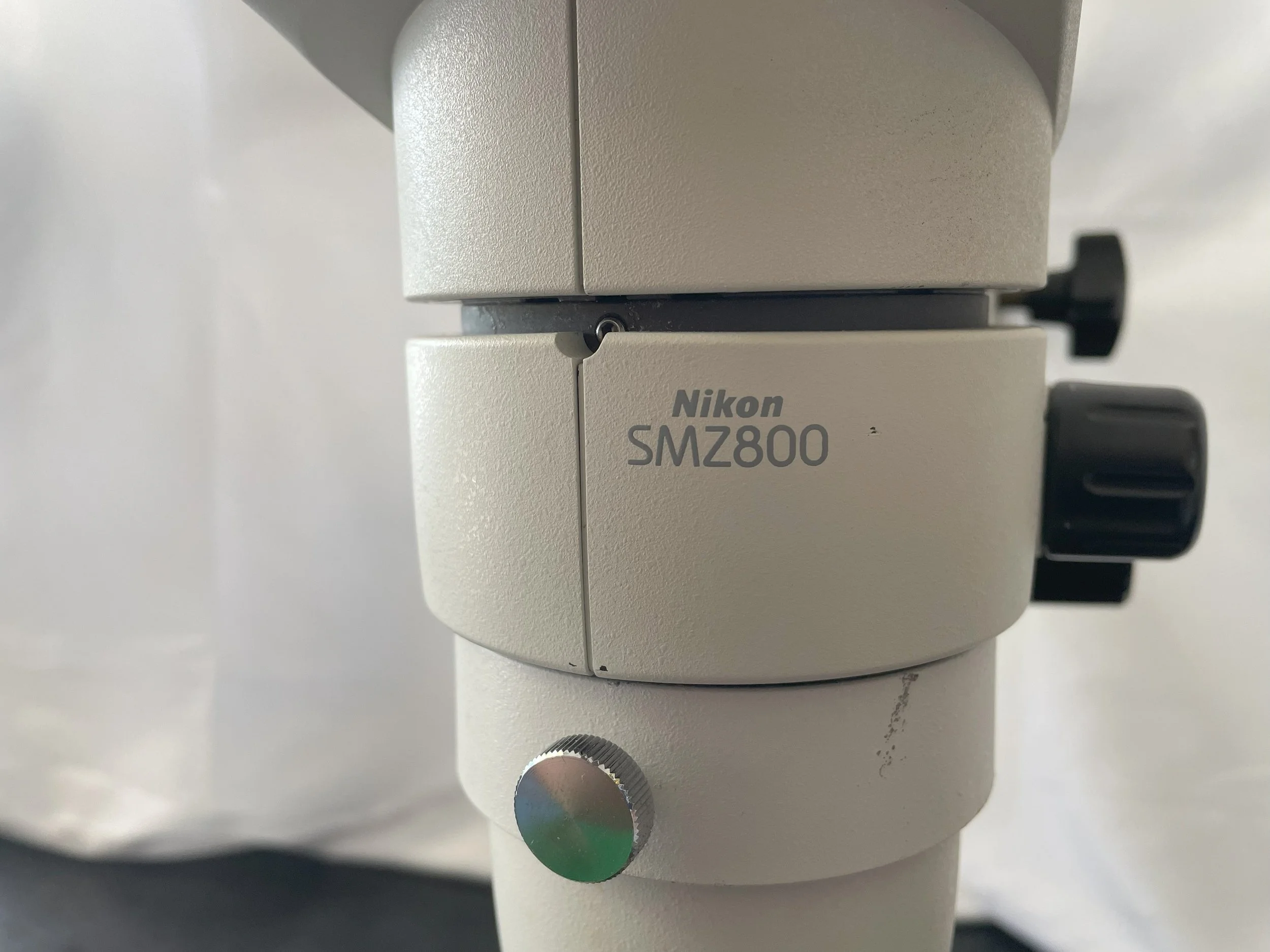

Nikon SMZ800 Microscope with Boom Stand
Nikon SMZ800 Zoom Stereomicroscope is Superb optical performance, easy handling and comfortable observation, plus a wide range of accessories allowing easy system upgrade and reduces fatigue caused by long hours of observation
Nikon SMZ800 Zoom Stereomicroscope Includes :
Nikon SMZ-800 Stereozoom Microscope
Binocular Head 20 Degree Inclination
10x/22mm Widefield Adjustable Eyepieces Paired
1x Plan Objective
Zoom Range is 10x to 63x with 78mm Working Distance
Adjustable Boom Table Top Stand with Focus Mount
Features
Photomicrography
By using a beam splitter and adapter, a digital still camera or a CCTV camera can be attached. The P-IBSD Beam Splitter D has two ports allowing one photomicrographic system and one CCTV camera to be mounted at the same time. The light to the rear port can be switched between 0%, 50%, or 100%, and the light to the side port is switchable between 0% and 50%. With the P-IBSS Beam Splitter S, the light to the side port is switchable between 0% and 50%.
Zoom Ratio
The parallel optical system of the SMZ800 has a 6.3:1 zoom ratio with clickstops at intervals from 1x through 6x. It features a zoom range of 1x to 6.3x and total magnification (depending on eyepiece and objective used) is 5x to 378x.
Optics
Eight objectives are available from economical achromat objectives to highly corrected Apochromats and a 1x ERGO focusing objective.
20° Eyepiece Tube Inclination
The inclination of the standard eyepiece tube is 20°, allowing the operator to make observations with a straight back. This reduces fatigue during long hours of operation by lessening strain on the neck, shoulders, and back.
Eye-level Positioning
With the tilting eyepiece tube, the eye-level can be adjusted within a maximum range of 157mm (6.2 in). This is accomplished by swinging the eyepieces up 180° as well as tilting them. The tilting eyepiece tube makes it possible to adjust the eyepiece inclination between 0° and 30°.
Nikon has also developed a new ergonomic objective (Plan 1x ERGO) that can be extended or retracted up to 40mm (1.6 in) to obtain the optimum operator eye-level without changing the magnification or working distance. Moreover, the low eye-level eyepiece tube enables a comfortable observation posture even when using a diascopic stand or when an intermediate tube is inserted. An eye-level riser is also available.
