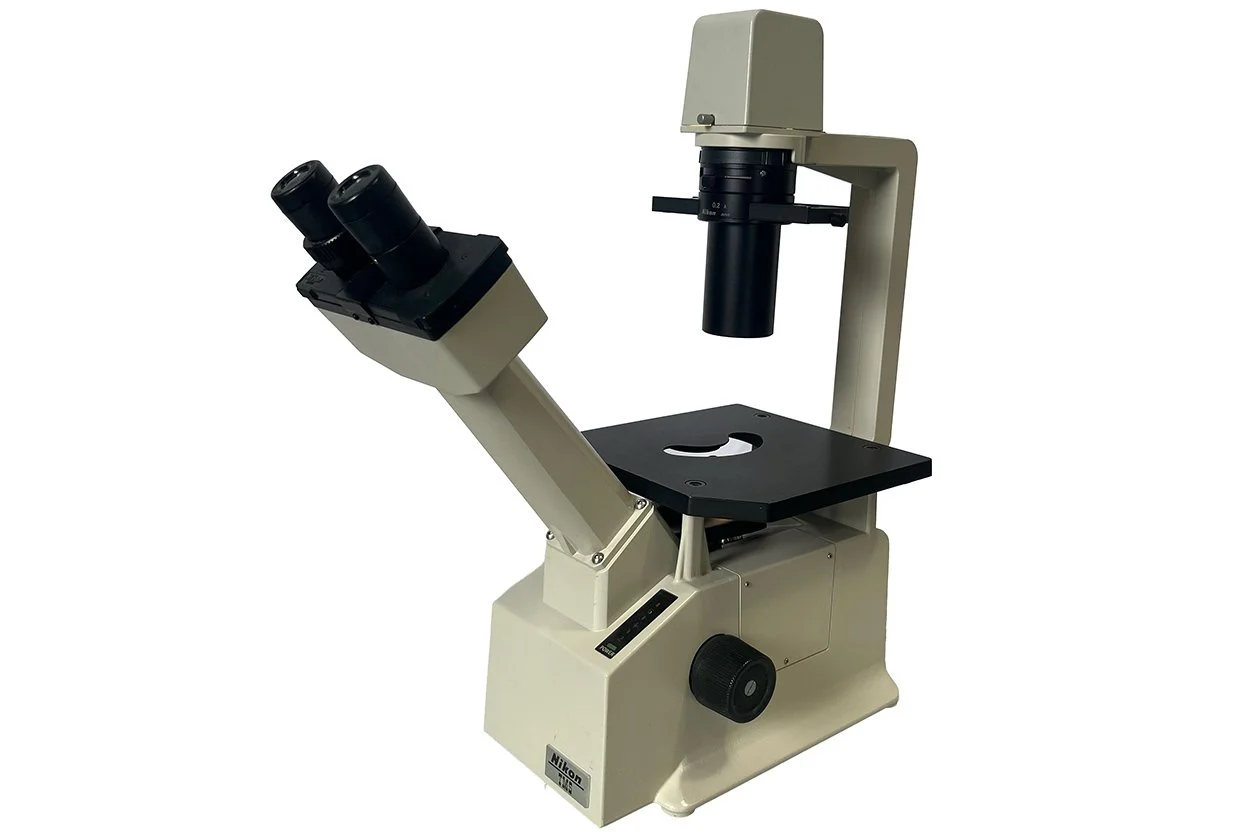

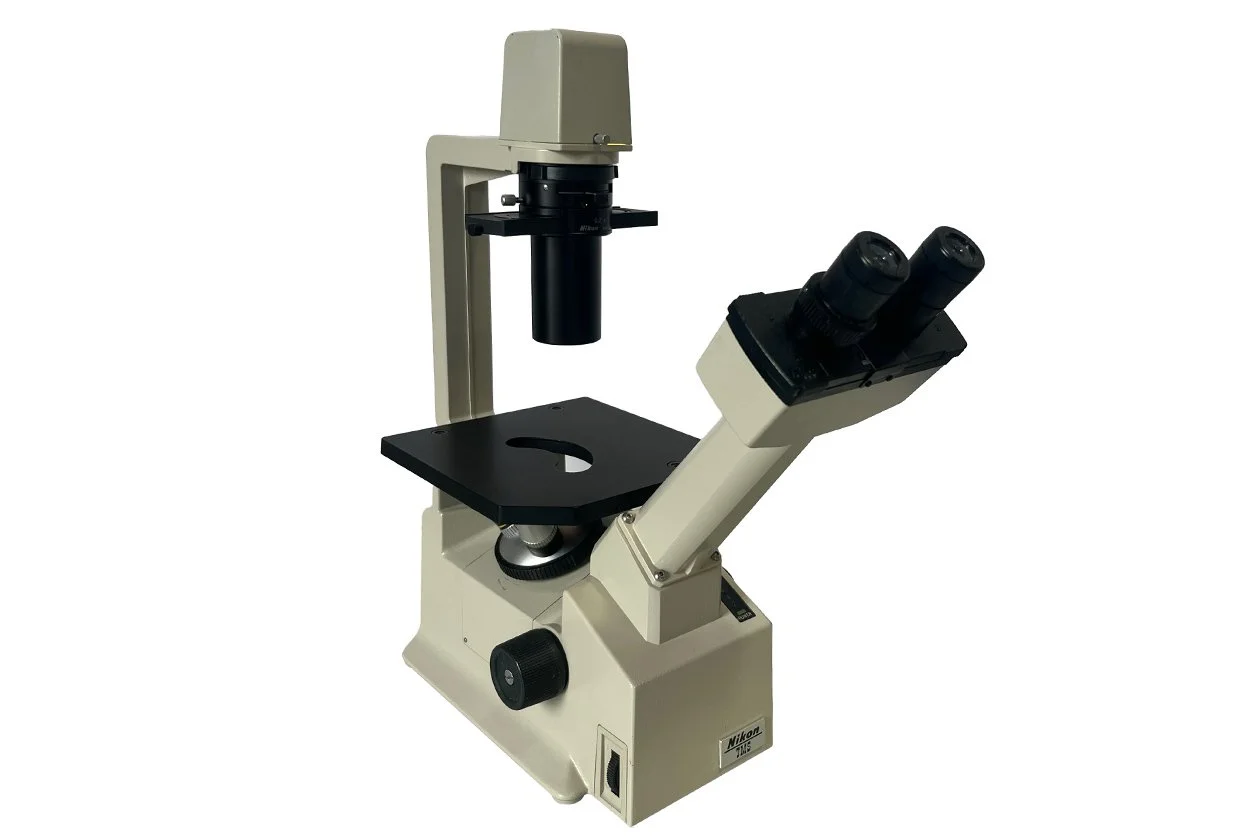

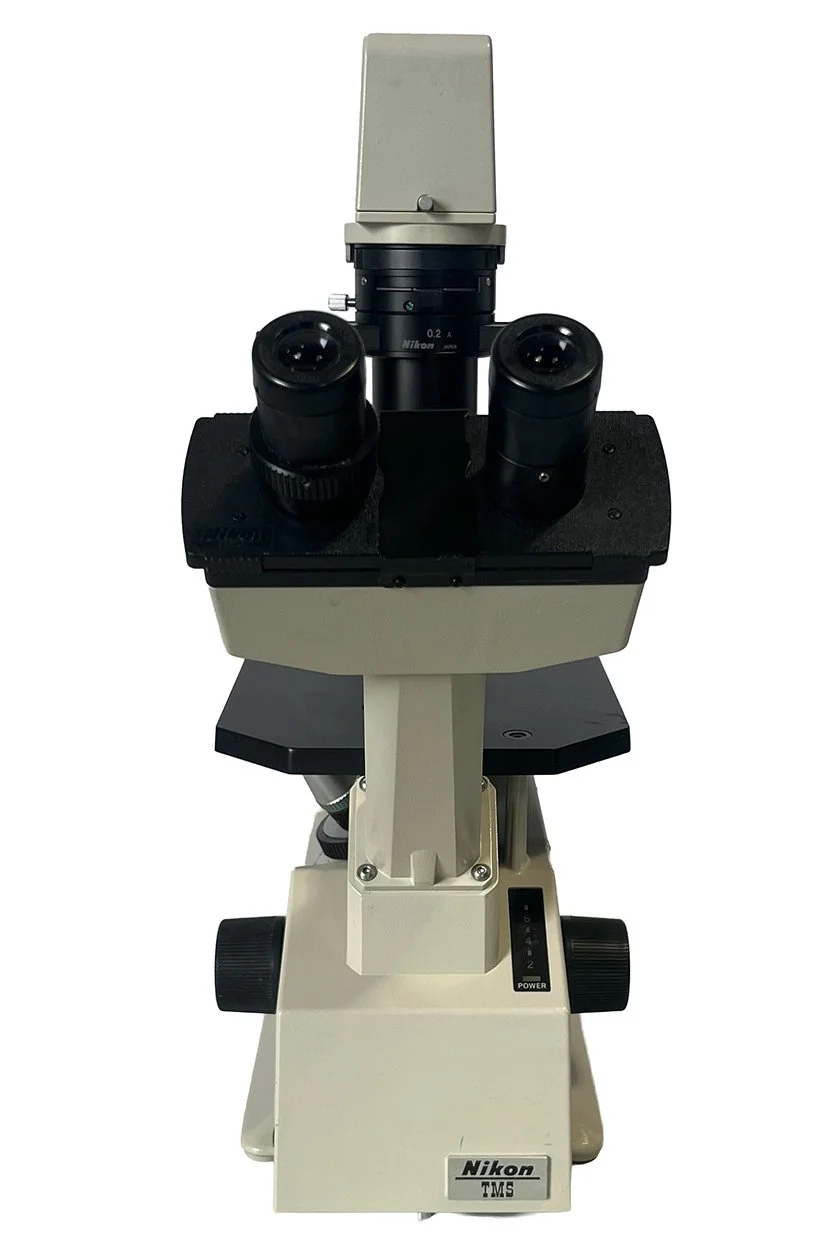

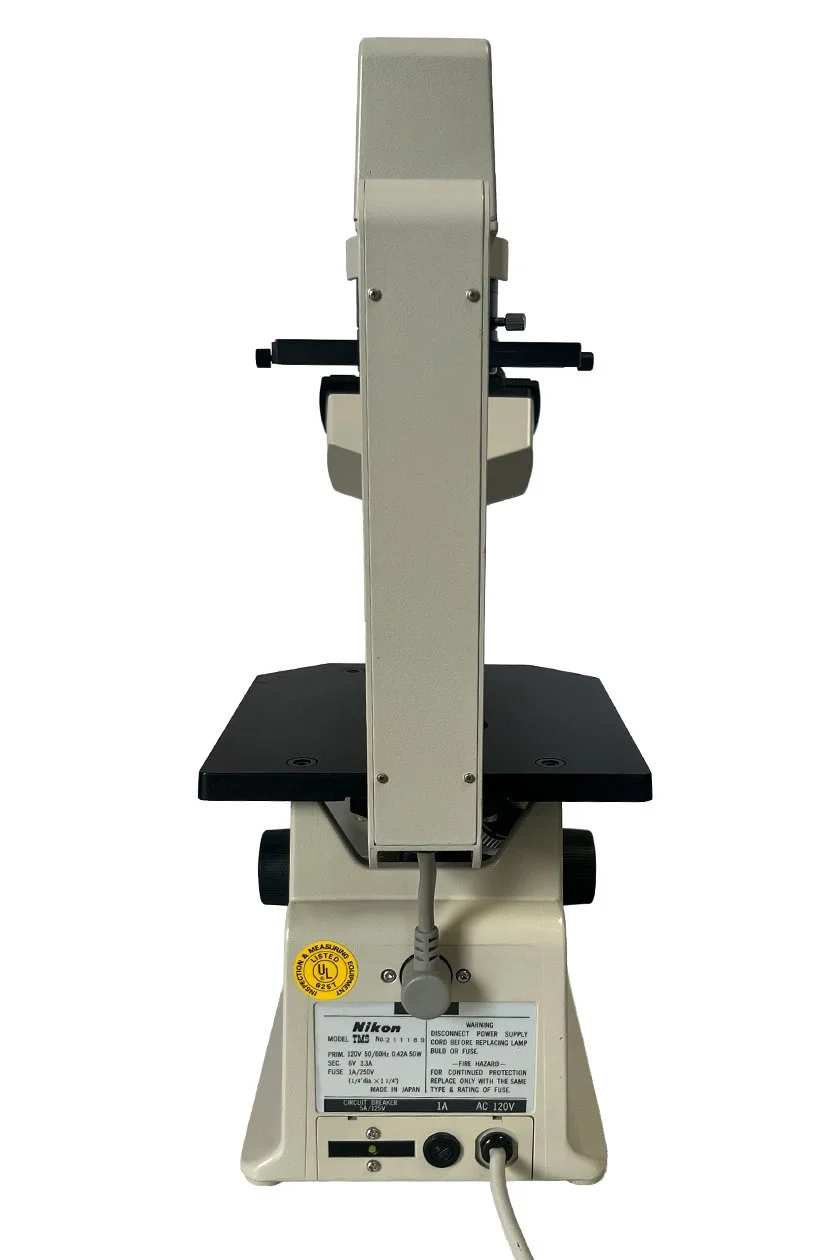

The Nikon TMS is a compact inverted microscope designed for phase contrast and brightfield observation of specimens contained in culture vessels, Petri dishes, flasks, and multiwell plates.
Its inverted configuration positions the objectives beneath the stage, making it suitable for cell culture, tissue culture, microbiology, educational, and routine laboratory applications.
This unit features a binocular viewing head, large fixed stage, Nikon long-working-distance condenser, multiple-position objective nosepiece, and integrated adjustable halogen illumination.
Features
Inverted microscope configuration
Binocular viewing head
Phase contrast and brightfield observation capability
Nikon long-working-distance condenser
N.A. 0.2 condenser
Multiple-position revolving objective nosepiece
Large fixed stage for culture vessels and Petri dishes
Coaxial focusing controls

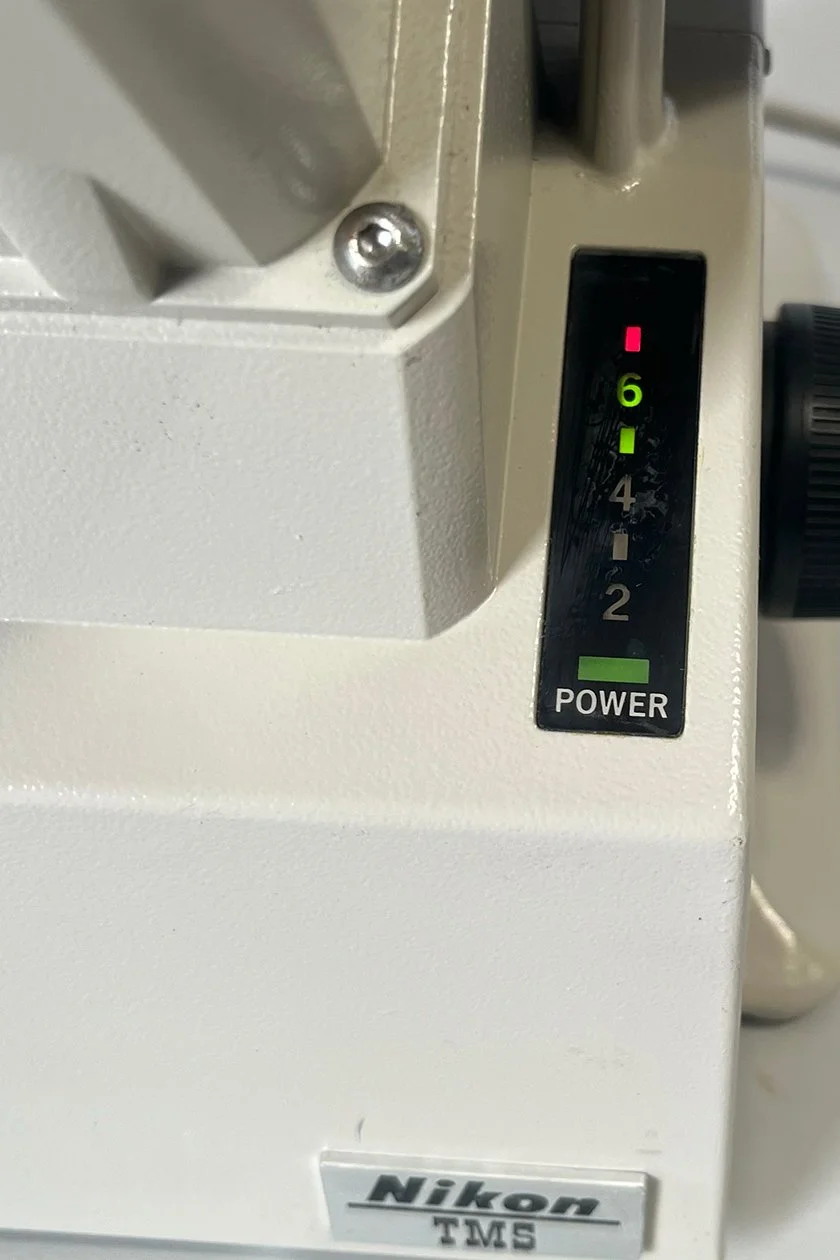

Adjustable halogen illumination
Integrated power supply
Compact laboratory design
Manufactured in Japan
Specifications
Manufacturer: Nikon
Model: TMS
Serial Number: 211189
Microscope Type: Inverted phase contrast microscope
Viewer: Binocular
Condenser: Nikon long-working-distance condenser
Condenser Numerical Aperture: 0.2
Stage Type: Fixed platform stage
Objective Nosepiece: Four-position revolving nosepiece
Installed Objectives: Three Nikon objectives shown in the photographs

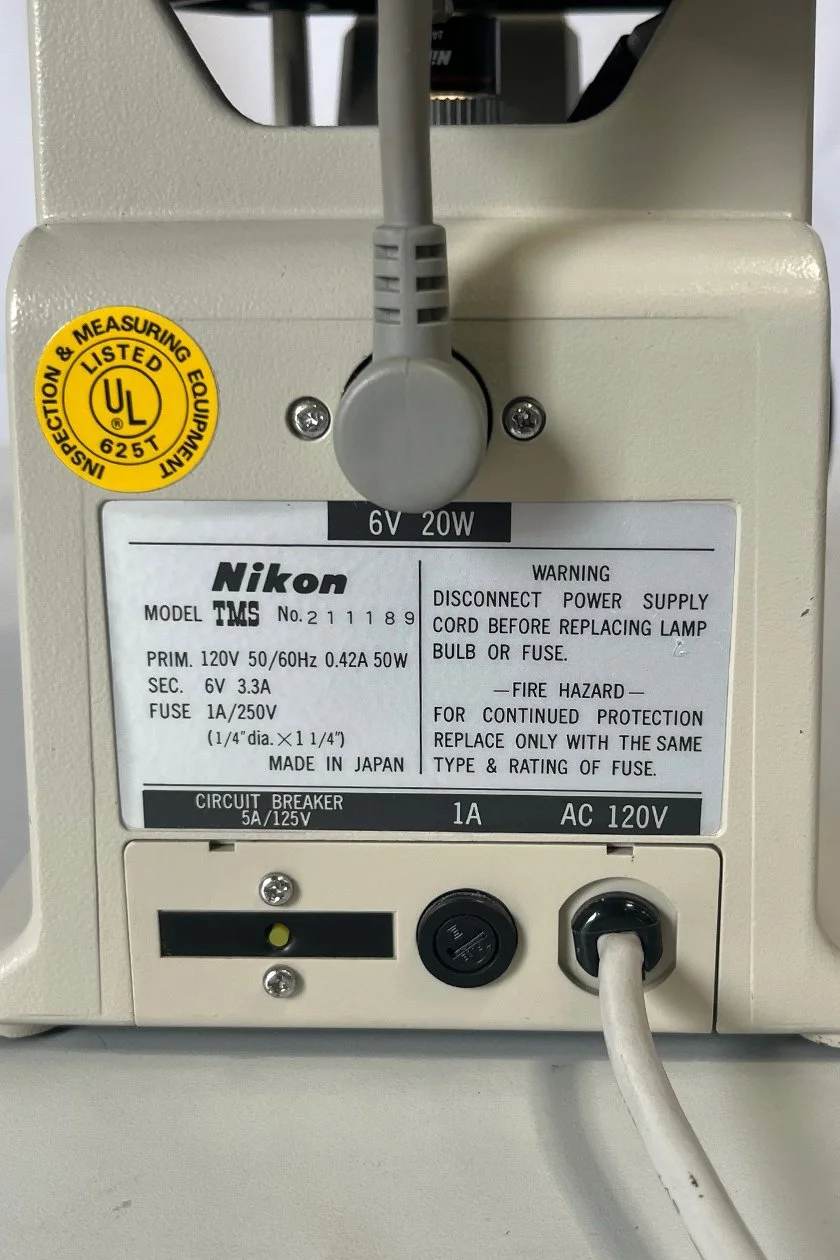

Illumination: Integrated 6 V / 20 W halogen
Primary Input: 120 V AC
Frequency: 50/60 Hz
Input Current: 0.42 A
Primary Power: 50 W
Secondary Output: 6 V, 3.3 A
Fuse: 1 A / 250 V
Country of Manufacture: Japan
Included
Nikon TMS inverted microscope stand
Binocular viewing head

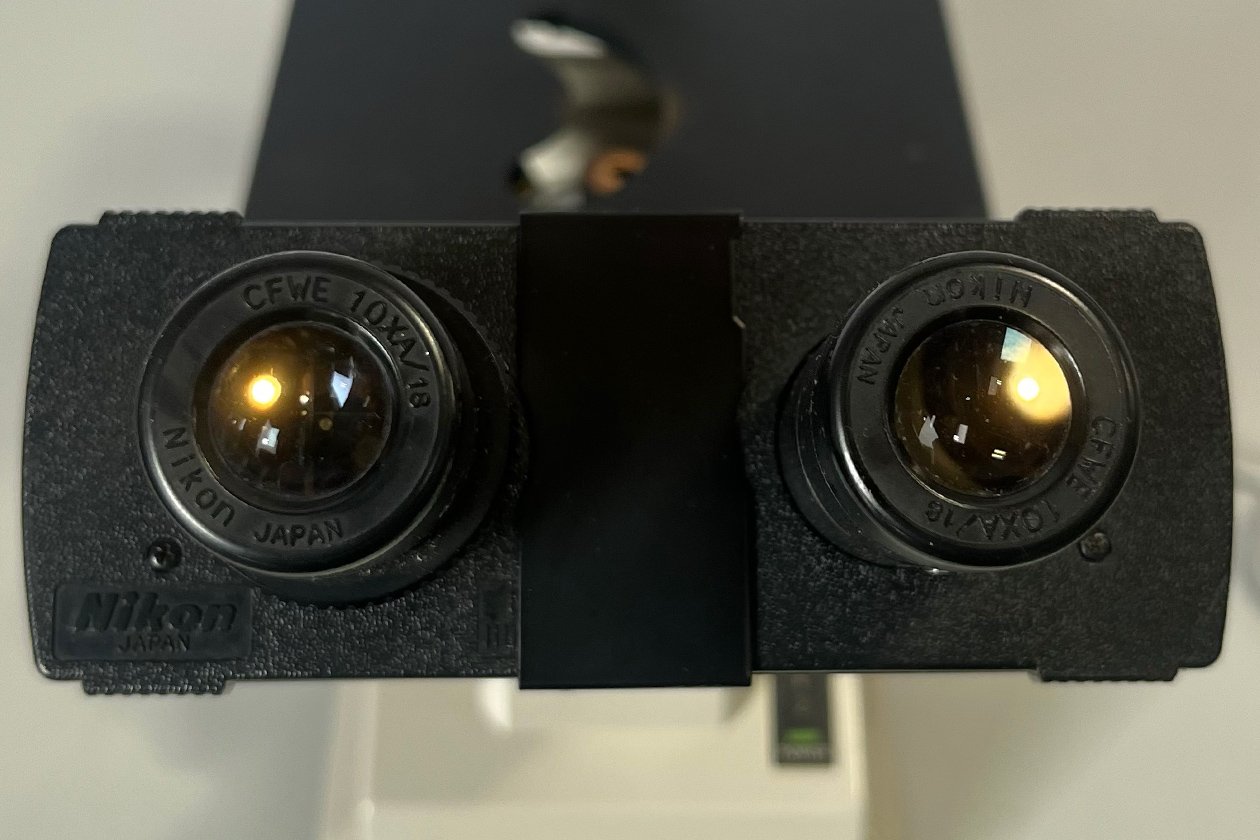

Pair of eyepieces shown in the photographs
Three Nikon objectives shown in the photographs

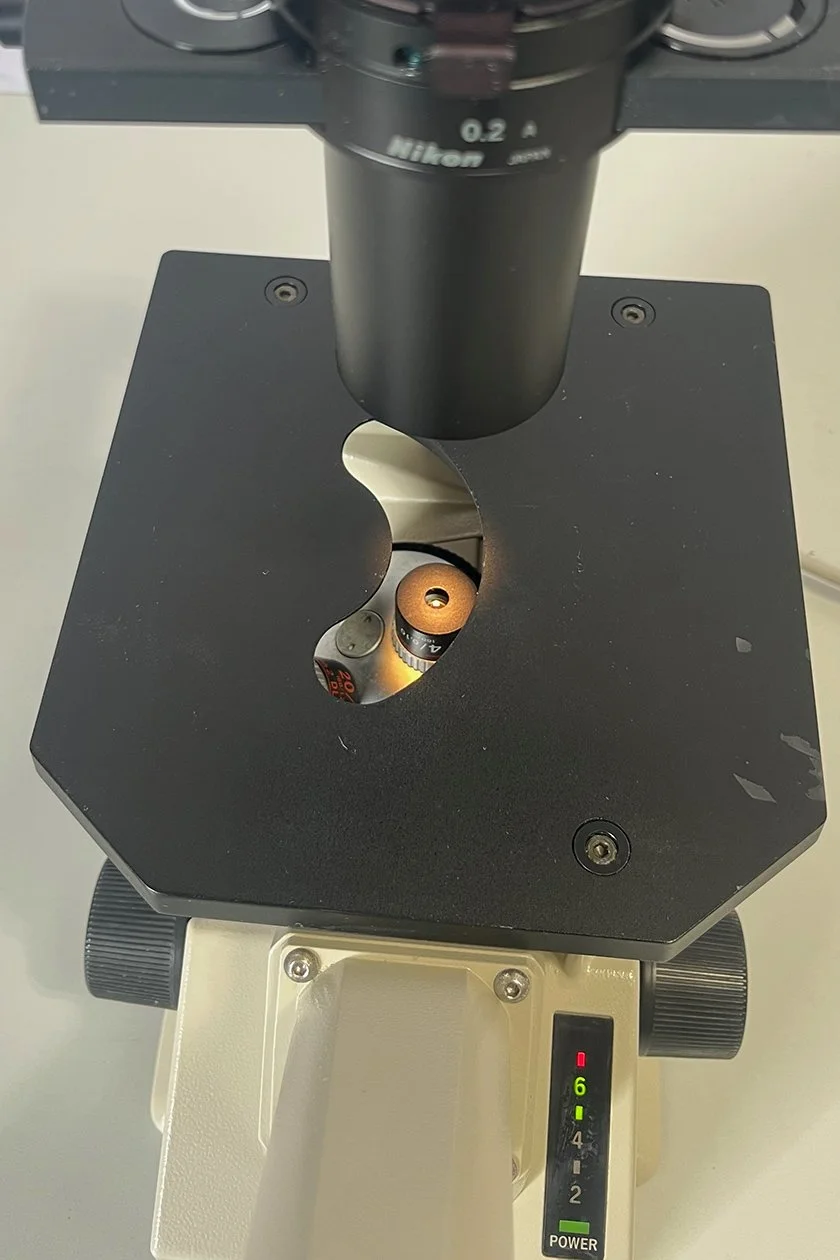

Nikon N.A. 0.2 condenser
Fixed platform stage and stage insert
Integrated 6 V / 20 W halogen illuminator
Attached power cord
Includes all accessories shown in the photographs.
No camera, mechanical X-Y stage, phase centering telescope, culture vessels, slides, calibration certificate, or additional accessories are included.
Condition
Pre-owned and in good cosmetic condition with minor signs of previous use.
The microscope has been tested and is functioning properly. The illumination, focusing controls, binocular viewing system, and objective nosepiece operate as intended.
Calibration and phase-ring alignment have not been verified. Professional inspection and alignment are recommended before quantitative, diagnostic, or regulated laboratory use.
Please review all photographs carefully, as they show the exact unit, condition, and components included.
Shipping
Freight shipping is available throughout the United States. Shipping costs are quoted separately based on destination, delivery requirements, and final shipment dimensions.
Local pickup is available in San Diego, California.
Please complete the Freight & Local Pickup Request Form before purchasing to receive an accurate freight quote.
