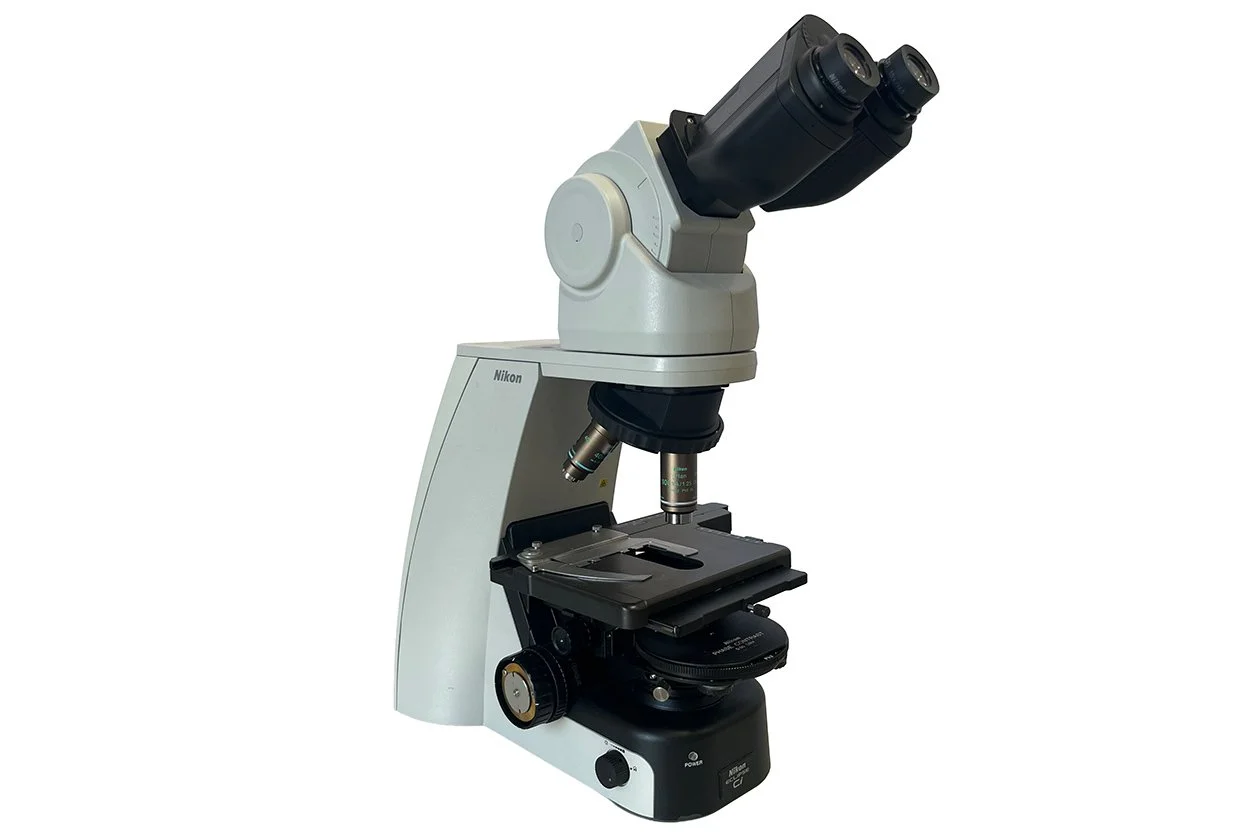

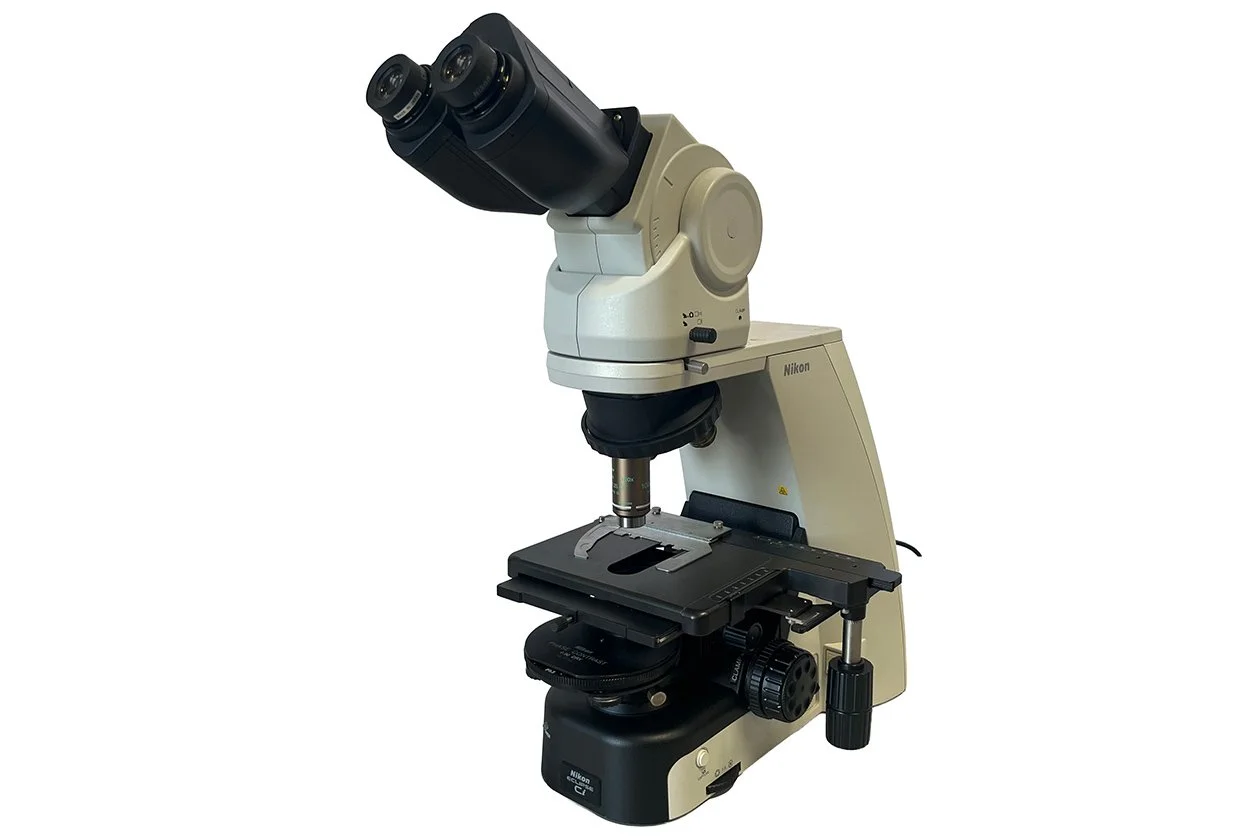

The Nikon Eclipse Ci-S is a professional upright microscope configured for brightfield and phase contrast observation in clinical, laboratory, microbiology, cytology, educational, and routine research applications.
This system features Nikon’s CFI60 infinity optical system, a C-TE2 ergonomic binocular head, a mechanical X-Y stage, and a Nikon Phase Contrast 0.90 Dry turret condenser.
Three Nikon CFI Plan Achromat DL phase contrast objectives are installed: 10X Ph1, 40X Ph2, and 100X Oil Ph3. The integrated 6 V / 30 W halogen illuminator provides adjustable transmitted light for observing transparent, unstained, or lightly stained specimens.
Features
Nikon CFI60 infinity optical system
Upright binocular microscope configuration
C-TE2 ergonomic binocular head
Adjustable viewing angle for improved operator comfort
Nikon Plan Achromat DL phase contrast objectives
Nikon Phase Contrast 0.90 Dry turret condenser
Brightfield and phase contrast observation
Mechanical stage with X-Y specimen positioning
Coaxial coarse and fine focusing controls
Adjustable focus tension
Integrated 6 V / 30 W halogen illumination
Universal 100–240 V power input
Specifications

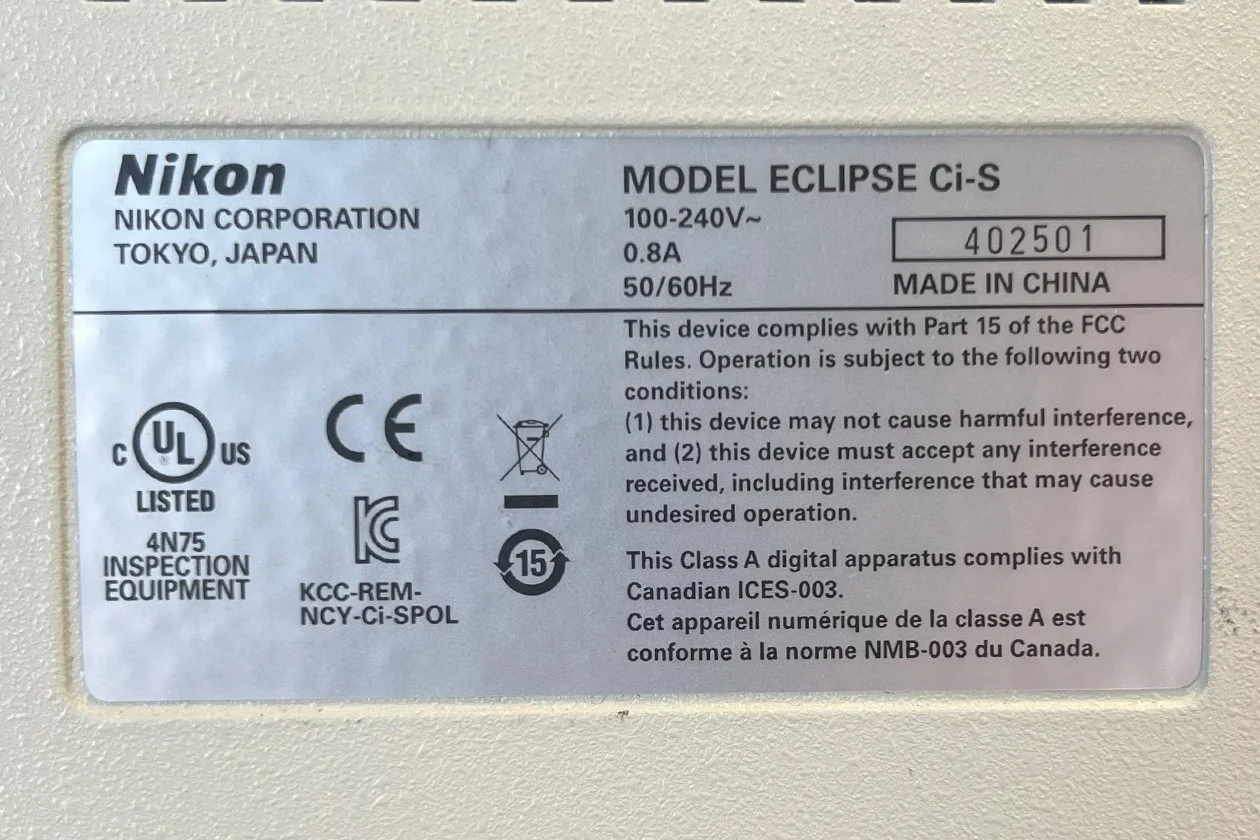

Manufacturer: Nikon
Model: Eclipse Ci-S
Serial Number: 402501
Microscope Type: Upright phase contrast microscope
Optical System: Nikon CFI60 Infinity
Viewing Head: C-TE2 ergonomic binocular head

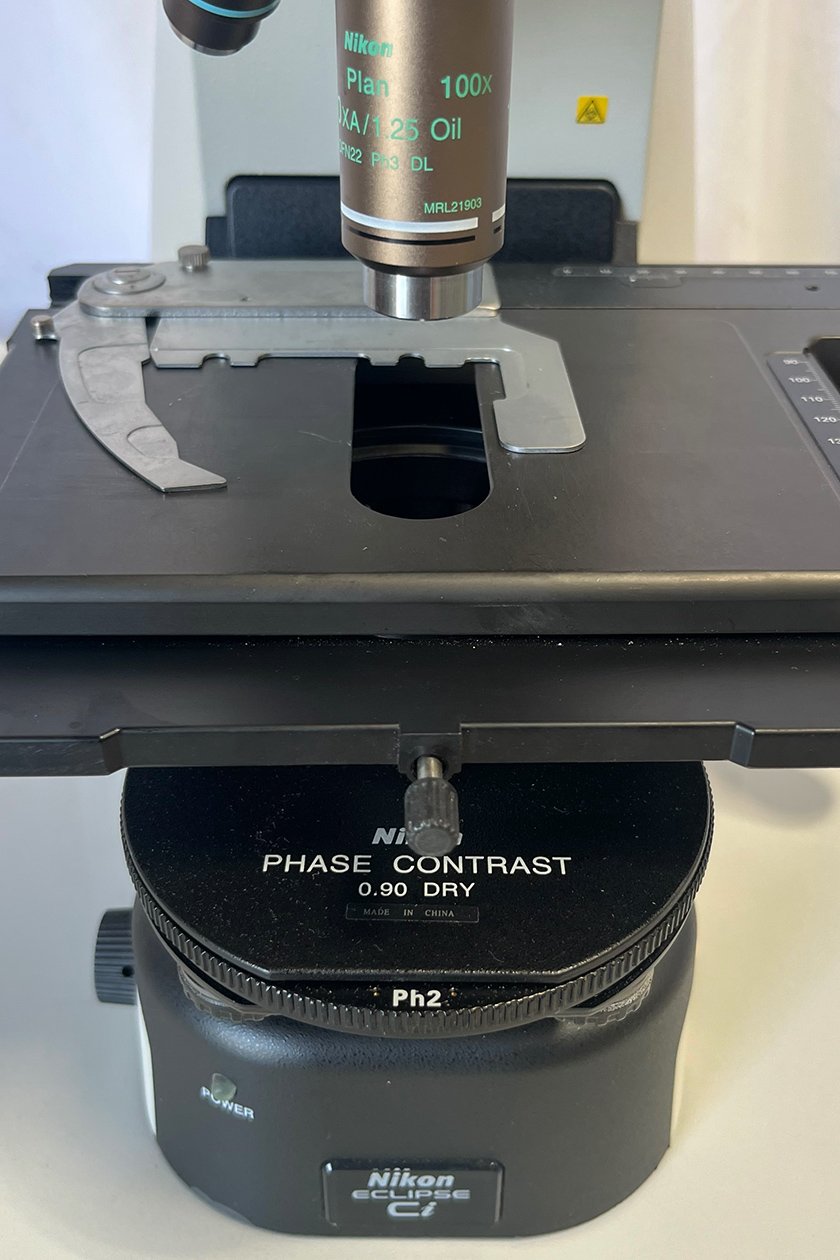

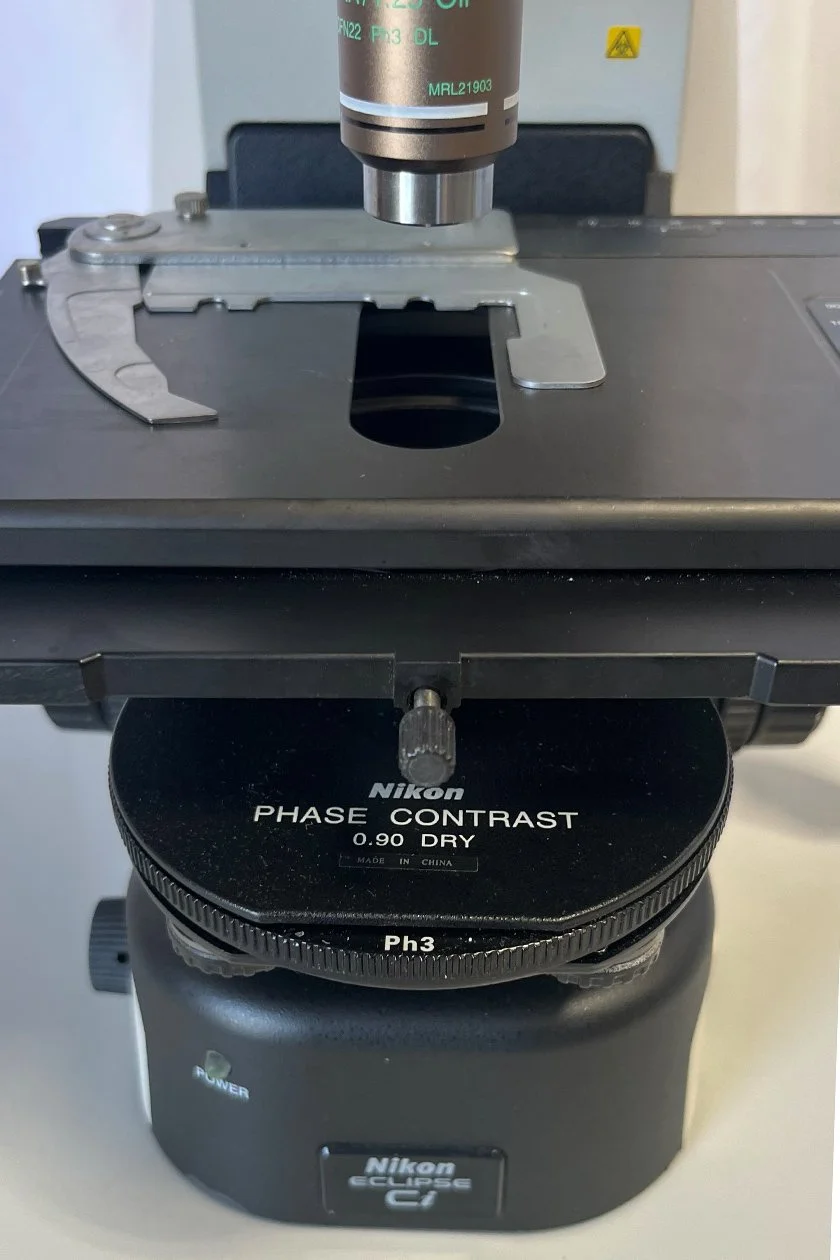

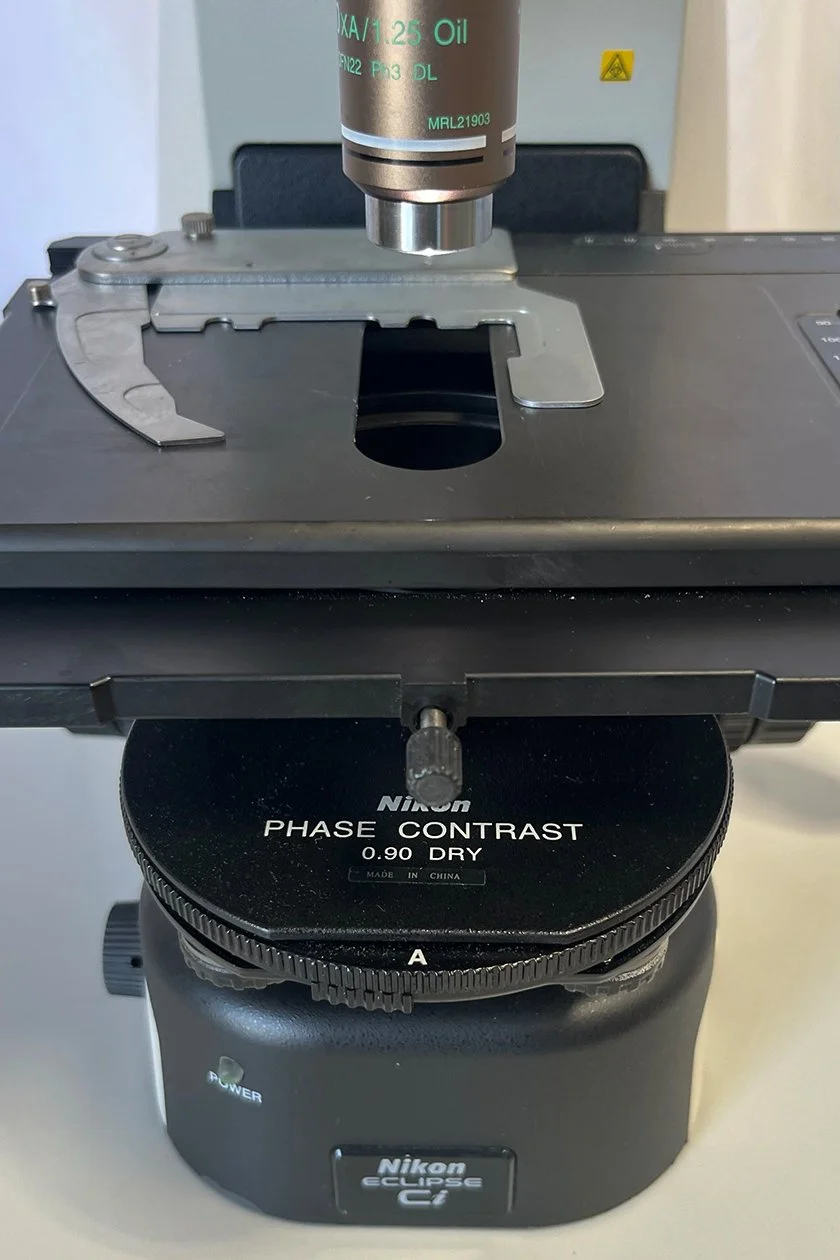

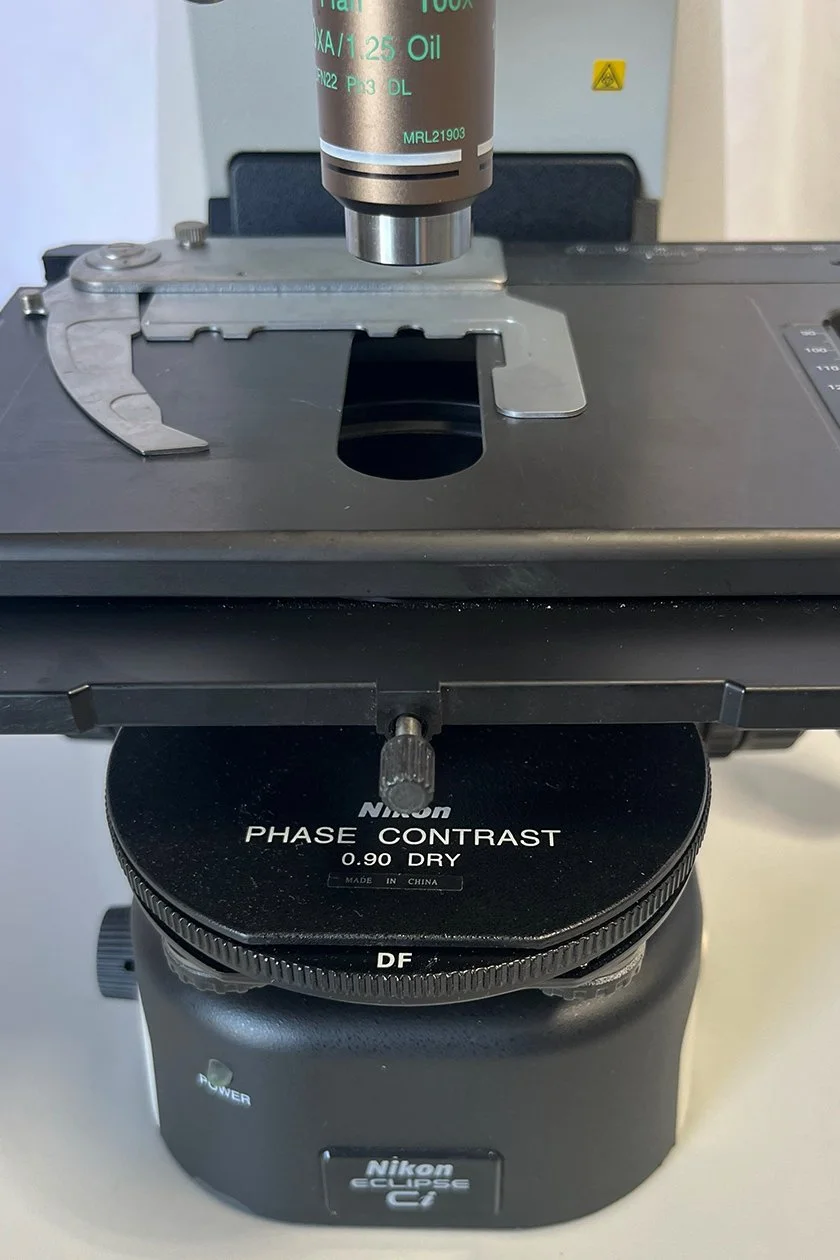

Condenser: Nikon Phase Contrast 0.90 Dry turret condenser

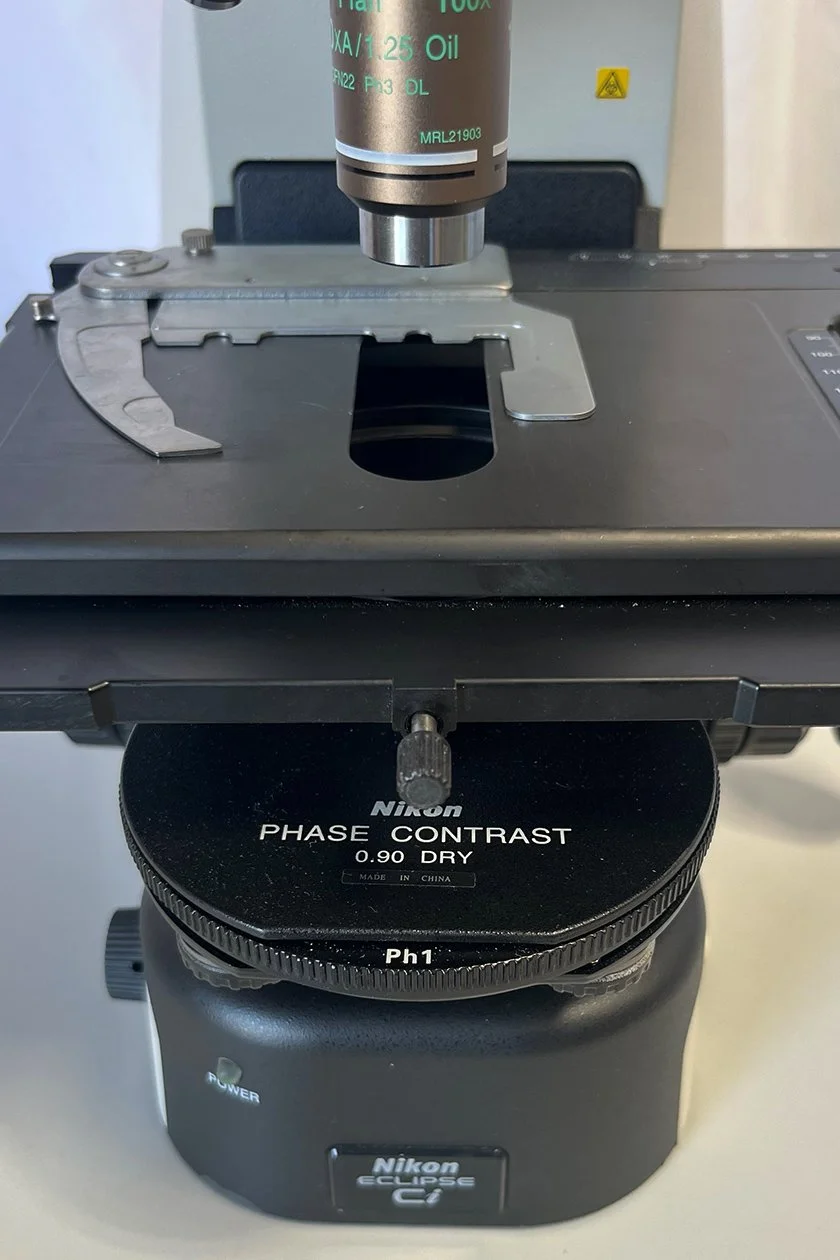

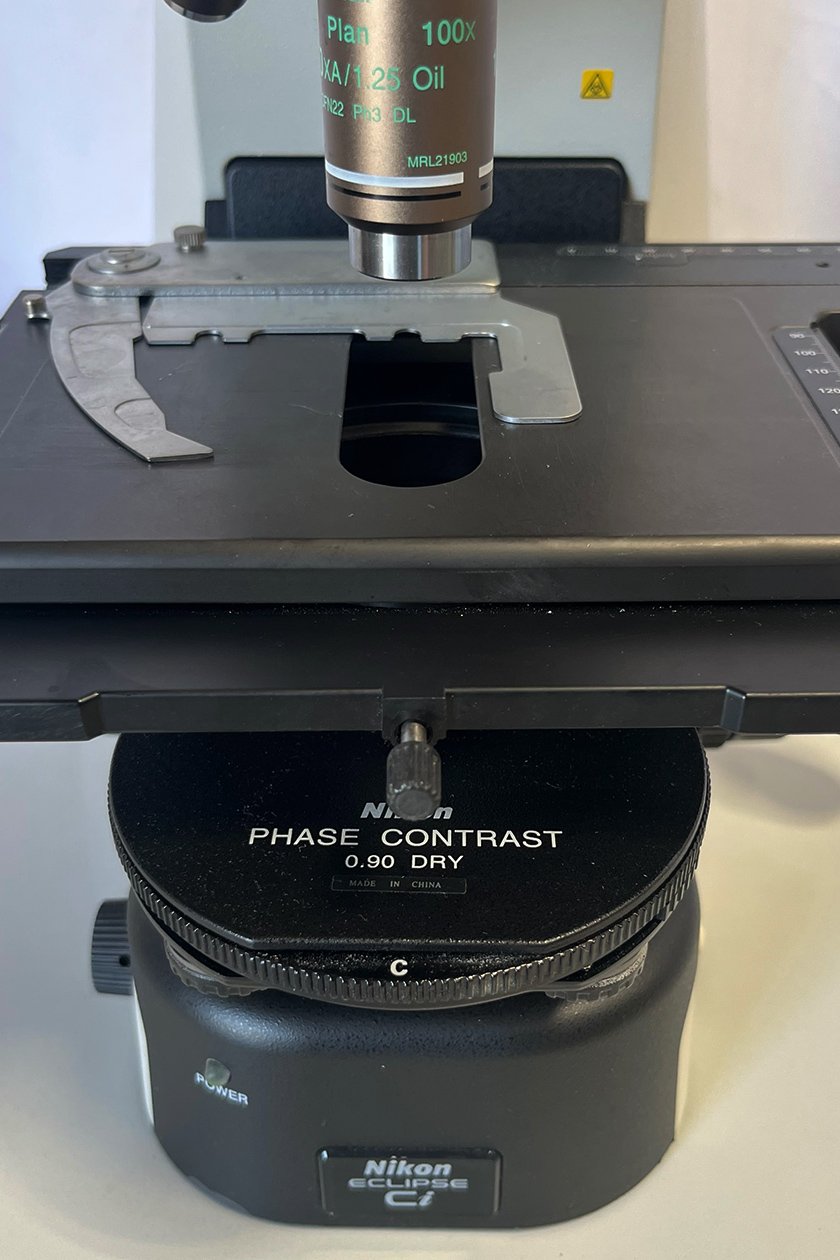

Visible Condenser Positions: A, C, DF, Ph1, Ph2, and Ph3
Objective Nosepiece: Multiple-position revolving nosepiece
Stage Type: Mechanical X-Y stage

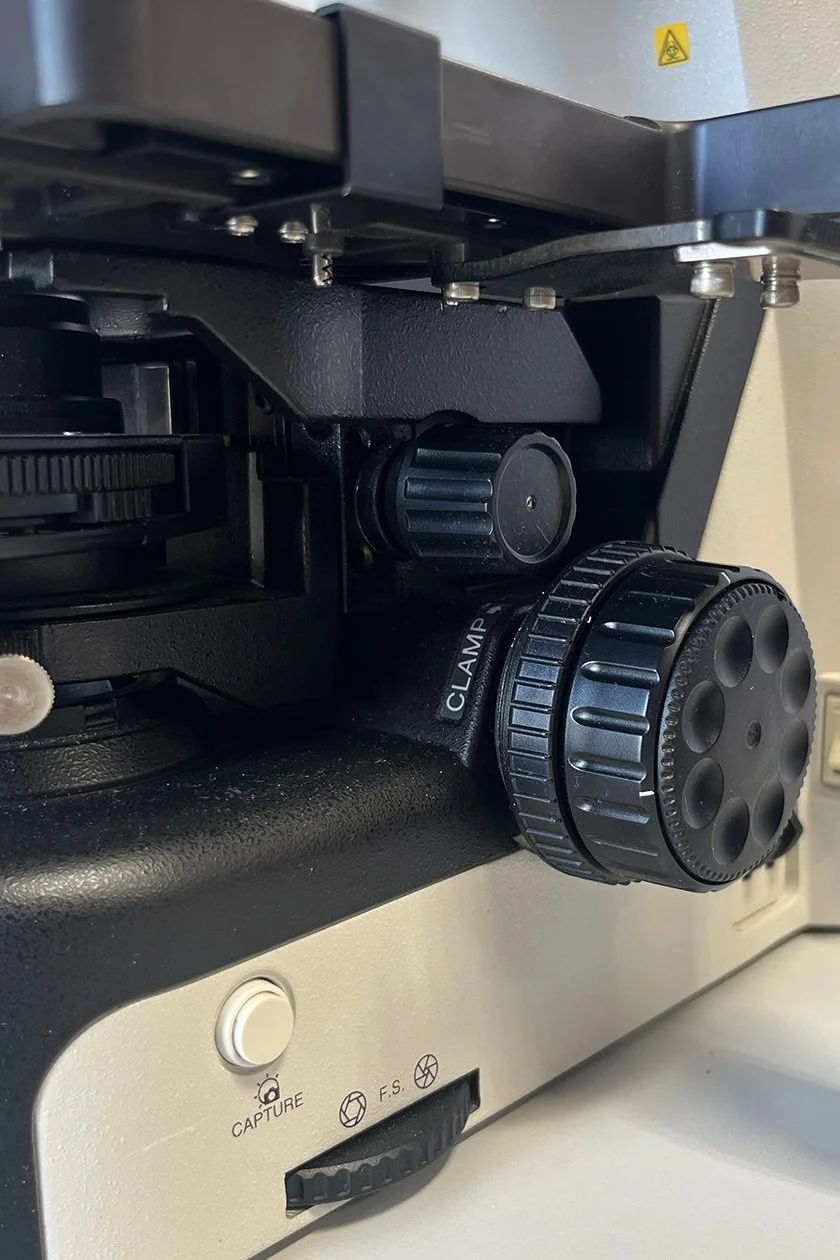

Focusing System: Coaxial coarse and fine focus
Focus Stroke: 30 mm
Fine Focus Scale: 1 µm per division
Illumination: Integrated 6 V / 30 W halogen transmitted light
Input Voltage: 100–240 V AC
Input Current: 0.8 A
Frequency: 50/60 Hz
Country of Manufacture: China
Installed Objectives

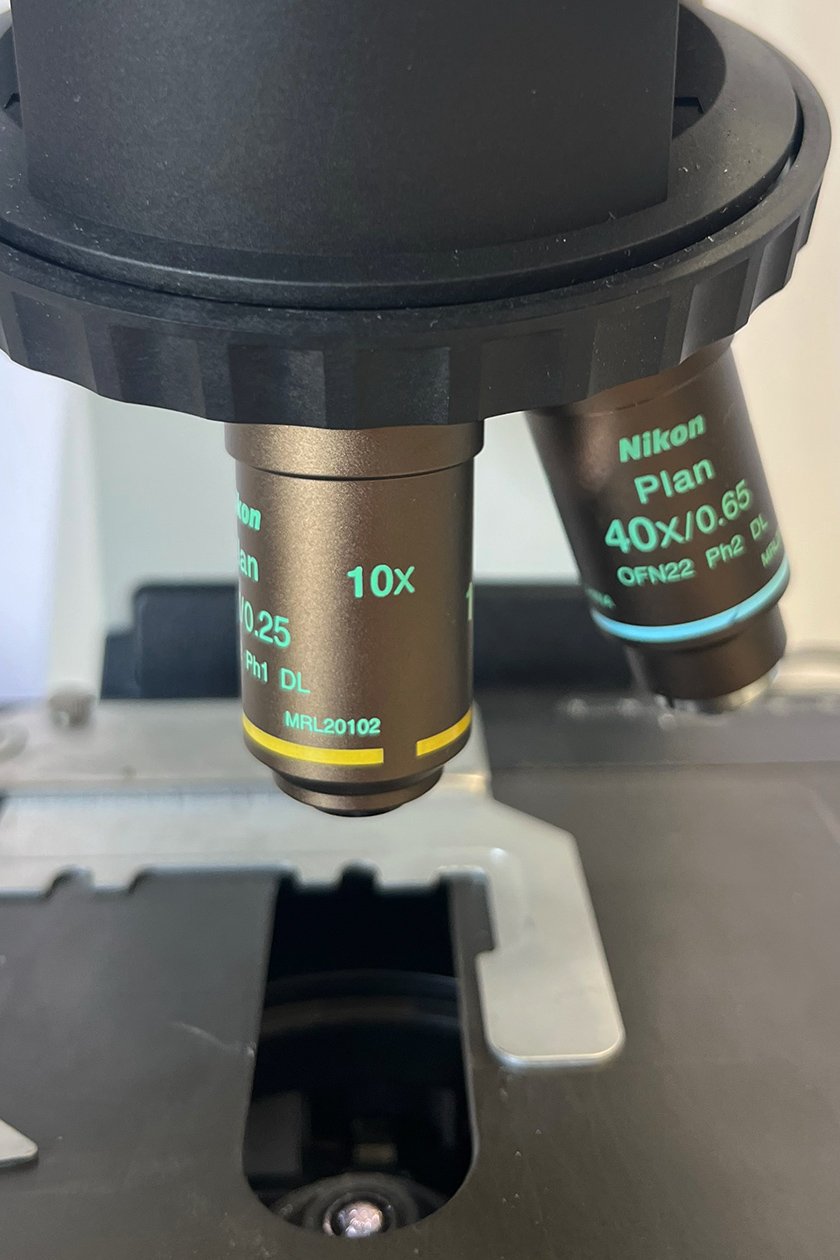

Nikon CFI Plan Achromat DL 10X/0.25 Ph1
Catalog Number: MRL20102

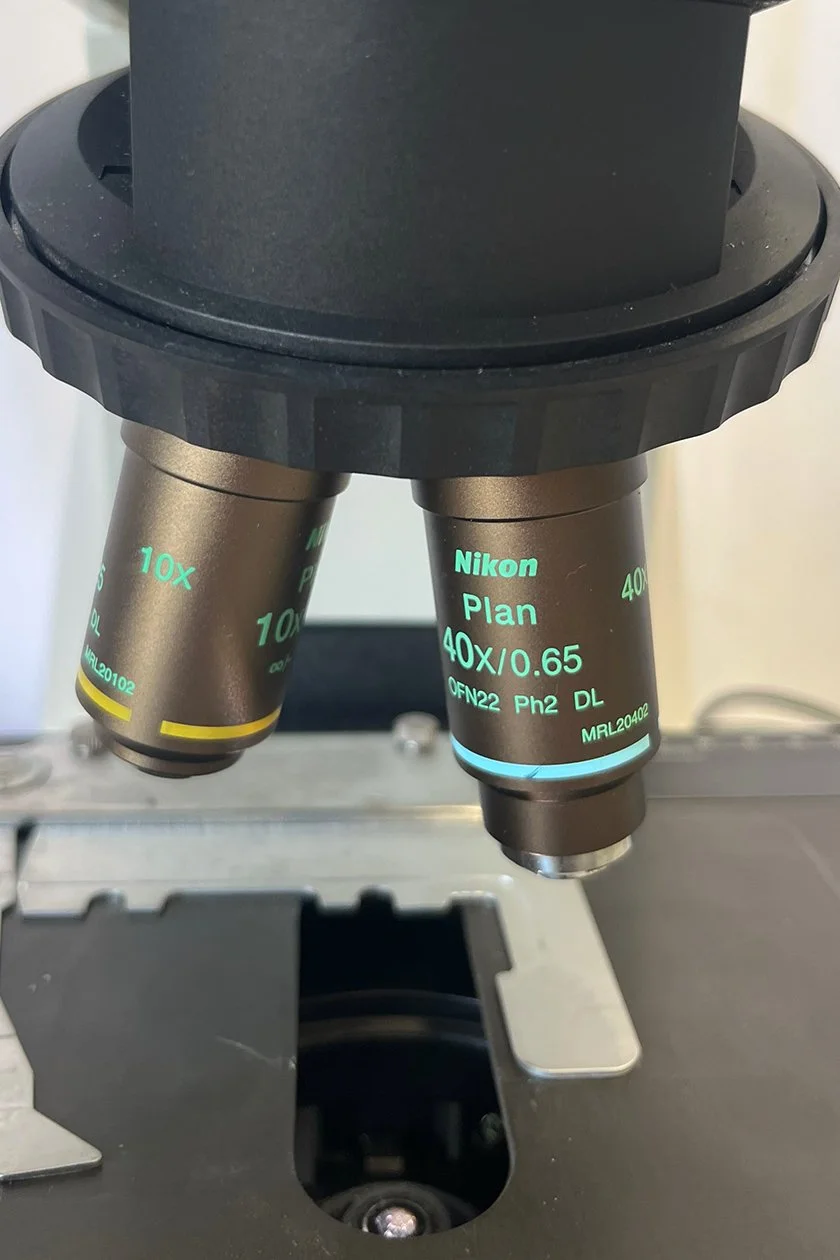

Nikon CFI Plan Achromat DL 40X/0.65 Ph2
Catalog Number: MRL20402

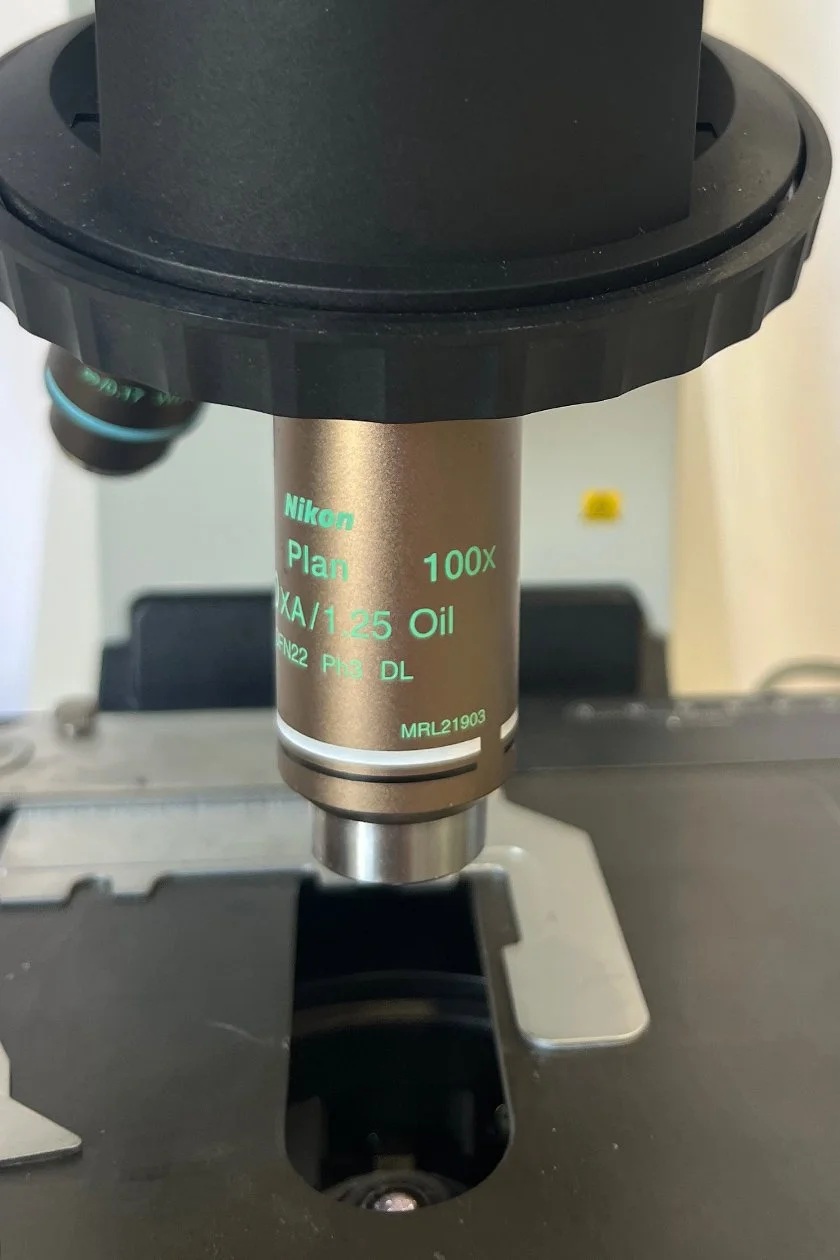

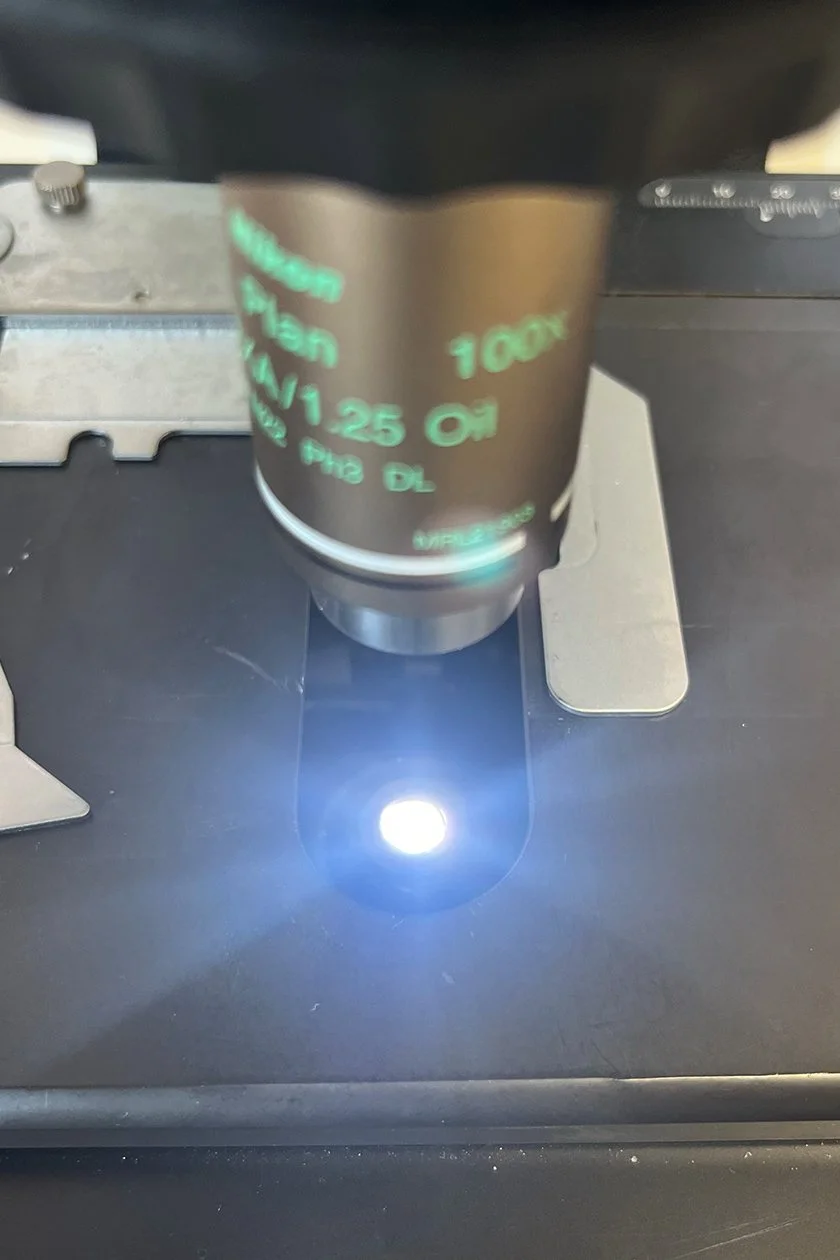

Nikon CFI Plan Achromat DL 100X/1.25 Oil Ph3
Catalog Number: MRL21903
Included
Nikon Eclipse Ci-S microscope stand
Nikon C-TE2 ergonomic binocular head
Pair of Nikon eyepieces shown in the photographs
Nikon Phase Contrast 0.90 Dry turret condenser
Nikon CFI Plan Achromat DL 10X/0.25 Ph1 objective
Nikon CFI Plan Achromat DL 40X/0.65 Ph2 objective
Nikon CFI Plan Achromat DL 100X/1.25 Oil Ph3 objective
Mechanical X-Y stage and specimen holder
Power cord shown in the photographs
A phase centering telescope is not included.
Includes all accessories shown in the photographs.
No camera, immersion oil, slides, calibration certificate, or additional objectives are included.
Condition
Pre-owned and in good cosmetic condition with minor signs of previous use.
The microscope has been tested and is functioning properly. The illumination, focusing controls, mechanical stage, binocular viewing system, and objective turret operate as intended.
Calibration status has not been verified. Professional inspection and calibration are recommended before quantitative, diagnostic, or regulated laboratory use.
Please review all photographs carefully, as they show the exact unit, condition, objectives, and components included.
Shipping
Freight shipping is available throughout the United States. Shipping costs are quoted separately based on destination, delivery requirements, and final shipment dimensions.
Local pickup is available in San Diego, California.
Please complete the Freight & Local Pickup Request Form before purchasing to receive an accurate freight quote.
