This column comes from a laboratory that was shutting down operations.
From the manufacturer:
Ease of Operation

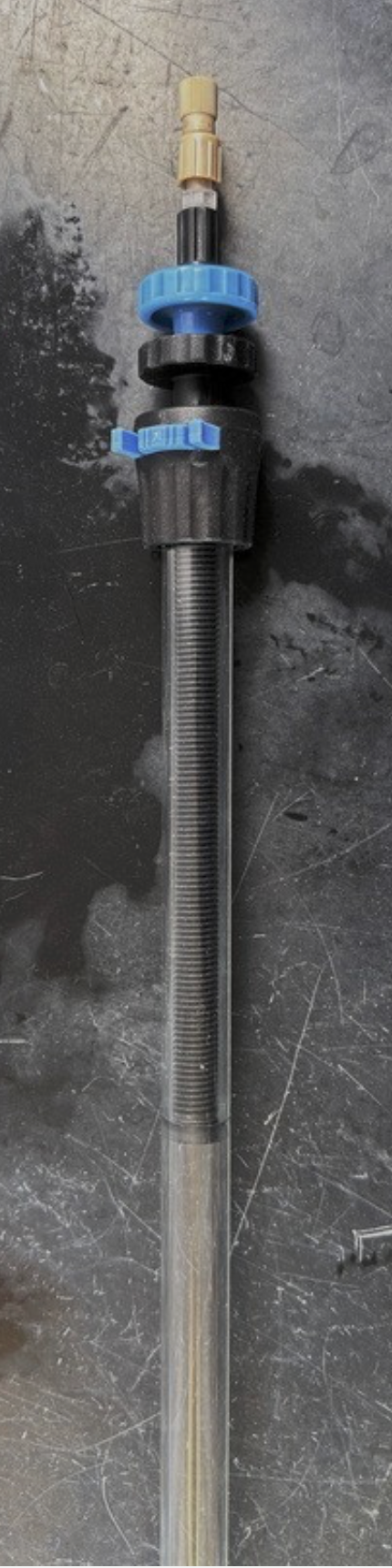

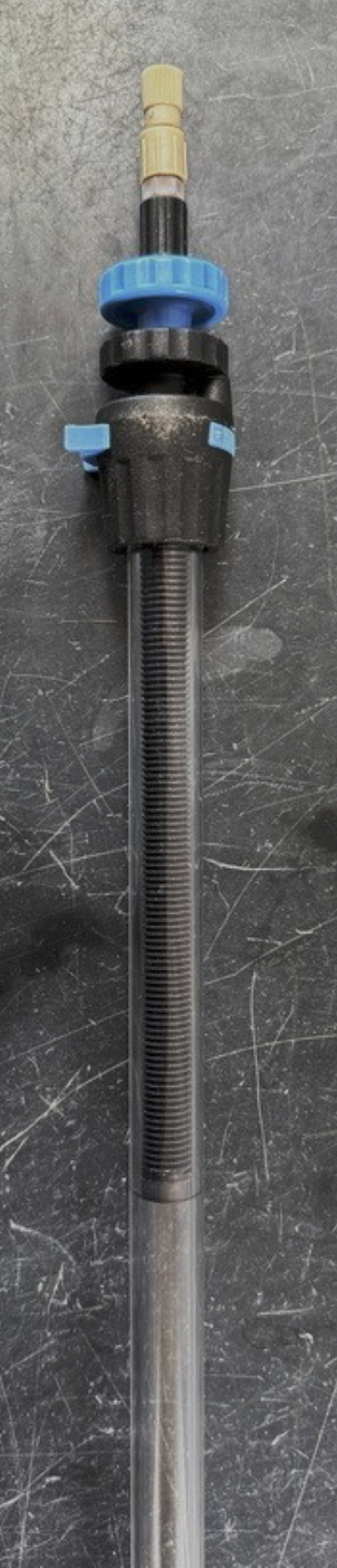

• Adjustable clip mechanism
• Easy to use finger tight tubing fittings; readily connected to FPLC®/HPLC systems
Capability
• Faster flow rates
• Uniform flow distribution
• Faster assembly and connection of multiple tubes
• Up or down flow
• Operation with short or long beds
• Scalability to pilot/production columns
Sanitary Design
• Zero deadspace seal; no unswept areas in flow path
Other Features

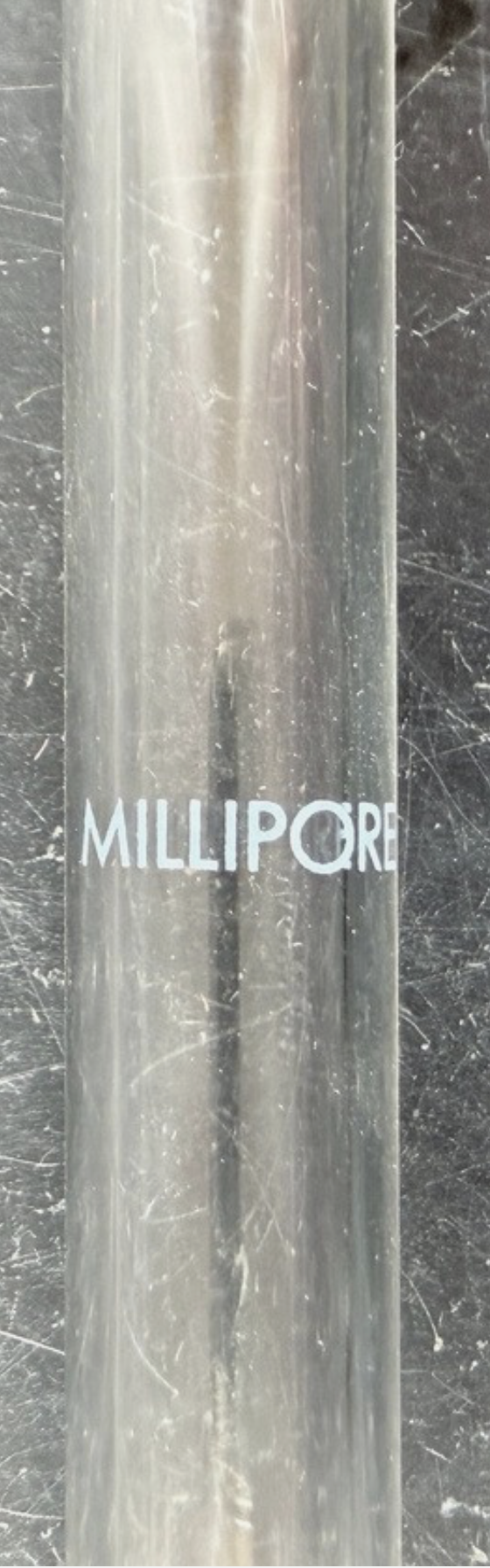

• Biocompatible precision bore, solvent-resistant borosilicate glass tube
Specs

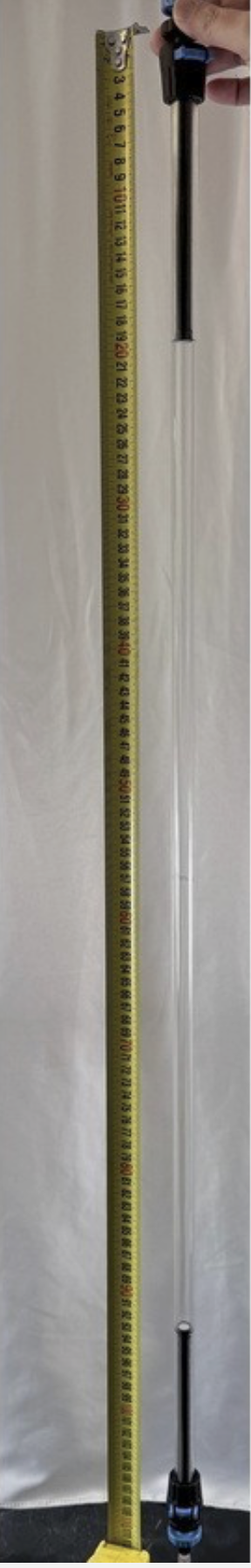

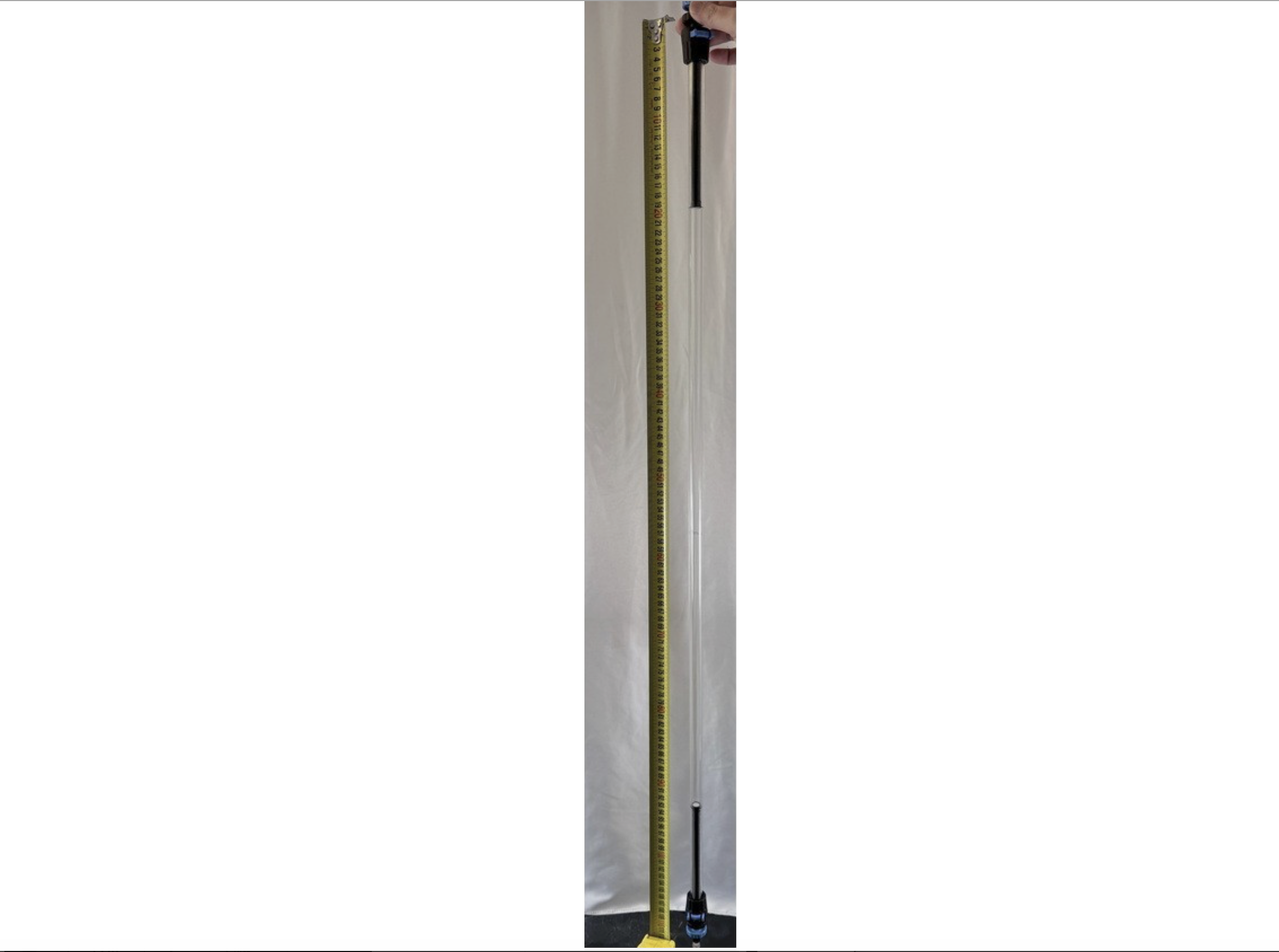

Description, Vantage® L Laboratory Column VL 11 × 1000
Maximum Differential Pressure, bar (psid), 7 bar (100 psid)
Maximum Inlet Pressure, bar (psi), 6.9 bar (100 psi)
Operating Temperature Range, 2 to 40 °C
Key Applications, Protein Purification
Physicochemical Information,
Bed Volume, 0.075–0.1 L
Bed Height, 750–1000 mm
Cross-sectional Area, 1 cm²
Length, 1000 mm
Diameter, 1.1 cm (0.4 in.)
