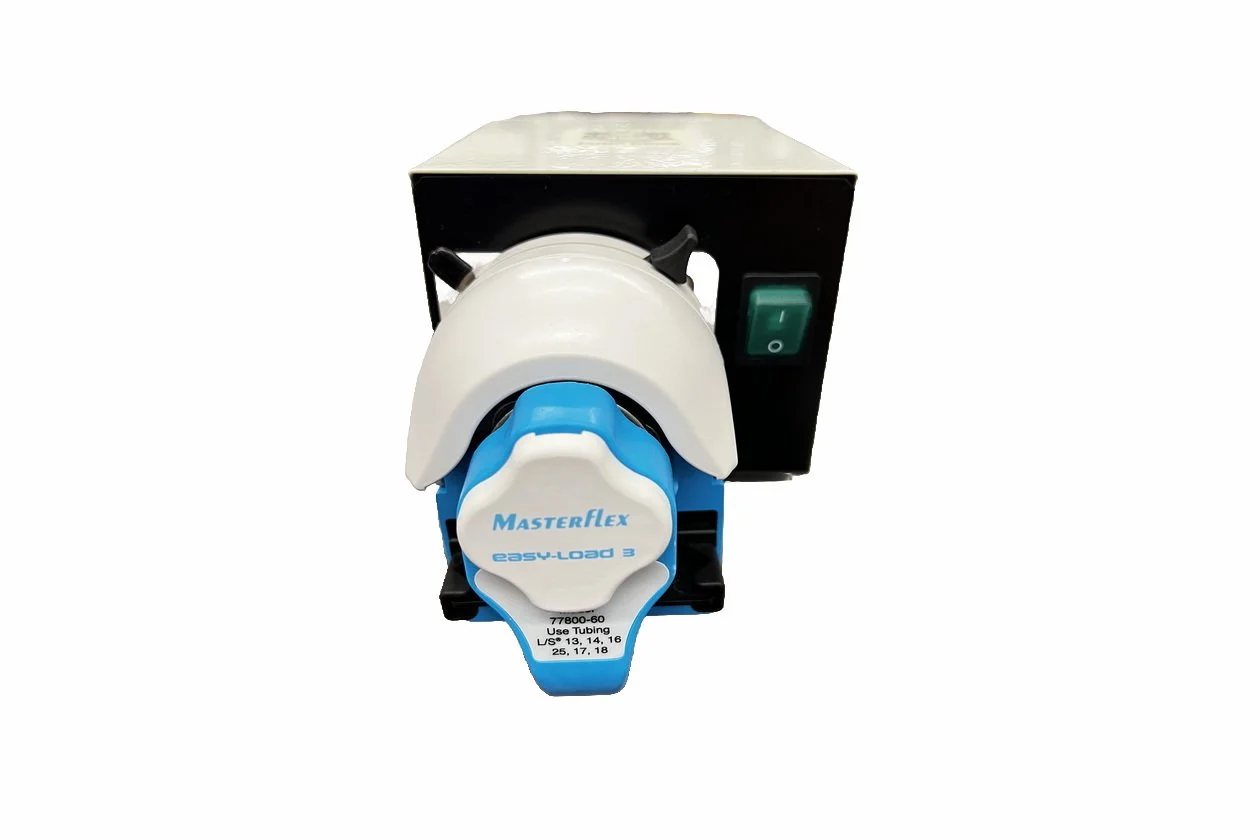

This unit comes from a laboratory that was downsizing operations. This MasterFlex 7540-12 Fixed Speed Drive with Easyload 3 77800-60 Pump Head was tested and thoroughly cleaned.
Economical drives for reliable general transfer and feed applications.
Economy fixed-speed drives are stackable and ideal for lab, field, or process feed applications
Choose from seven speeds based on flow rate or number of heads required
Constructed with painted steel housing for IP22-rating
The Masterflex® L/S® economy fixed-speed drives are compact and ideal where space is limited. These drives feature a lighted power switch on the front of the drive that lets you know when the pump is running. They accept five different pump head types: Standard, Easy-Load®, Easy-Load® II, Easy-Load® 3, and Cartridge pump heads.
MasterFlex Easyload 3 pump head 77800-60:
Flow range 0.06 to 2300 ml/min—flow rate depends on drive rpm and tubing size
Twist-lock mounting feature lets you mount and stack heads in seconds
Included mounting plate adapts Easy-Load® 3 to L/S drives — locking tab secures pump head during operation in either direction
Same side tubing entry/exit permits easy integration into space-limited applications — mount and operate pump head in any of four positions—depending on drive
Suitable for use with Masterflex® L/S® Precision tubing
The design of the Easy-Load® 3 features an automatic retention mechanism that makes loading and unloading tubing easier than ever. The spring-loaded occlusion lever opens the occlusion bed and simultaneously retracts the tubing retainers so that tubing slips right in. Close the lever and start the pump — the retainers automatically grip and hold the tubing securely in place. The occlusion bed applies optimal occlusion force and the wide occlusion angle prevents fluid backflow up to the rated pressure of the tubing.
Compatible with precision pump tubing accepting all six precision tubing sizes — L/S® 13, L/S® 14, L/S® 16, L/S® 25, L/S® 17, and L/S® 18.
Shipping & Pickup Disclaimer
This item is listed for local pickup in the San Diego area. If you require shipping, please note that freight is billed separately and calculated on a case-by-case basis through our freight partners. We will provide you with a custom shipping quote as quickly as possible after purchase.
For the most accurate estimate, please contact us in advance with your delivery address and any special requirements (e.g., lift gate service, residential delivery). We work to make freight logistics smooth and cost-effective for you.
This unit comes from a laboratory that was downsizing operations. This MasterFlex 7540-12 Fixed Speed Drive with Easyload 3 77800-60 Pump Head was tested and thoroughly cleaned.
Economical drives for reliable general transfer and feed applications.
Economy fixed-speed drives are stackable and ideal for lab, field, or process feed applications
Choose from seven speeds based on flow rate or number of heads required
Constructed with painted steel housing for IP22-rating
The Masterflex® L/S® economy fixed-speed drives are compact and ideal where space is limited. These drives feature a lighted power switch on the front of the drive that lets you know when the pump is running. They accept five different pump head types: Standard, Easy-Load®, Easy-Load® II, Easy-Load® 3, and Cartridge pump heads.
MasterFlex Easyload 3 pump head 77800-60:
Flow range 0.06 to 2300 ml/min—flow rate depends on drive rpm and tubing size
Twist-lock mounting feature lets you mount and stack heads in seconds
Included mounting plate adapts Easy-Load® 3 to L/S drives — locking tab secures pump head during operation in either direction
Same side tubing entry/exit permits easy integration into space-limited applications — mount and operate pump head in any of four positions—depending on drive
Suitable for use with Masterflex® L/S® Precision tubing
The design of the Easy-Load® 3 features an automatic retention mechanism that makes loading and unloading tubing easier than ever. The spring-loaded occlusion lever opens the occlusion bed and simultaneously retracts the tubing retainers so that tubing slips right in. Close the lever and start the pump — the retainers automatically grip and hold the tubing securely in place. The occlusion bed applies optimal occlusion force and the wide occlusion angle prevents fluid backflow up to the rated pressure of the tubing.
Compatible with precision pump tubing accepting all six precision tubing sizes — L/S® 13, L/S® 14, L/S® 16, L/S® 25, L/S® 17, and L/S® 18.
Shipping & Pickup Disclaimer
This item is listed for local pickup in the San Diego area. If you require shipping, please note that freight is billed separately and calculated on a case-by-case basis through our freight partners. We will provide you with a custom shipping quote as quickly as possible after purchase.
For the most accurate estimate, please contact us in advance with your delivery address and any special requirements (e.g., lift gate service, residential delivery). We work to make freight logistics smooth and cost-effective for you.
