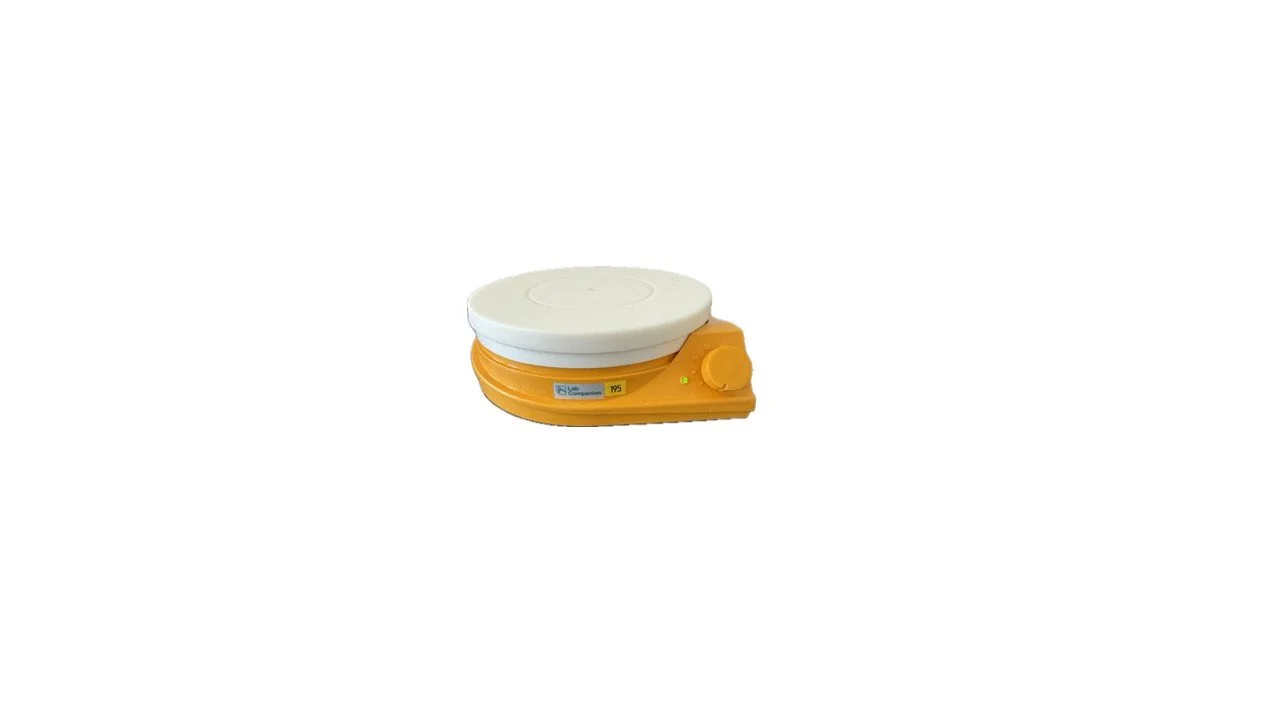

Jeio Tech Lab Companion Magnetic Stirrer MS-17BY
Structural Functional Features
Polypropylene (PP) material with excellent chemical resistance.
Minimized vibration during high-speed stirring with rubber feet.
Using special permanent magnets for maintaining stirring ability.
Use Convenience Features
Quick control of stirring speed in real time according to degree of control of control knobs.
The two types of black and white covers are very useful for observing changes according to samples.
Convenient LED lamp for checking operation status.
Lightweight makes handling convenient.
Outstanding Safety
Safety ensured by BLDC motor that does not generate sparks.
Spill-proof design minimizes inflow solution into device.
Provides Silicon-based top plate cover to prevent slipping accidents of glassware.
Stirring
Speed range (rpm) 150 to 2500
Capacity (H2O, L) 4
Magnetic bar, Max. (L x Ø, mm) 40 x 8 / 1.57 x 0.31
Load, Max. (kg)20 / 44.09
Material
Top plate Polypropylene
Body Polypropylene
Motor type BLDC (Brushless Direct Current
)Dimension
Top plate (Ø or W x D, mm / inch)170 / 6.69
Exterior (W x D x H, mm / inch) 180 x 186 x 65 / 7.09 x 7.32 x 2.56
Net weight (kg / lbs)0.9 / 1.98
Electrical requirements
AC 100 ~ 240V, 50 / 60Hz with power adapter
Power consumption (W) 6

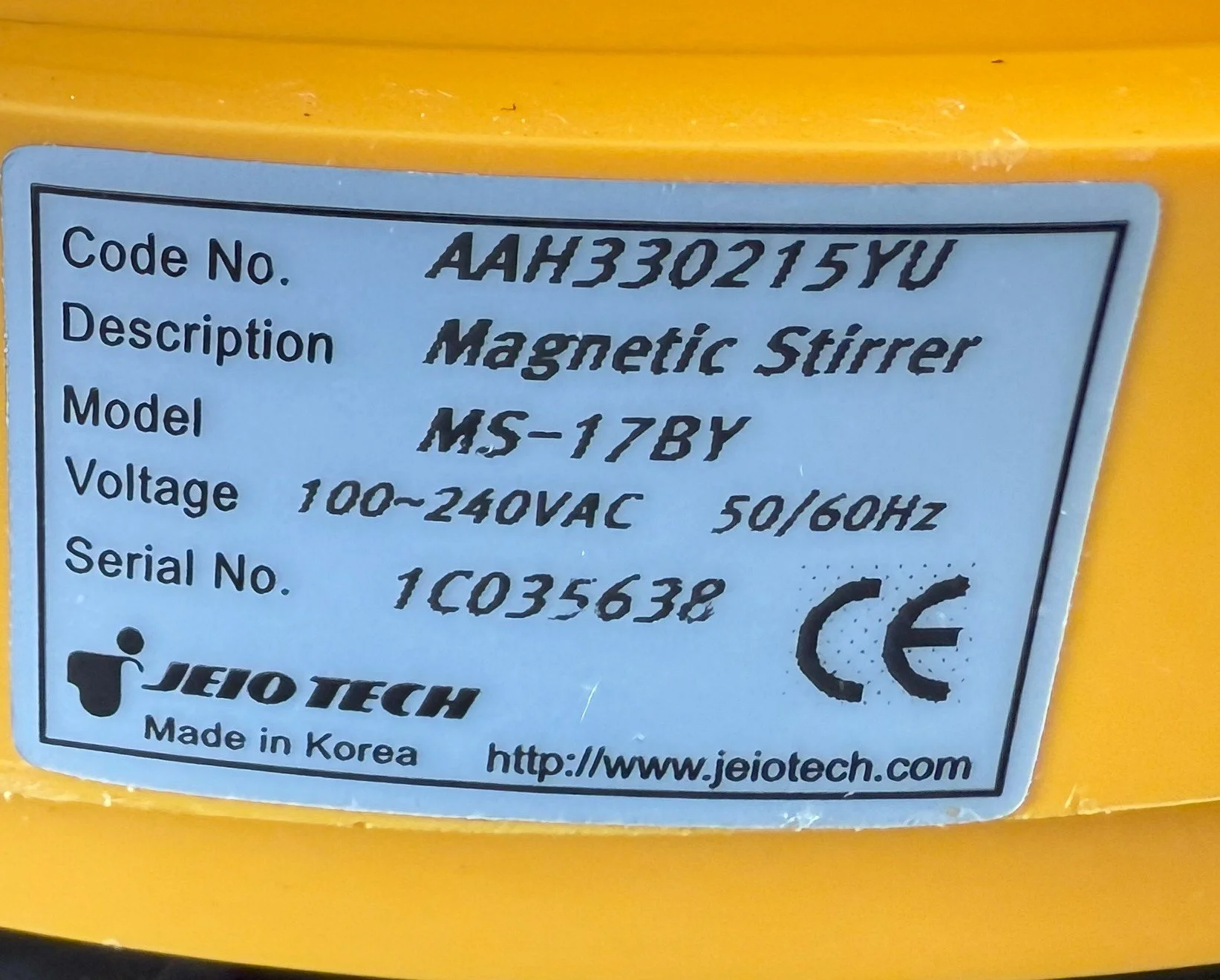

Cat. No.AAH330215YU
