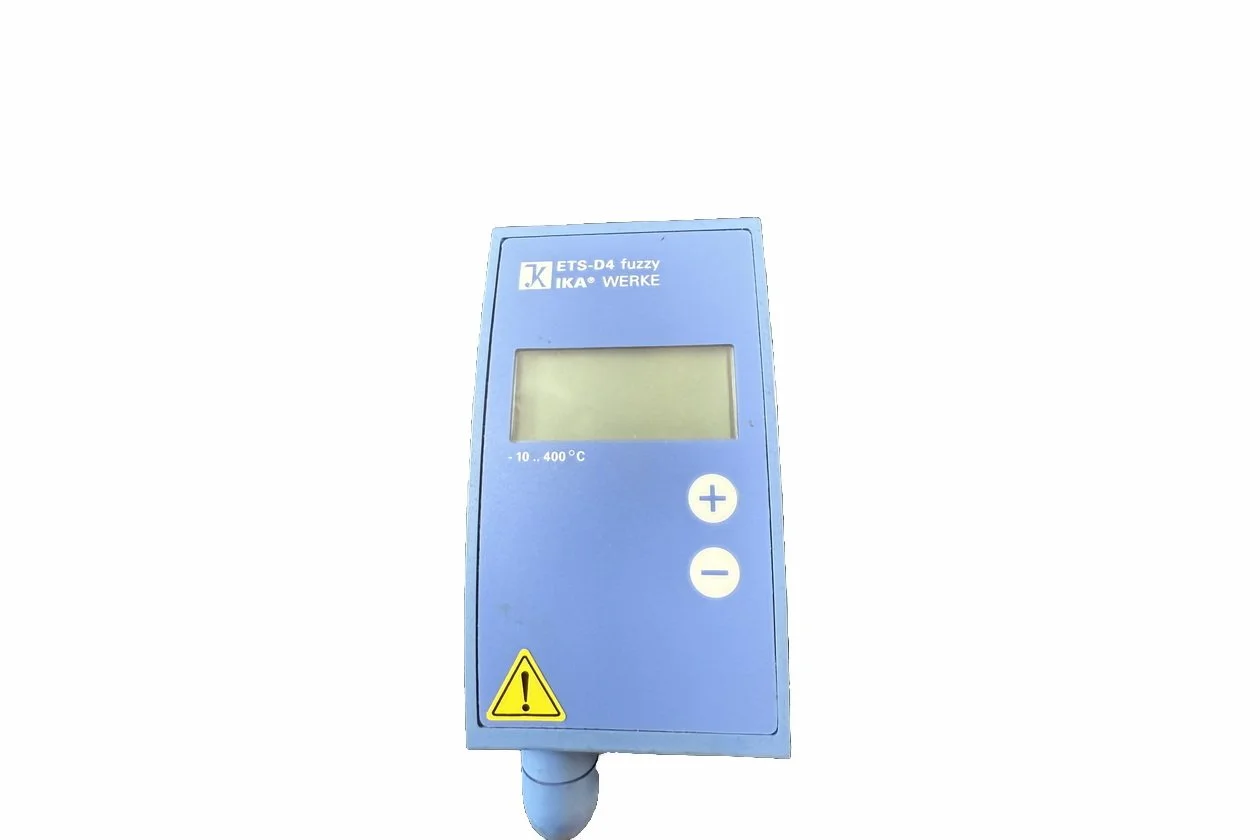

IKA ETS-D4 temperature probe integrates with a hotplate to accurately monitor and precisely adjust the heating elements to maintain the input temperature.
This unit comes from a laboratory that was downsizing operations. This temperature probe was tested and thoroughly cleaned.
Measuring range: -10 ... 400C
Resolution: 0.1 (-10 ... +100 °C) K 1 (100... 400 °C)
Measuring accuracy: +0.3 + sensor tolerance Pt 1000 DIN IEC 751 Class B
Setting accuracy: 1
Control deviation: +1
Supply voltage: VDC 8... 16
Current consumption: mA 16 (at 9V)
Ambient temperature: °C 0... 60
Relative humidity: % 80
ON time: % 100
Degree of protection: IP 44
Cable length: mm 350
Plug: 6-pin DIN 45 322
Connection: DIN 12 878 Class 2
Dimensions: (WxDxH) mm 70 x 150 x 65 (without sensor)
Weight: kg 0.2
Shipping & Pickup Disclaimer
This item is listed for local pickup in the San Diego area. If you require shipping, please note that freight is billed separately and calculated on a case-by-case basis through our freight partners. We will provide you with a custom shipping quote as quickly as possible after purchase.
For the most accurate estimate, please contact us in advance with your delivery address and any special requirements (e.g., lift gate service, residential delivery). We work to make freight logistics smooth and cost-effective for you.
