Pre-Owned Hoefer TE62 Transphor Electrophoresis Transfer Unit

The Hoefer TE62 Transphor Electrophoresis Transfer Unit is a high-capacity wet transfer system designed for transferring proteins and nucleic acids from polyacrylamide or agarose gels to membranes.

The TE62 configuration features an integrated heat exchanger in the base for connection to an external refrigerated circulator, helping maintain controlled buffer temperature during extended transfer procedures.

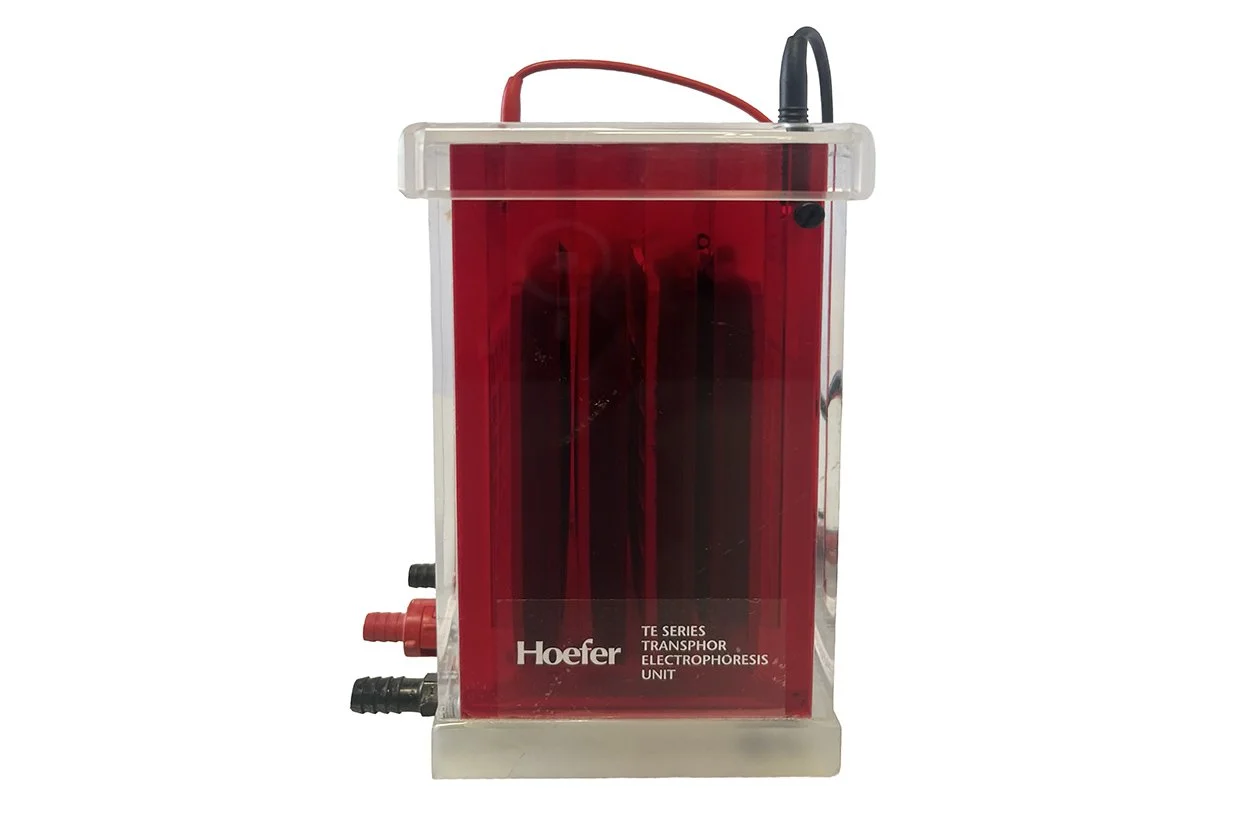

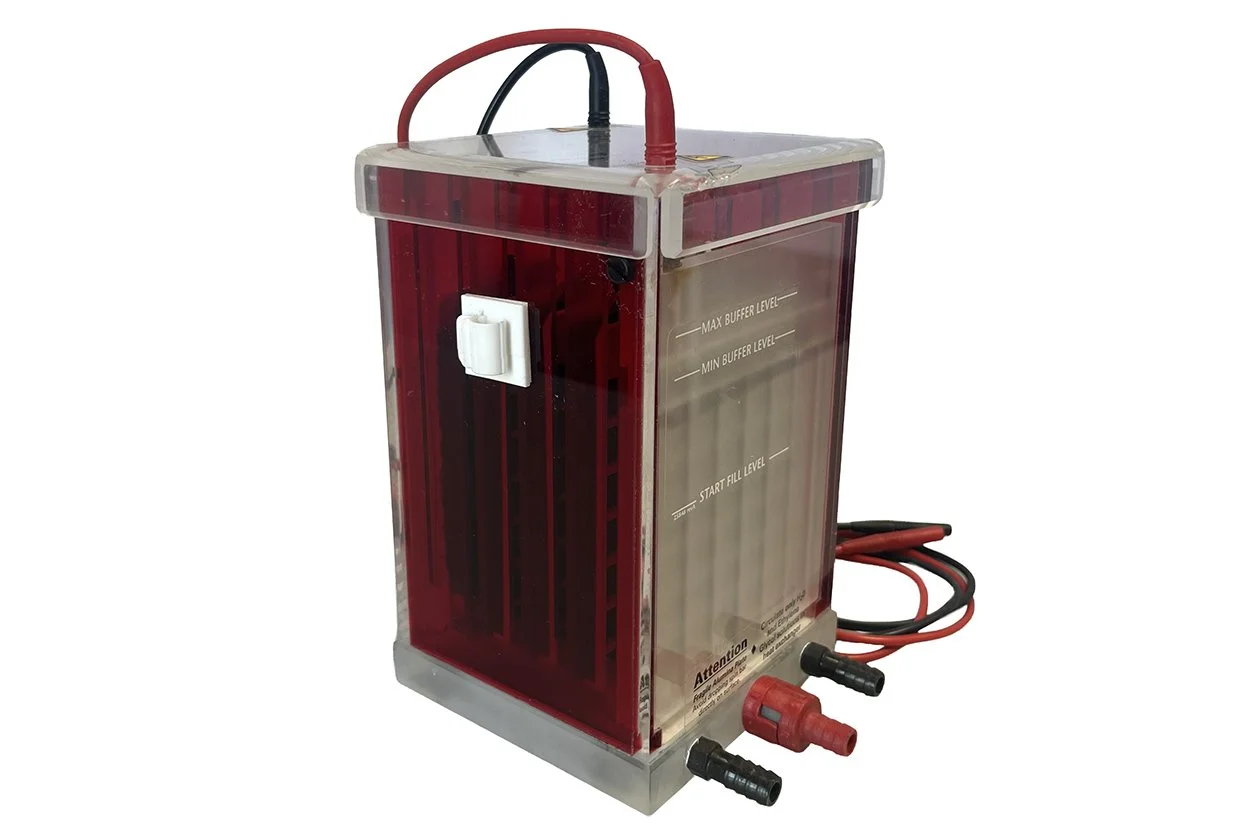

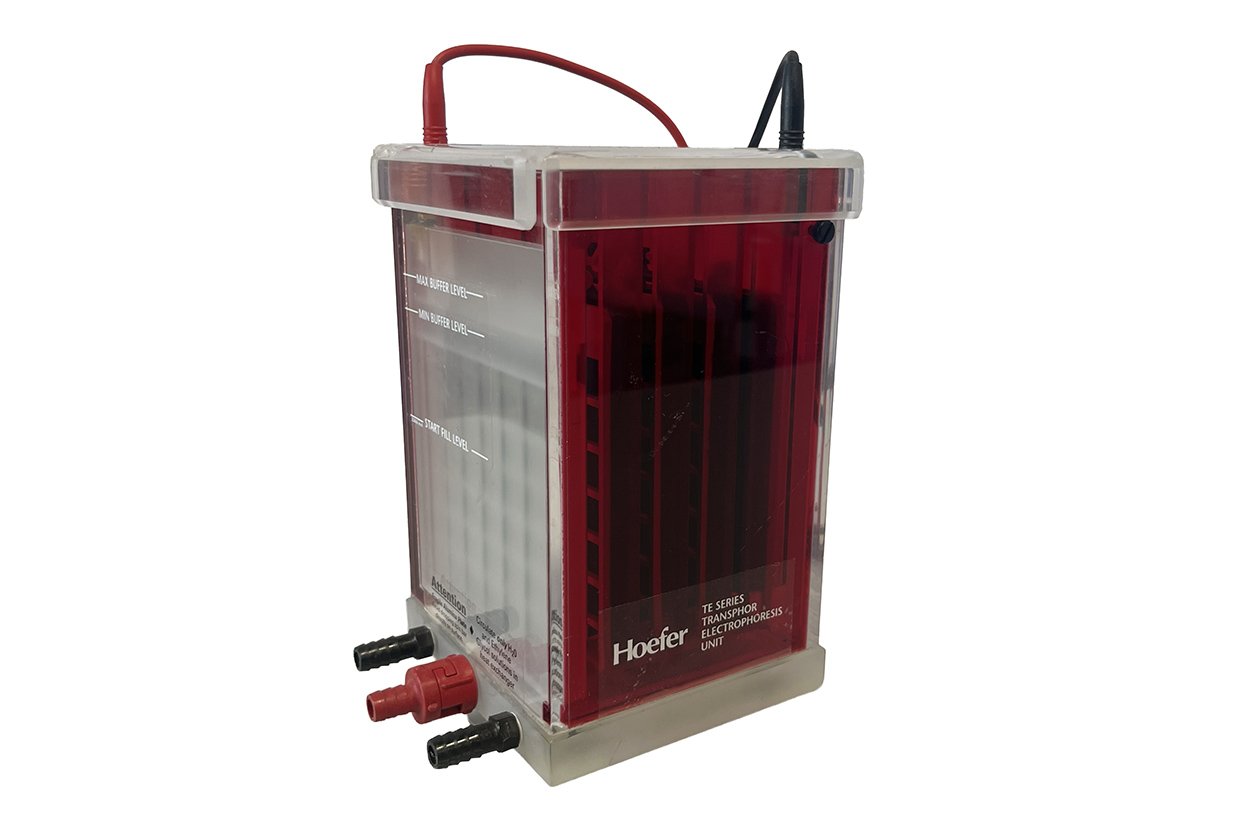

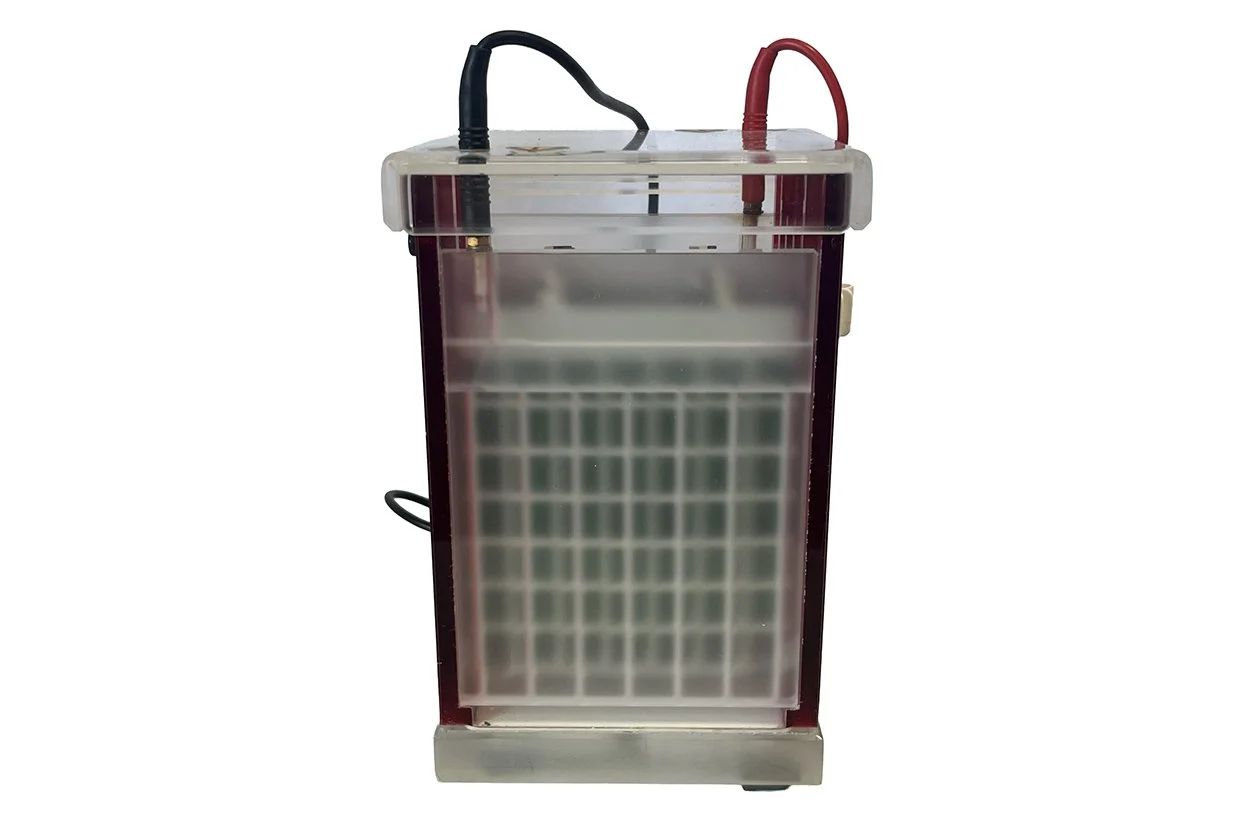

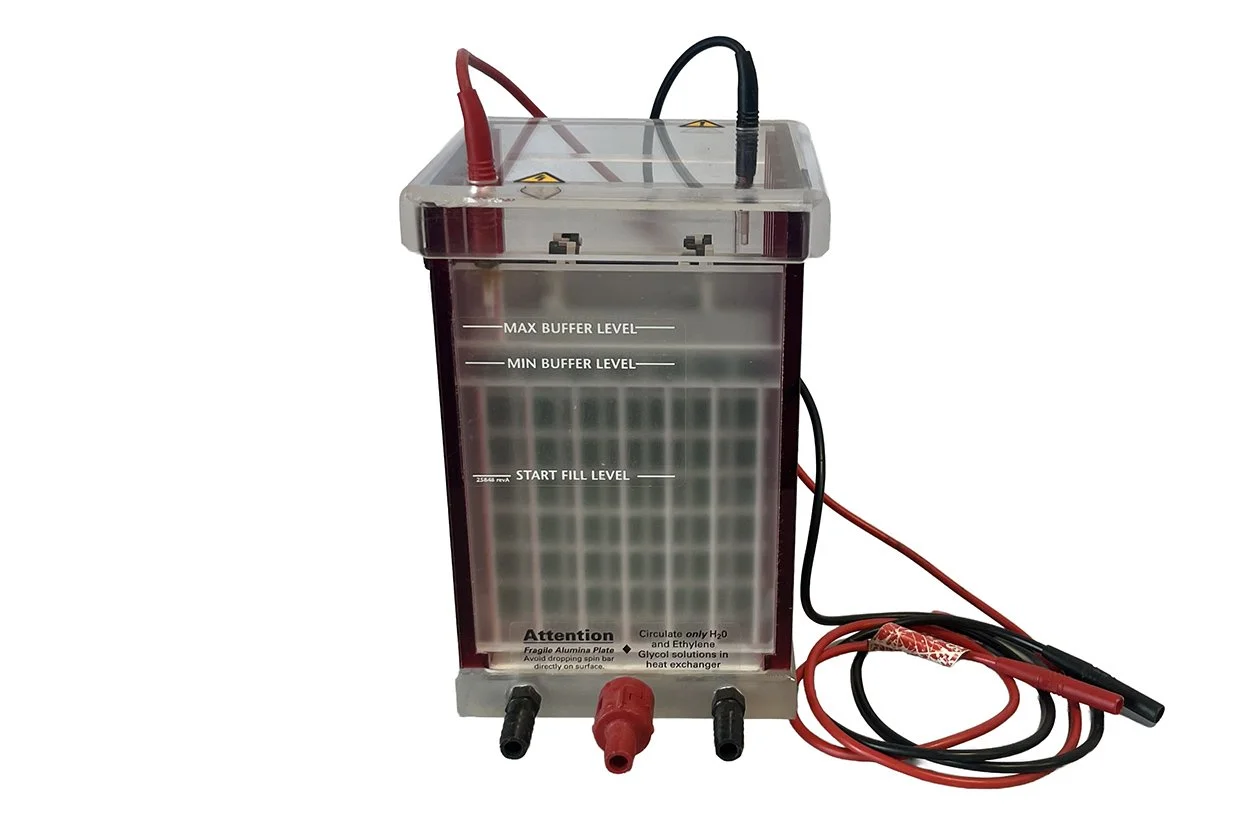

This unit includes the main transfer tank, safety lid with attached red and black high-voltage leads, and internal electrode panels shown in the photographs.

Features

• High-capacity wet electrophoretic transfer system

• Integrated heat exchanger for external cooling

• Designed for protein and nucleic acid transfer workflows

• Supports up to four standard-size gels

• Supports up to sixteen mini-gels

• Transparent tank with marked buffer fill levels

• Safety lid with attached color-coded electrical leads

• Internal electrode panels

• Coolant inlet/outlet connections at the base

Specifications

• Manufacturer: Hoefer

• Model: TE62

• Series: Transphor

• Type: Cooled Electrophoresis Transfer Unit

• Maximum Gel Size: 15 × 21 cm

• Gel Capacity: Up to 4 × 15 × 21 cm gels

• Mini-Gel Capacity: Up to 16 × 7 × 10 cm gels

• Maximum Voltage: 100 V

• Maximum Current: 2 A

• Maximum Power: 200 W

• Maximum Buffer Temperature: 45°C

• Buffer Volume: Approximately 4–5 L depending on cassette configuration

• Cooling: Integrated heat exchanger for connection to an external circulator

• Approximate Dimensions: 11" × 6.5" × 12.5"

• Approximate Weight: 11 lb

Included

• Hoefer TE62 Transphor transfer tank

• Integrated heat exchanger

• Safety lid

• Attached red and black high-voltage leads

• Internal electrode panels

• Includes all accessories shown in the photographs.

Transfer cassettes, foam sponges, cassette hook, external circulator, and power supply are not included.

Condition

Pre-owned and in good overall cosmetic condition with signs of normal previous laboratory use.

The acrylic housing, lid, electrical leads, coolant connections, and visible internal components appear intact.

This unit has not been functionally tested by LabCycle Partners.

Please review all photographs carefully for the exact cosmetic condition, configuration, and included components.
