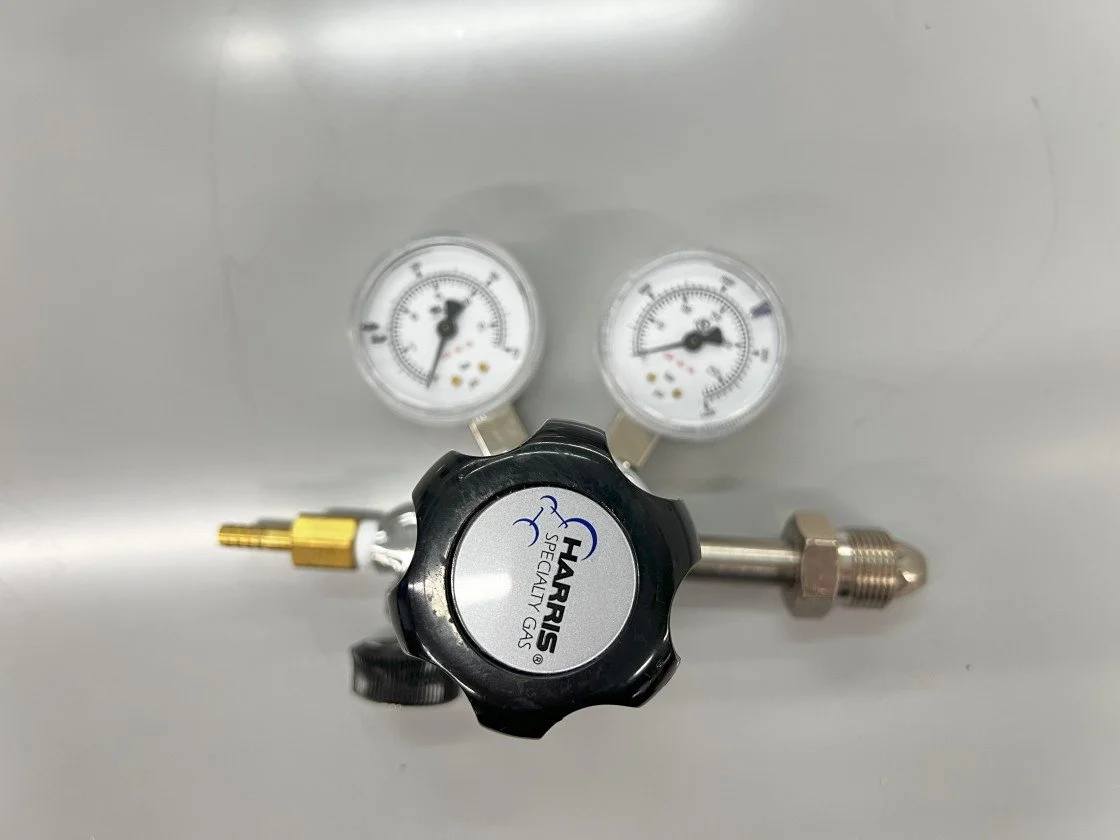

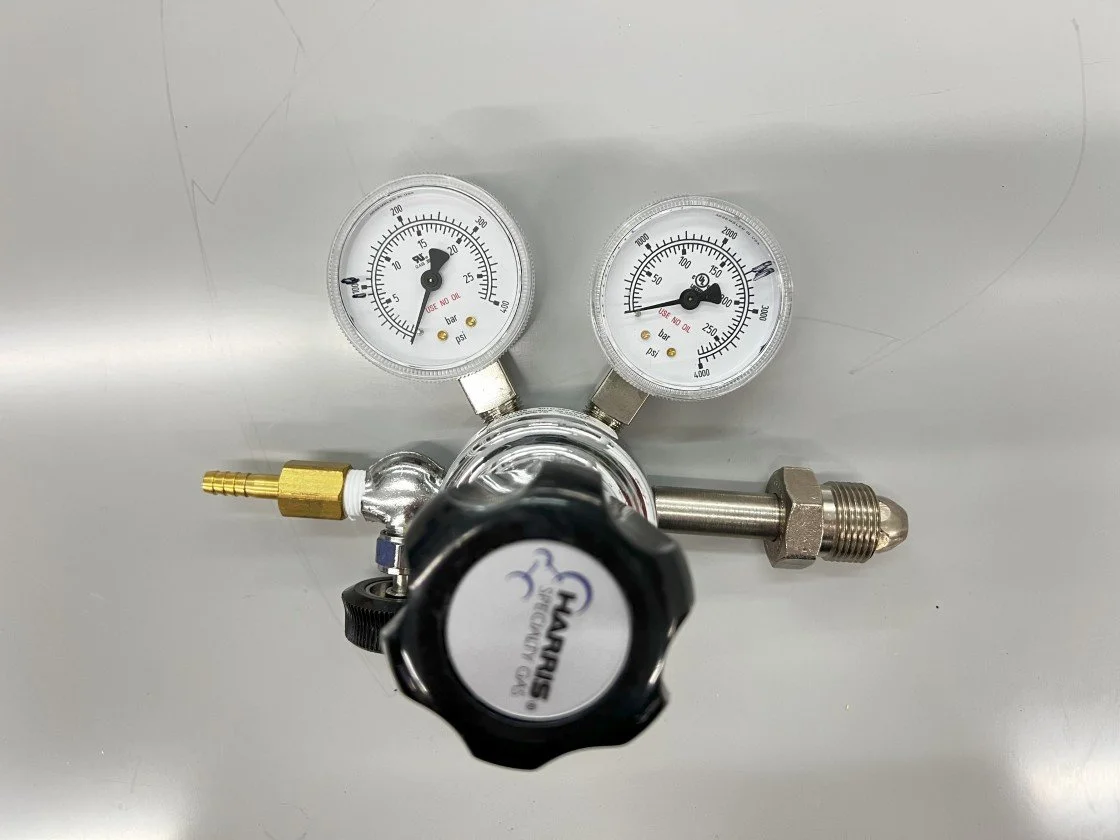

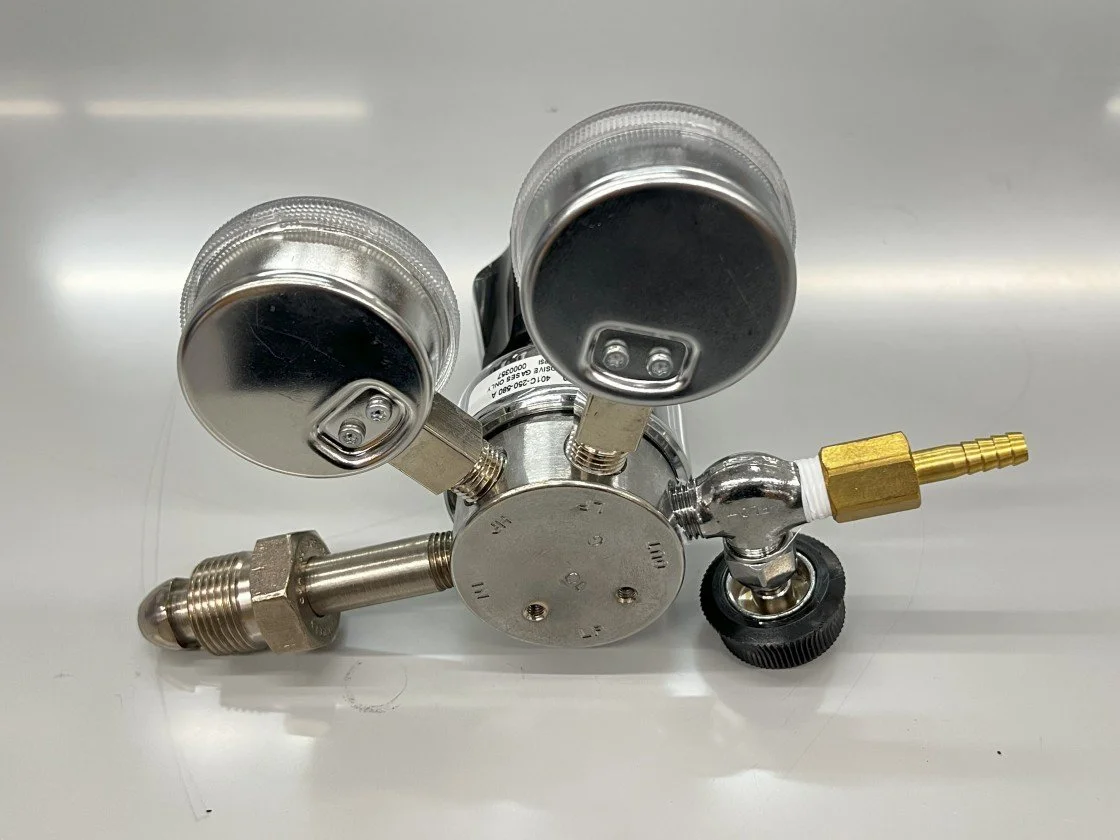

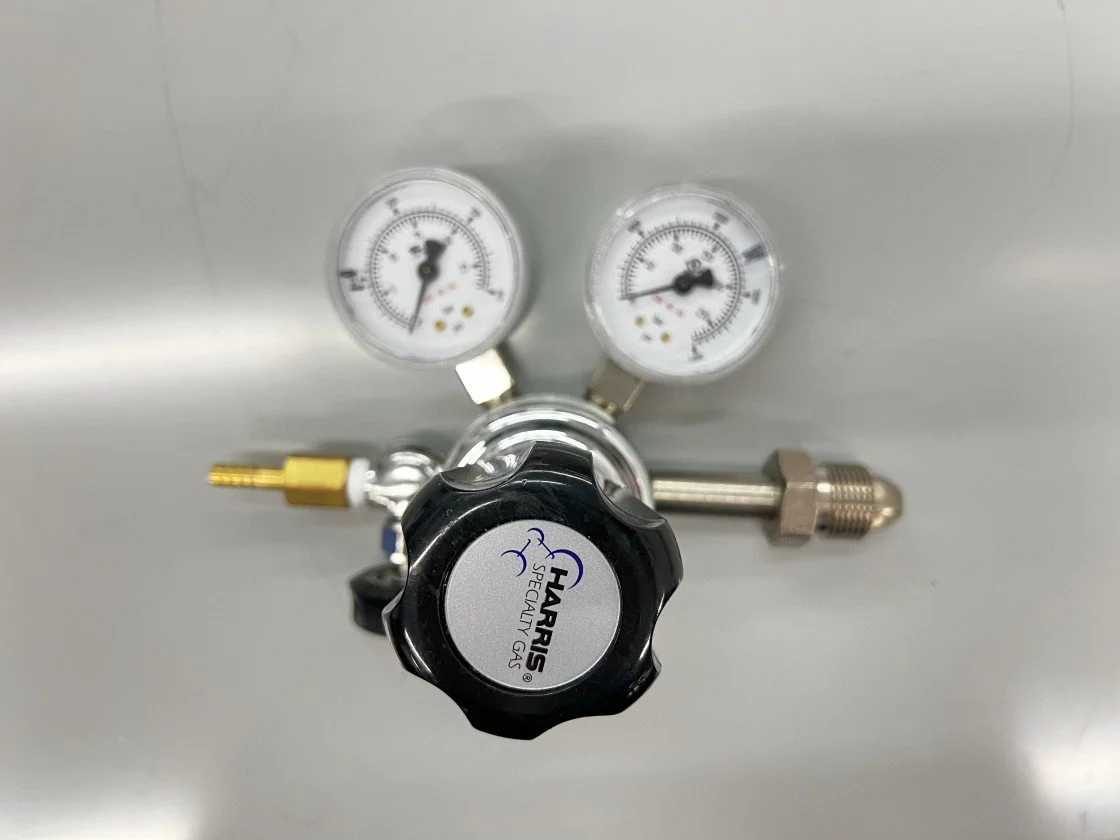

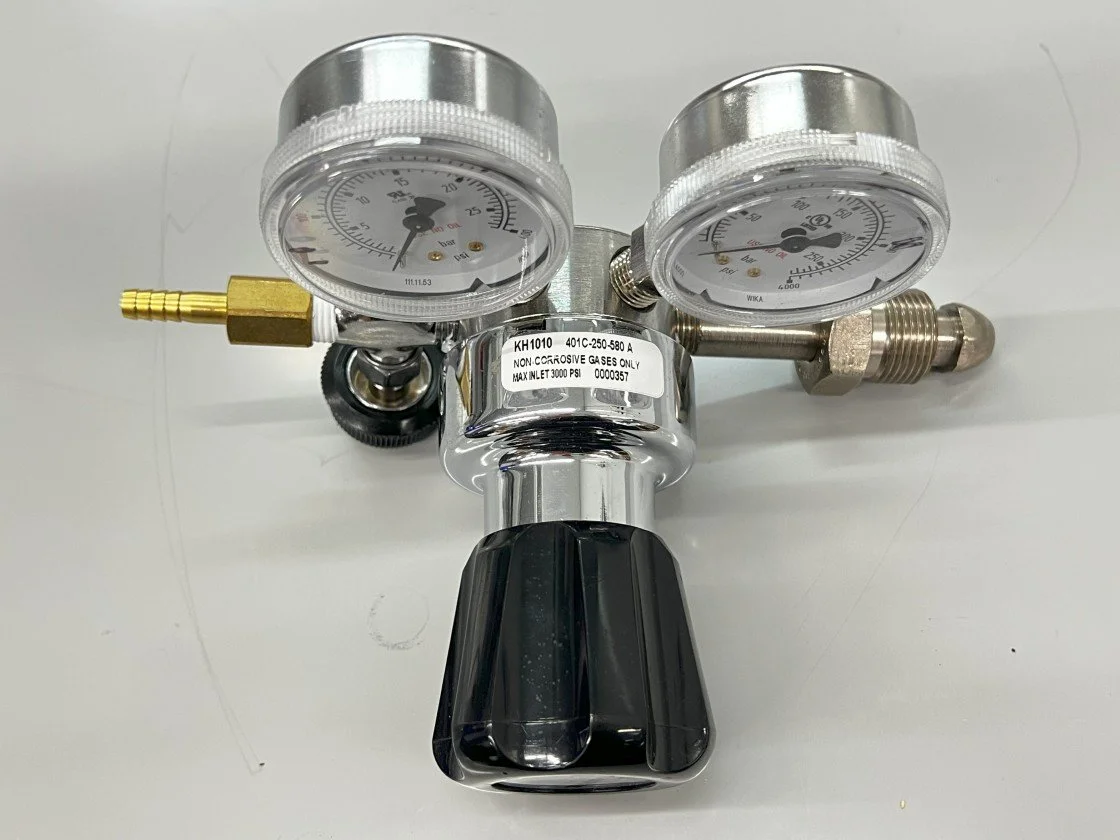

HARRIS Specialty Gas Regulator: Single Stage, CGA 580 Inlet, 1/4" NPT M Outlet, 250 psig
This unit came from a laboratory that was downsizing operations. The unit has been tested and thoroughly cleaned.
Brand HARRIS
Manufacturer Part Number KH1010
Regulator Series GP 401
For Gas Type Argon; Helium; Nitrogen
Mounting Type Cylinder
Mounting Location Wall
Number of Stages Single Stage
CGA Number CGA 580
Inlet Connection CGA 580
Inlet Connection Type NGO
Inlet Connection Gender Male
Inlet Connection Size 0.965"-14
Inlet Thread Direction Right Hand
Inlet Pressure (Maximum) 3,000 psig
Outlet Connection 1/4" NPT M
Outlet Connection Type NPT
Outlet Connection Gender Male
Outlet Connection Size 1/4 in
Outlet Pressure (Maximum) 250 psig
Outlet Pressure (Minimum) 0 psig
Body Material Brass
Body Finish Chrome Plated
Diaphragm Material Neoprene
Bonnet Material Chrome Plated Die Cast
Filter Material Nickel Plated Bronze
Seal Material PTFE
Seat Material PTFE
Control Type Knob
Flow Coefficient 0.17
Maximum Gauge Outlet Pressure 4,000 psig
Body Diameter 2.125 in
Gauge Diameter 2 in
Application General Purpose Laboratory
Features Gas Blanketing; One-Piece Encapsulated Seat Design, to Protect the Seat From Particulate Contamination; Pressure Testing; Purging; Self Reseating Internal Safety Valve; Tamper-Proof
Standards CGA E-4
UNSPSC 40142201
Country of Origin USA
Shipping & Pickup Disclaimer
This item is listed for local pickup in the San Diego area. If you require shipping, please note that freight is billed separately and calculated on a case-by-case basis through our freight partners. We will provide you with a custom shipping quote as quickly as possible after purchase.
For the most accurate estimate, please contact us in advance with your delivery address and any special requirements (e.g., lift gate service, residential delivery). We work to make freight logistics smooth and cost-effective for you
