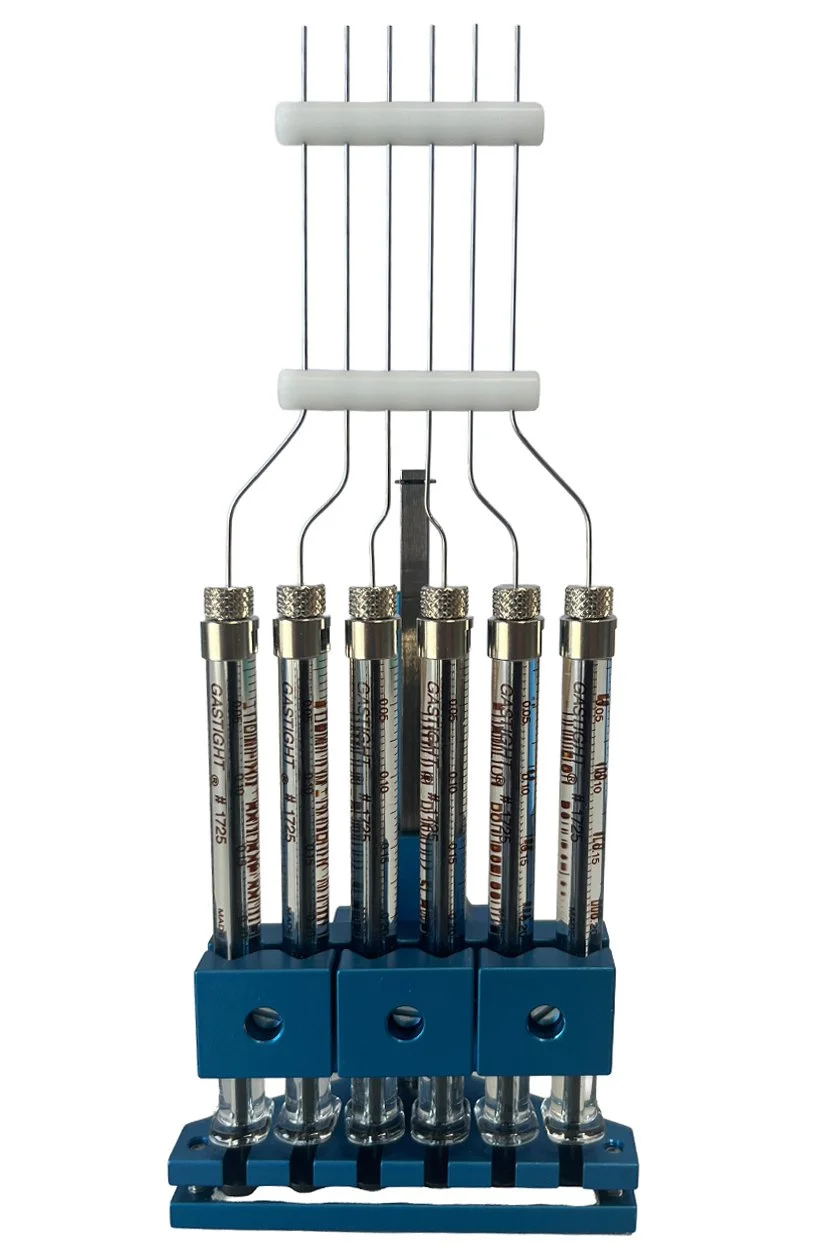

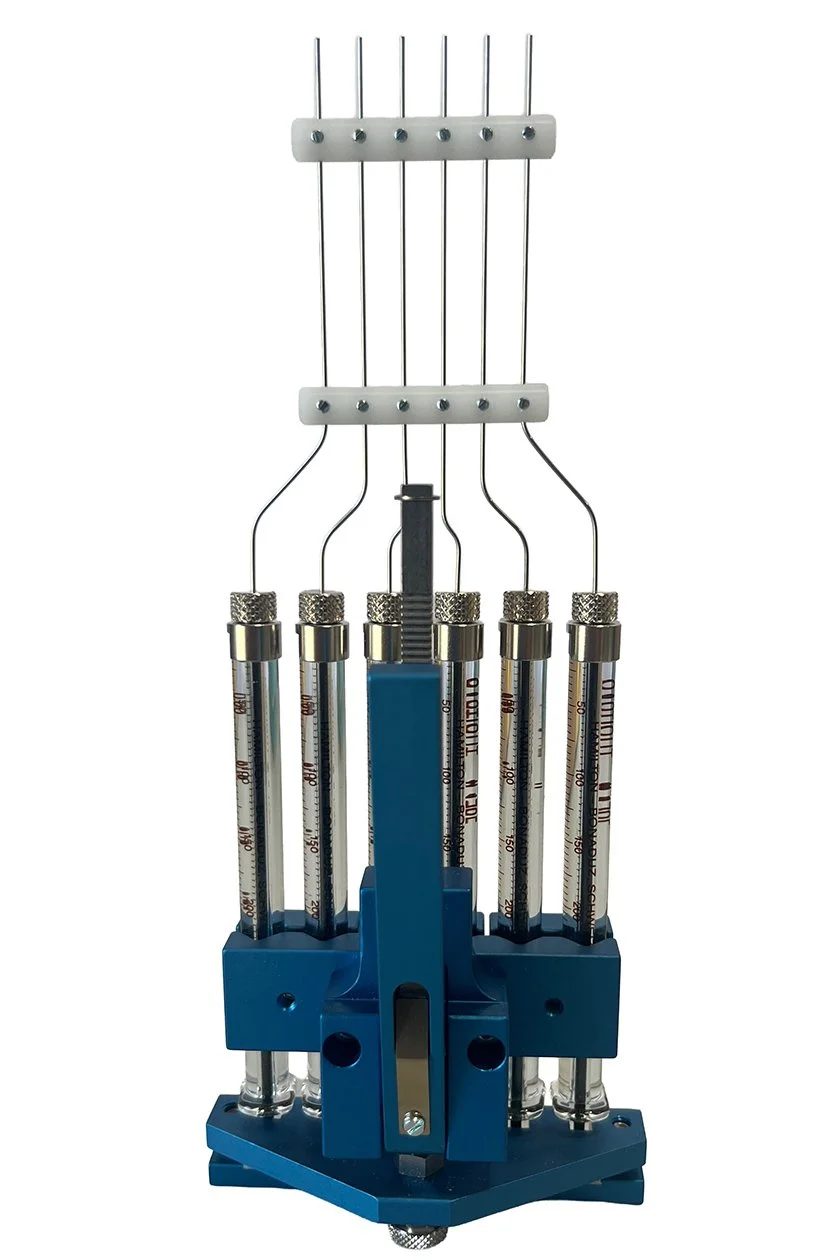

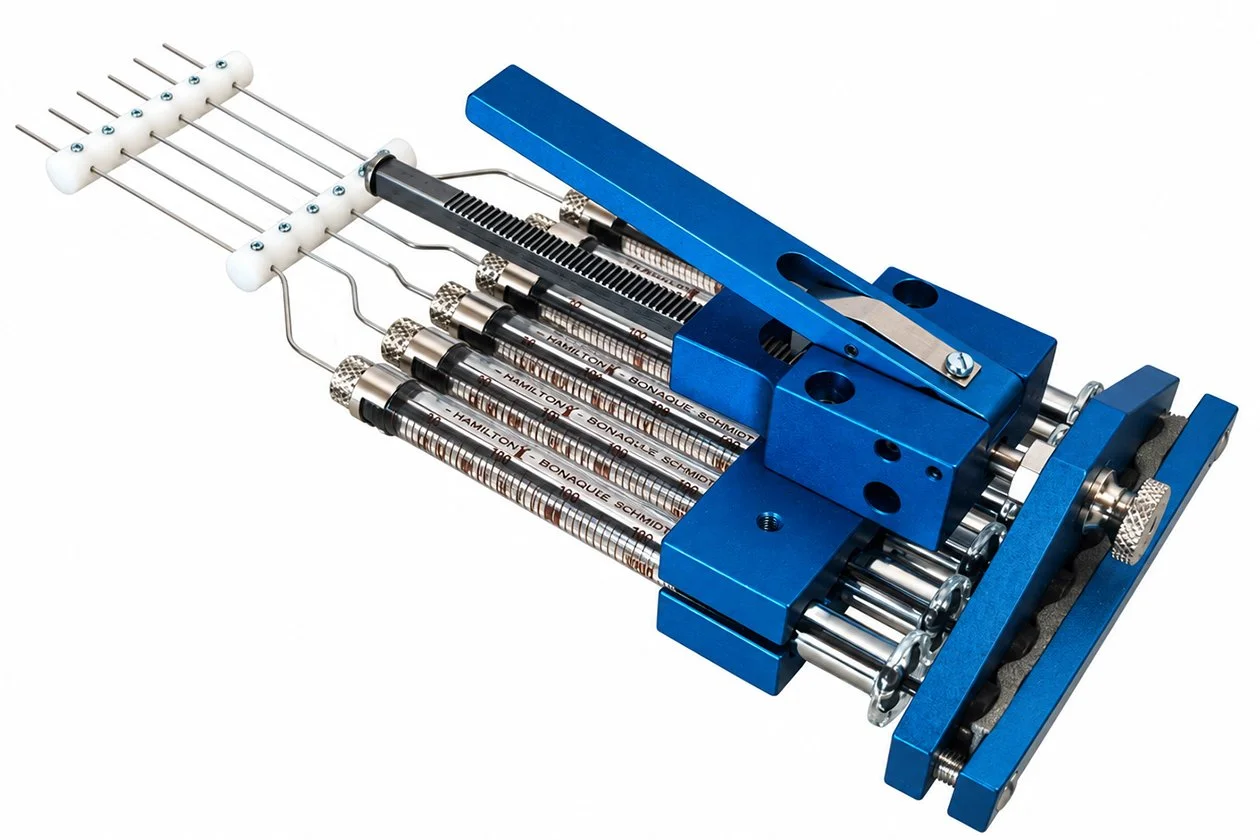

The Hamilton 201930 Terasaki Dispenser is a six-channel manual liquid dispenser designed for the simultaneous delivery of equal volumes into compatible 60-well HLA/Terasaki plates.
This Model 1725 configuration incorporates six Hamilton 1700 Series Gastight syringes, each with a nominal capacity of 250 µL. Each actuation advances the syringe plungers by 1/50 of their capacity, dispensing 5 µL from each channel simultaneously.
Manufacturer: Hamilton
Product: Terasaki Multi-Syringe Dispenser
Part Number: 201930
Syringe Model: 1725
Syringe Series: 1700 Gastight
Number of Syringes: Six
Capacity: 250 µL per syringe
Volume per Dispense: 5 µL per syringe
Maximum Dispenses per Filling: 50
Needle Spacing: 6.35 mm
Fluid-Contact Materials: Borosilicate glass and PTFE
Operation: Manual lever mechanism
Primary Applications: HLA/Terasaki plate filling, serology, cell analysis, and drop sampling

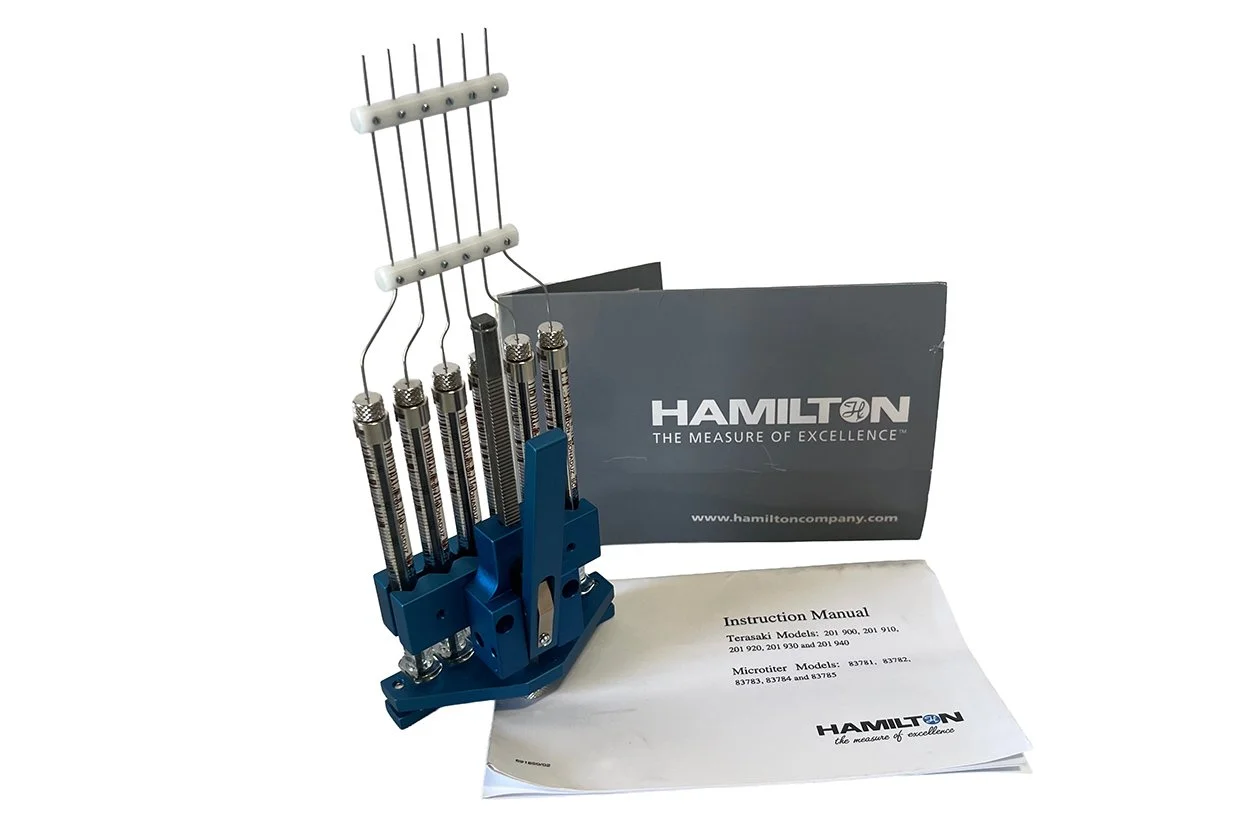

Hamilton 201930 Terasaki dispenser
Six Hamilton Model 1725 Gastight syringes
Six-channel needle assembly
Original instruction manual
Hamilton product literature
All components shown in the photographs
Terasaki plates, samples, calibration equipment, and accessories not shown are not included.
Pre-owned equipment in good overall cosmetic condition with normal signs of previous professional laboratory use.
The dispensing mechanism and all six syringes were tested and operate properly. The lever advances the syringe plungers, and the six-channel mechanism functions as intended.
Dispensed-volume accuracy, channel-to-channel uniformity, and calibration were not independently verified. Inspection, cleaning, calibration, and qualification are recommended before use in analytical, clinical, or regulated applications.
Please review all photographs carefully for the exact cosmetic condition and included components.
This item will be carefully packaged to protect the glass syringes, needle assembly, and dispensing mechanism during shipment.
Shipping costs are calculated at checkout based on the customer’s location.
Local pickup is available in San Diego, California.
