GE ÄKTA Explorer 100 FPLC Protein Purification System with Frac-920 & PC

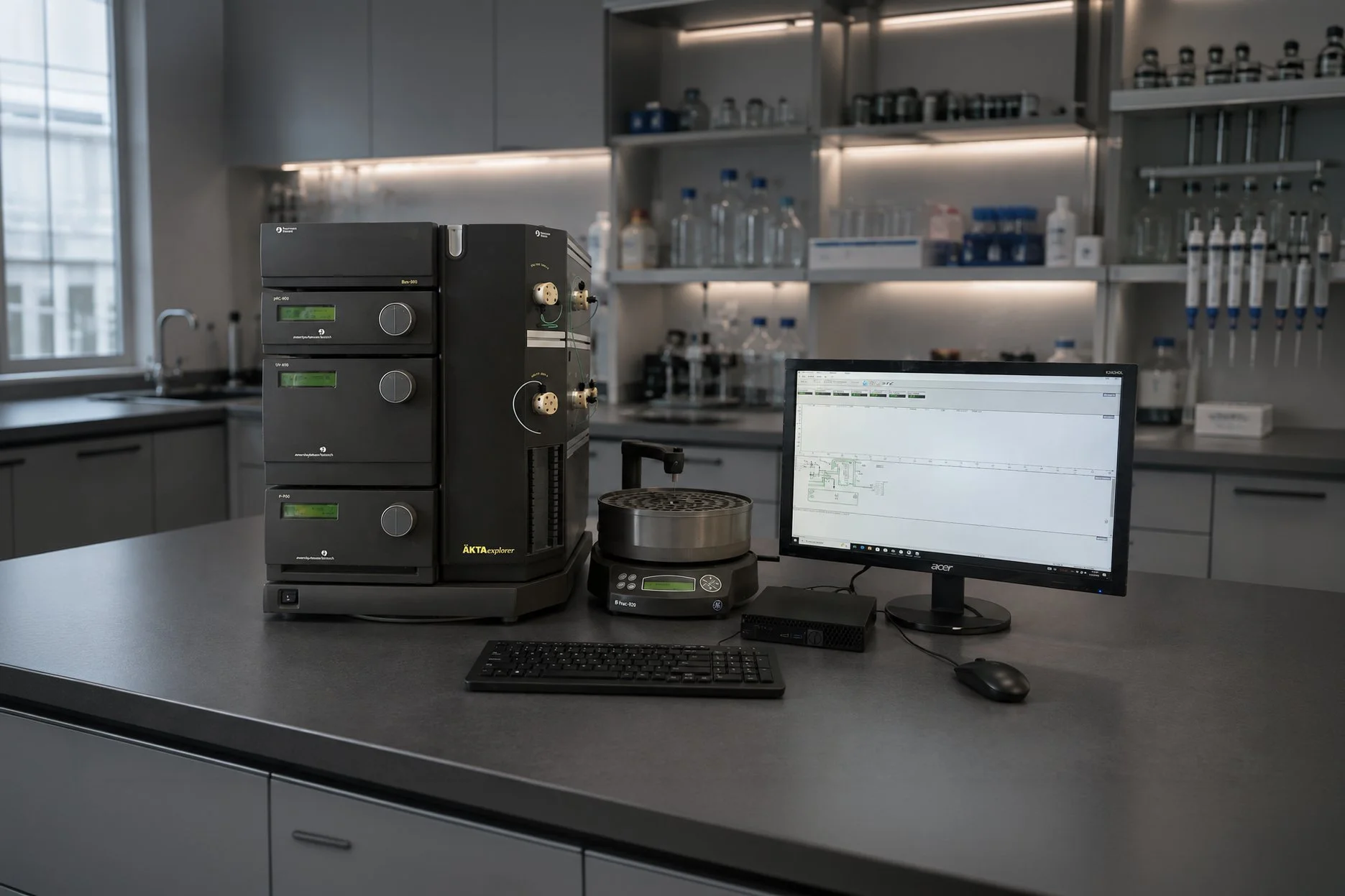

The GE / Amersham Pharmacia Biotech ÄKTA Explorer 100 is a complete automated FPLC chromatography system designed for protein purification, biomolecule separation, method development, and process development applications.

This highly complete configuration includes the P-900 system pump, UV-900 monitor, pH/C-900 monitor, P-960 sample pump, M-925 mixer, automated fluidic valves, and GE Frac-920 fraction collector, along with a dedicated Dell OptiPlex computer workstation running UNICORN chromatography software.

The system powers on and is shown communicating with the included workstation and UNICORN software. Its combination of automated fluidics, sample loading, UV detection, conductivity and pH monitoring, gradient control, and automated fraction collection provides a versatile platform for a wide range of protein and biomolecule purification workflows.

Features

• Complete ÄKTA Explorer 100 FPLC chromatography system

• Automated protein and biomolecule purification platform

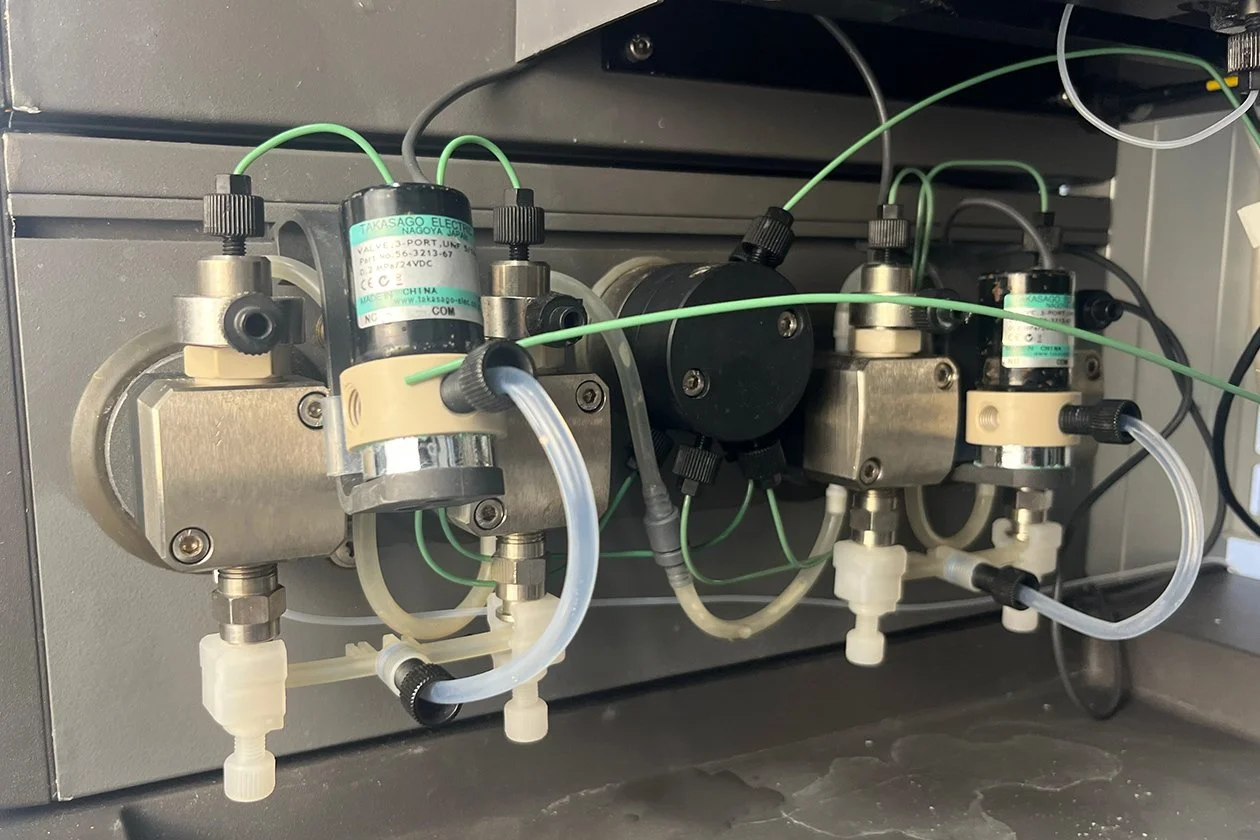

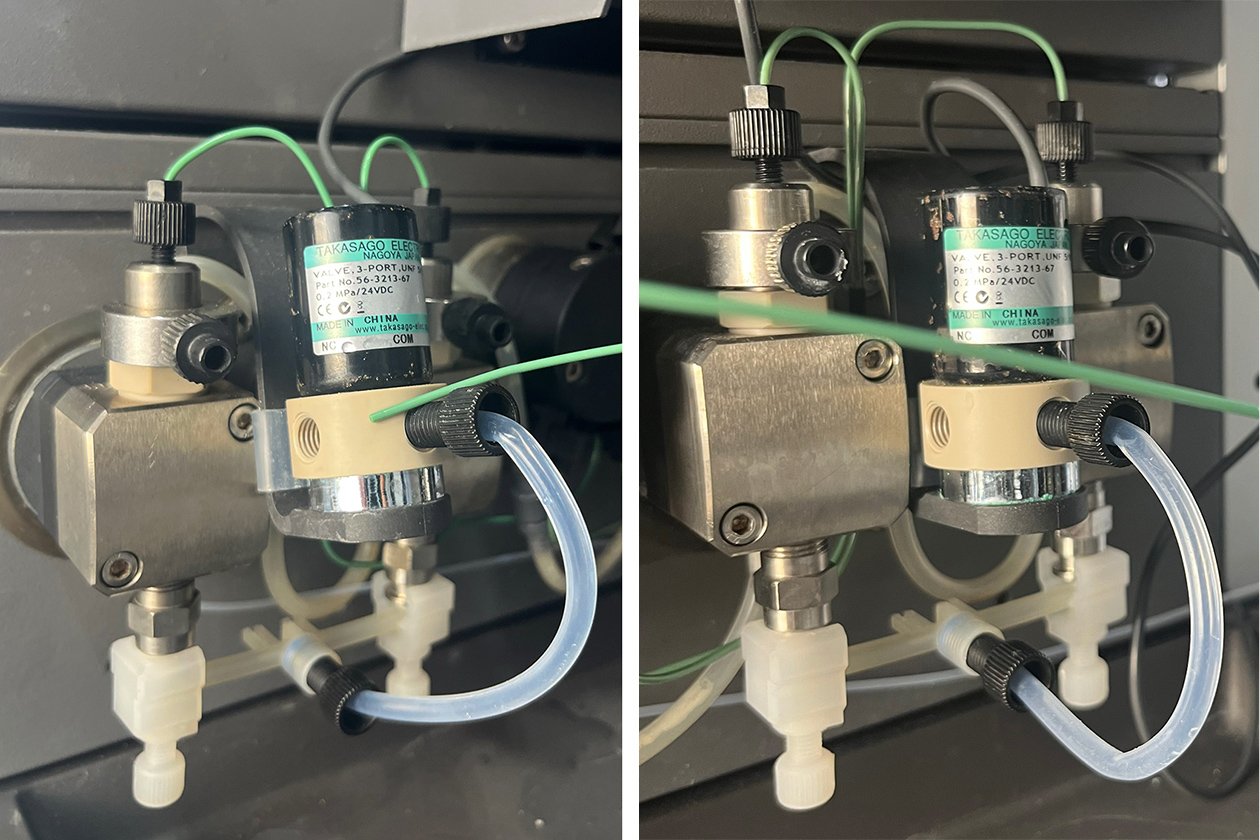

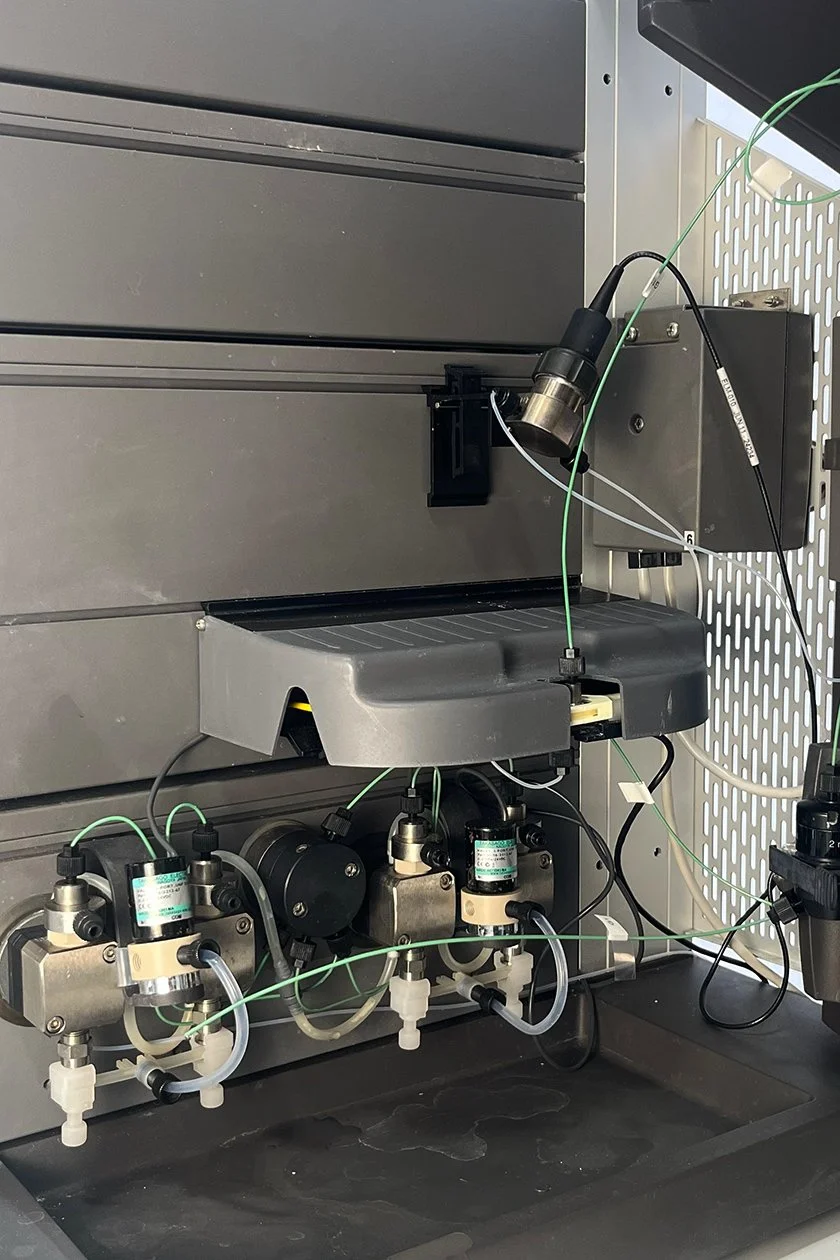

• P-900 high-pressure system pump

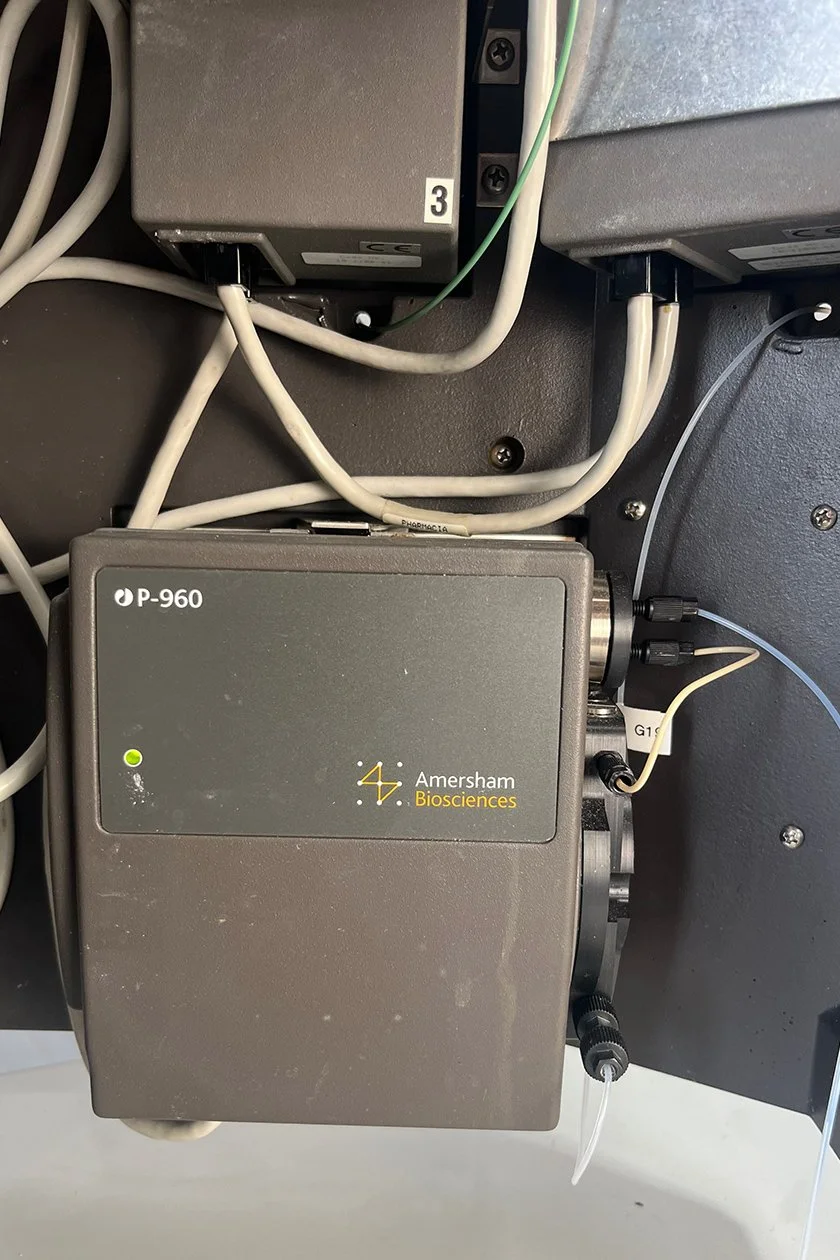

• P-960 dedicated sample pump

• UV-900 multi-wavelength UV monitor

• pH/C-900 conductivity and pH monitor

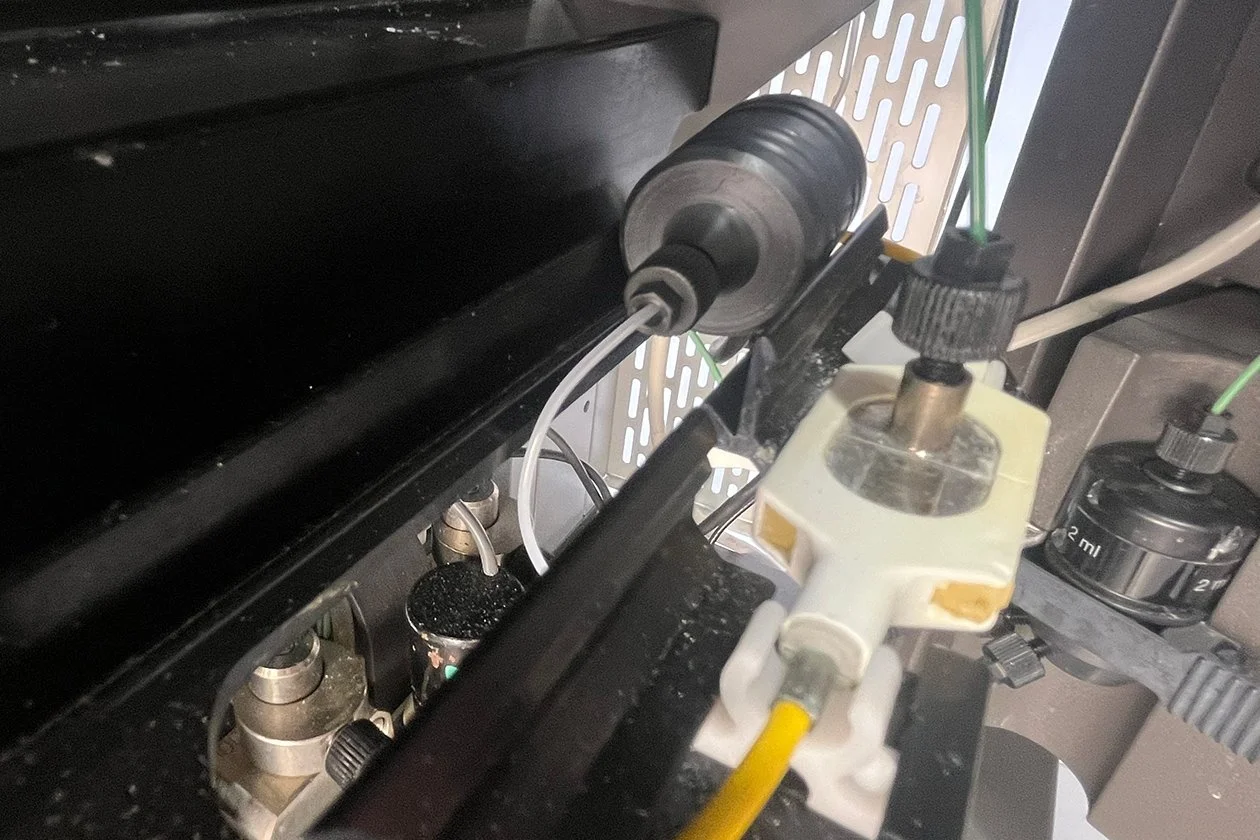

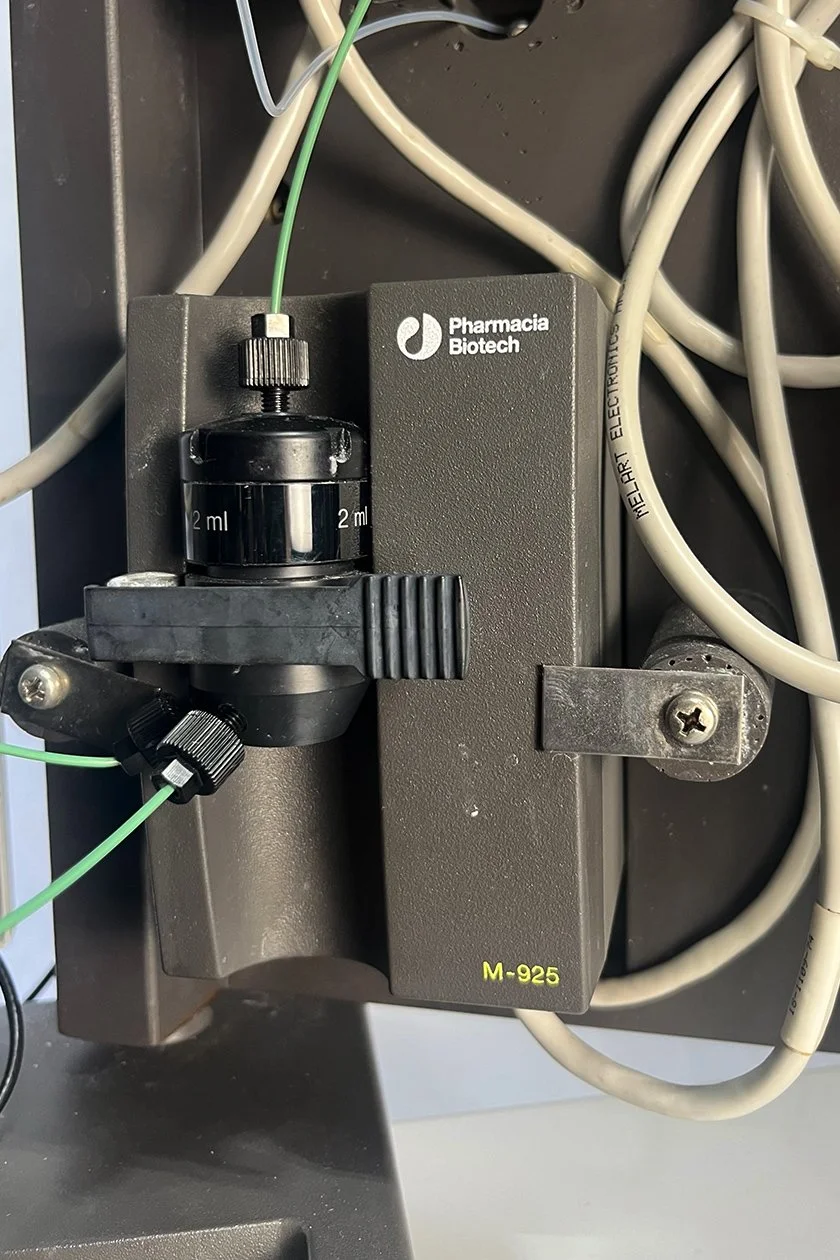

• M-925 dynamic mixer with 2 mL mixing chamber

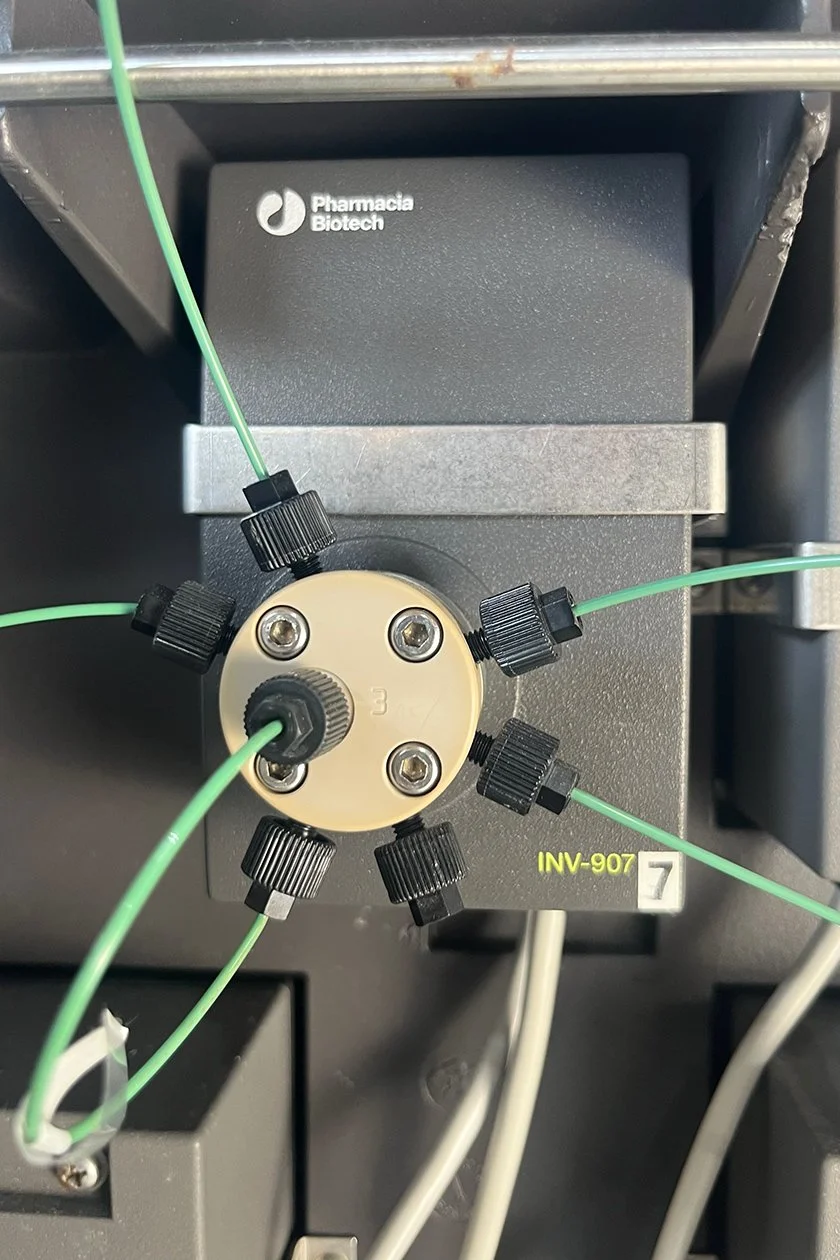

• INV-907 injection valve

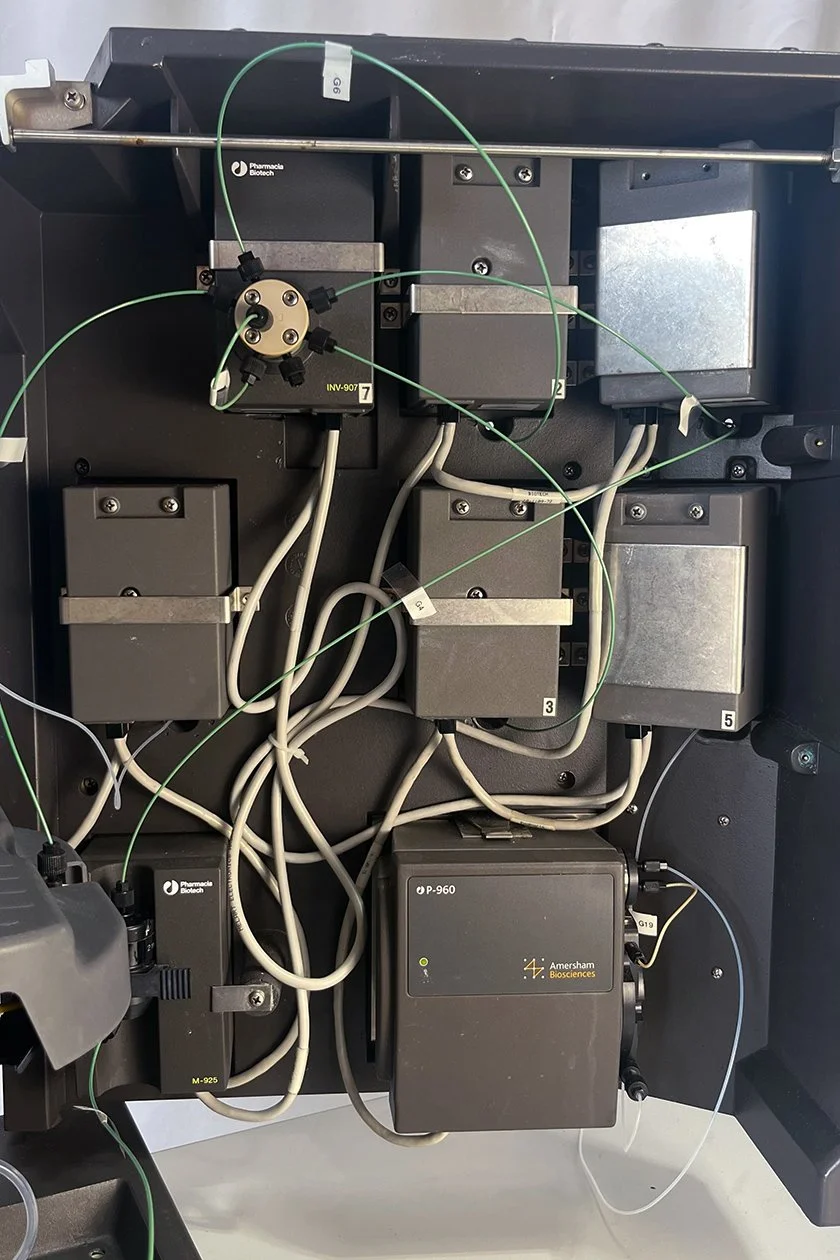

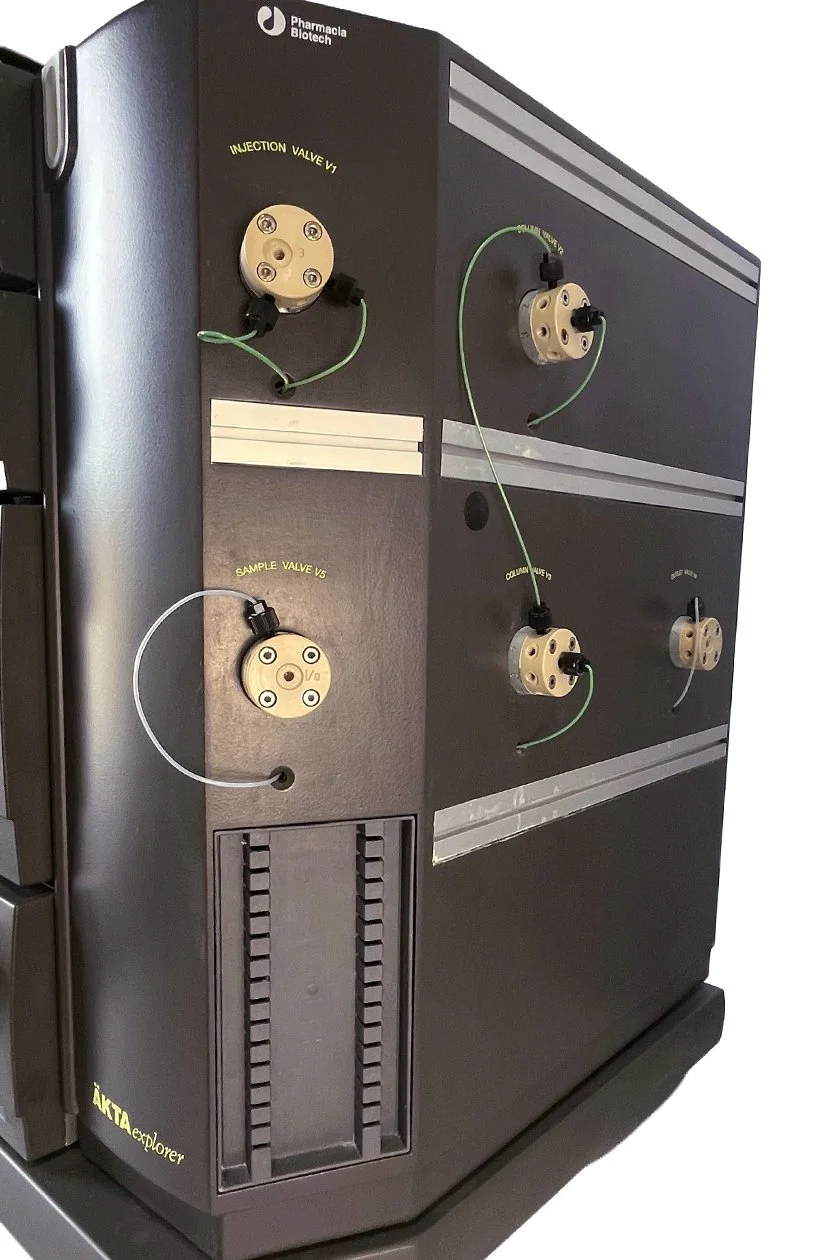

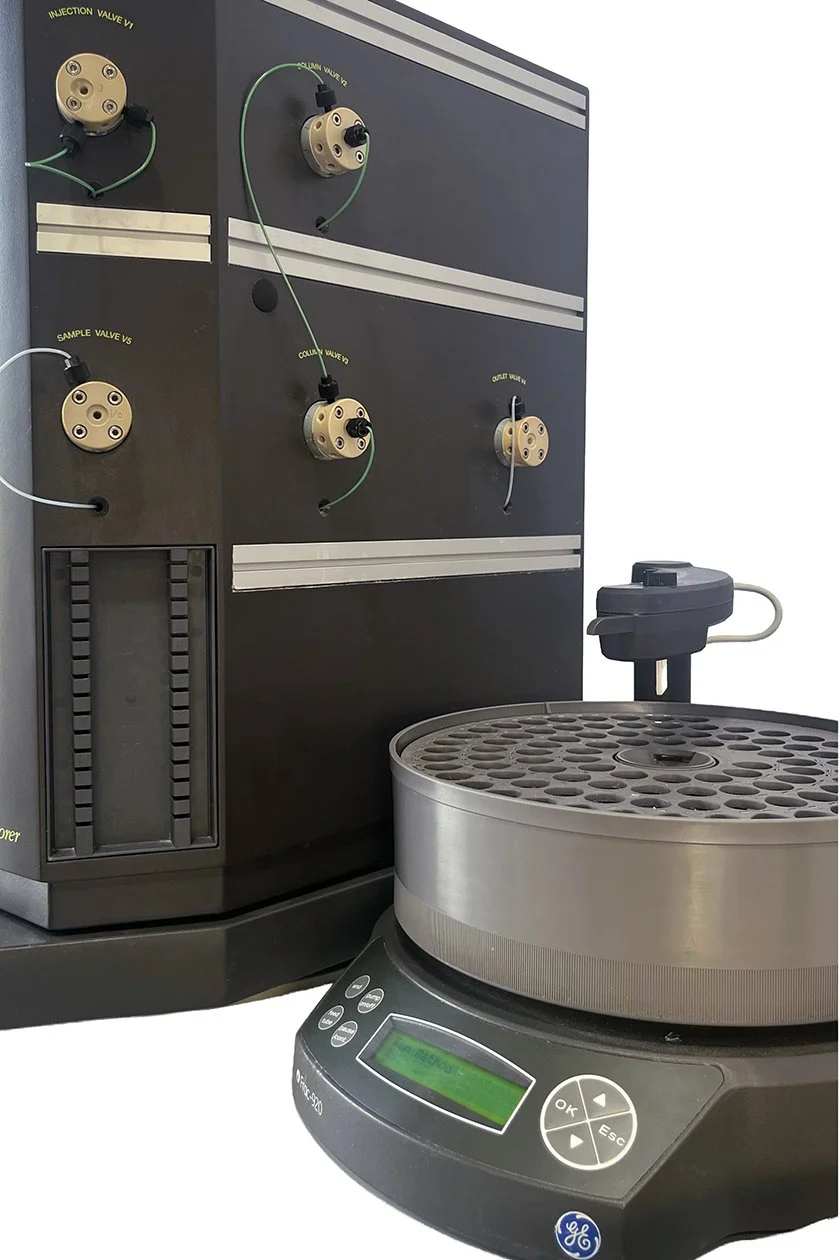

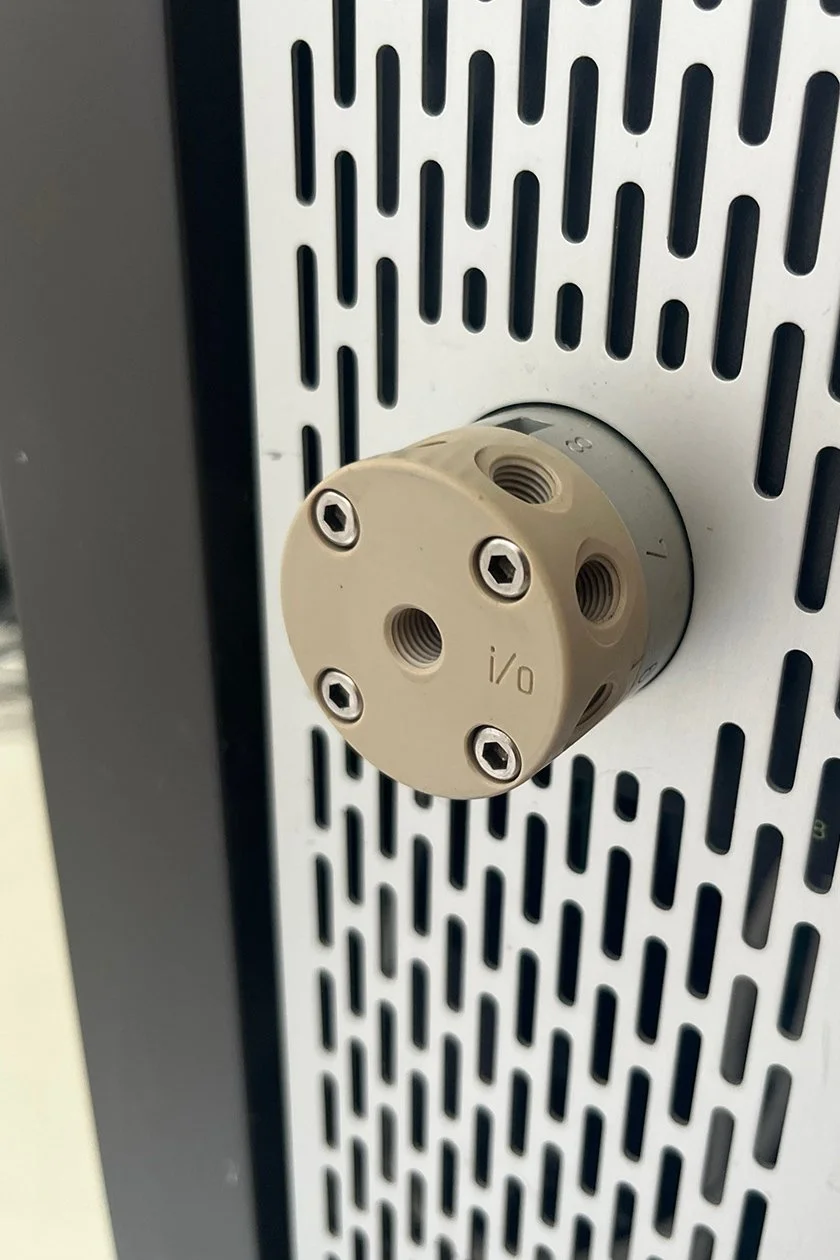

• Multiple automated fluidic valves

• Automated column selection and outlet control

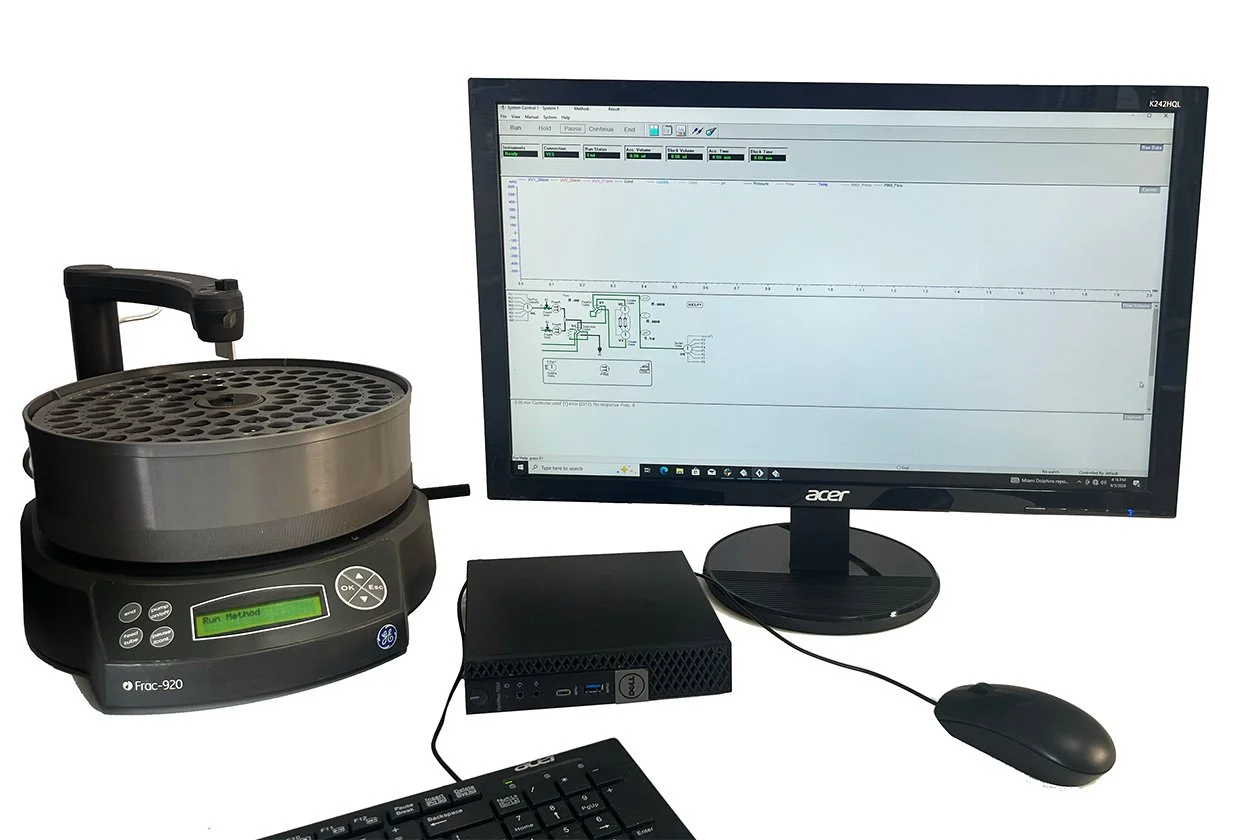

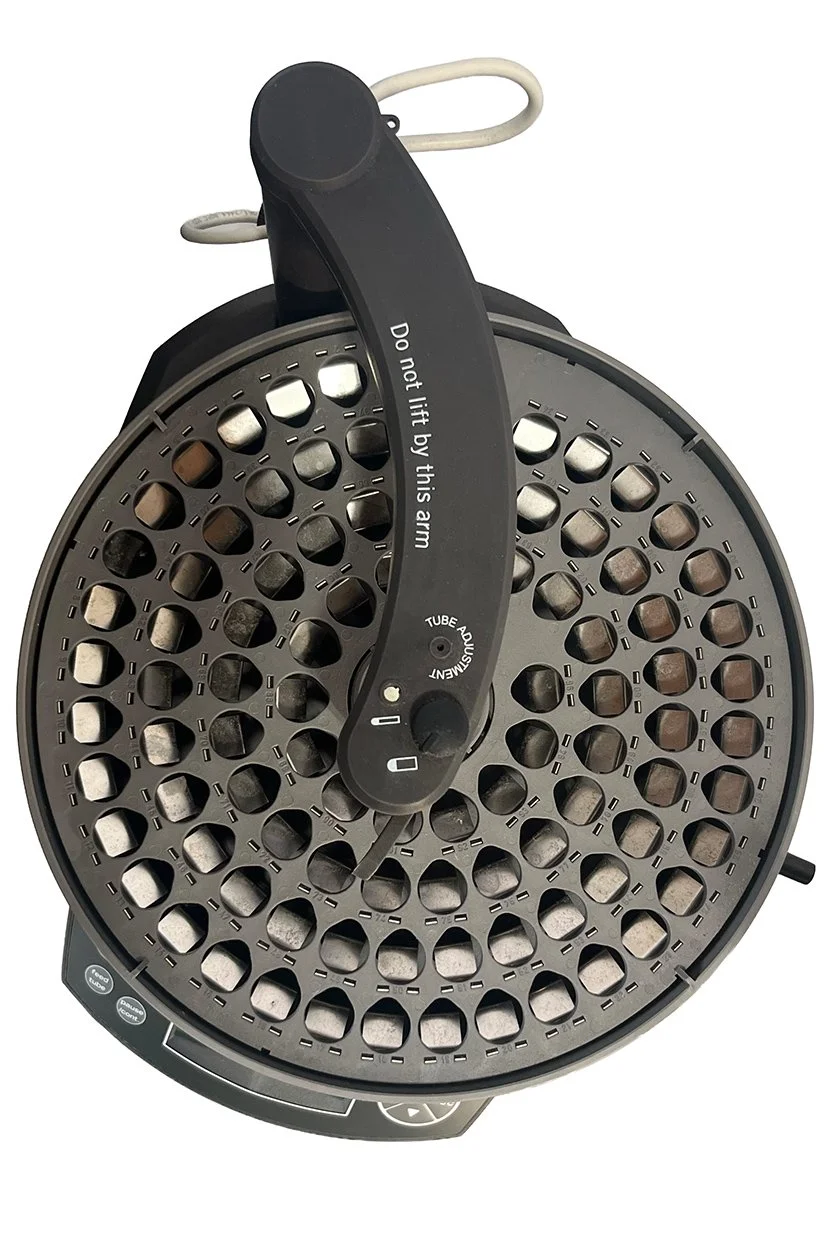

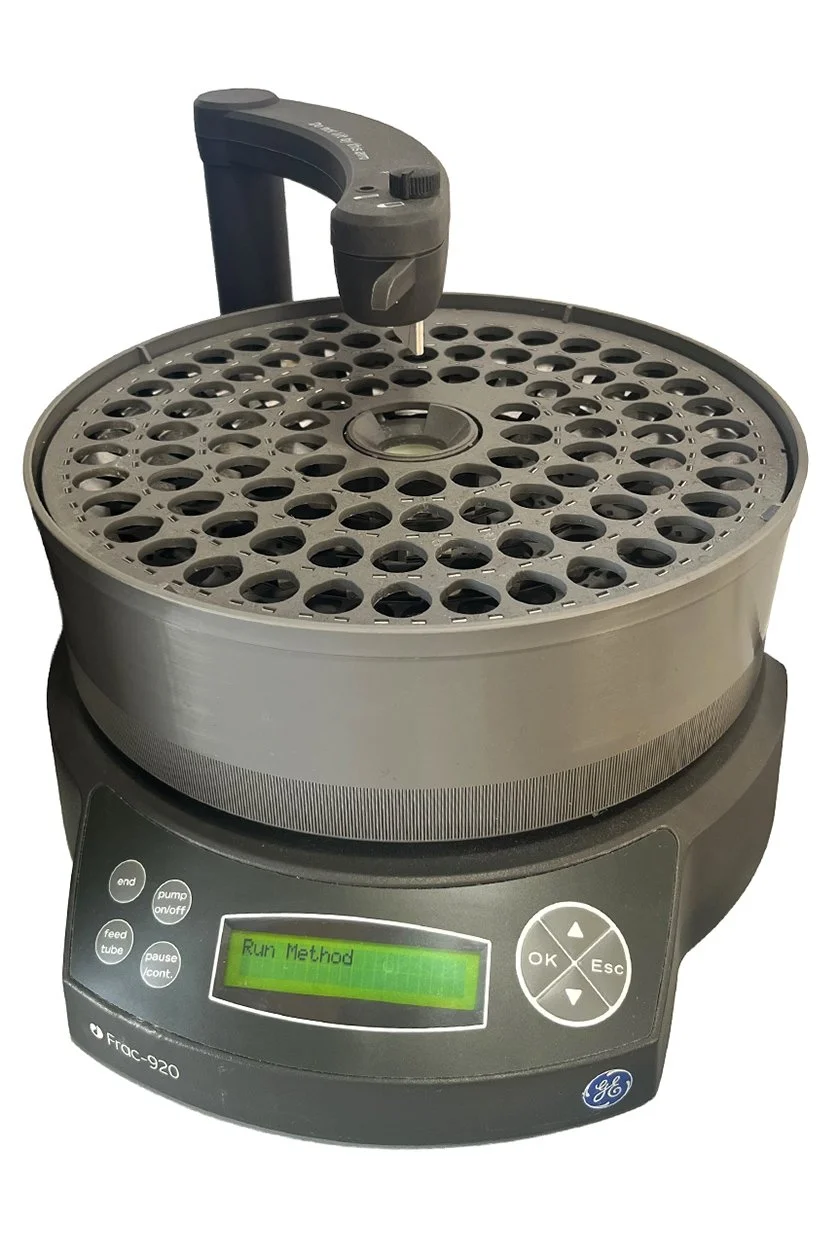

• GE Frac-920 automated fraction collector

• 95-position fraction collection rack

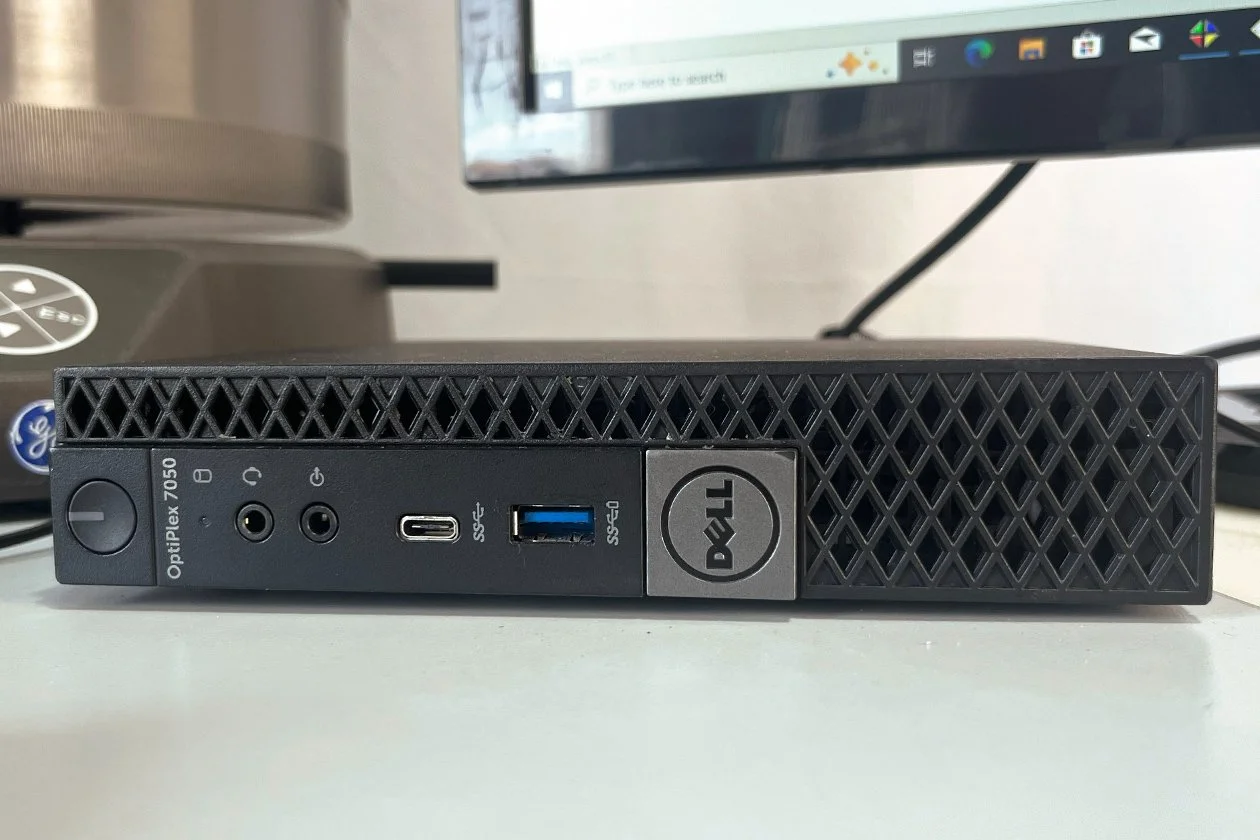

• Dell OptiPlex computer workstation

• UNICORN chromatography control software

• Flow rates up to 100 mL/min in standard operation

• Maximum system pressure up to 10 MPa / 100 bar

• Automated gradient chromatography capability

• Suitable for affinity, ion exchange, size exclusion, and hydrophobic interaction chromatography

• Designed for research, biotechnology, pharmaceutical, and process development laboratories

Specifications

• Manufacturer: GE Healthcare / Amersham Pharmacia Biotech

• Product Family: ÄKTA

• Model: ÄKTA Explorer 100

• System Type: Automated FPLC Protein Purification System

• System Pump: P-900 / P-901 configuration

• Sample Pump: P-960

• UV Monitor: UV-900

• pH / Conductivity Monitor: pH/C-900

• Mixer: M-925

• Mixing Chamber: 2 mL

• Injection Valve: INV-907

• Additional Valves: Automated fluidic valves

• Fraction Collector: GE Frac-920

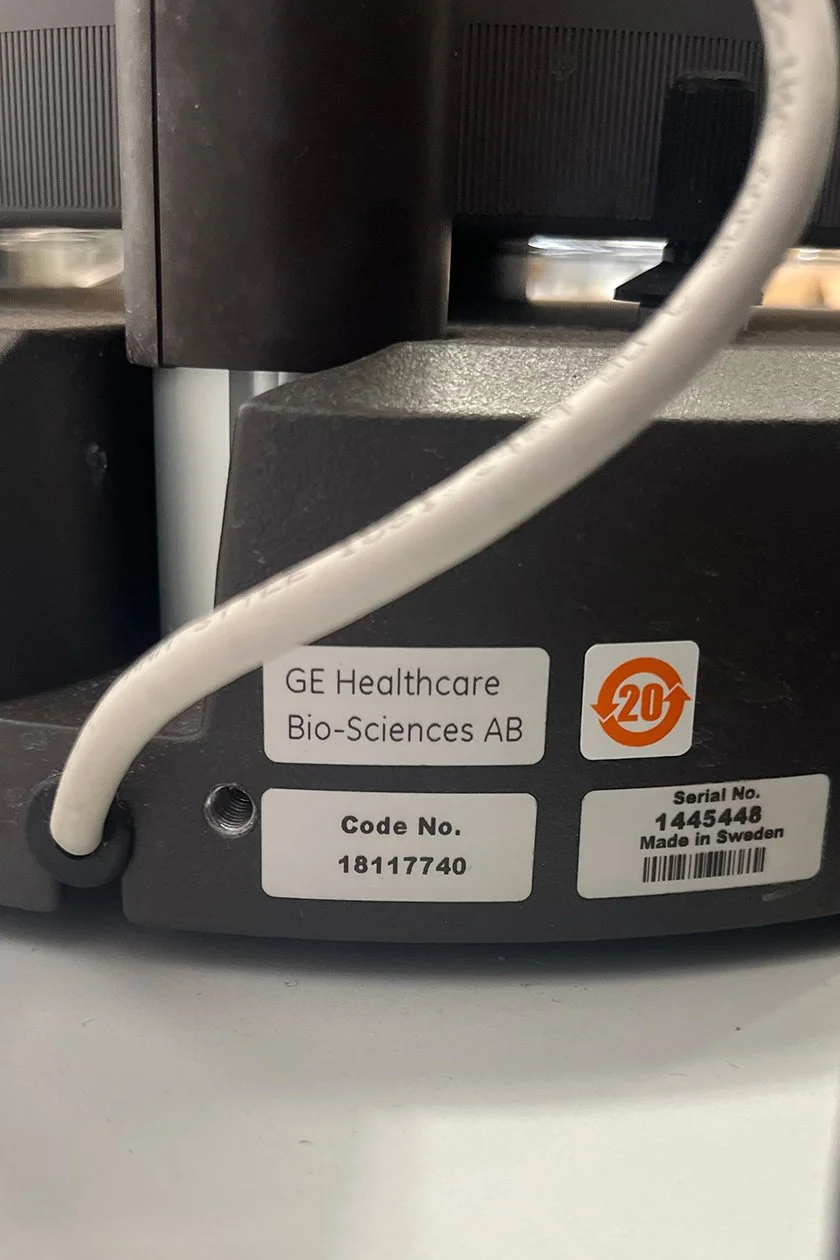

• Frac-920 Code Number: 18117740

• Frac-920 Serial Number: 1445448

• Fraction Collector Capacity: Up to 95 tubes with installed rack

• Flow Rate Range: 0.01–100 mL/min

• Maximum Double-Flow Capability: Up to 200 mL/min

• Maximum System Pressure: 10 MPa / 100 bar / 1,450 psi

• UV Wavelength Range: 190–700 nm

• Simultaneous UV Monitoring: Up to 3 wavelengths

• Conductivity Range: 1 µS/cm–999.9 mS/cm

• pH Range: 0–14

• Electrical Requirements: 100–120 / 220–240 VAC, 50/60 Hz

• Main System Dimensions: Approx. 18.9 × 18.5 × 24 in (W × D × H)

• Main System Weight: Approx. 147 lb (67 kg)

Included

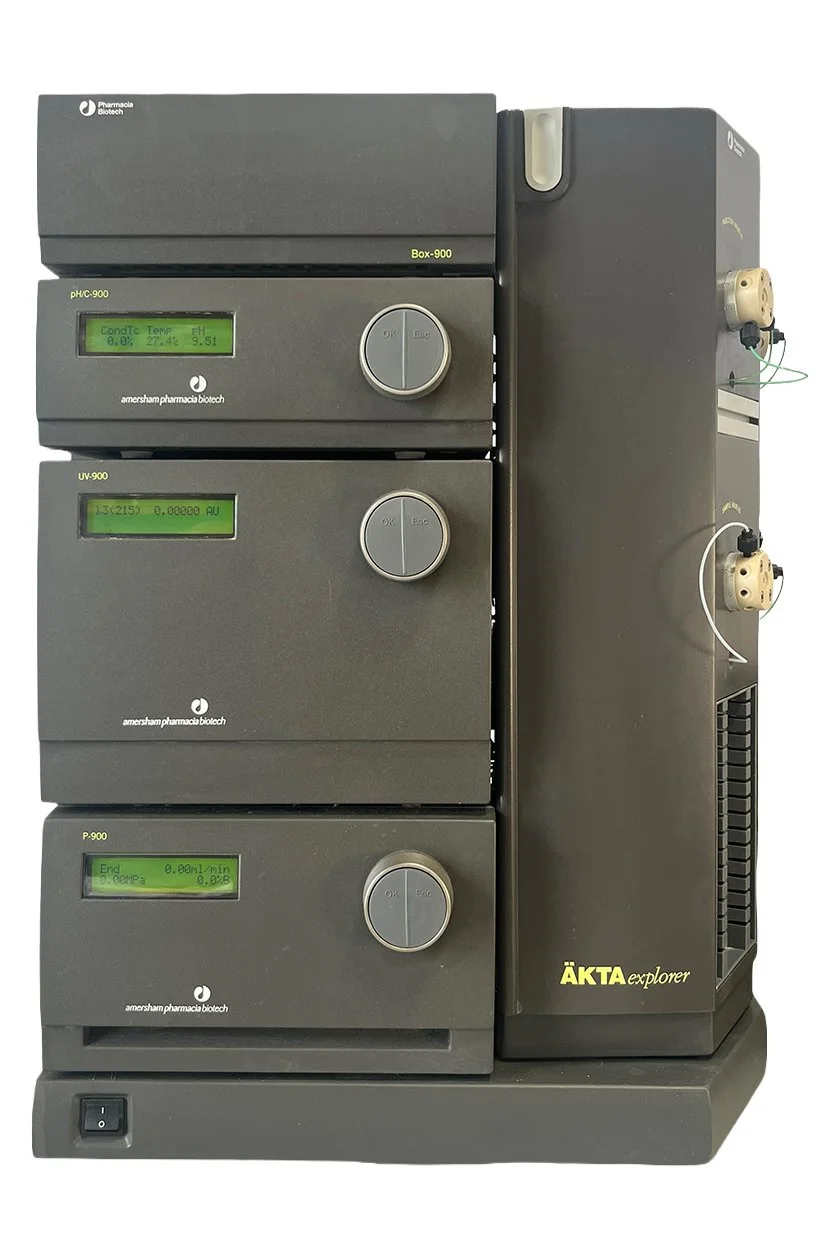

• GE / Amersham ÄKTA Explorer 100 main chromatography system

• P-900 system pump

• P-960 sample pump

• UV-900 monitor

• pH/C-900 monitor

• M-925 mixer with 2 mL chamber

• INV-907 injection valve

• Installed automated fluidic valves

• Box-900

• GE Frac-920 fraction collector with installed rack

• Dell OptiPlex computer workstation

• Acer monitor

• Keyboard

• Mouse

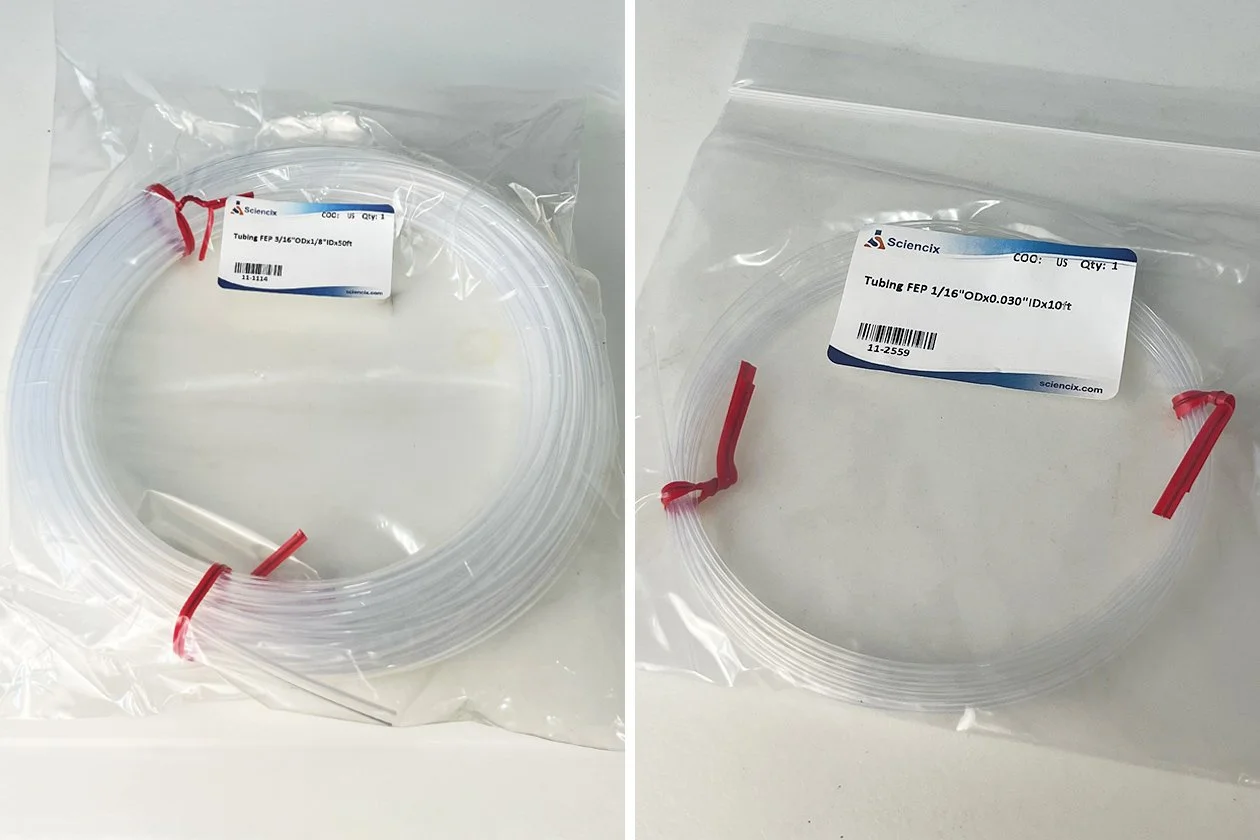

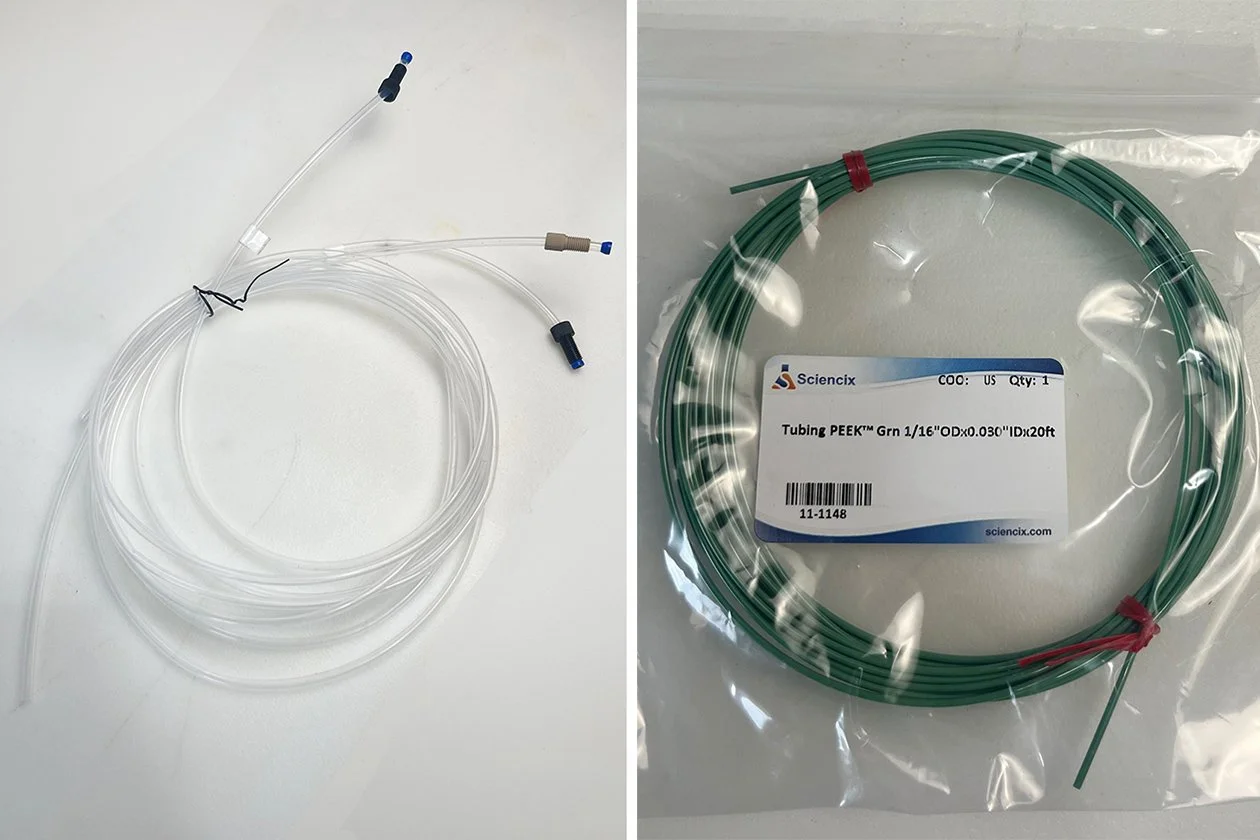

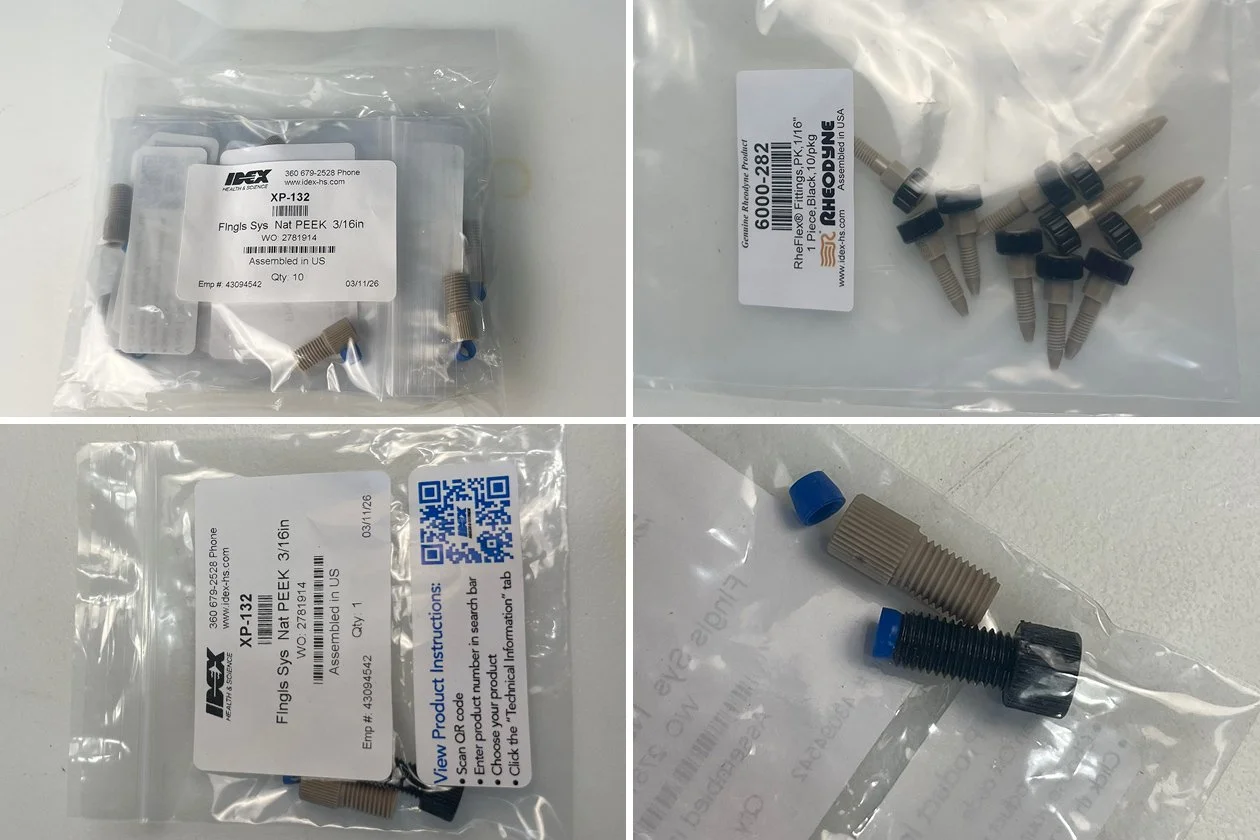

• Associated cables and components shown in the photographs

Includes all accessories shown in the photographs.

Condition

This pre-owned system is in very good cosmetic condition with normal signs of previous professional laboratory use.

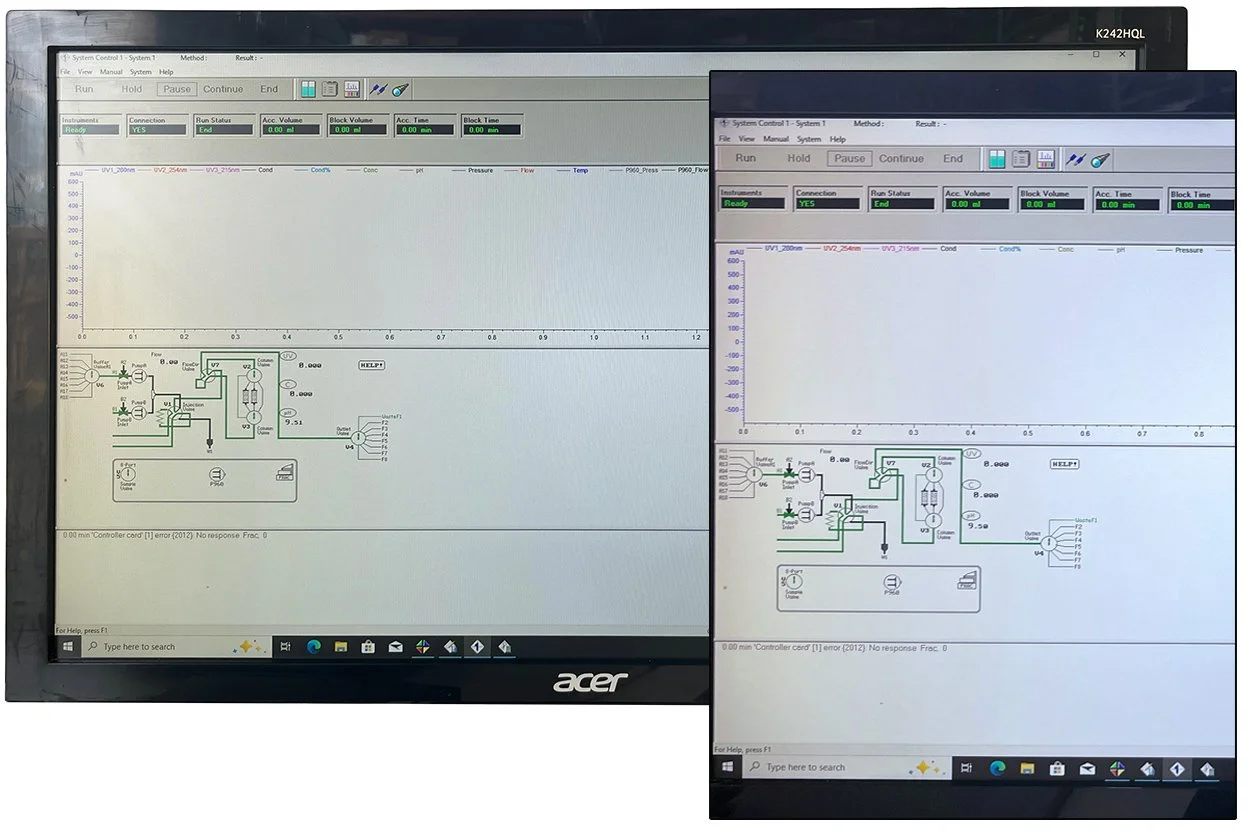

The system powers on and is shown communicating with the included computer workstation and UNICORN software. The module displays are active, and the system is recognized by the software as shown in the photographs.

The fluidic components, valve assemblies, and fraction collector appear clean and well maintained.

Calibration and validation status are unknown. No current calibration or certification documentation is included.

Please review all photographs carefully for the exact configuration, cosmetic condition, and components included.
