The Fluidigm CyTOF XT is an advanced automated mass cytometry system designed for high-parameter single-cell analysis in immunology, immuno-oncology, infectious disease research, translational research, and other life science applications.
CyTOF technology combines principles of flow cytometry with time-of-flight mass spectrometry, using antibodies tagged with stable metal isotopes rather than fluorescent labels. This approach enables highly multiplexed cellular profiling while minimizing the spectral overlap and compensation requirements associated with conventional fluorescence-based cytometry.
The CyTOF XT features 135 mass detection channels across a 75–209 amu mass range and supports sustained acquisition rates of up to 500 events per second. Its automated sample introduction system incorporates a dual syringe drive and chilled sample carousel capable of accommodating twelve 5 mL tubes and one 15 mL tube.
Originally manufactured by Fluidigm Corporation, the CyTOF product line is now supported under Standard BioTools Inc.
This system was purchased and installed in March 2023 and was only lightly used between 2023 and 2024. In September 2024, the system was tested, certified/qualified, professionally deinstalled, and crated by the manufacturer, Standard BioTools.
The system has remained in its factory crate in climate-controlled storage in San Diego, California since deinstallation. Documentation related to manufacturer certification, qualification, and deinstallation is available to serious prospective buyers upon request.
Advanced automated mass cytometry platform
High-parameter single-cell analysis
135 mass detection channels
75–209 amu mass range
Sustained acquisition up to 500 events per second
Dual syringe sample introduction system
Chilled automated sample carousel
Capacity for twelve 5 mL tubes and one 15 mL tube
Automated instrument setup and tuning
Integrated reagent and fluidics system
Integrated chiller
Designed for highly multiplexed cellular profiling
Suitable for immunology, immuno-oncology, infectious disease, and translational research
Research Use Only (RUO)
Purchased and installed in March 2023
Lightly used between 2023 and 2024
Tested, certified/qualified, professionally deinstalled, and crated by Standard BioTools in September 2024
Currently stored in its factory crate in climate-controlled storage
Manufacturer: Fluidigm Corporation / Standard BioTools Inc.
Model: CyTOF XT
Serial Number: 1170022017L
System Type: Mass Cytometry System
Technology: Cytometry by Time-of-Flight
Detection Channels: 135
Mass Range: 75–209 amu
Sustained Acquisition Rate: Up to 500 events/sec
Sample Flow Rate: 30 µL/min
Sample Introduction: Dual syringe drive
Sample Capacity: 12 × 5 mL tubes + 1 × 15 mL tube
Maximum Sample Volume: 4 mL in 5 mL tubes / 12 mL in 15 mL tube
Calibration / Tuning: Automated
Electrical Requirements: 200–240 VAC, 50/60 Hz
Electrical Circuit: Dedicated 30 A circuit required
Argon Requirement: Ultra-high-purity argon (≥99.996% purity)
Argon Consumption: Approx. 15 L/min during plasma operation
Exhaust Requirement: 100 mm (4") exhaust connection for torch box
Dimensions: Approx. 36.6" W × 53.1" H × 29.5" D (93 × 135 × 75 cm)
Net Weight: Approx. 635 lbs (288 kg)
Software Platform: CyTOF Software (Version 8.0 or higher required; not included unless specifically confirmed)
Purchased / Installed: March 2023
Manufacturer Deinstallation: September 2024
Current Storage: Factory crate in climate-controlled storage
Current Location: San Diego, California
Classification: Research Use Only
Fluidigm CyTOF XT Mass Cytometry System
Integrated automated sample handling components
Integrated reagent/fluidics components
The sale includes the CyTOF XT system and components associated with the actual consigned unit. Please contact us for confirmation of the exact included configuration and available documentation.
Standard BioTools (Fluidigm) workstation, monitor, CyTOF Software license/registration, argon supply system, regulator, external exhaust components, and other installation equipment are not included unless specifically confirmed.

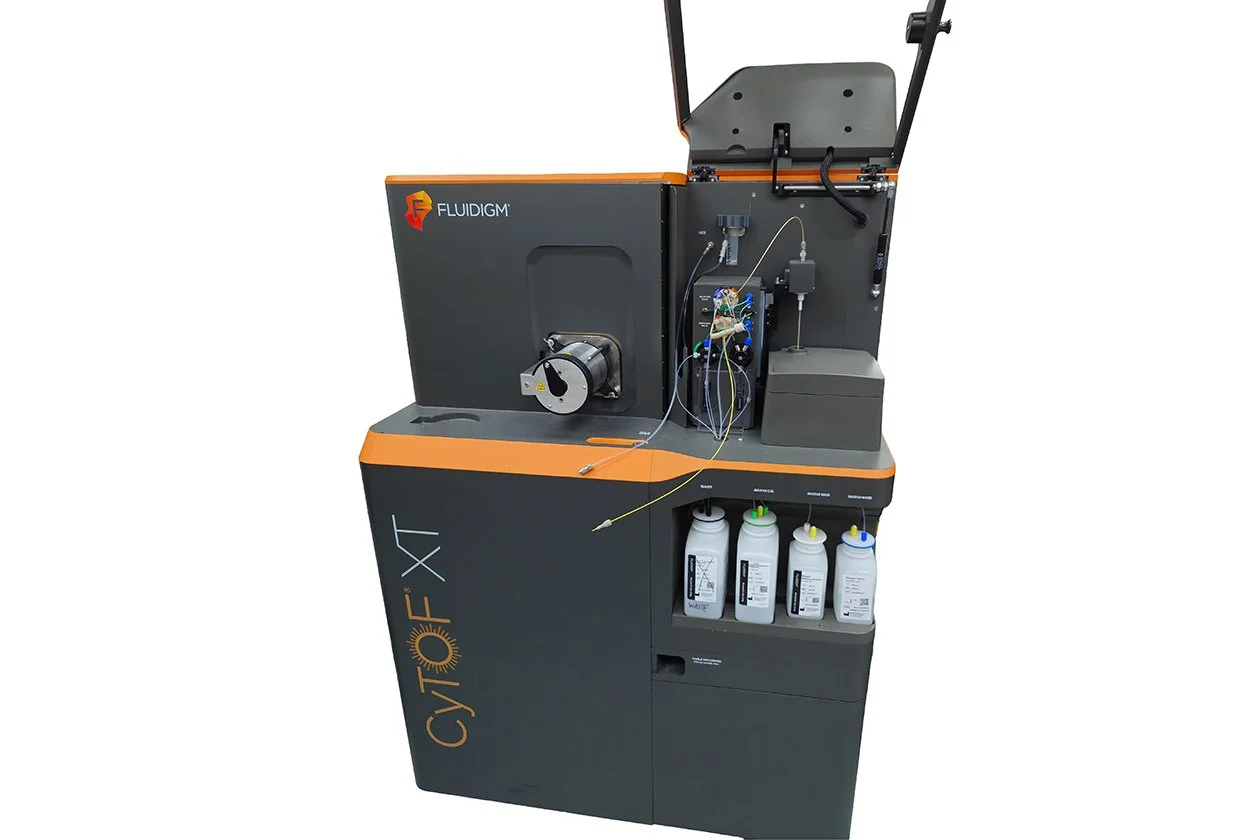

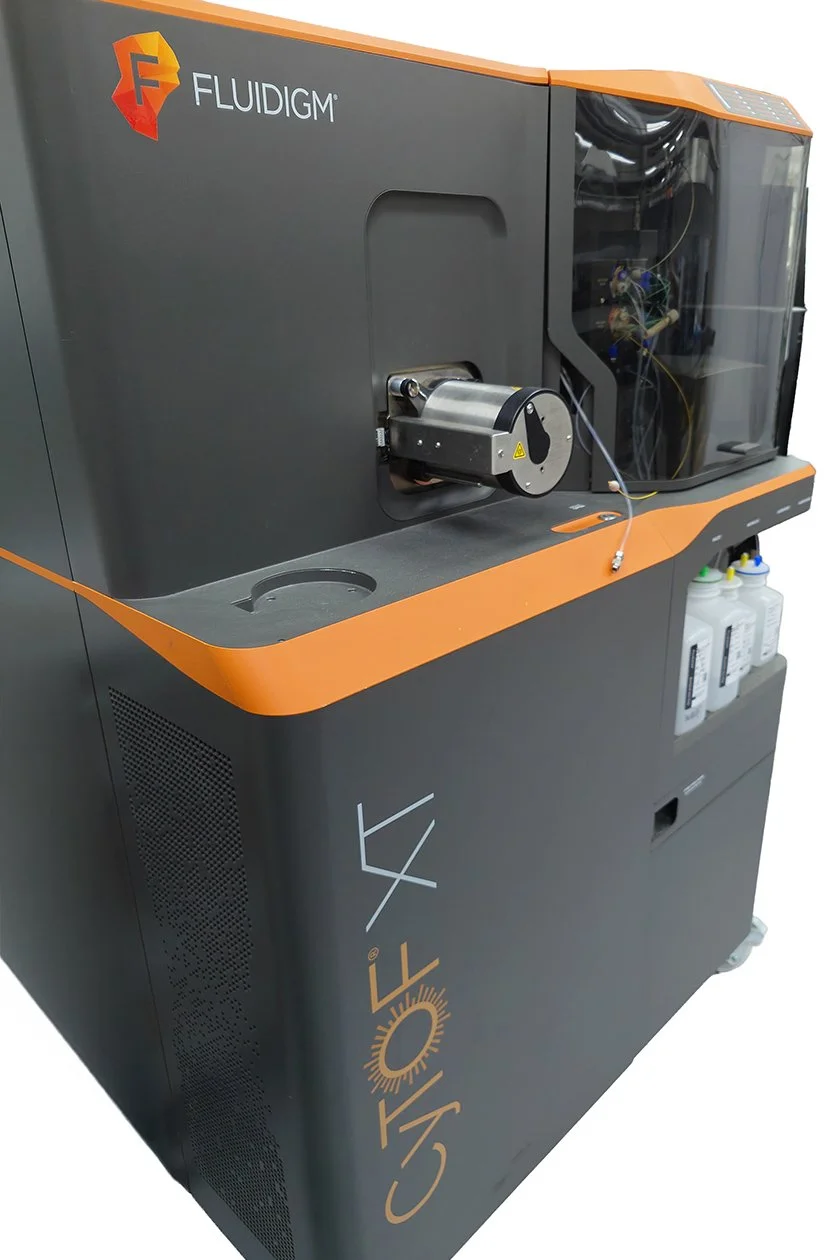

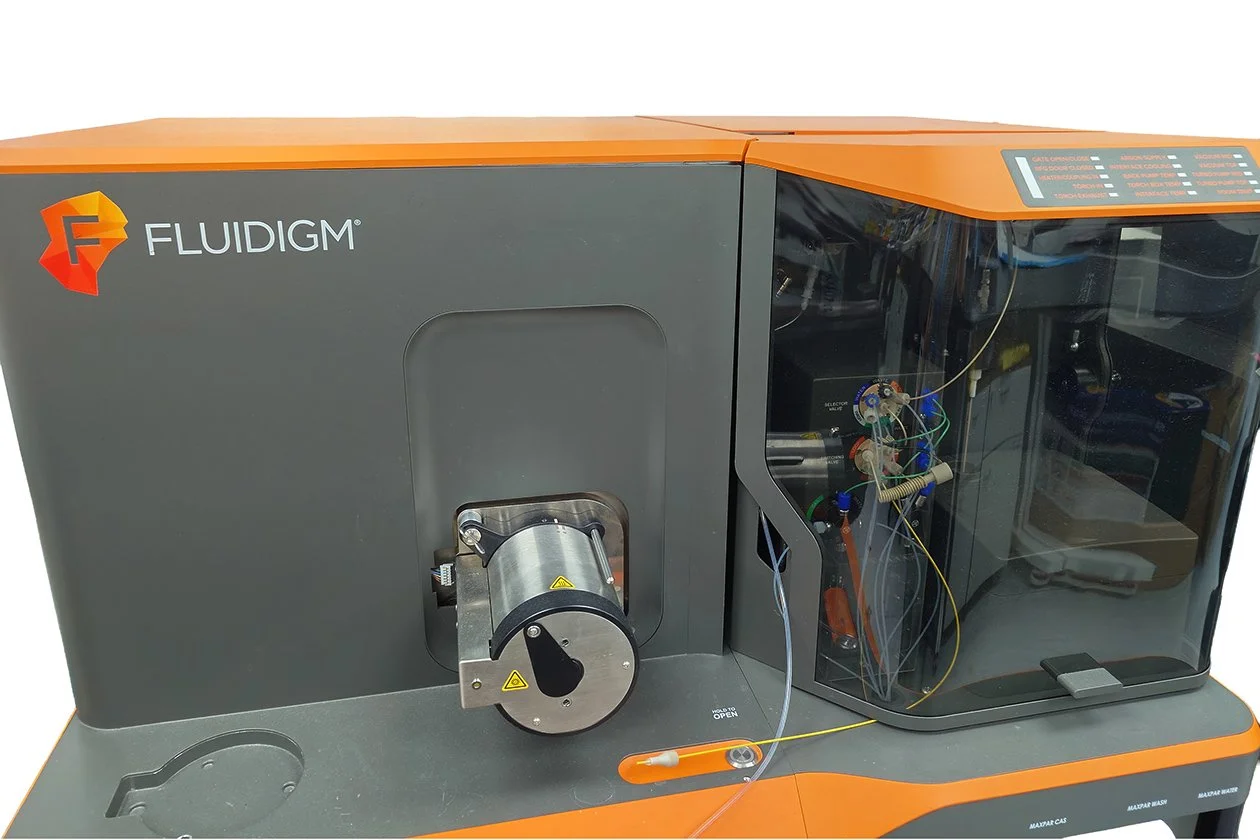

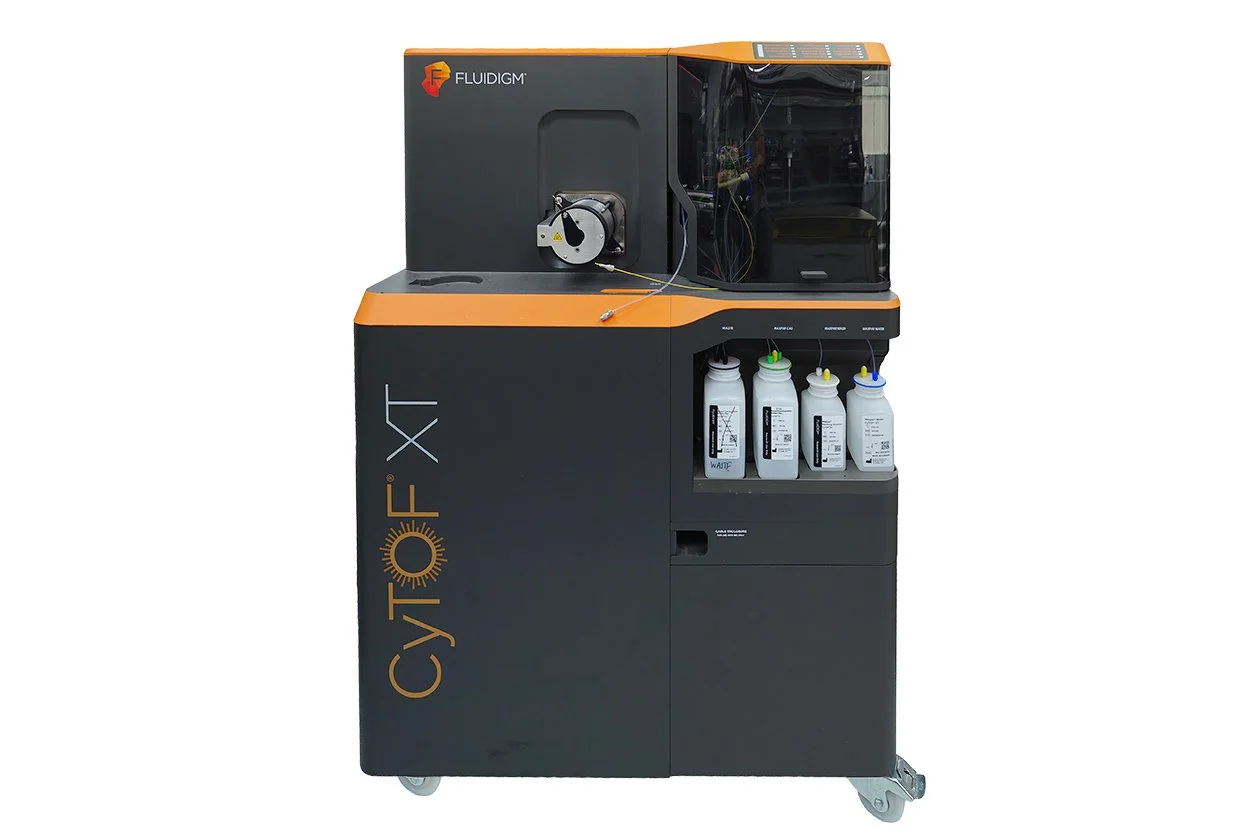

Please note that some photographs used in this listing are representative images of an identical CyTOF XT system and are not photographs of the actual unit being offered for sale.
This is a pre-owned Fluidigm CyTOF XT Mass Cytometry System that was purchased and installed in March 2023 and only lightly used between 2023 and 2024.
In September 2024, the system was tested, certified/qualified, professionally deinstalled, and crated by the manufacturer, Standard BioTools. It has remained in its factory crate in climate-controlled storage in San Diego, California since deinstallation.
Documentation related to the manufacturer certification, qualification, and deinstallation is available to serious prospective buyers upon request.
Serial Number: 1170022017L
Due to the specialized nature of this instrument, professional installation by Standard BioTools or another qualified service provider is recommended at its new location.
Please note that some photographs in this listing are representative photographs of an identical CyTOF XT system and do not depict the actual unit being offered for sale.
This item requires freight shipping due to its size, weight, and sensitive components.
Freight shipping is available throughout the United States. Shipping costs are quoted separately based on destination and delivery requirements.
Please complete our Freight Shipping / Local Pickup Form before purchasing so we can determine the appropriate shipping arrangements and provide an accurate freight quote.
