This new Expedeon laboratory set combines the MGV-202-33 Triple-Wide Mini Vertical Double Electrophoresis Unit with the matching EBU-302 Triple-Wide Mini-Blotting System.
The MGV-202-33 is designed for wide-format vertical gel electrophoresis and high-throughput applications, including SDS-PAGE, short-path separations, and compatible nucleic acid workflows. The matching EBU-302 provides two-place wet tank transfer for proteins and nucleic acids from gels to compatible membranes.
Both systems accommodate the 33 cm wide × 10 cm high format. A power supply is required for operation and is not included.
FEATURES
Matching electrophoresis and wet blotting systems
Triple-wide 33 cm gel format
Dual-gel electrophoresis configuration
Two-place wet blotting configuration
Supports high-throughput screening of up to 204 samples
Internal cooling chambers for temperature-controlled operation
Transparent construction for visual monitoring
Suitable for SDS-PAGE, Western, Southern, and Northern blotting workflows
New units retained in protective packaging
SPECIFICATIONS
Manufacturer: Expedeon
Electrophoresis Model: MGV-202-33
Electrophoresis Type: Triple-Wide Mini Vertical Double Electrophoresis Unit
Gel Format: 33 cm wide × 10 cm high
MGV-202-33 Maximum Voltage: 250 VDC
MGV-202-33 Maximum Power: 30 W
MGV-202-33 Maximum Current: 75 mA
MGV-202-33 Maximum Operating Temperature: 50°C
Electrode Distance: 10 cm
Recommended Upper Buffer Volume: 250 mL
Recommended Lower Buffer Volume: 400 mL
Blotting Model: EBU-302
Blotting Type: Triple-Wide Mini-Blotting System
Blotting Capacity: Two positions
Transfer Format: 33 cm wide × 10 cm high
EBU-302 Maximum Voltage: 100 VDC
EBU-302 Maximum Power: 150 W
EBU-302 Maximum Current: 1,500 mA
EBU-302 Maximum Operating Temperature: 50°C
Transfer Method: Wet tank blotting
Approximate Dimensions per Unit: 17.7" W × 7.5" D × 4.7" H
Estimated Packaged Dimensions: 26" × 24" × 14"
Estimated Packaged Weight: 25 lbs
INCLUDED

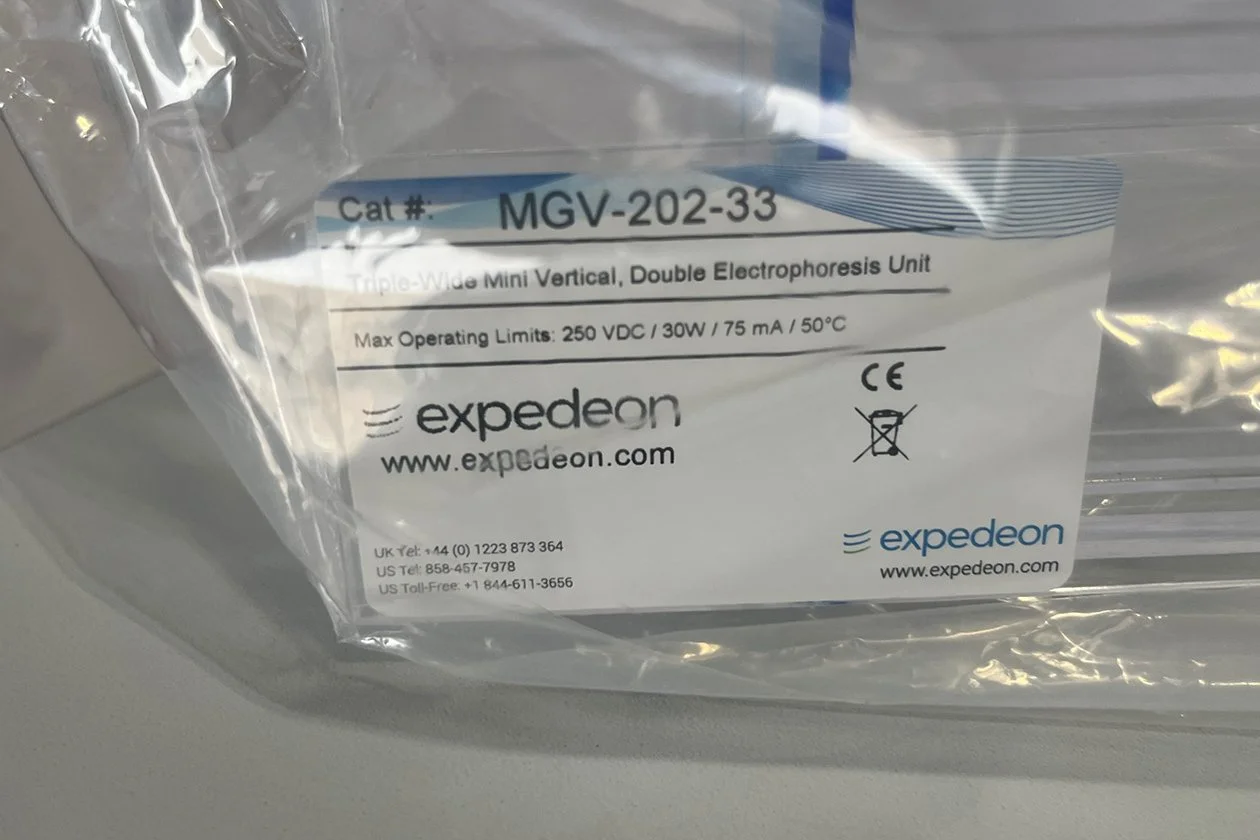

Expedeon MGV-202-33 electrophoresis unit

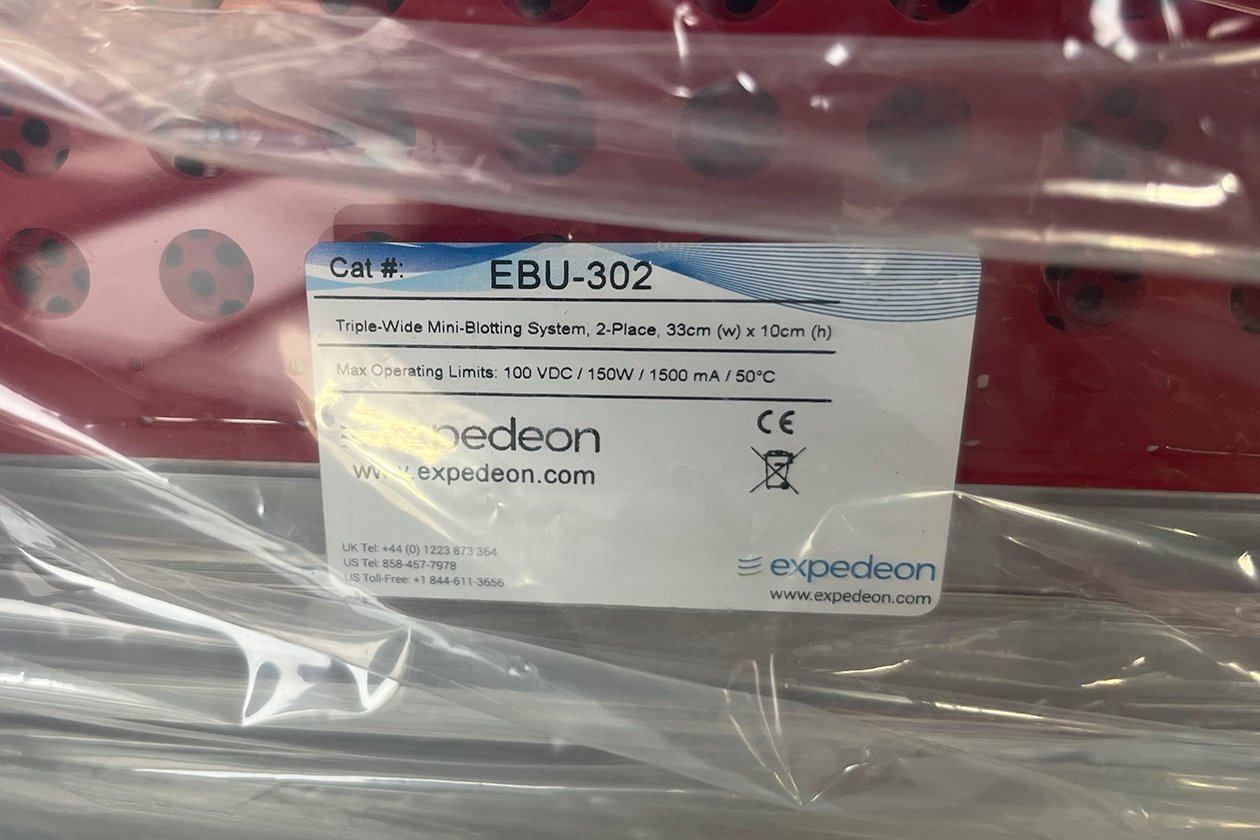

Expedeon EBU-302 mini-blotting system

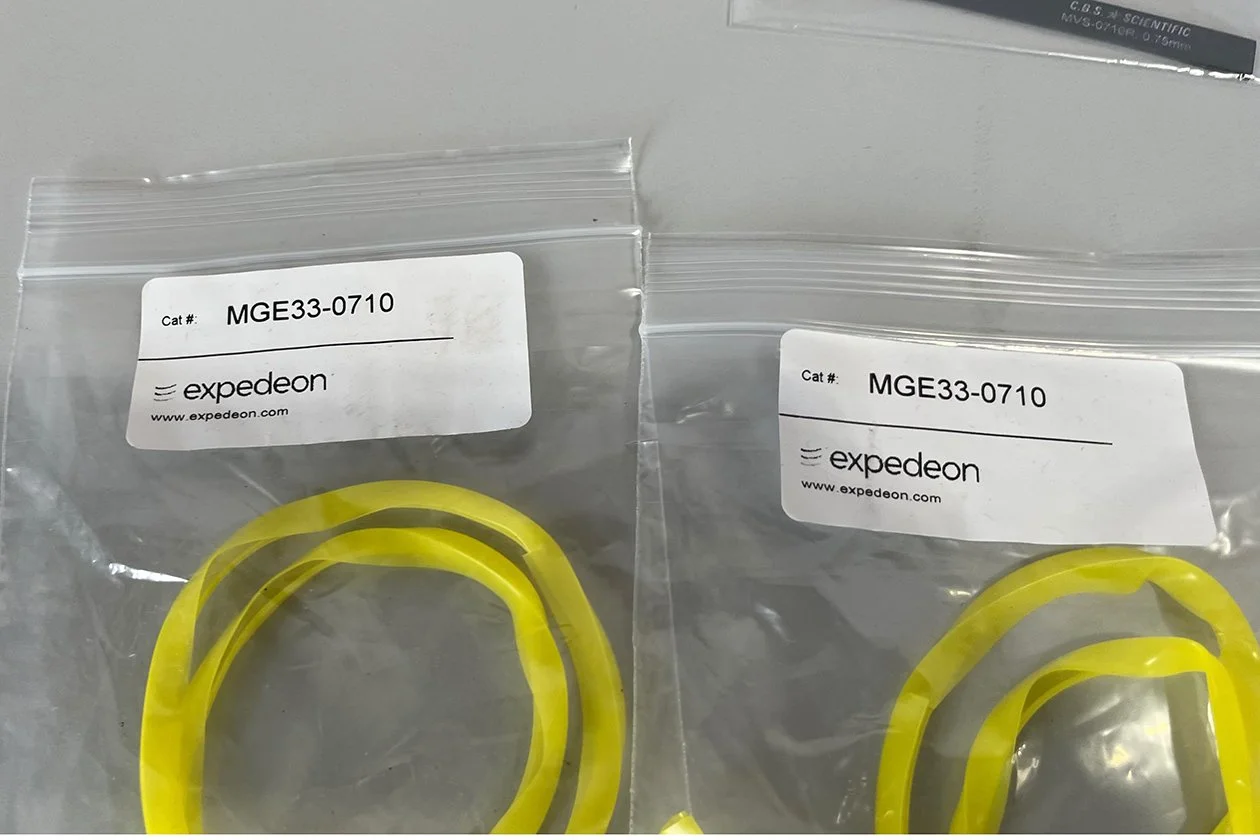

Two Expedeon MGE33-0710 Gel Wrap gaskets

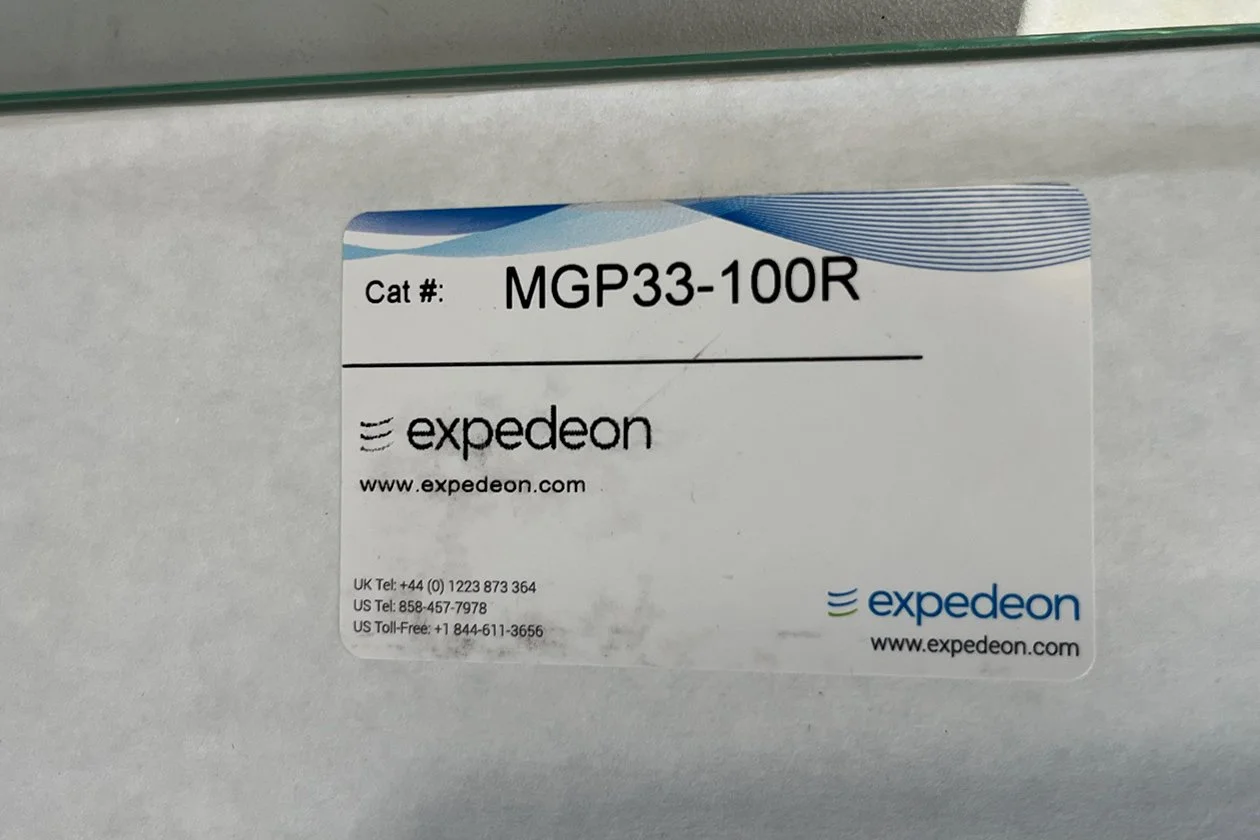

Expedeon MGP33-100R packaged component
Glass plates
Combs
Additional photographed components

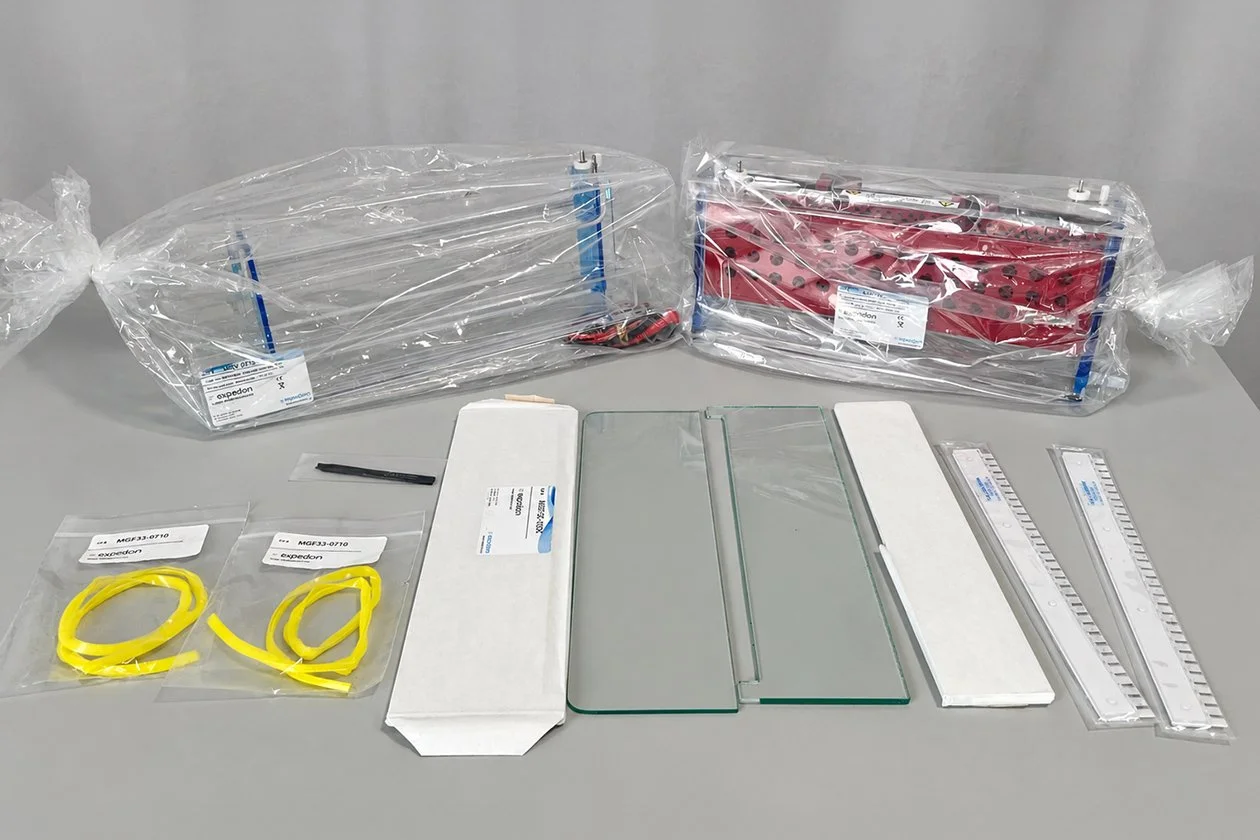

Includes all accessories shown in the photographs.
Power supply is not included.
CONDITION
New and unused. The primary units remain wrapped in their protective packaging.

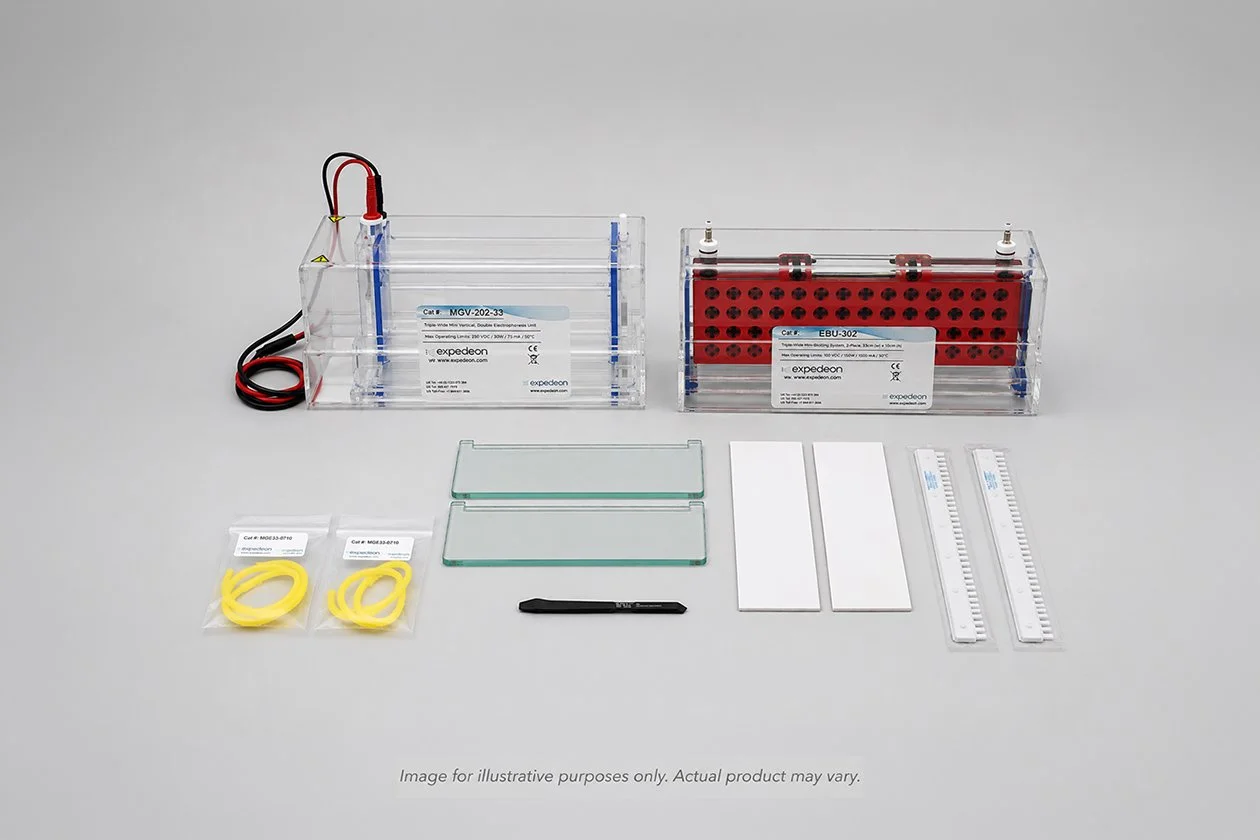

The unpackaged overview image is provided for illustrative purposes only. Please refer to the photographs showing the wrapped units and accessories for the actual items included.
SHIPPING
This item will be carefully packaged to ensure safe delivery.
Shipping costs are calculated automatically based on the buyer's location.
Local pickup is available in San Diego, California.
