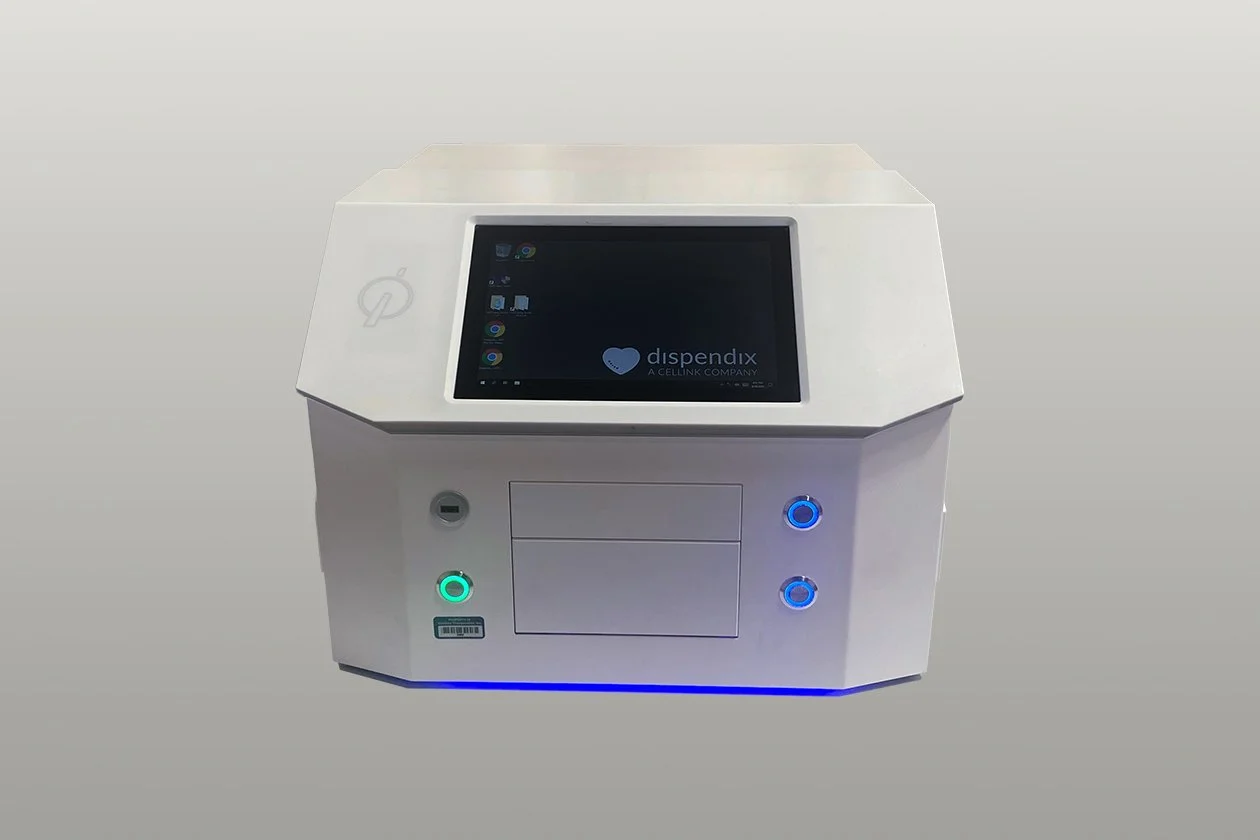

The DISPENDIX I-DOT One is a non-contact liquid dispenser designed for precise nanoliter-to-microliter liquid handling in automated laboratory workflows.
The system uses individually controlled positive-pressure channels and proprietary I-DOT source plates to dispense liquids into compatible SBS-format destination plates without pipette tips or physical contact with the destination wells.

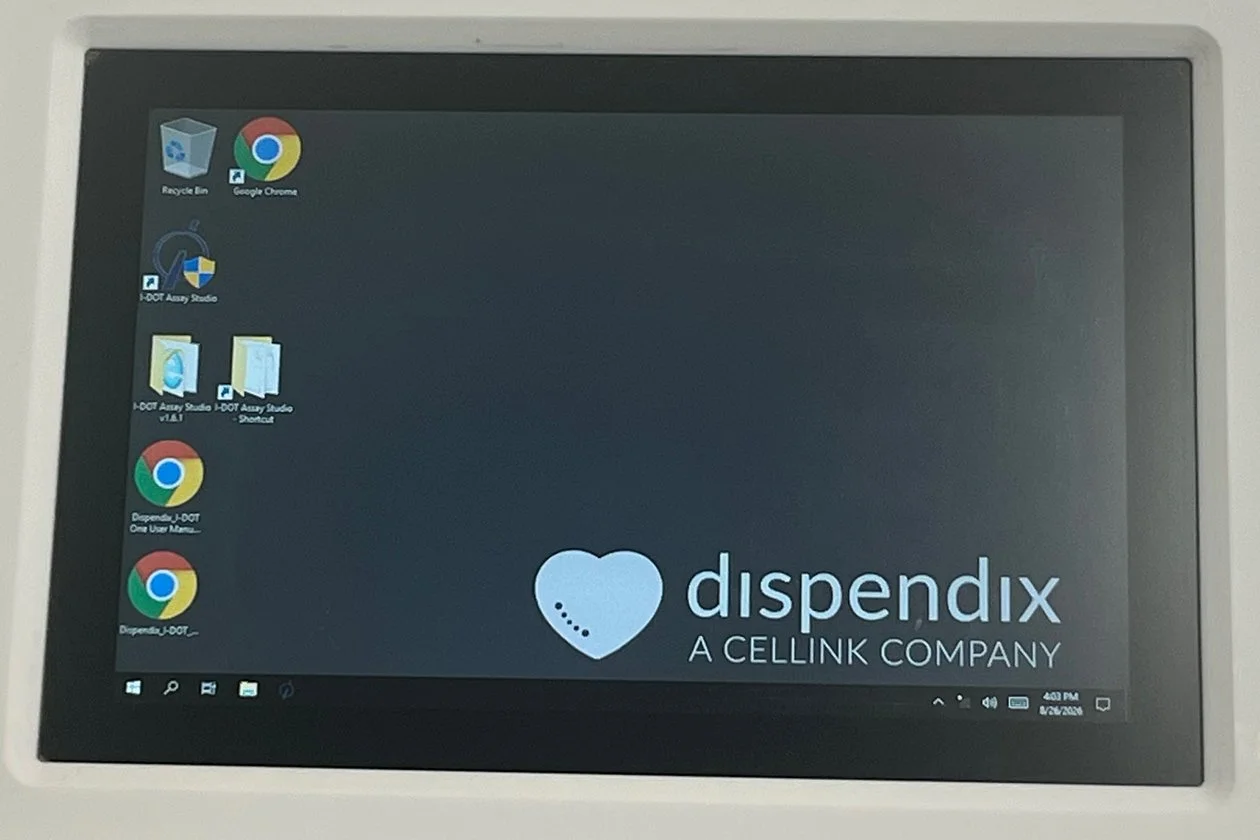

This unit, serial number 0088, was manufactured in 2020. It powers on and successfully boots into its integrated Windows operating system. An I-DOT Assay Studio v1.6.1 shortcut is visible on the desktop.

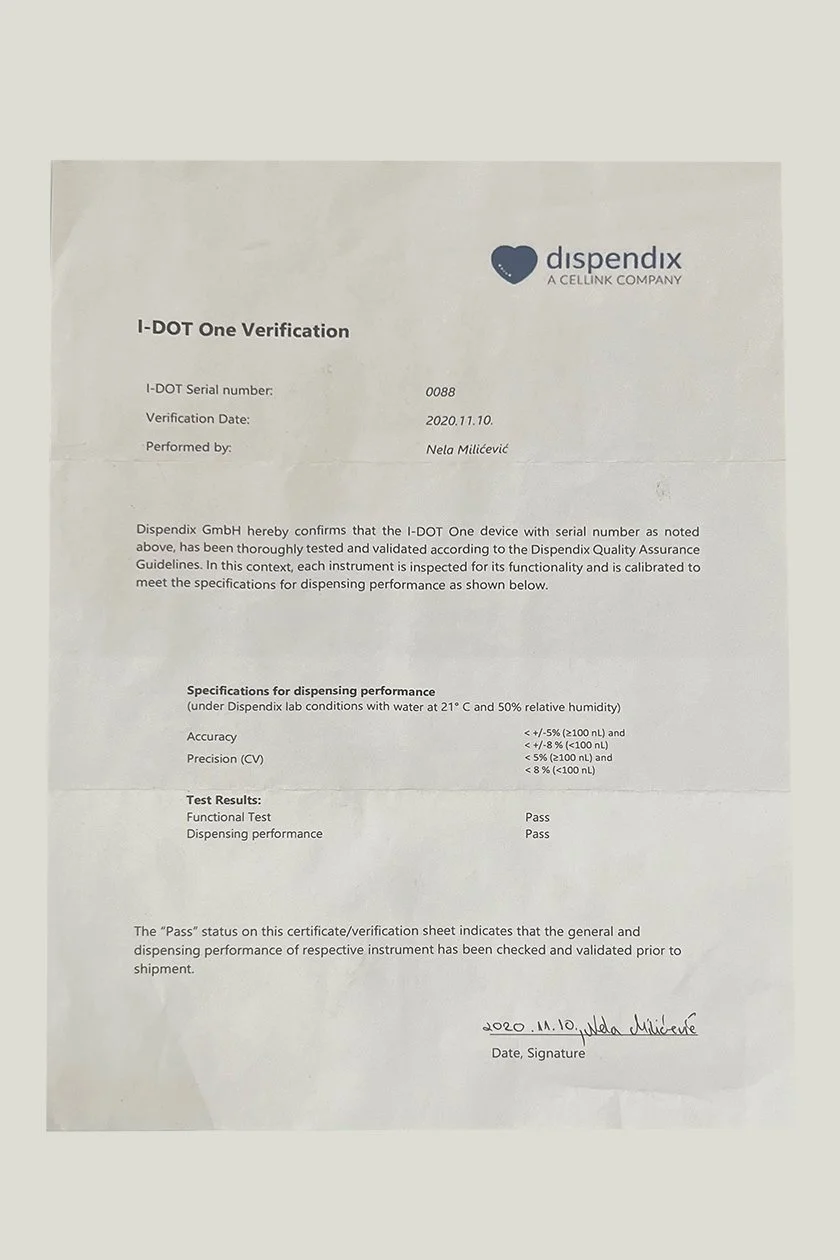

The included DISPENDIX verification sheet, dated November 10, 2020, documents passing functional and dispensing-performance tests before the instrument’s original shipment. This historical verification does not represent current calibration or dispensing performance.
FEATURES
Non-contact, positive-pressure liquid dispensing
Eight individually controlled dispensing channels
Designed for nanoliter-to-microliter transfers
Integrated DropDetection technology
Compatible with proprietary 96-well I-DOT source plates
Supports compatible SBS-format destination plates
Integrated touchscreen computer
Windows-based operating interface
Suitable for NGS, PCR, assay development and related workflows
Manufactured in Germany
SPECIFICATIONS
Manufacturer: DISPENDIX GmbH
Model: I-DOT One
Product Type: Non-Contact Liquid Handler / Dispenser
Serial Number: 0088
Year of Manufacture: 2020
Dispensing Technology: Positive-pressure drop-on-demand
Dispensing Channels: 8
Source Plate Format: 96 wells
Compatible Source Plate Types: DISPENDIX S.60, S.100 and S.200
Destination Labware: Compatible SBS-format plates
Software Shortcut Shown: I-DOT Assay Studio v1.6.1

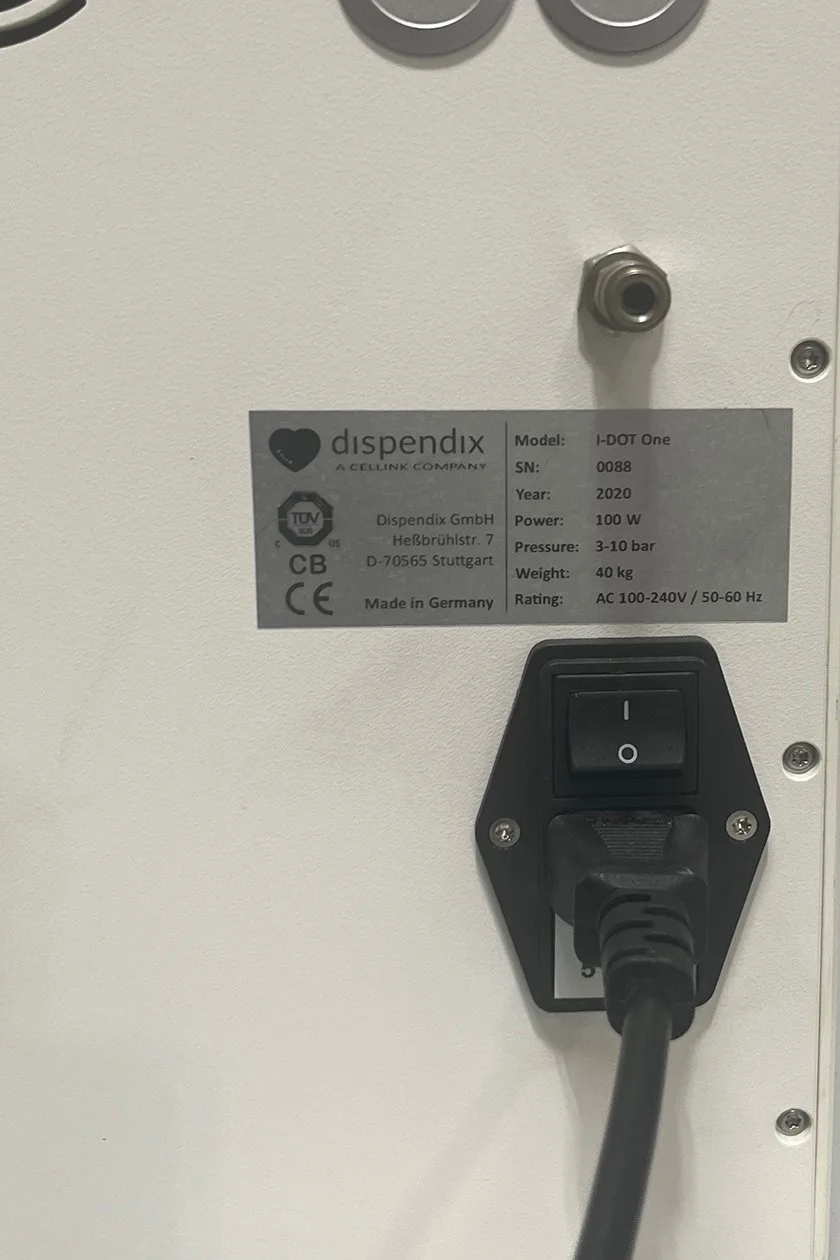

Input Voltage: 100–240 VAC
Frequency: 50–60 Hz
Rated Power: 100 W
Compressed-Air Requirement: 3–10 bar
Net Weight: 40 kg / approximately 88 lb
Country of Origin: Germany
Historical Verification Date: November 10, 2020
Historical Functional Test Result: Pass
Historical Dispensing Performance Result: Pass
Historical dispensing specifications recorded on the verification sheet:
Accuracy: Less than ±5% at volumes of 100 nL or greater
Accuracy: Less than ±8% at volumes below 100 nL
Precision: CV below 5% at volumes of 100 nL or greater
Precision: CV below 8% at volumes below 100 nL
These specifications reflect the original 2020 verification and are not representations of current performance.
INCLUDED
DISPENDIX I-DOT One non-contact liquid dispenser
Power cord
DISPENDIX verification sheet dated November 10, 2020
Includes all accessories shown in the photographs.
I-DOT source plates, destination plates, compressor, pneumatic tubing, fittings, reagents and additional accessories are not included.
CONDITION
Used. The unit shows cosmetic marks consistent with prior handling and laboratory use.
The instrument powers on and boots into Windows. An I-DOT Assay Studio v1.6.1 shortcut is visible, but the software has not been launched or functionally verified. Software license status and transferability are unknown.
No current wet dispensing test has been performed. The pneumatic system, dispensing channels, DropDetection sensors, plate movement, dispensing accuracy and precision have not been independently verified by LabCycle Partners.
The included verification sheet documents passing tests on November 10, 2020, before the instrument’s original shipment. It should not be interpreted as current calibration or certification.
The purchaser will need compatible DISPENDIX source plates, destination labware and a clean, dry compressed-air supply for operation.
SHIPPING
This item requires freight shipping due to its size, weight, and sensitive components.
Freight shipping is available throughout the United States. Shipping costs are quoted separately based on destination and delivery requirements.
Local pickup is available in San Diego, California.
Please complete our Freight Shipping / Local Pickup Form before purchasing so we can determine the appropriate shipping arrangements and provide an accurate freight quote.
