Cytiva Xcellerex XDUO 500 Single-Use Mixing System 2021

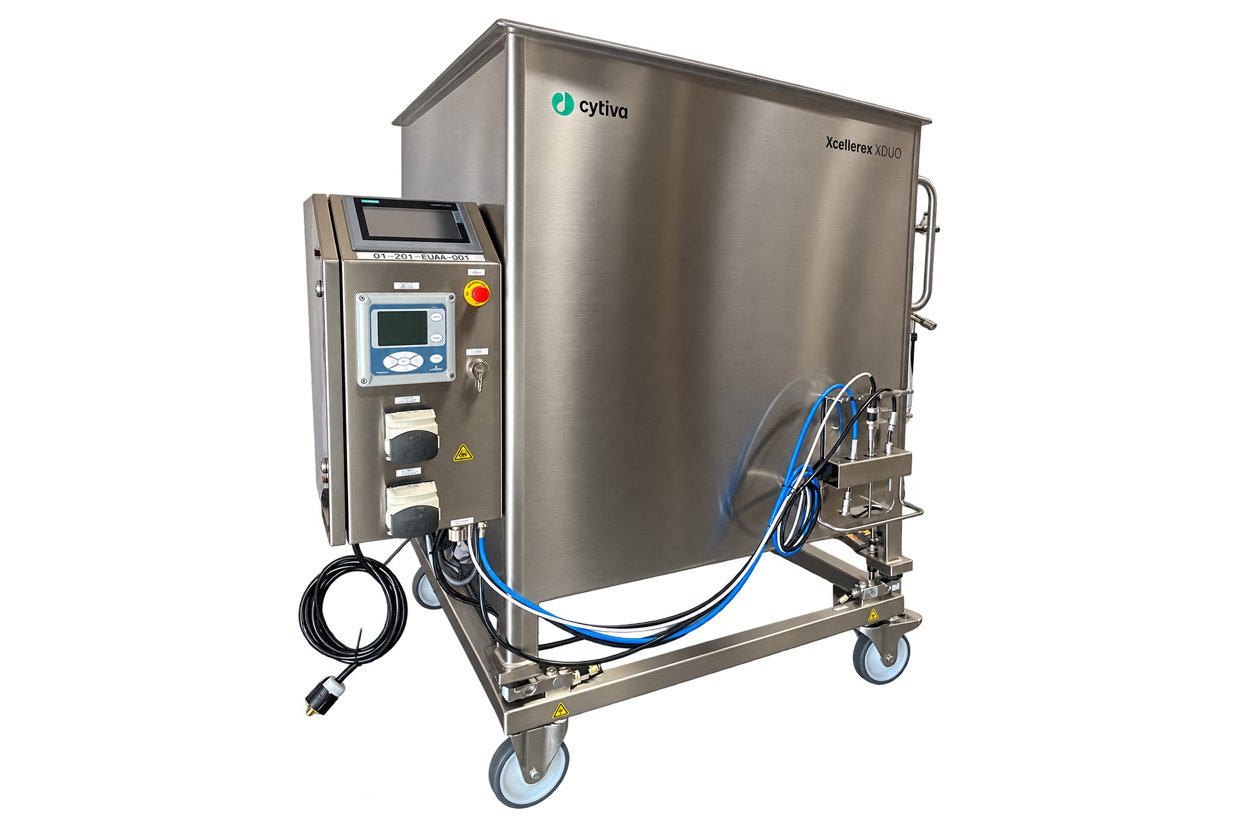

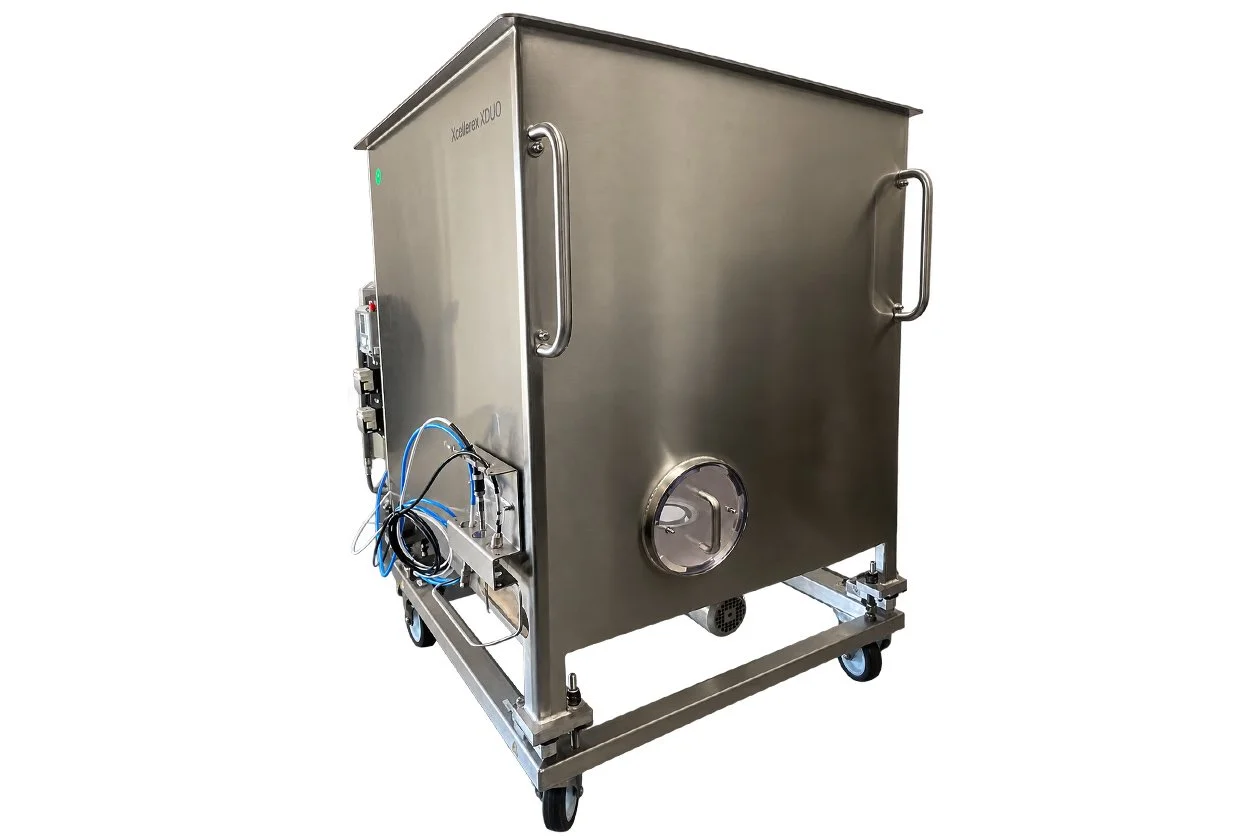

The Cytiva Xcellerex XDUO 1000 is a large-capacity, stainless steel single-use mixing system designed for biopharmaceutical manufacturing, biotechnology processing, and pharmaceutical production environments.

Manufactured in Sweden in November 2021, this 1,000-liter-class system is engineered to support mixing operations associated with buffer preparation, media preparation, and other liquid-handling processes commonly used in bioprocessing facilities.

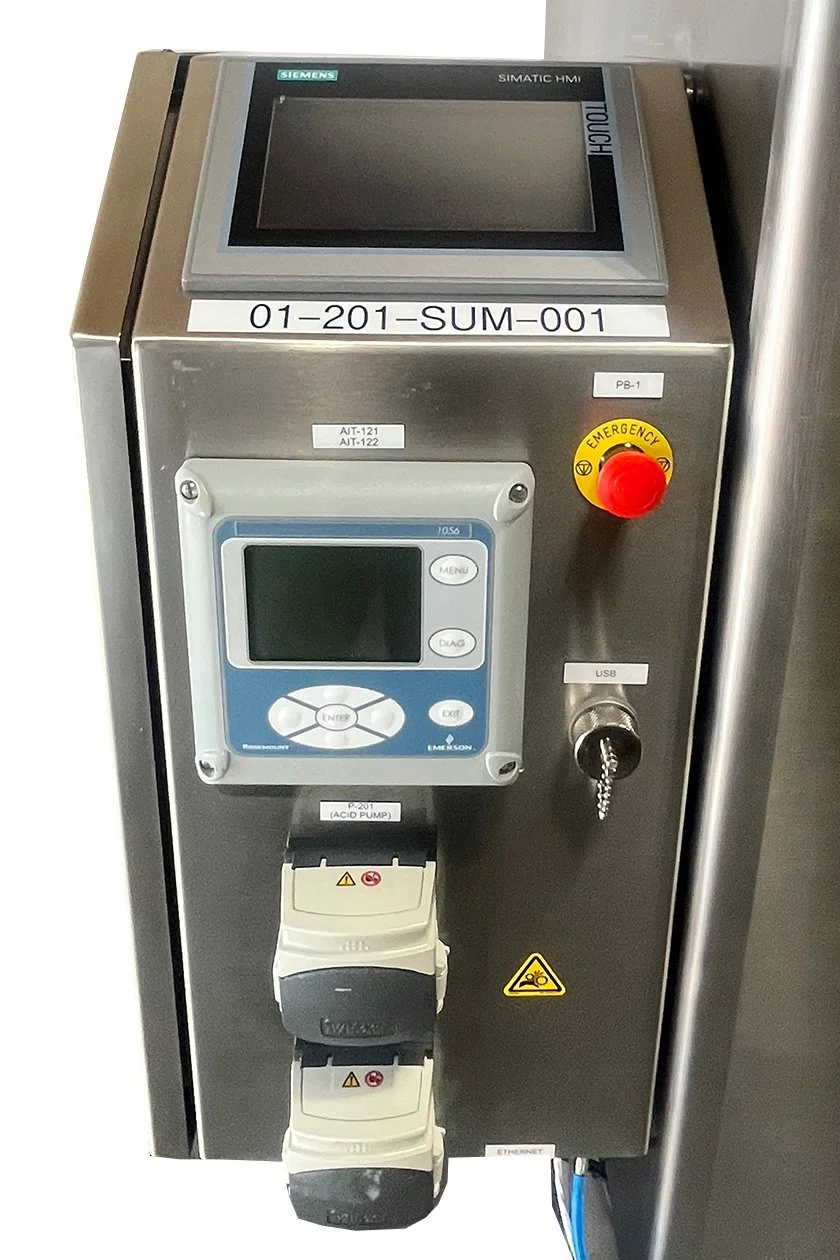

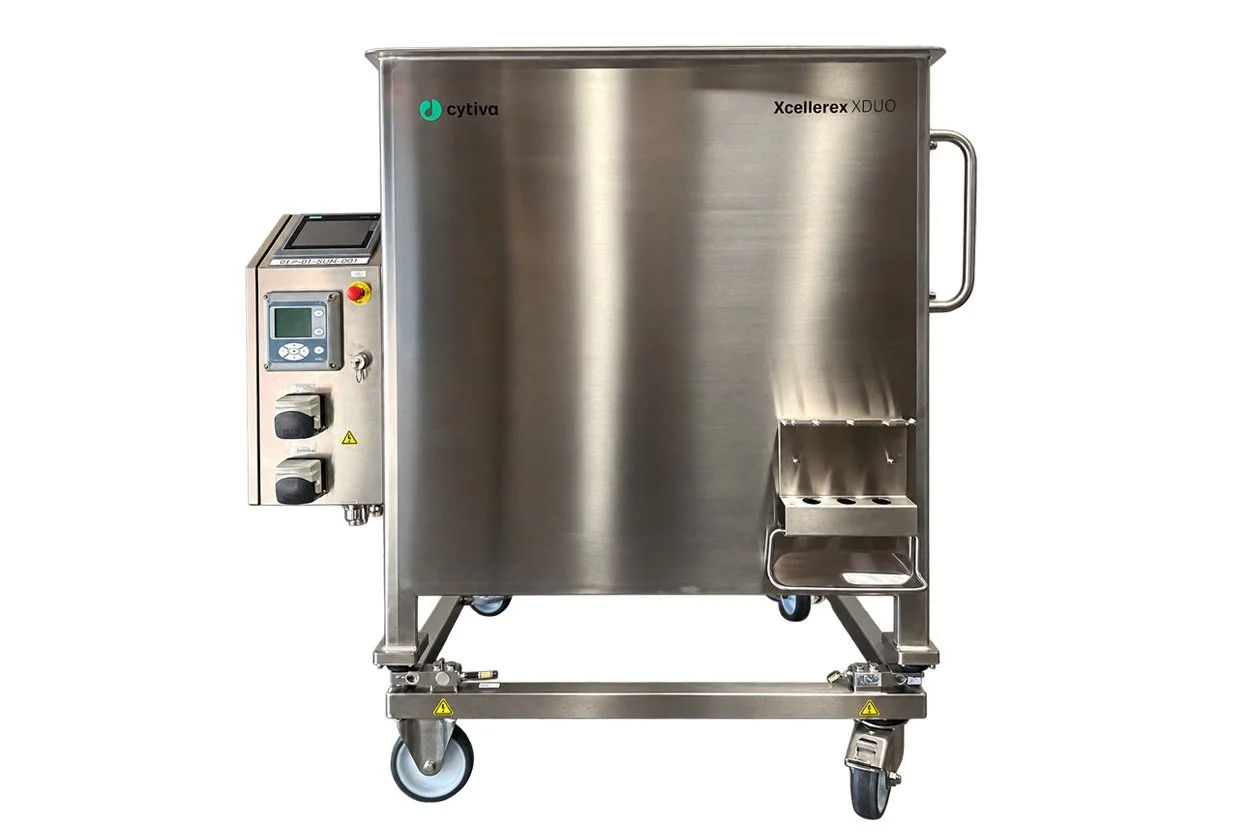

The system features an integrated Siemens SIMATIC HMI touchscreen, an Emerson Rosemount 1056 analyzer, two front-mounted peristaltic pump heads, and an industrial stainless steel vessel mounted on a mobile frame.

Its single-use mixing architecture is designed to accommodate compatible disposable mixing assemblies, helping reduce cleaning requirements and cross-contamination risks between production batches.

Key Features

• Cytiva Xcellerex XDUO 1000 mixing platform

• 1,000-liter-class single-use mixing system

• Manufactured November 2021

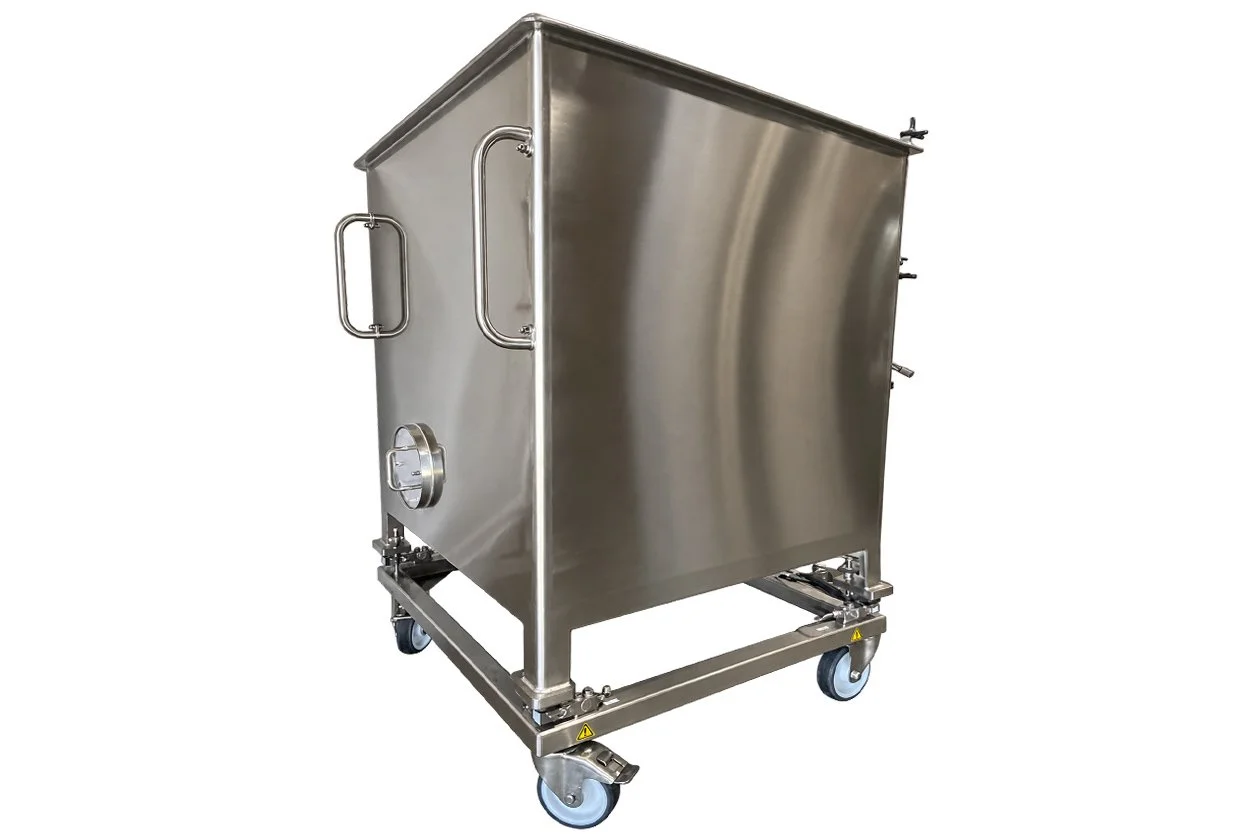

• Stainless steel vessel and structural frame

• Siemens SIMATIC touchscreen HMI

• Emerson Rosemount 1056 analyzer/controller

• Two integrated peristaltic pump heads

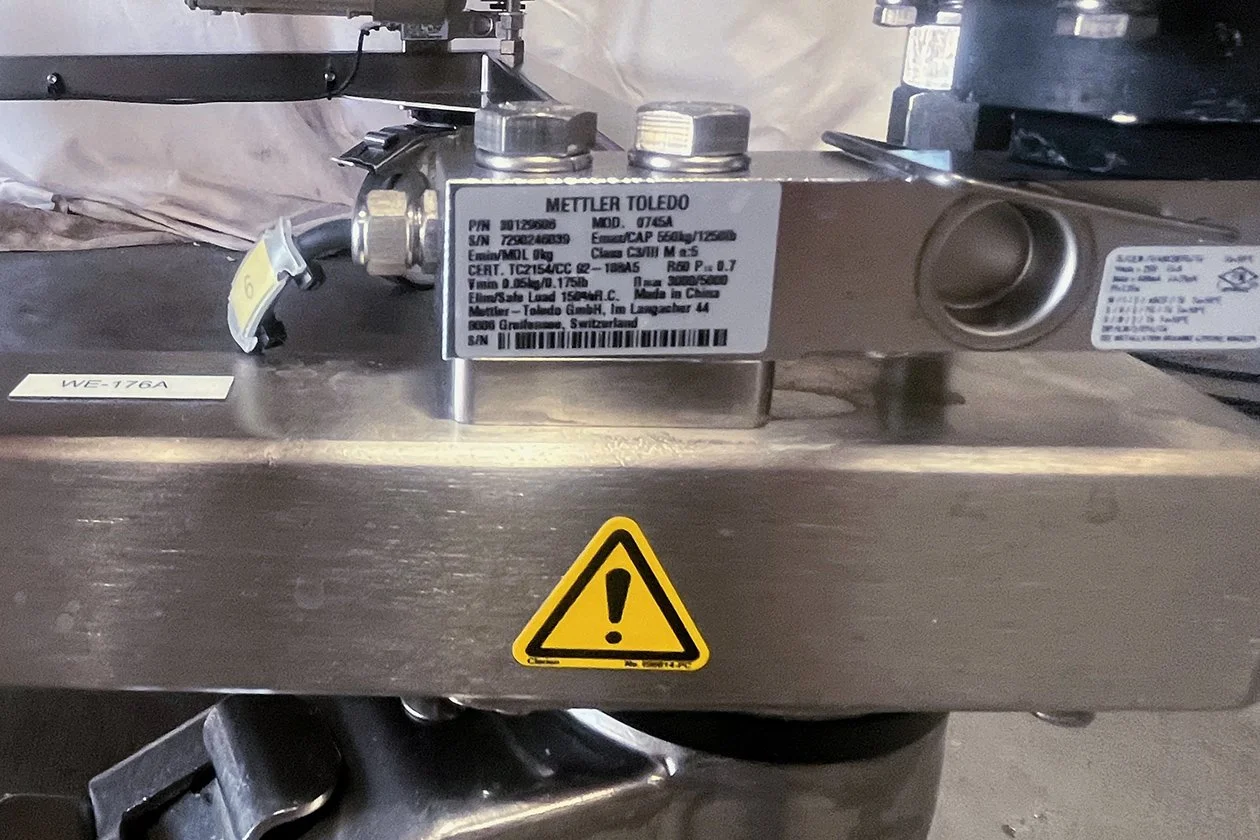

• Integrated weighing/load-cell system

• Emergency stop button

• Mobile base with industrial casters

• Front-mounted control and instrumentation panel

• Designed for biopharmaceutical and biotechnology processing

Applications

The Cytiva XDUO 1000 is suitable for integration into bioprocessing operations involving:

• Buffer preparation and mixing

• Cell culture media preparation

• Biopharmaceutical manufacturing

• Pharmaceutical process development

• Large-volume liquid mixing

• Single-use bioprocessing workflows

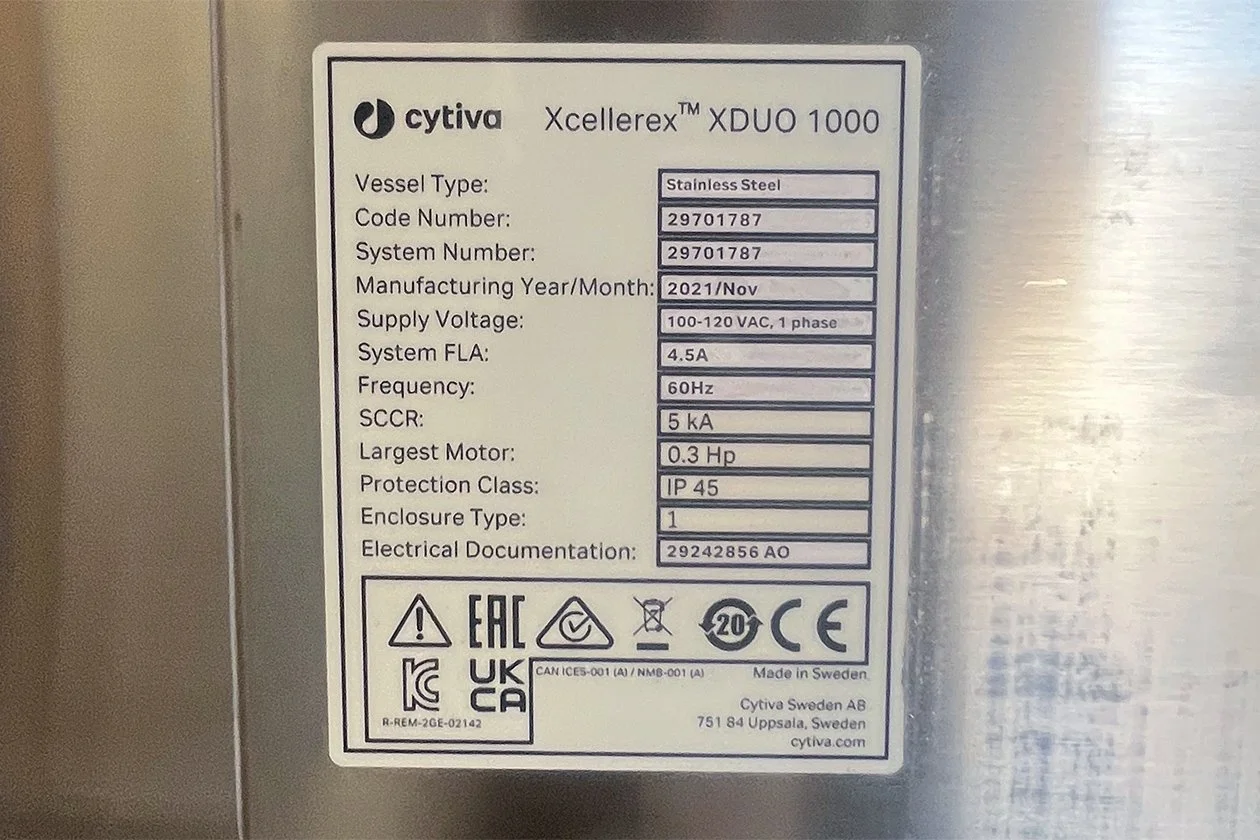

Technical Specifications

Manufacturer: Cytiva Sweden AB

Product Line: Xcellerex XDUO

Model: XDUO 1000

Code Number: 29701787

System Number: 29701787

Manufacturing Date: November 2021

Country of Manufacture: Sweden

Vessel Type: Stainless Steel

Nominal System Size: 1,000 L

Supply Voltage: 100–120 VAC

Electrical Phase: Single Phase

Frequency: 60 Hz

System Full Load Amperage: 4.5 A

Short Circuit Current Rating: 5 kA

Largest Motor: 0.3 HP

Protection Class: IP45

Enclosure Type: Type 1

Electrical Documentation: 29242856 A0

Operator Interface: Siemens SIMATIC HMI

Process Analyzer: Emerson Rosemount 1056

Pump Configuration: Two integrated peristaltic pump heads

Mobility: Stainless steel frame with casters

Condition

Used equipment in good overall cosmetic condition, with normal signs of previous laboratory or industrial use.

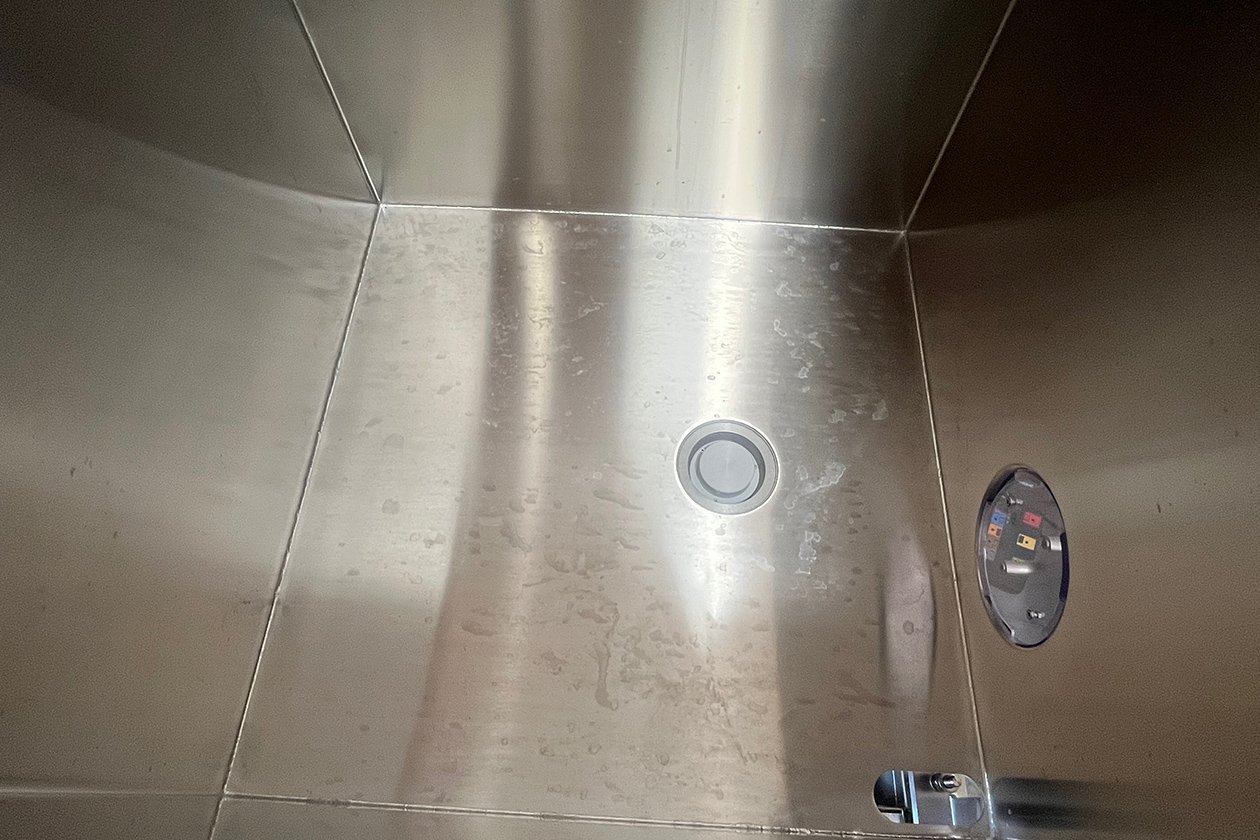

The stainless steel vessel, control enclosure, touchscreen interface, process analyzer, and integrated pump heads are present, as shown in the photographs.

Full operational testing, calibration, and process-performance verification have not been documented. The unit is offered in its current condition, and buyers should verify compatibility with their intended application.

Important: Disposable single-use mixing bags and other consumable assemblies are not confirmed as included. Please review all photographs and contact us to verify the included components before purchasing.
