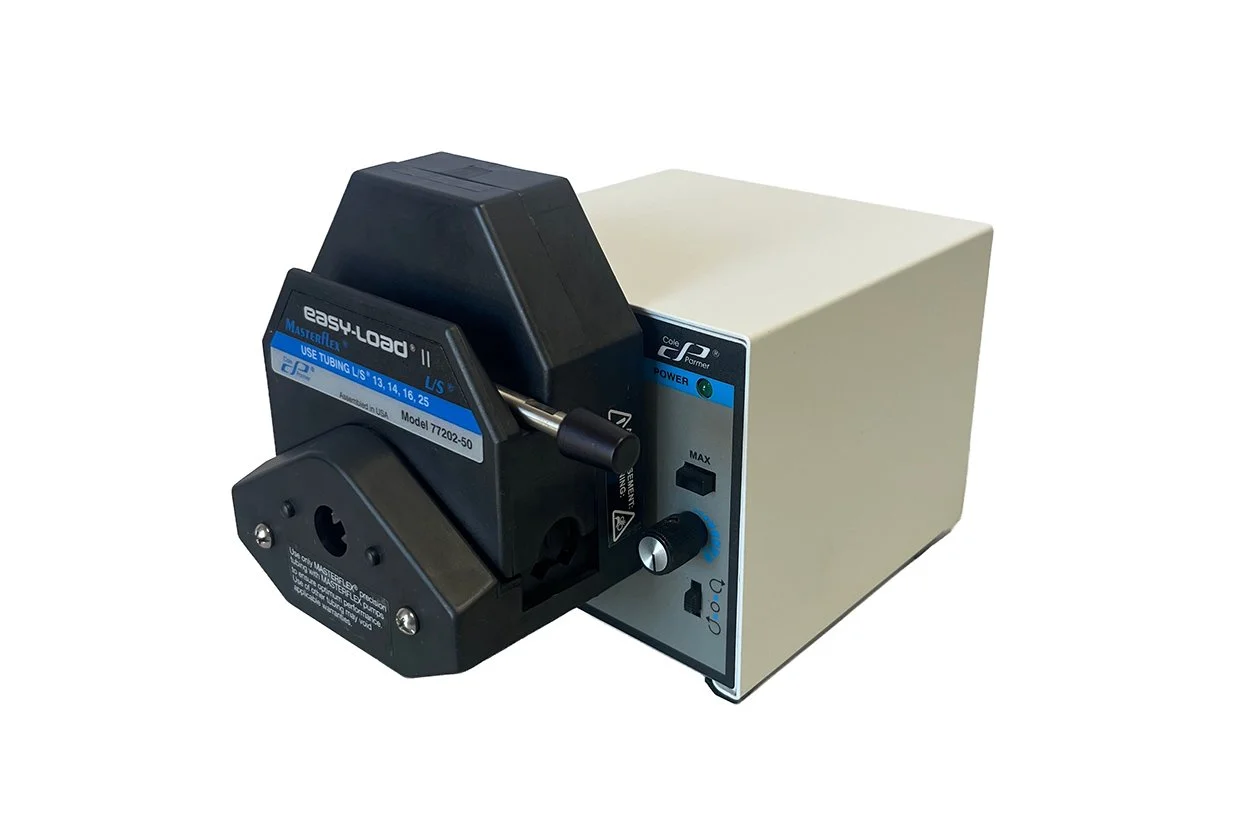

Cole-Parmer Masterflex L/S compact, low-flow variable-speed peristaltic pump system with an Easy-Load II two-channel pump head.
FEATURES
• Cole-Parmer Masterflex L/S variable-speed drive, Model 77200-12
• Adjustable speed range: 35–200 RPM
• Reversible motor with CW / OFF / CCW control

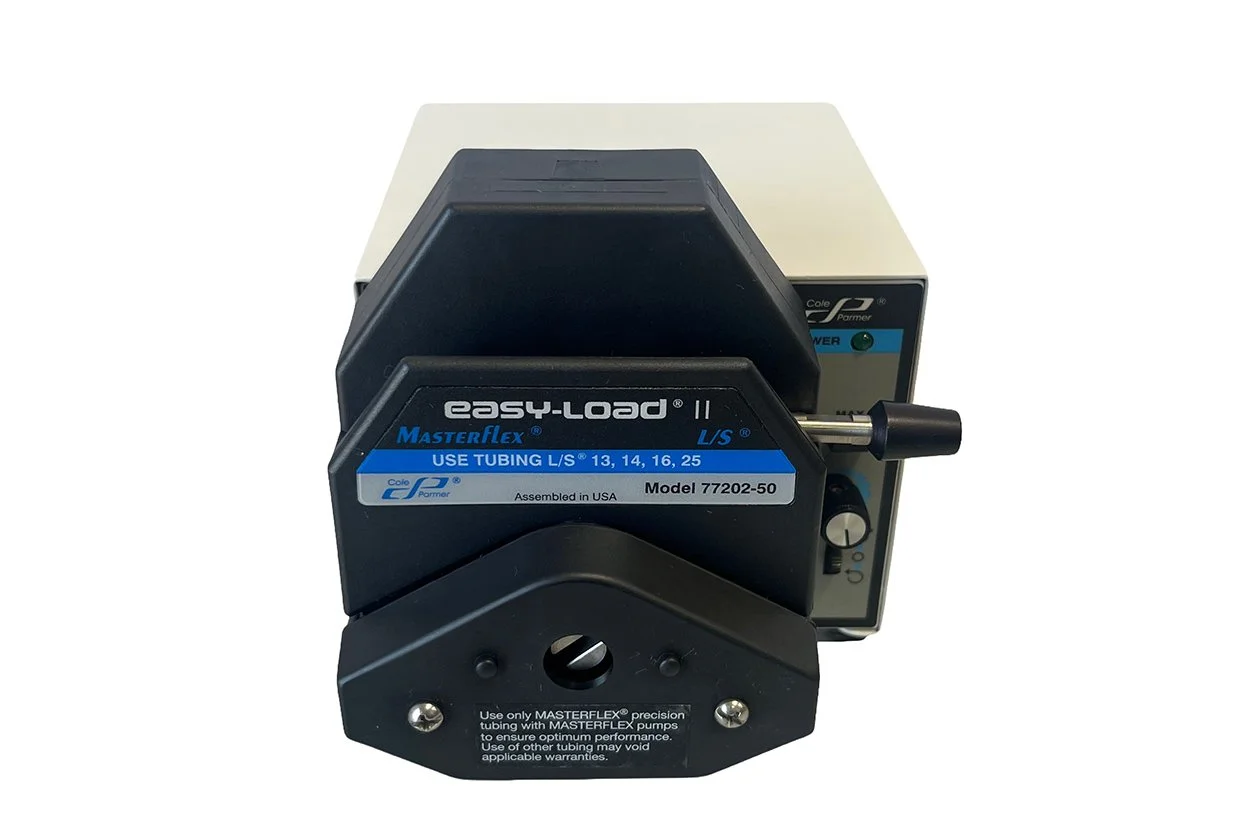

• Masterflex Easy-Load II L/S two-channel pump head, Model 77202-50
• Pump head accepts Masterflex L/S precision tubing sizes 13, 14, 16, and 25
• External start/stop control capability via contact closure
• Compact painted-steel housing
• Assembled in the USA
SPECIFICATIONS
• Drive model: 77200-12
• Pump head model: 77202-50
• Speed range: 35–200 RPM

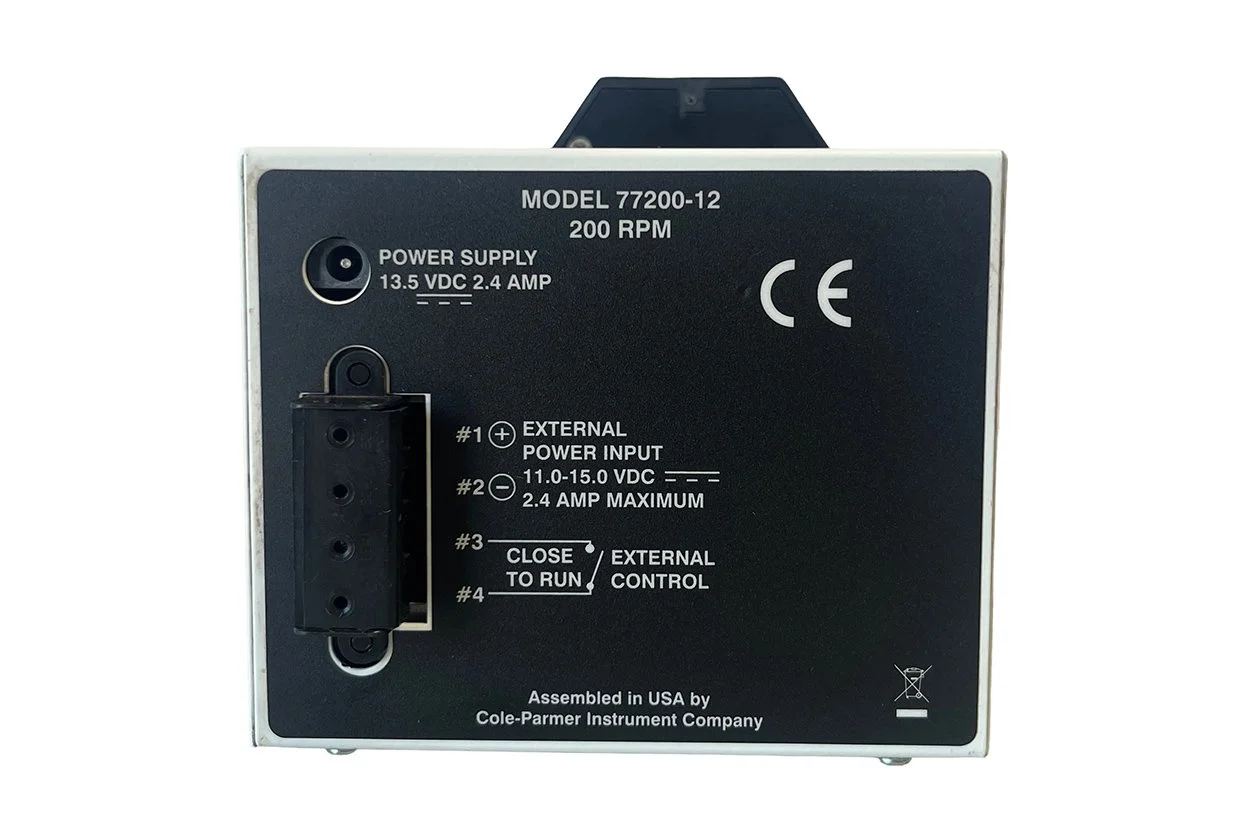

• Power requirement: 13.5 VDC, 2.4A nominal
• External power input range: 11.0–15.0 VDC, 2.4A maximum
• Drive dimensions: approximately 5.4 x 5.3 x 4.5 in.
• Flow rate depends on the tubing size and operating speed selected
CONDITION
Used laboratory equipment with normal cosmetic wear from prior use and storage. The pump drive, Easy-Load II two-channel head, controls, and attached components are present as shown. The external power adapter shown is included only as pictured; its output and compatibility with this pump have not been verified. Functional testing beyond visual inspection has not been performed.
No tubing is included. Sold as shown. Please review all photographs carefully for exact condition and included items.
INCLUDED
• Cole-Parmer Masterflex 77200-12 pump drive
• Masterflex Easy-Load II 77202-50 two-channel pump head

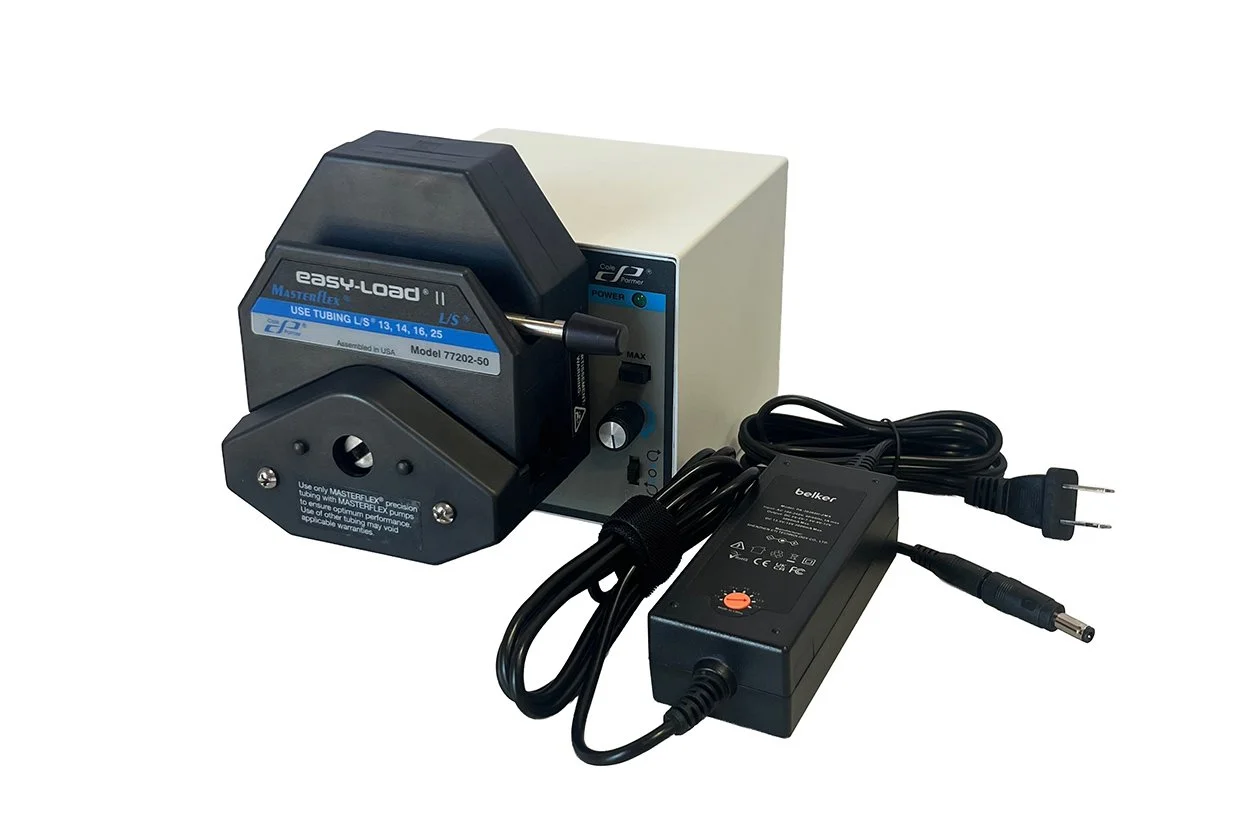

• External power adapter shown in photos
NOT INCLUDED
• Pump tubing
• Manual
• Original packaging
• Additional accessories or items not pictured
SHIPPING
This item will be carefully packaged to ensure safe delivery. Shipping costs are calculated automatically based on the buyer's location.
Local pickup is available in San Diego, California.
