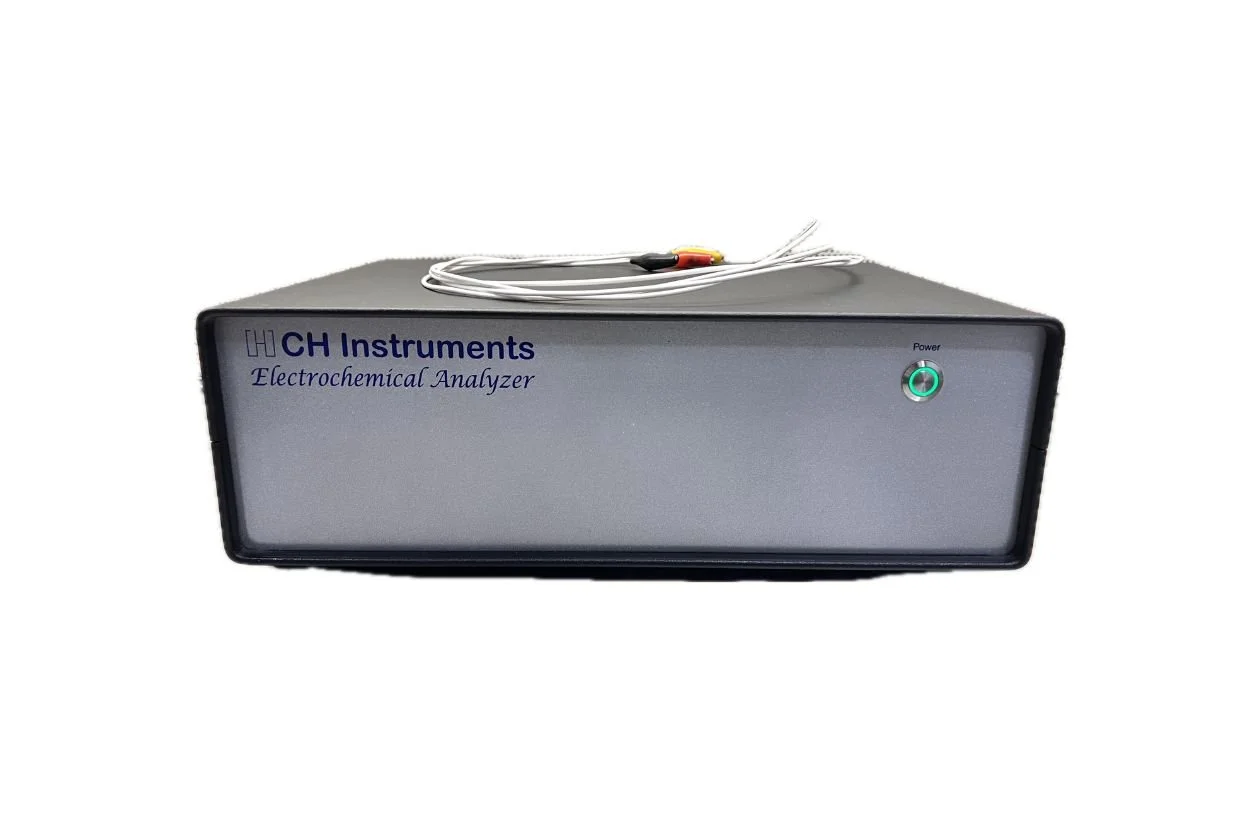

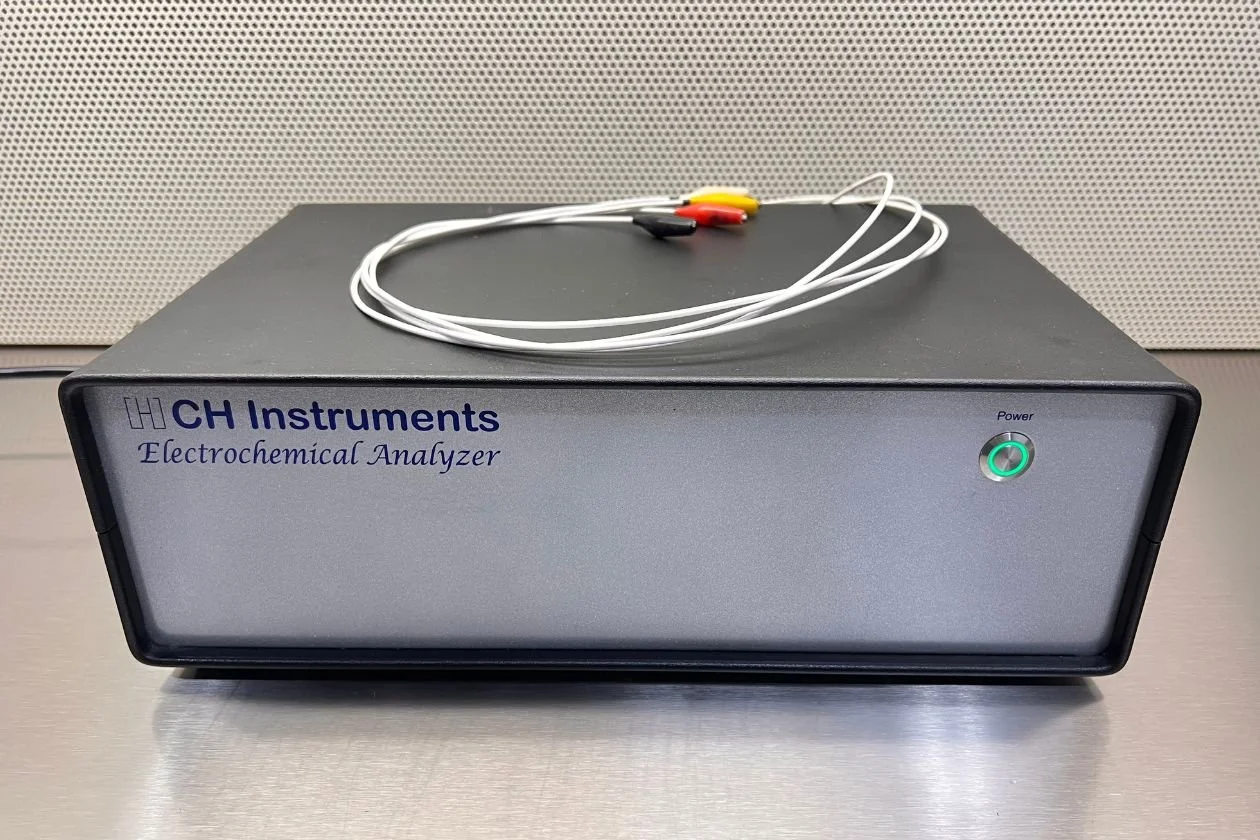

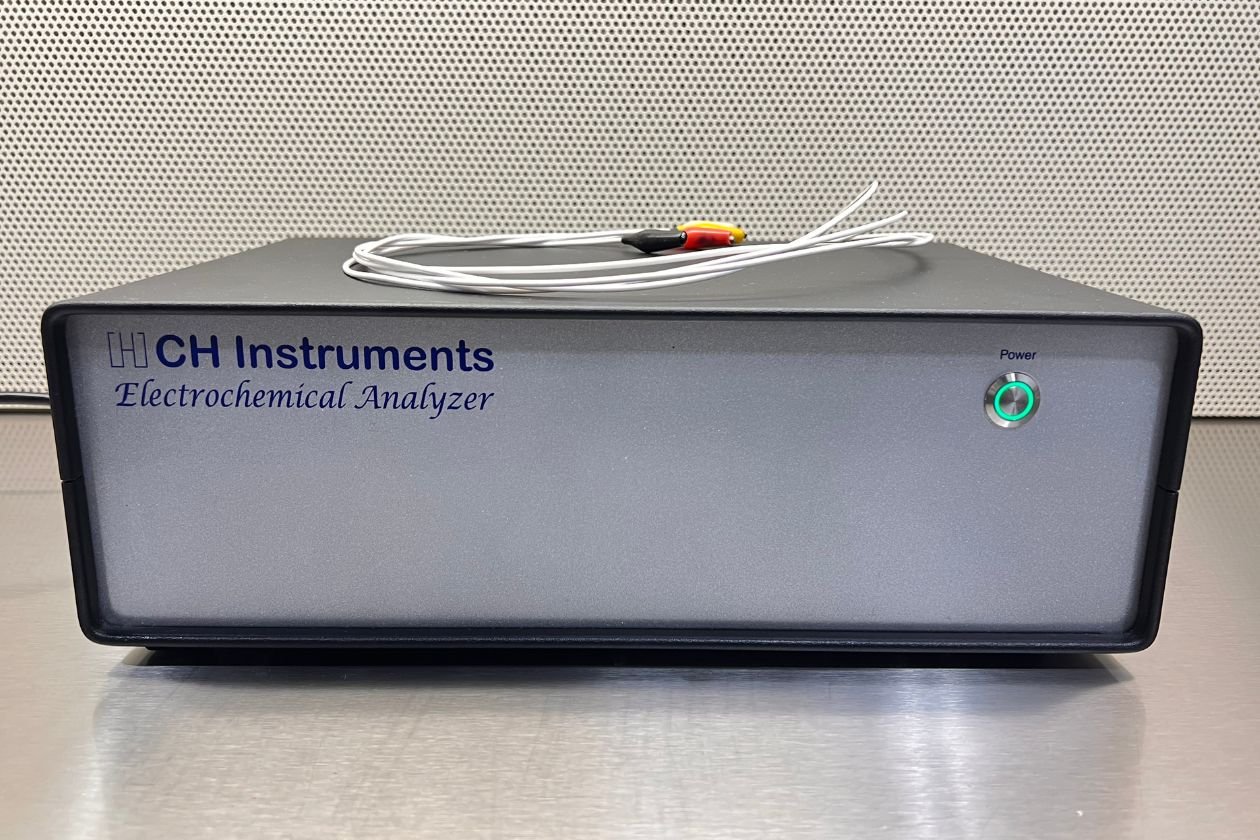

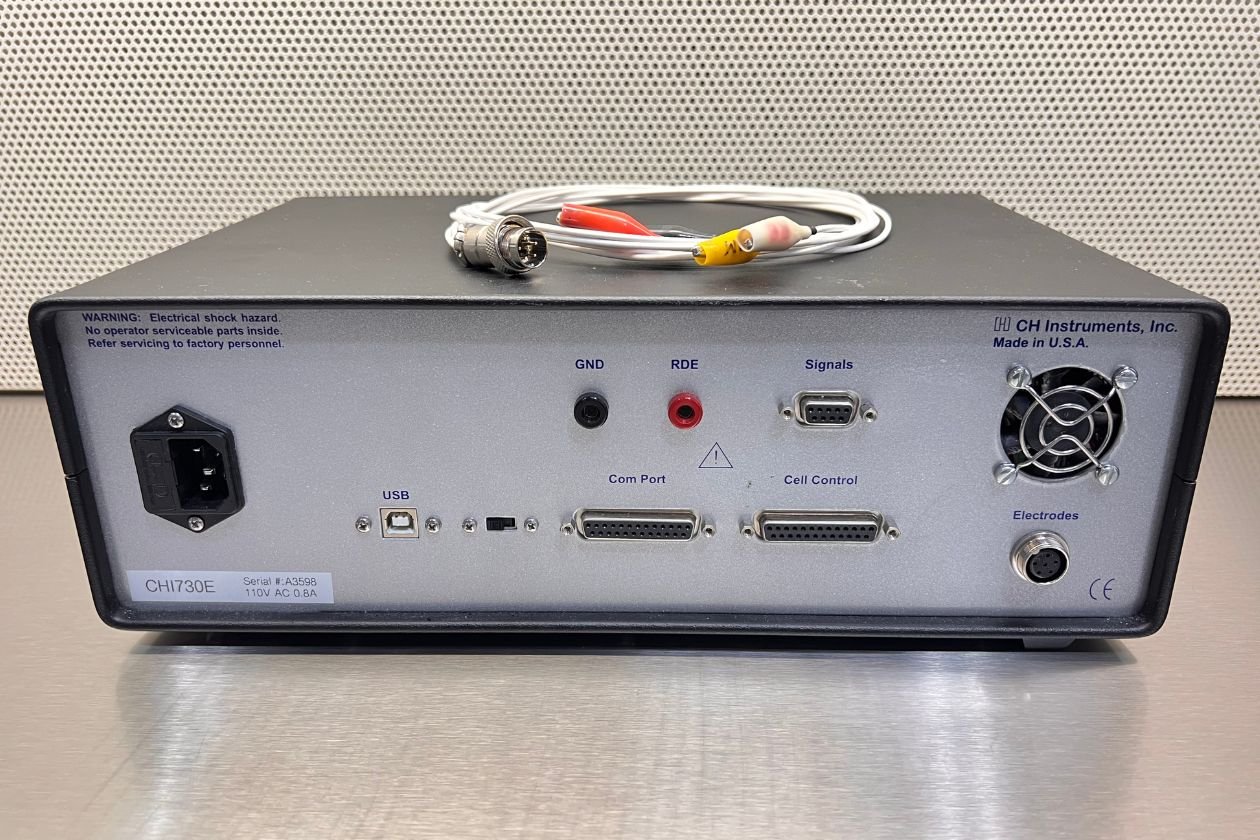

This Dual Channel Biopotentiostat / Galvanotstat was procured from a local biotech who changed their research focus and no longer needed this item. It is like new, having been purchased new and only used for a few months before the project was shut down. Was purchased to be used in combination with the BASi PalmSens Sensit BT potentiostats (also for sale). This unit to be used along with open source software, which is downloadable from the CH Instruments website.
More details here in the User Manual
If you would like to save on shipping and would like to pick up from our warehouse in San Diego, please contact us before purchase!
Details From The Manufacturer:
The Model 700F series are computerized general-purpose potentiostat / bipotentiostat / galvanostat instruments. A typical application involves a rotating ring-disk electrode (RRDE), but these systems can also be used for other applications where dual channel measurements are essential, such as dual channel electrochemical detection. The system contains a fast digital function generator, a direct digital synthesizer for high frequency ac waveforms, high speed dual channel data acquisition circuitry, (bi)potentiostat, and a galvanostat (only available in select models). The potential control range is ±10 V and the current range is ±250 mA. The instrument is capable of measuring current down to tens of picoamperes. The steady state current of a 10 μm disk electrode can be readily measured without external adapters. With the CHI200B Picoamp Booster and Faraday Cage (fully automatic and compatible with the 700F series), currents down to 1 pA can be measured (primary current channel only). These instruments are very fast. The function generator can update at a 5 MHz rate. Two high speed and high resolution data acquisition channels allow both current channels or current and potential (or external voltage signal) to be sampled simultaneously at 1 MHz rate at 16-bit resolution. The instrument provides a very wide dynamic range on experimental time scales. For instance, the scan rate in cyclic voltammetry can be up to 500 V/s with a 0.1 mV potential increment or 5000 V/s with a 1 mV potential increment. The potentiostat / galvanostat uses a 4-electrode configuration, allowing it to be used for liquid/liquid interface measurements and eliminating the effect of the contact resistance of connectors and relays for high current measurements. The data acquisition systems allow an external input signal (such as spectroscopy signals to be recorded simultaneously with electrochemical data). The instrument will also automatically re-zero both potential and current, so that periodic re-calibration of the instrument can be avoided.
The 700F series can do everything the 600F series can, and more. When used as a single channel potentiostat, the instrument is identical to the model 600F series. The bipotentiostat is realized by adding the second channel potential control and current measurement board to the model 600F series. There are also two filter stages, three extra gain stages, and channel selection circuitry on the board. When it is used as a bipotentiostat, the second channel can be controlled at an independent constant potential or to scan/step at the same potential as the first channel. In case of CV, it can also scan with a constant potential difference with the first channel. Techniques available for the second channel include CV, LSV, SCV, CA, DPV, NPV, SWV, and i-t.
The 700F series is the latest upgrade in our very popular 700 series.
The changes will be faster data acquisition, 16-bit resolution, two channel simultaneously AD conversion will be 2.5M Hz. It was 1M Hz two channel simultaneous ADC.
It allows CV at 2500V/s scan rate with 1 mV sample interval. It was at 1000V/s scan rate for 1mV sample interval.
CA sample interval is changed from 1 usec to 0.4 usec, two channel simultaneously.
The new model has faster data transfer with USB 3 port. The real time data transfer for CV is changed from 3V/s to 12V/s. For time based techniques (such as CA and i-t), the sample interval for real time data transfer is changed from 0.0003333 sec to 0.0001 sec.
AC impedance has a frequency up to 3M Hz.
We added current interrupt iR compensation, galvanostatic intermittent titration technique (GITT) and potentiostatic intermittent titration technique (PITT).
Two 16-bit highly stable bias circuits are used for current and potential bias, allowing wider dynamic range in AC measurements. These can also be used to re-zero the DC current output.
The instrument is capable of a wide variety of electrochemical techniques, and is available with integrated simulation and fitting software functions for both impedance and cyclic voltammetry. These features provide powerful tools for both electrochemical mechanistic studies and trace analysis.
We provide several different models in the 700F series. The model comparison table compares the different models. Other than what is listed, the specifications and features of these models are identical. Models 700F and 710F are basic units for mechanistic study and electrochemical analysis, respectively. Models 720F and 730F are comprehensive electrochemical analyzers. Model 750F and 760F are advanced electrochemical workstations.
More details and specifics located here
