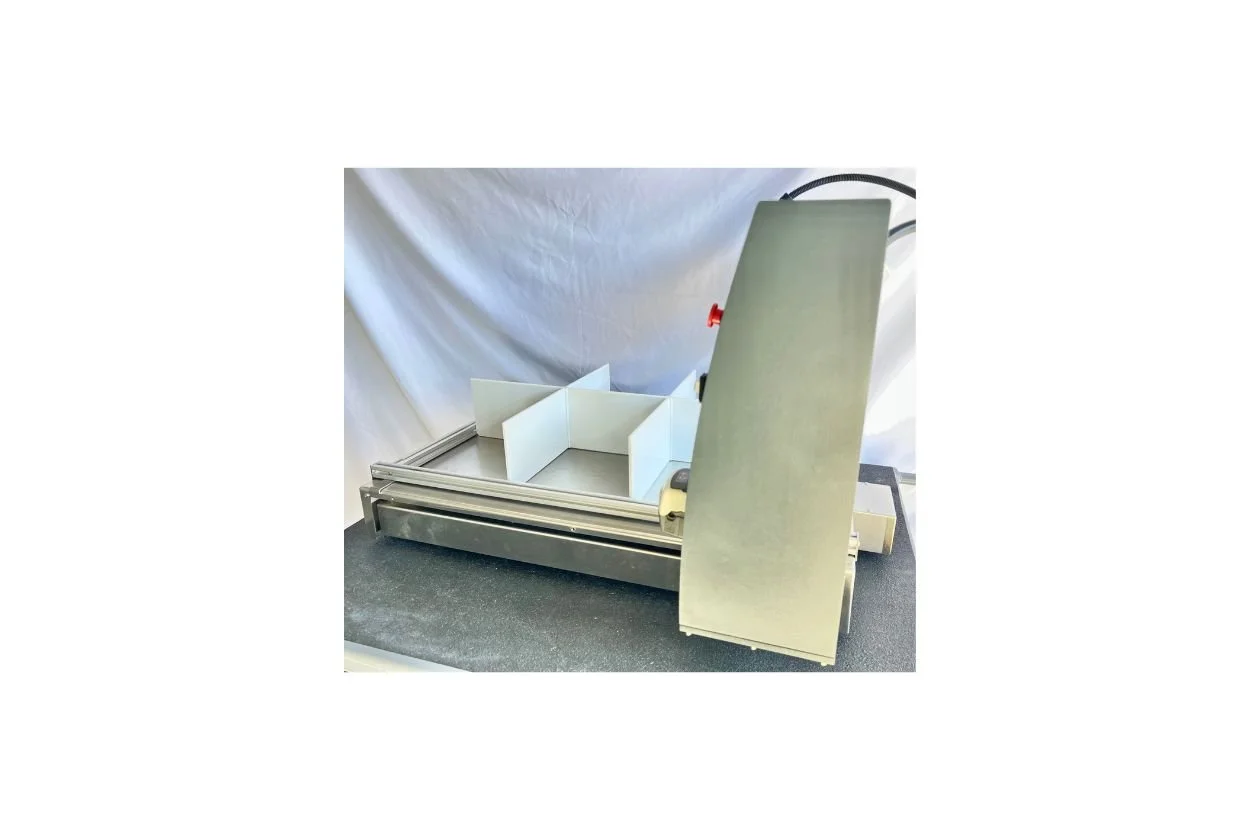

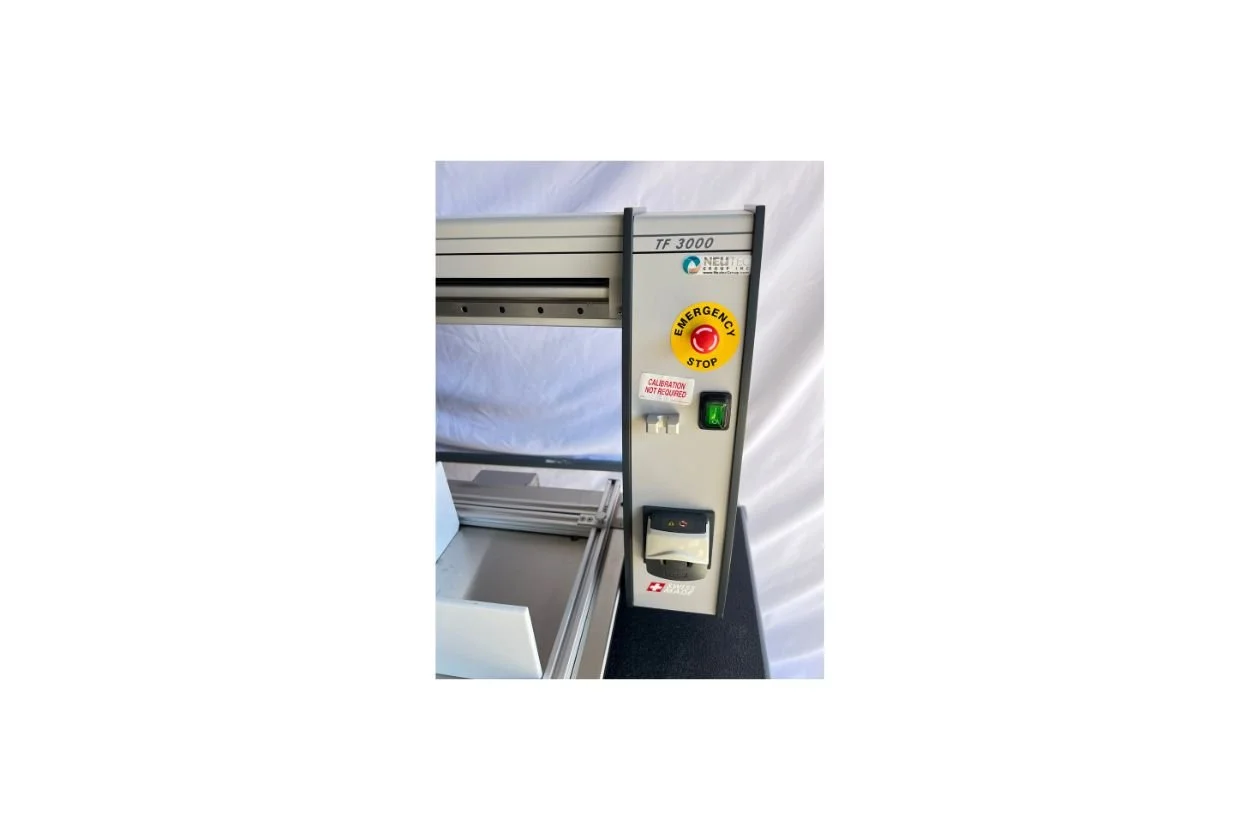

BioTool Swiss AG Tube and Bottle Filler XY TF-3000 includes variable rack frame and custom acrylic divider.
This item was procured from a local biotech company that went out of business. It was used as part of a GMP manufacturing tube filling and packing system. It is in Excellent condition, has been tested and operates as expected. Will need software available from manufacturer to program properly.
From the manufacturer:
The TF-3000 Biotool Swiss automated bottle and test tube filler, automates the repetitive, labor intensive process of filling of tubes and bottles. The tube filling machine set up is easy, just place the rack (you can practically use most commercial rack in the market – as long as it fits on the filling platform and the tubes are held tightly in place and kept in an upright straight position), provide staff training on the intelligent yet simple to use software about the position of your racks, size of the tubes, and requested filling volume, then allow the TF-3000 do the rest.
The TF-3000 tube filling machine comes as a system with an integrated built-in peristaltic pump that is controlled by the software.
The LED guided arm will start moving in precision from tube-to-tube, filling up the desired volume, thereby freeing the lab technician from this tedious time-consuming task. Bottle and test tube filler features include:
Free positioning of most racks*
Intuitive software
True walk away tube/bottle filling
Large 15.5 x 21 inch usable surface
Use of tubes/bottles up to 25cm high with a capacity of up to 1.6 liter/min
Optional costum laser cut platforms for quick exchange between jobs
Exterior Dimmensions (cm / inches): 56 x 80 x 14 cm
Base H: 63 cm (25 in)
Arm Height: 22 x 32.5 x 5.5 inches
Usable space: 39.5 x 53 cm , 15.5 x 21 inch
Max tube/bottle height: 25 cm / 9.85 Inch
Net Wieght: with no rack 29.7 Kg / 66 lb
Shipping Dim: 91.5 x 76 x 76 cm , 36 x 30 x 30 inch in wooden crate
Shipping Weight: 55 kg – 100 lbVoltage110 / 230V, 50/60Hz
