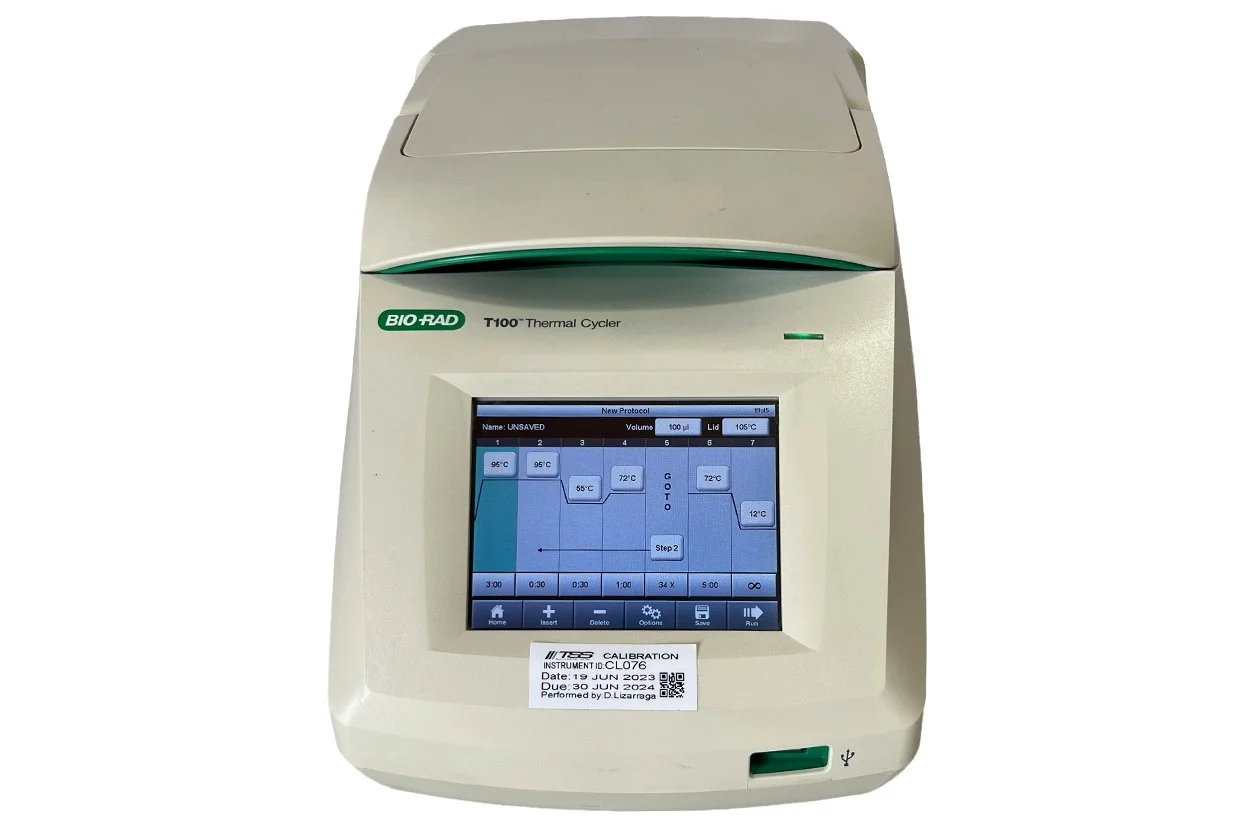

The Bio-Rad T100 Thermal Cycler is a compact, standalone 96-well PCR system designed for routine nucleic acid amplification, protocol optimization, and thermal gradient applications.
The instrument features a fixed 96-well block, 5.7-inch color touchscreen, graphical protocol programming, thermal gradient capability, heated lid, USB connectivity, and internal protocol storage.
This unit powers on successfully. The touchscreen responds, and the protocol creation and editing interface is accessible. A complete thermal cycling run was not performed; therefore, no claim is made regarding the current temperature accuracy, uniformity, gradient performance, ramp performance, or extended operation.
FEATURES

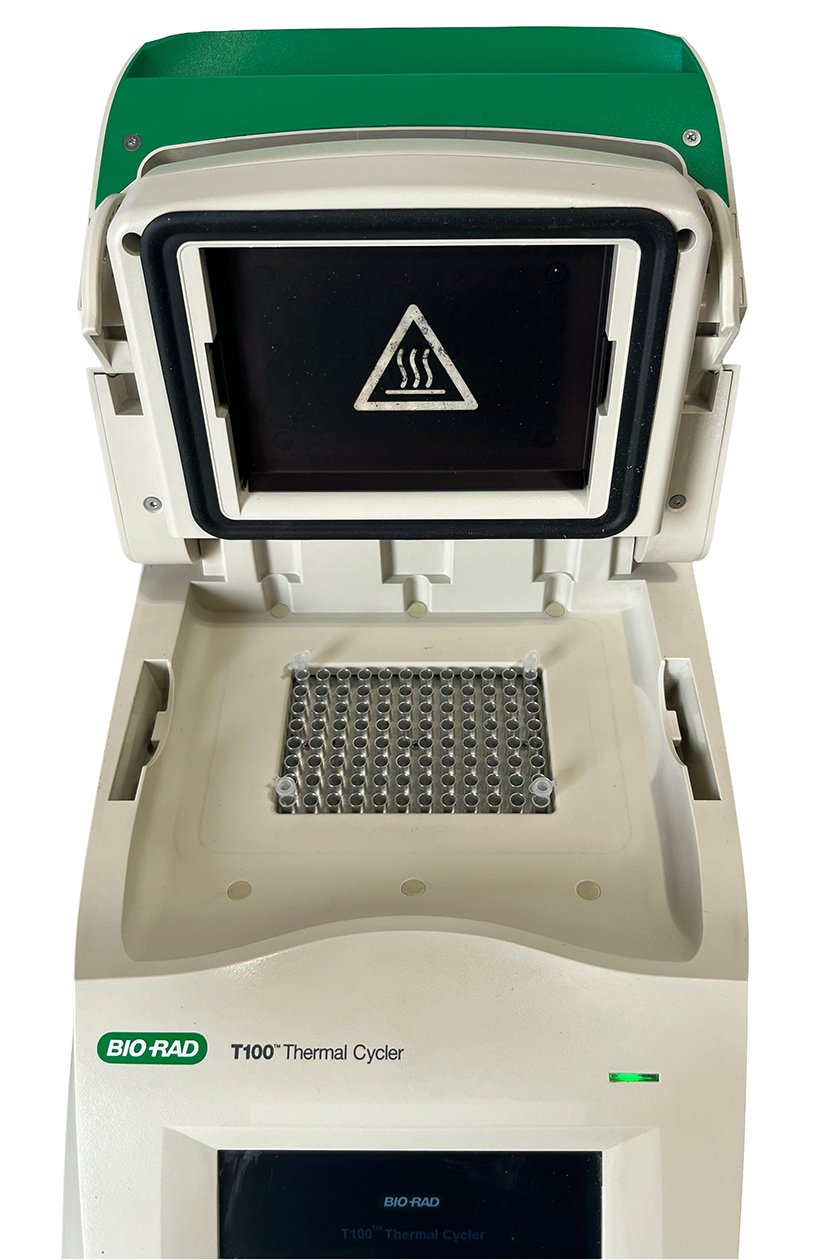

Fixed 96-well thermal block
Compatible with 0.2 mL PCR tubes and tube strips
Accommodates one 96-well PCR plate

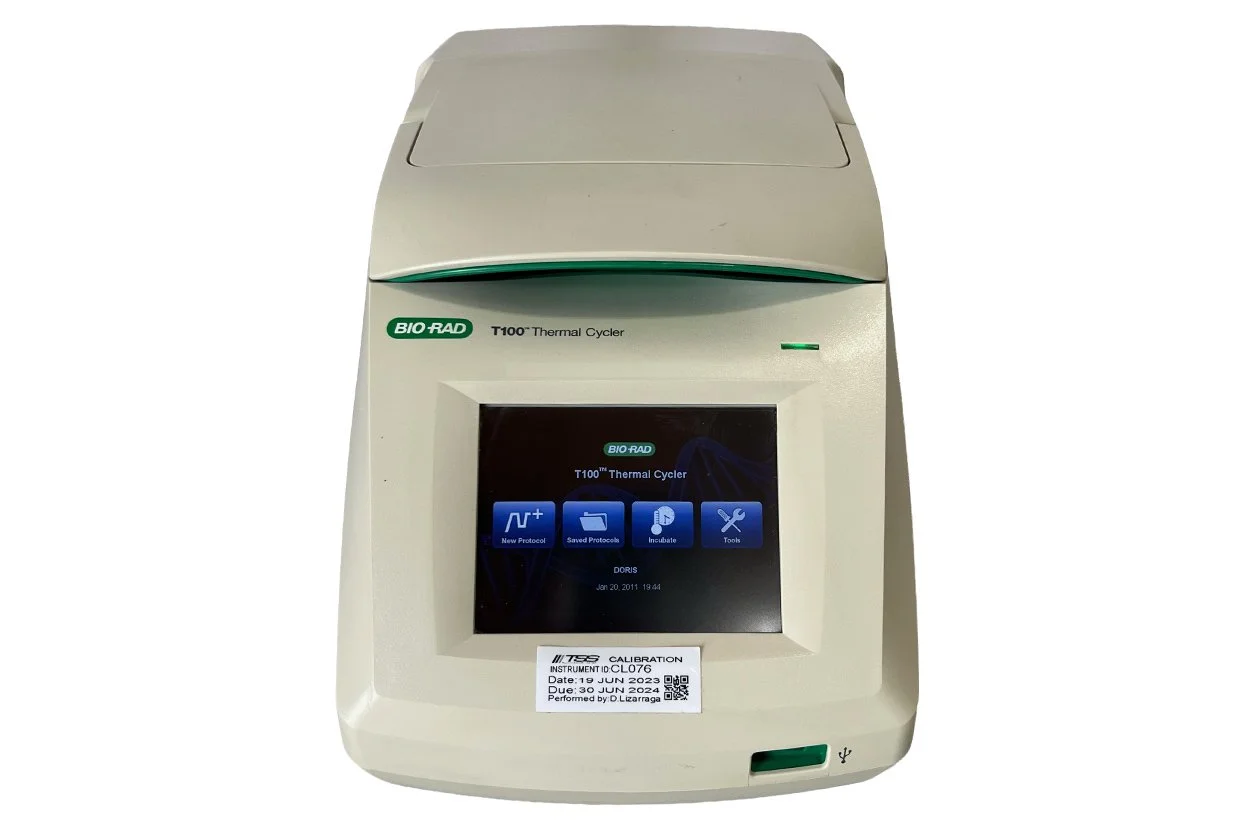

5.7-inch color touchscreen
Graphical protocol creation and editing
Thermal gradient capability
Adjustable heated lid
Standalone operation without an external computer
USB port for protocol transfer and storage
Internal storage for up to 500 typical protocols
Suitable for conventional PCR and cycle-sequencing applications
SPECIFICATIONS
Manufacturer: Bio-Rad Laboratories
Model: T100 Thermal Cycler
Product Number / MPN: 1861096
Serial Number: 621BR06402
Manufacture Date: March 2012
Thermal Cycler Type: Standard PCR Thermal Cycler
Number of Blocks: 1
Number of Wells: 96
Sample Capacity: 96 × 0.2 mL tubes, 0.2 mL tube strips, or one 96-well PCR plate
Temperature Range: 4°C to 100°C
Maximum Ramp Rate: 4°C/second
Average Ramp Rate: 2.5°C/second
Documented Temperature Accuracy: ±0.5°C of programmed target
Documented Temperature Uniformity: ±0.5°C well-to-well within 30 seconds
Gradient Range: 30°C to 100°C
Gradient Differential Range: 1°C to 25°C
Display: 5.7-inch VGA color touchscreen
Connectivity: USB Type A
Protocol Storage: Up to 500 typical programs; expandable using a USB flash drive

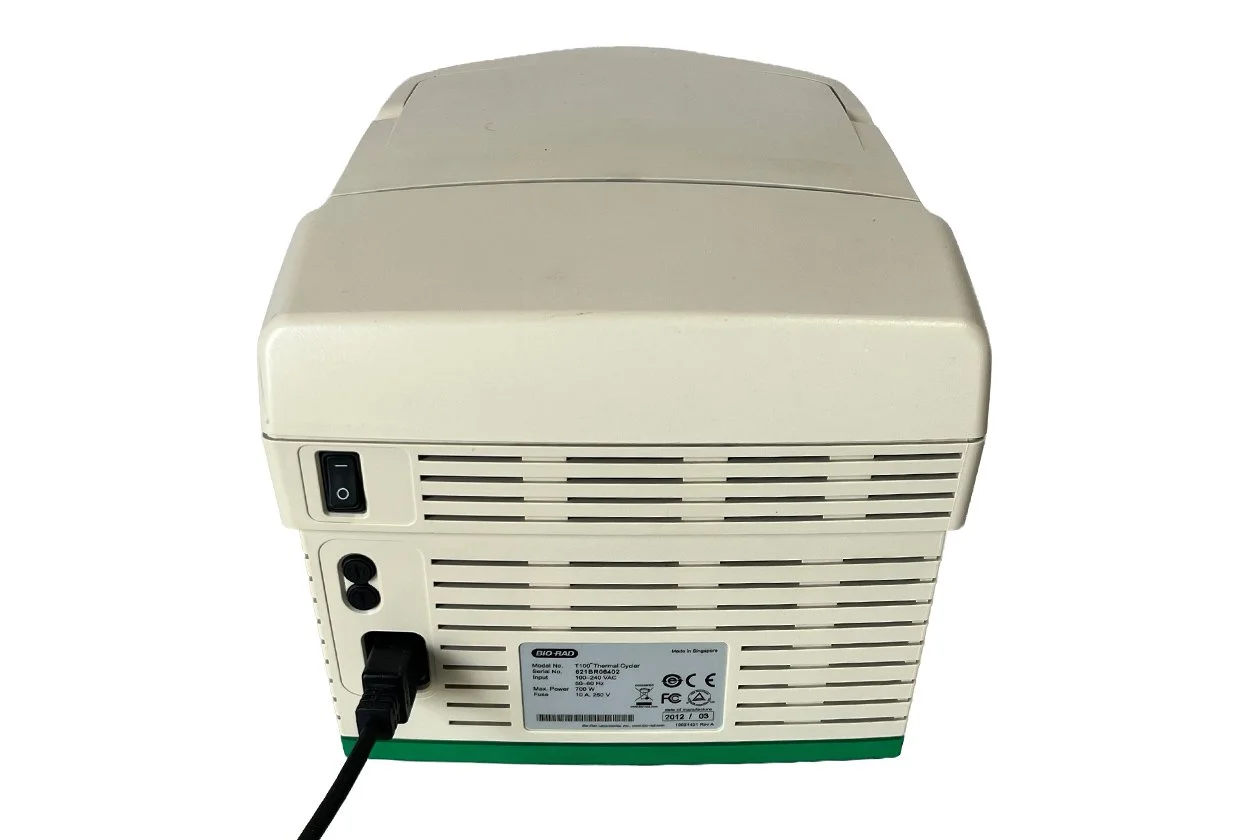

Input Voltage: 100–240 VAC
Frequency: 50/60 Hz
Maximum Power: 700 W
Approximate Dimensions: 10" W × 18" D × 9" H
Approximate Weight: 20 lb
Country of Manufacture: Singapore
Estimated Packaged Dimensions: 26" × 18" × 17"
Estimated Packaged Weight: 25 lb
The temperature performance specifications are manufacturer specifications for the T100 model and were not independently verified on this unit.
INCLUDED
Bio-Rad T100 Thermal Cycler, Product No. 1861096
Power cord
Includes all accessories shown in the photographs.
Additional PCR tubes, PCR plates, tube support ring, USB flash drive, manuals, and other accessories are not included.
CONDITION
Pre-owned with normal cosmetic signs of previous laboratory use, including minor marks and discoloration visible in the photographs.
The unit powers on, the touchscreen responds, and the protocol programming interface is accessible. A complete thermal cycle was not performed. Temperature accuracy, uniformity, gradient performance, ramp rates, heated-lid performance, and extended operation were not independently tested.
A calibration label is present showing a calibration date of June 19, 2023, and a due date of June 30, 2024. This calibration is expired. Current calibration status is unknown, and professional calibration is recommended before use in validated or regulated workflows.
Please review all photographs carefully for the exact cosmetic condition and configuration.
SHIPPING
This item will be carefully packaged to ensure safe delivery.
Shipping costs are calculated automatically based on the buyer's location.
Local pickup is available in San Diego, California.
