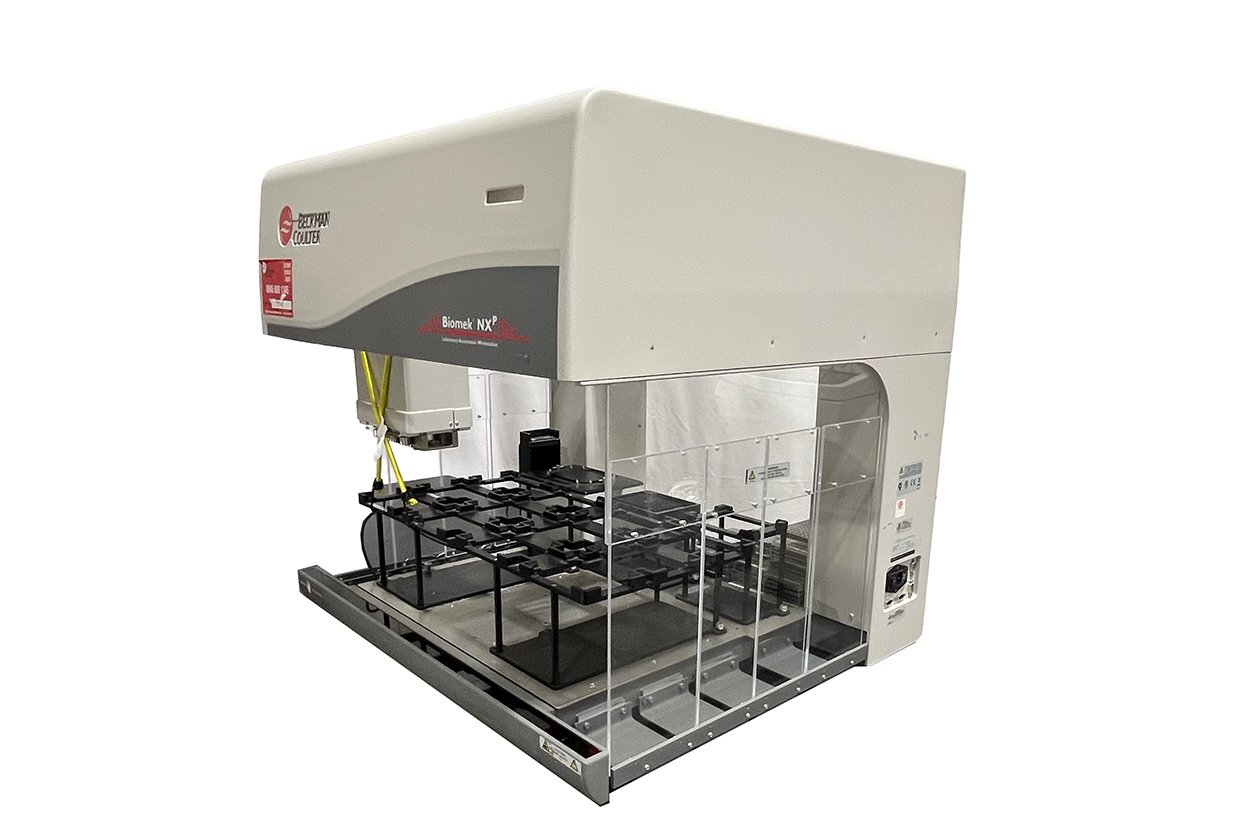

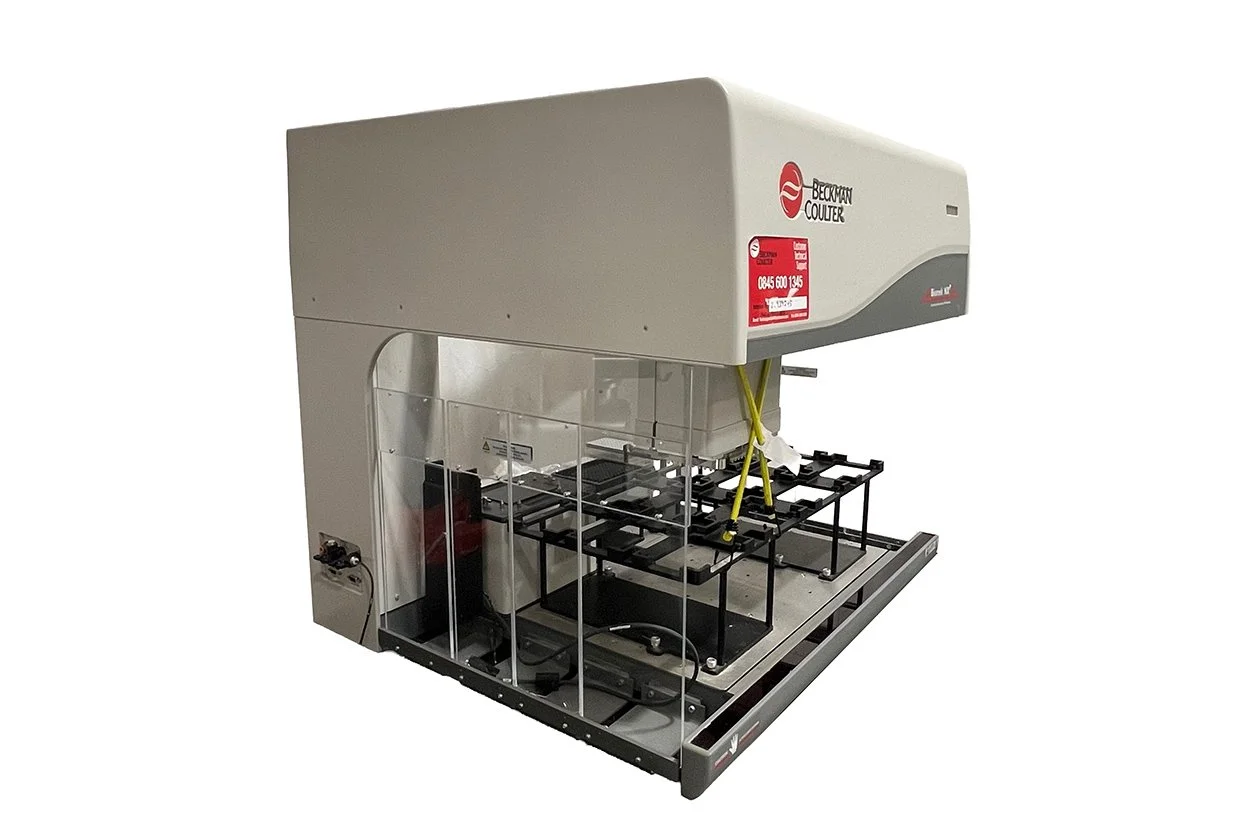

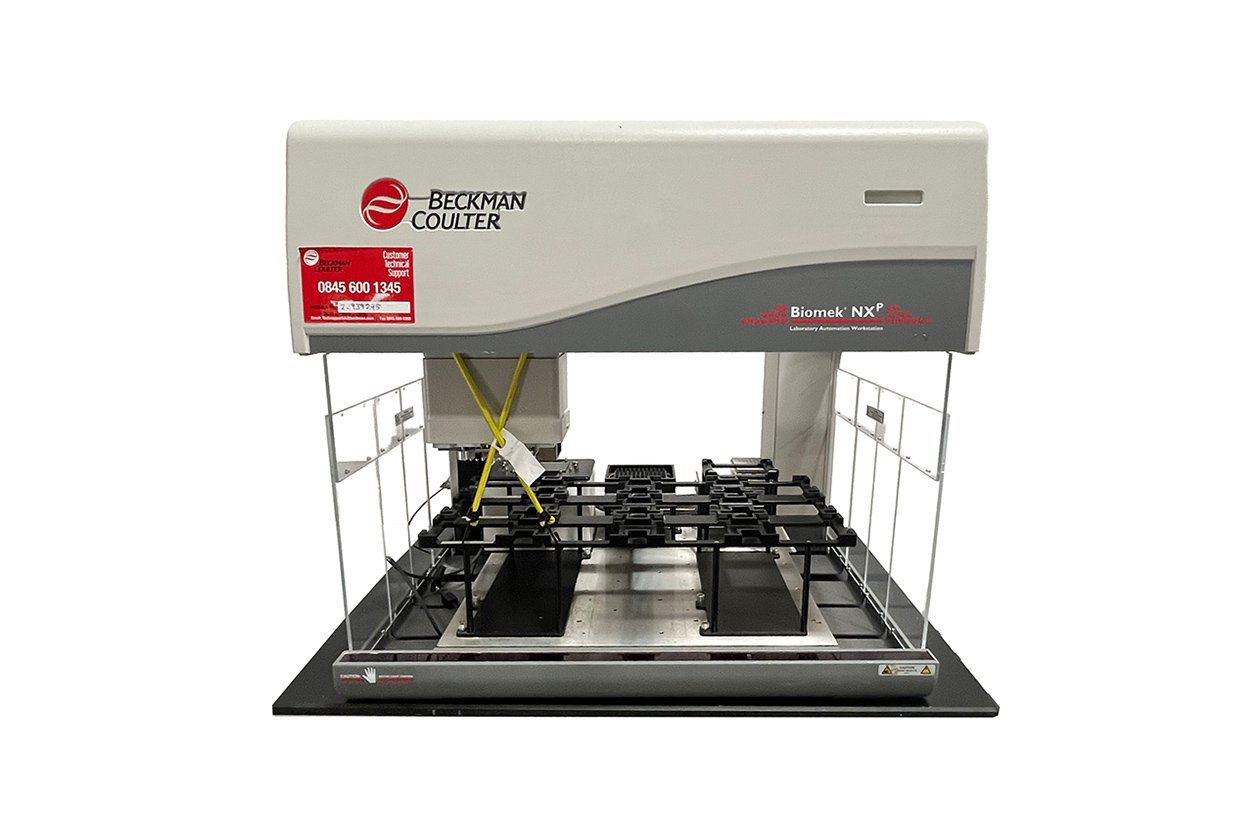

The Beckman Coulter Biomek NXP is an automated liquid-handling workstation configured with a 96 Mandrel 200 µL multichannel head.
This system includes its original control computer, licensed Biomek Software 4.1 installation, monitor, Device Controller, Tip Loader, AccuFrame tool, deck ALPs, cabling and laboratory accessories.
The unit powers on, passes its power-on self-test and establishes live serial communication with its original control computer. The software correctly identifies chassis serial number A318410874 and electronically recognizes the installed 96-channel pod and head serial number 6315.
The workstation does not complete its homing routine because the Y-axis home sensor is missing. The Y axis moves under power but travels to the mechanical end stop and generates a servo over-temperature fault. Testing was stopped to prevent damage. The grabber arm/gripper assembly is also missing.
The system is offered as-is for parts, repair or refurbishment. Do not attempt another homing cycle before installing and verifying the correct Y-axis home sensor.
FEATURES
Automated multichannel liquid-handling platform
96-channel pipetting configuration
200 µL multichannel head
Original control PC and licensed Biomek Software
Original configuration file matched to the chassis and head serial numbers
AccuFrame and wash-pump detection confirmed
Integrated safety shield and light curtain
Extensive deck ALPs and labware included
Universal 100–240 V electrical input
Detailed LabCycle Partners assessment report included
SPECIFICATIONS
Manufacturer: Beckman Coulter
Model: Biomek NXP Multichannel
Catalog Number / MPN: A31841
Chassis Serial Number: A318410874
Instance Number: 2293295
Manufacturing Date: February 29, 2016
Pod Type: Multichannel Pod
Head Type: 96 Mandrel 200 µL Head
Head Serial Number: 6315
Software: Biomek Software 4.1.41.0
SILAS Version: 4.1
Operating System: Windows 7 SP1

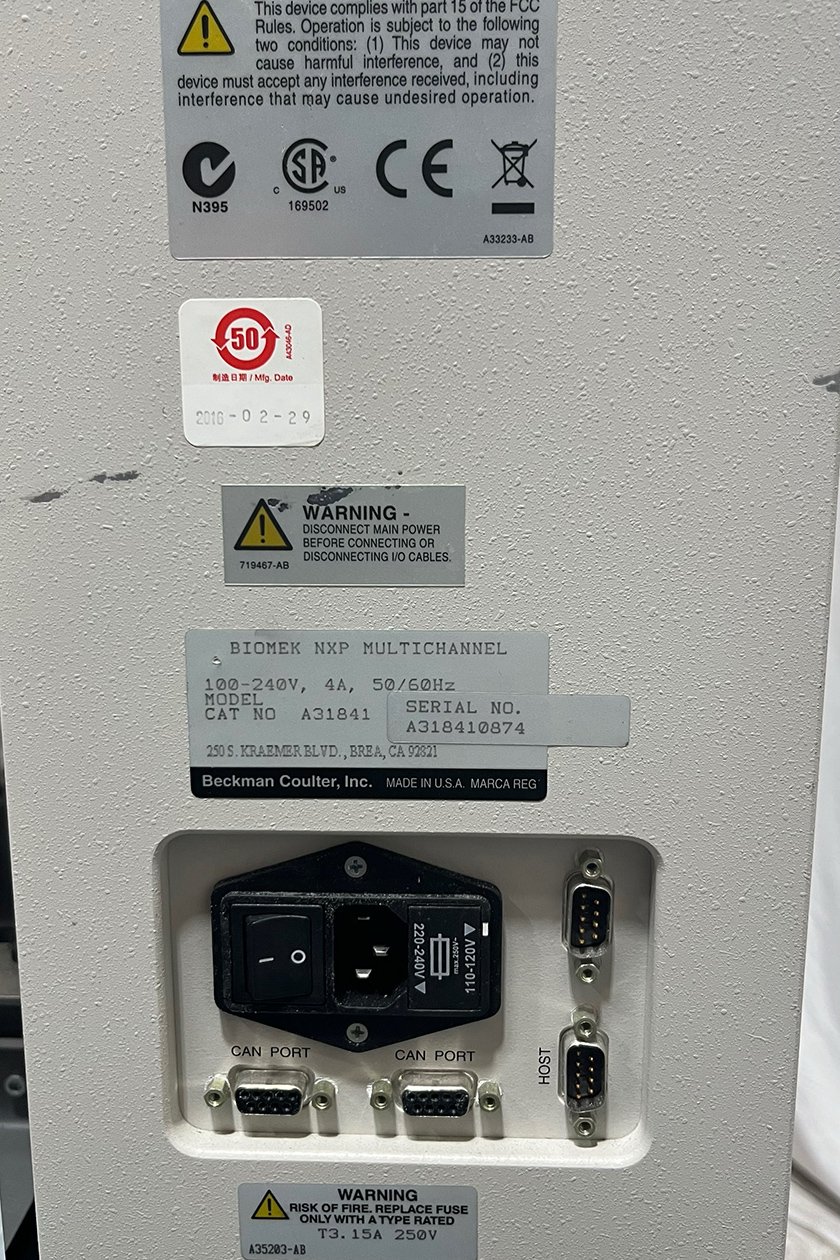

Electrical Rating: 100–240 V, 4 A, 50/60 Hz
Fuse: T3.15 A, 250 V slow-blow
Approximate Dimensions: 35" W × 31" D × 42" H
Approximate Net Weight: 190 lb / 86.2 kg
Country of Origin: USA
Last Recorded Vendor Validation: October 13, 2020
Last Recorded Configuration Update: October 12, 2022
Assessment Date: August 25, 2026
INCLUDED
Beckman Coulter Biomek NXP workstation
Safety shield
Light curtain
Multichannel pod
96 Mandrel 200 µL head
Original Windows 7 control PC
Monitor
Licensed Biomek Software 4.1.41.0 installation
Original instrument configuration file and backups
SILAS 4.1
Beckman Automation Troubleshooter
AccuFrame framing tool
Device Controller
Tip Loader

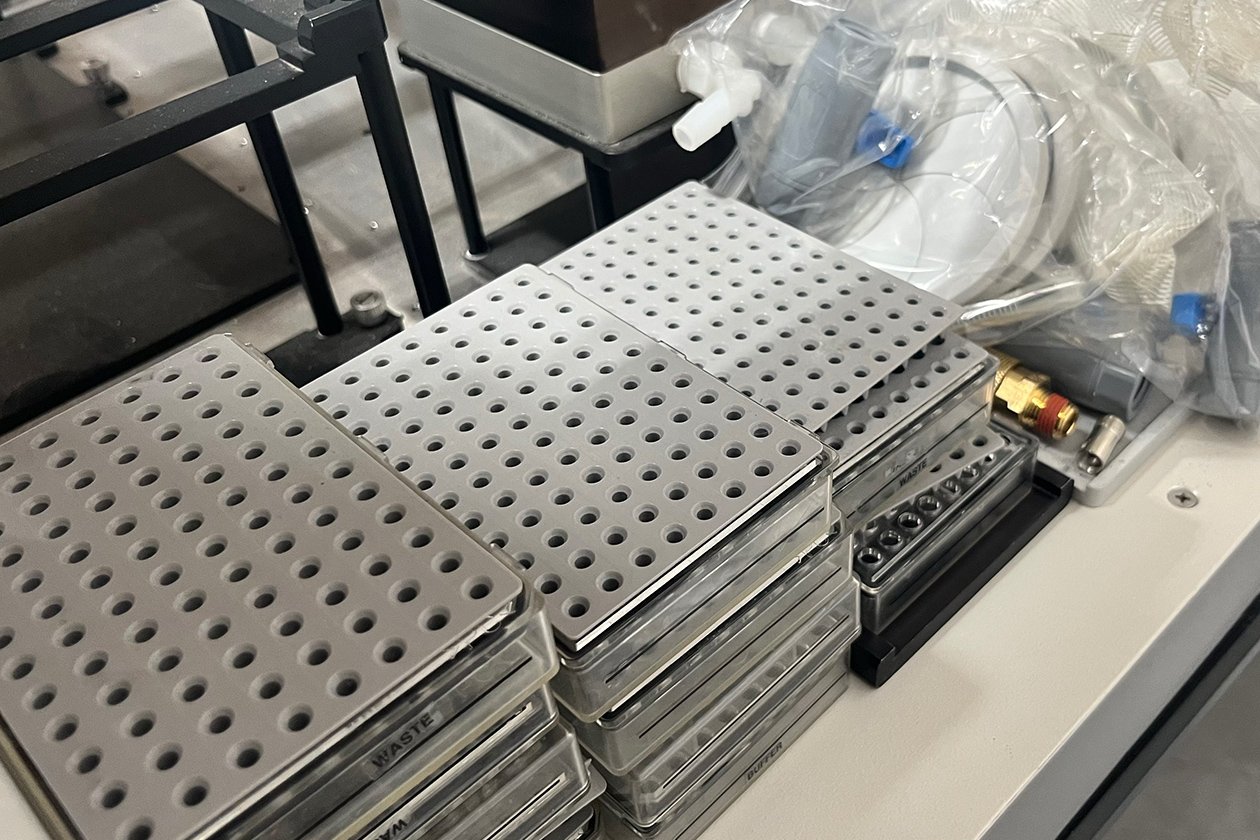

96-position wash station with dual pumps
Static and flat deck positions with locating pins
Tube-frame risers

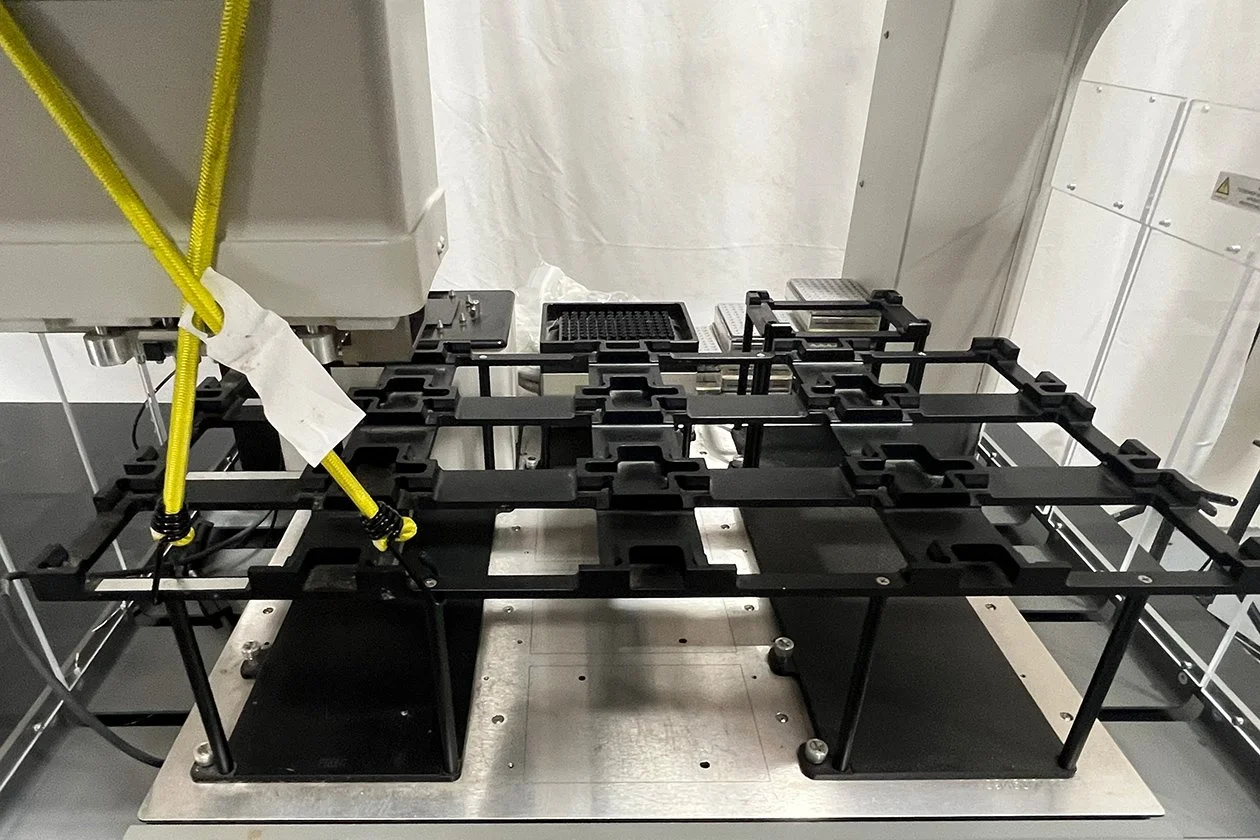

Multiple deck ALP frames
Beckman serial and CAN cables
96-format tip boxes
Aluminum tube racks and cooling blocks
Reservoirs
LabCycle Partners Instrument Assessment Report
Includes all accessories shown in the photographs.
The grabber arm/gripper assembly and Y-axis home sensor are not included.
Compressed-air supply, system fluids, reagents, calibration standards and additional consumables are not included.
CONDITION
For parts or repair. Sold as-is.
The following functions were verified:
Power-on self-test passed
Serial communication with the original control PC passed
Chassis serial-number identification passed
Electronic enumeration of the 96-channel pod passed
Head identification passed
AccuFrame detection passed
Wash-pump detection passed

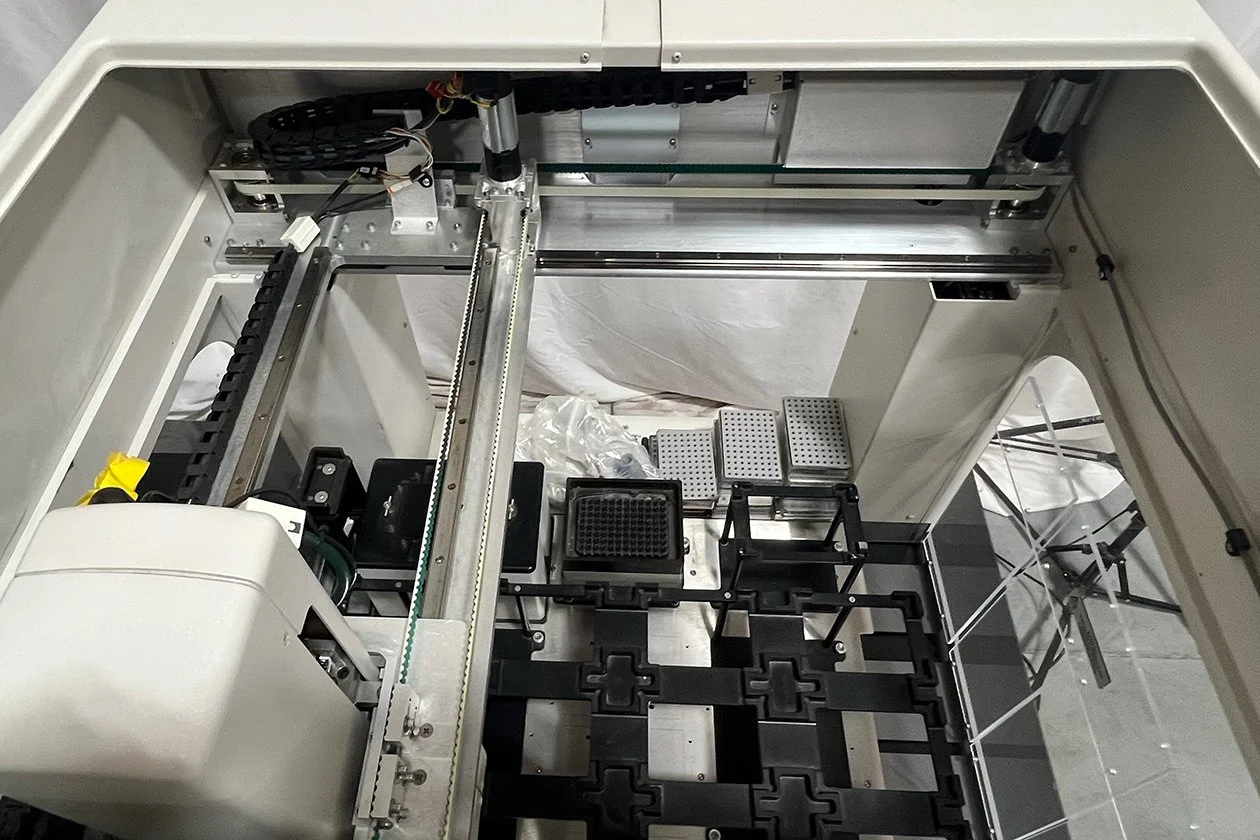

X, Y and Z axes moved smoothly through their full travel by hand
Y axis moved under its own power
All 96 mandrels are present, with none observed bent or missing
Biomek Software launched without a license prompt or dongle
Safety shield is present and intact
The instrument does not complete its homing routine. The missing Y-axis home sensor prevents detection of the home position, causing the Y axis to travel into the mechanical end stop and generate a servo over-temperature fault.
The grabber arm/gripper assembly is also missing.
Pipetting accuracy, tip loading, wash-station operation, Device Controller operation, Tip Loader operation, light-curtain function, axis calibration, deck framing and extended operation were not tested.
No warranty or guarantee of repairability is expressed or implied. Please review the photographs and assessment information carefully before purchasing.
SHIPPING
This item requires freight shipping due to its size, weight, and sensitive components.
Freight shipping is available throughout the United States. Shipping costs are quoted separately based on destination and delivery requirements.
Local pickup is available in San Diego, California.
Please complete our Freight Shipping / Local Pickup Form before purchasing so we can determine the appropriate shipping arrangements and provide an accurate freight quote.
