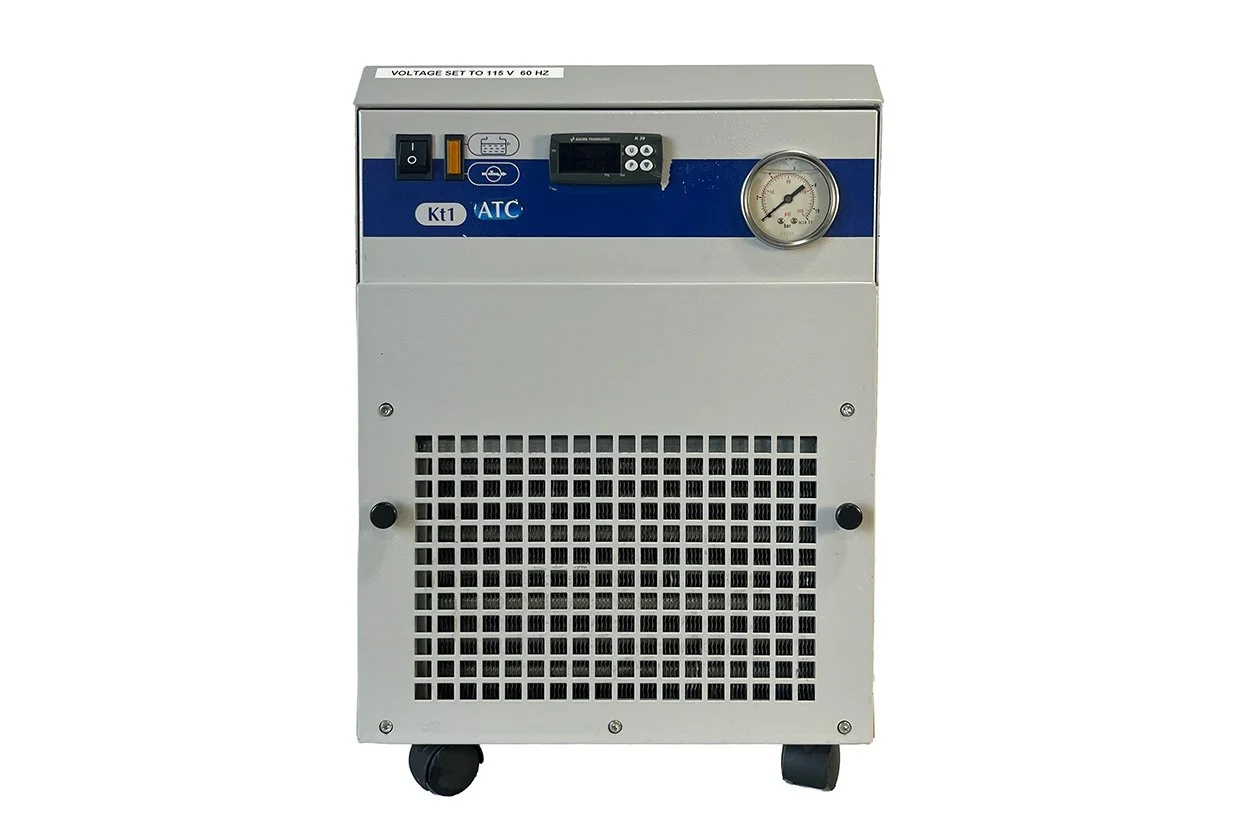

The Applied Thermal Control KT1N321 is a compact recirculating laboratory chiller designed to provide controlled cooling for laboratory, analytical, scientific, and industrial equipment.
Part of ATC’s KT1 series, this unit combines a refrigerated cooling system, integrated fluid reservoir and circulation system, digital temperature controller, and front-mounted pressure gauge in a durable steel enclosure with integrated casters.

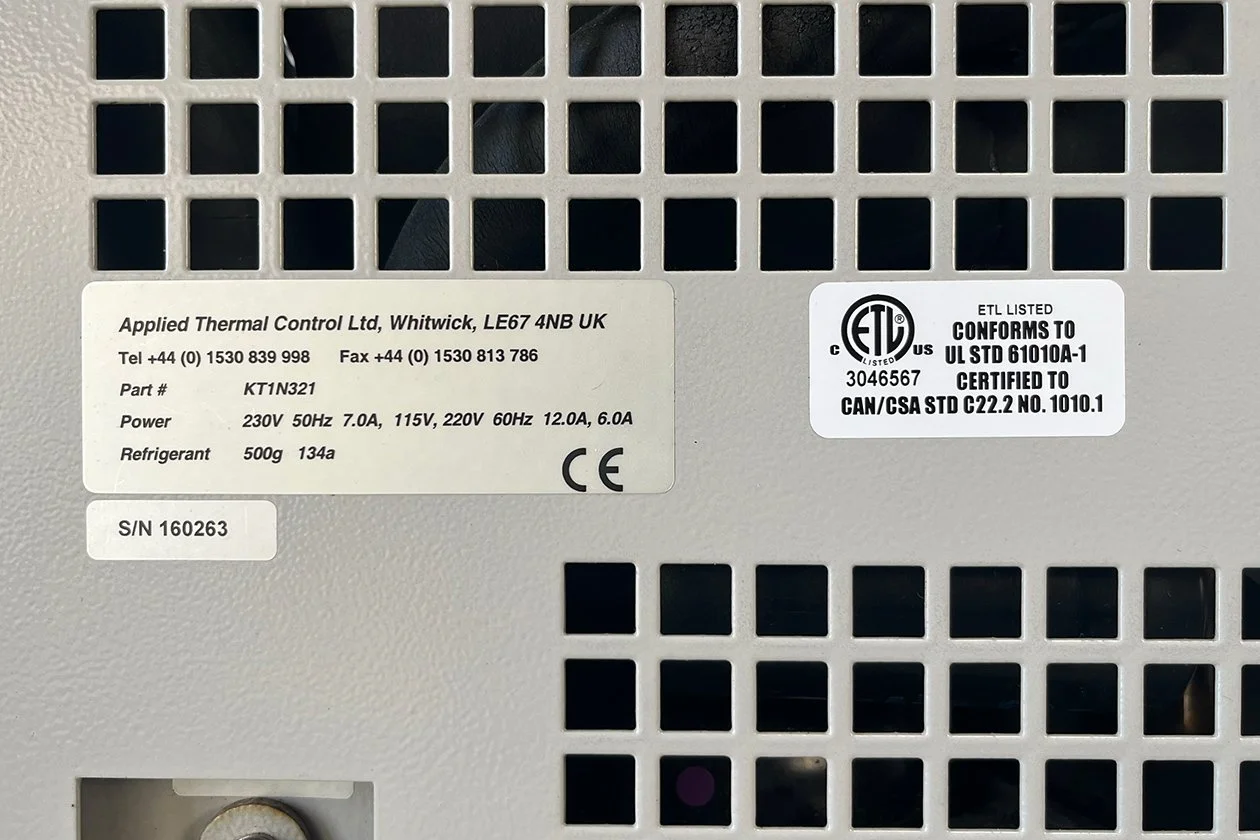

The unit is identified as Part Number KT1N321, Serial Number 160263. The manufacturer’s nameplate specifies multi-voltage electrical capability, and this particular unit is currently configured for 115 V / 60 Hz operation.
1 kW nominal cooling capacity
Recirculating refrigerated cooling system
Digital temperature controller
Front-mounted pressure gauge
Integrated coolant reservoir with top fill access

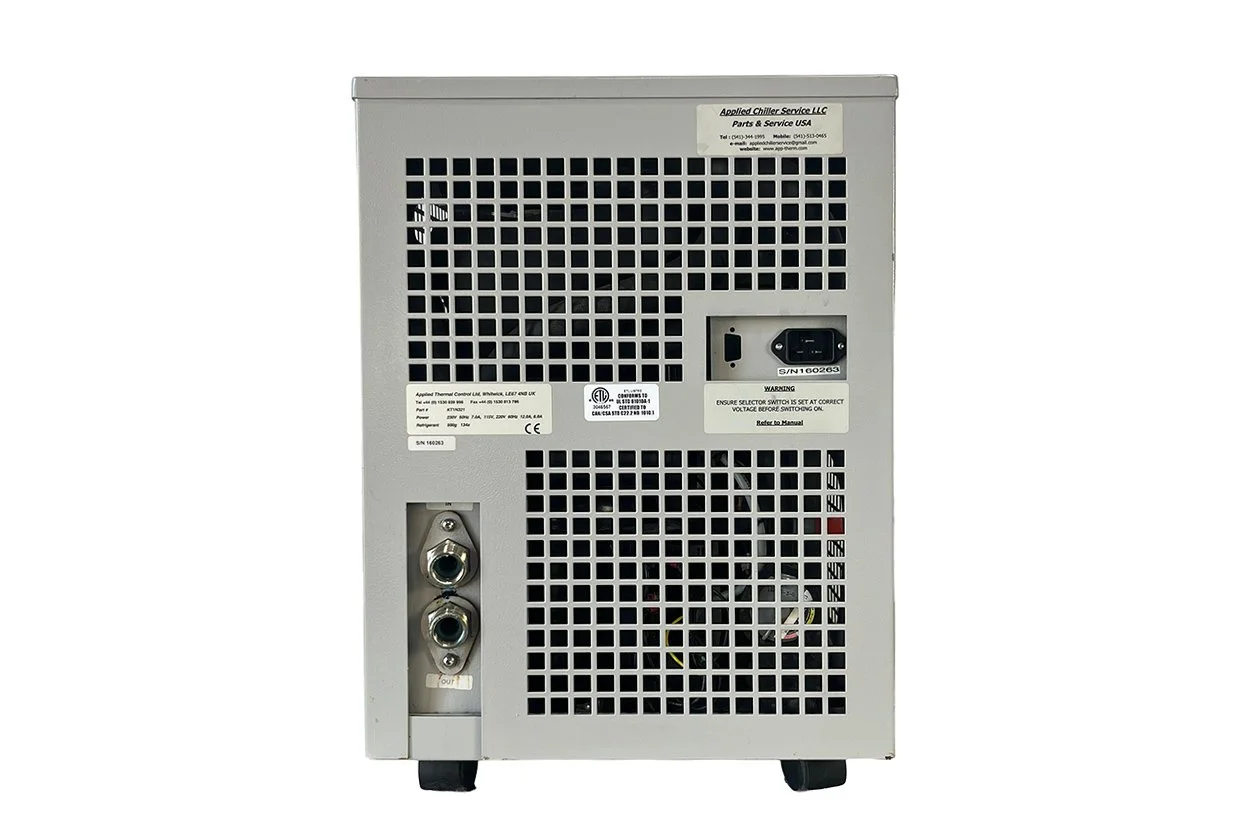

Rear fluid inlet and outlet connections
Ventilated steel enclosure
Integrated casters for mobility
Configured for 115 V / 60 Hz operation
R134a refrigerant
ETL Listed and CE marked
Manufacturer: Applied Thermal Control Ltd. (ATC)
Model / Part Number: KT1N321
Series: KT1
Serial Number: 160263
Cooling Capacity: 1,000 W nominal
Temperature Range: +4°C to +35°C
Temperature Stability: ±0.1°C
Electrical Rating: 230 V, 50 Hz, 7.0 A / 115 V or 220 V, 60 Hz, 12.0 A or 6.0 A
Current Configuration: 115 V / 60 Hz
Refrigerant: R134a
Refrigerant Charge: 500 g
Approx. Dimensions: 370 × 450 × 540 mm (14.6 × 17.7 × 21.3 in)
Approx. Net Weight: 56 kg (123.5 lb)
Certifications / Markings: ETL Listed, CE
Includes all accessories shown in the photographs.
This is a pre-owned Applied Thermal Control KT1N321 recirculating chiller in good cosmetic condition with normal signs of previous professional use.
The exterior shows minor cosmetic wear consistent with prior laboratory or professional use. Please review all photographs for additional details regarding physical condition.
The unit is currently configured for 115 V / 60 Hz operation, as indicated by the labels on the equipment.
Freight shipping is required due to the size, weight, and/or sensitive components of this equipment.
Freight shipping is available throughout the United States. Shipping costs are quoted separately based on destination and delivery requirements.
Local pickup is available in San Diego, California.
Please complete our Freight Shipping / Local Pickup Form before purchasing so we can determine the appropriate shipping arrangements and provide an accurate freight quote.
