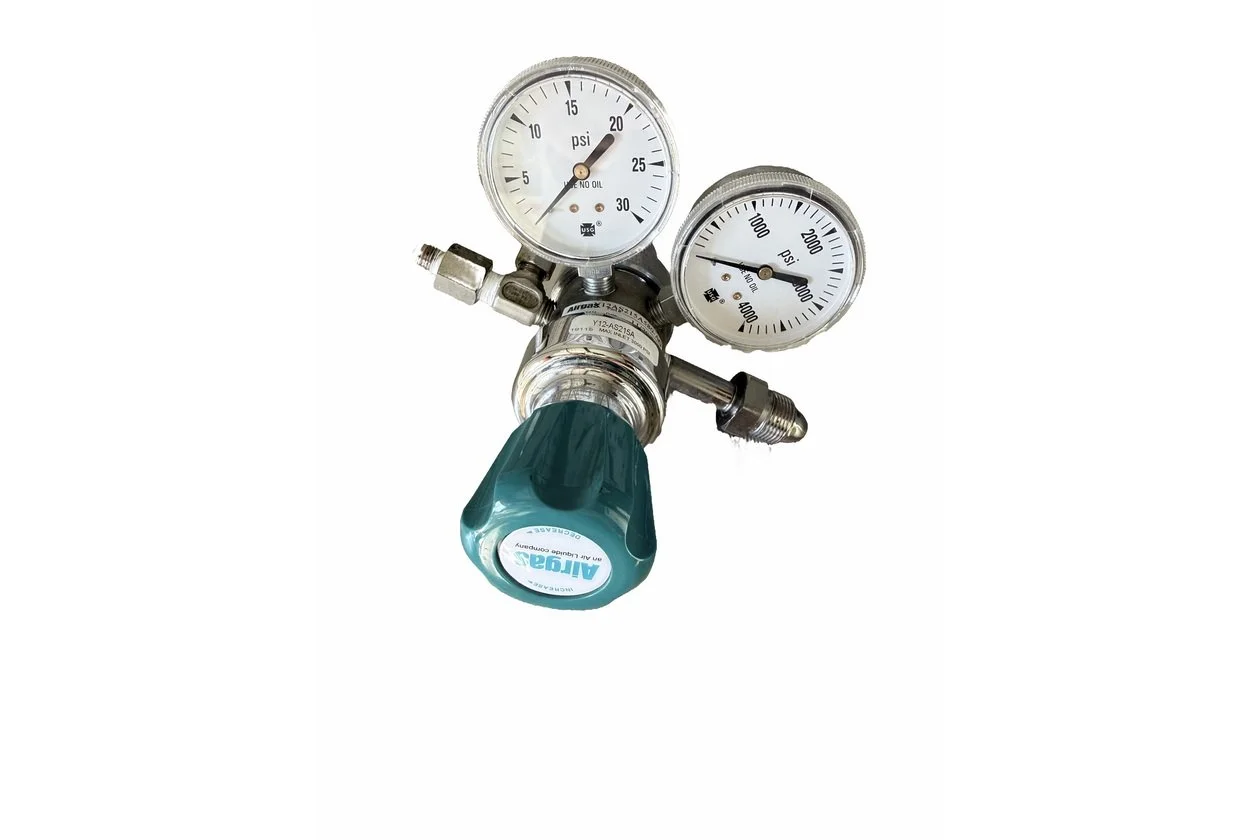

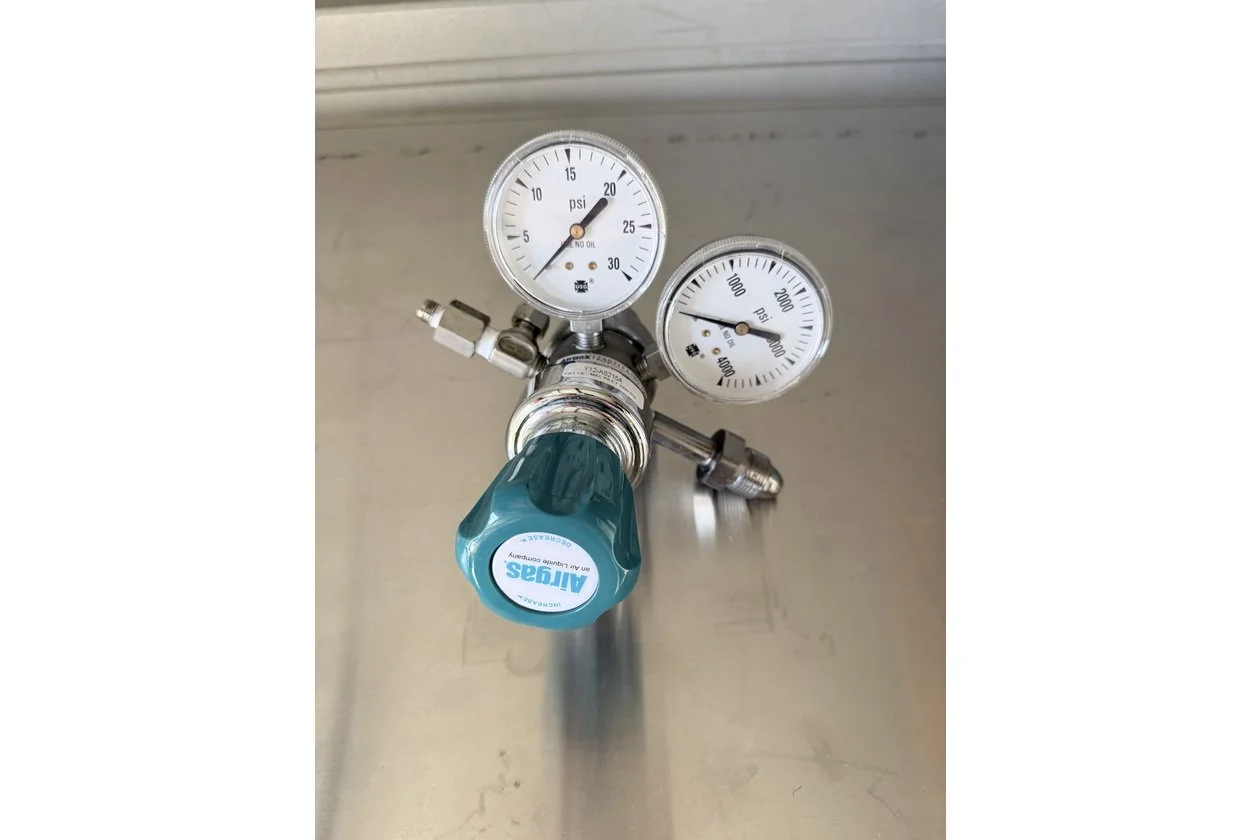

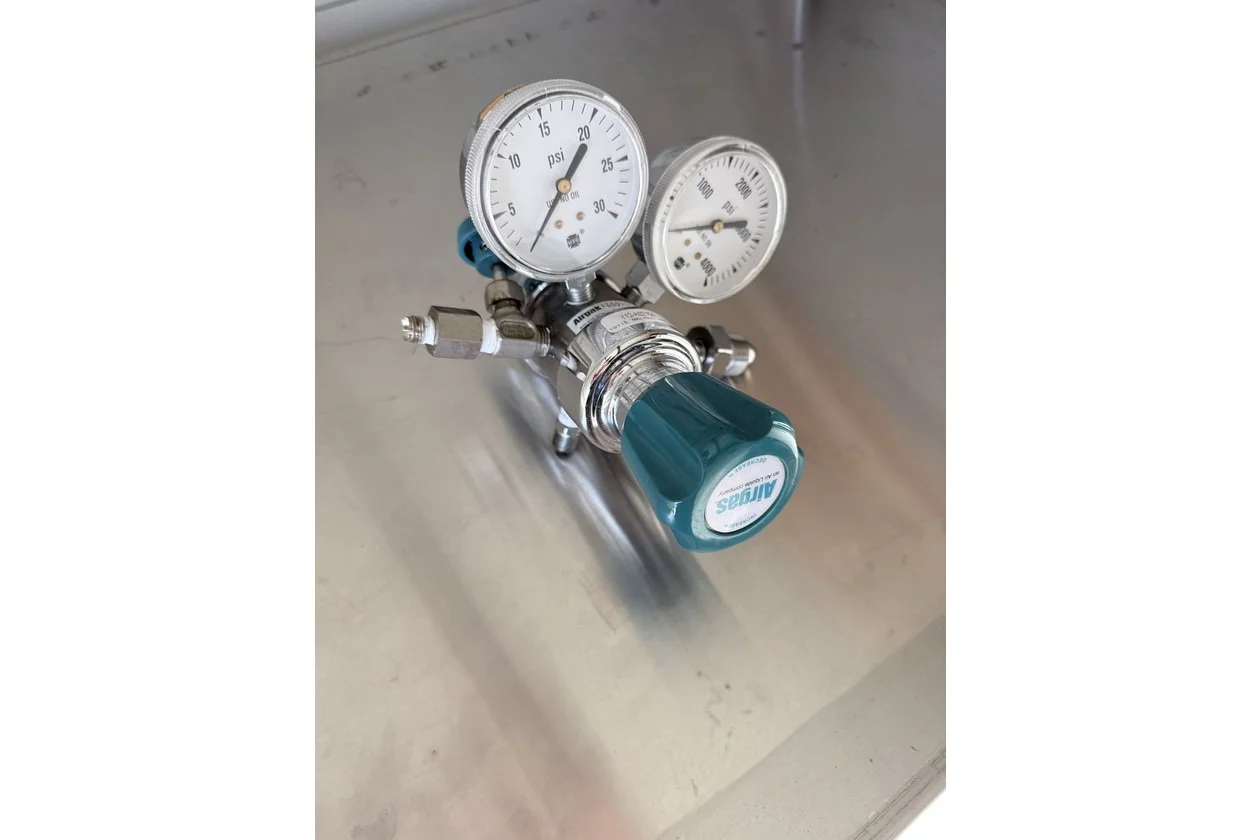

From the manufacturer: These general-purpose, two-stage regulators are recommended for analytical, noncorrosive, general plant, pilot plant and maintenance shop applications. The external chrome plating allows the exterior surfaces to maintain a good appearance in outdoor environments. Two-stage design, with its convoluted stainless steel diaphragms, provides precise pressure control from full cylinder to almost empty. A preset safety relief valve makes these regulators suitable for use only with non corrosive gases.
Filtered Seat (10 micron) for added gas stream purity and extended service life.
302 SS Stainless Steel Diaphragms provide precise pressure control.
Large, 2½" Nickel-Plated Brass Gauges for accurate, easy reading.
Outlet Needle Valve.
Preset Safety Relief Valve prevents excessive pressure buildup.
Encapsulated Filtered Seat Assembly protect parts, extend service life.
Nickel-Plated Bar Stock Body provides long-lasting good looks - will not tarnish.
Maximum Inlet Pressure: 3,000 psig
Maximum Rated Inlet Pressure: 3,500 psig
Capacity: 500 scfh @ Max Delivery Pressure
Delivery Gauge Range: 0 - 30 psig
Outlet Pressure Ranges: 0 - 25 psig
Flow Capacity: Cv= 0.15
Ports: 1/4" FNPT
Weight: 6.5 lbs
Designed Leak Rate: Bubble-Tight (helium)
Ambient Operating Temperature: -40° F to +165° F
Decay Inlet Characteristic: .09 psi/100 psi
Body: Chrome Nickel-Plated Brass

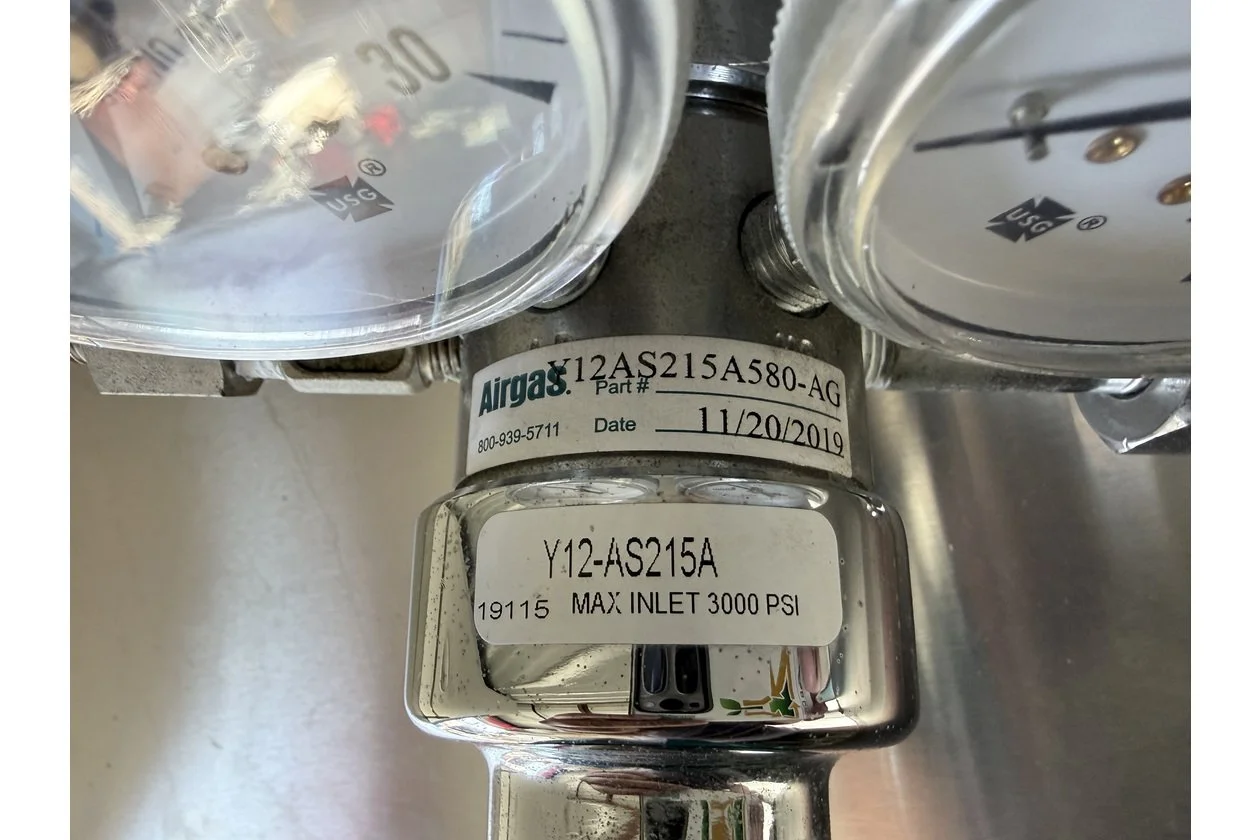

Model
» AS215A580
Usage
» Analytic Series
» General Purpose
Material
» Brass
Regulator Type
» Two Stage Regulator
Inlet Connection
» 1/4" FNPT
Outlet Connection
» 1/4" MNPT
Max Outlet Pressure
» 25 psig
Gauge Diameter
» 2 1/2"
If you are in the Southern California area and would like to save on shipping costs, please contact us before purchase to coordinate local pickup!
